Прозрачные цветные поликарбонатные панели lexan из пластика твердый поликарбонатный полый гофрированный лист для кровли теплицы

Описание и отзывы

Трекер стоимости

Характеристики

                                 raw material roofing sheet plastic diamond plate sheets





The Details for plastic diamond plate sheets :
Thickness:	2.5mm-10mm
Sheet Size:	1220/1820/1560/2100*5800mm(Width*Length)
	or 1220/1820/1560/2100*11800mm(Width*Length)
Color:	Clear/Opal/Light Green/Green/Blue/Lake Blue/Red/Yellow and so on.
Weight:	From 2.625kg/m2 to 10.5kg/m2
Lead Time:	5 days one container
MOQ:	500 square meter for each thickness
Packing Details:	protective film on both sides of sheet+waterproof tape
Plastic diamond plate sheets Loading details:
Thickness(mm)	Sheet size(mm)	Quantity (1*20'GP)	Sheet size(mm)	Quantity (1*40'HQ)
4	2100*5800	550 pcs	2100*6000	1300 pcs
6	2100*5800	380 pcs	2100*6000	880 pc
8	2100*5800	290 pcs	2100*6000	670 pcs
10	2100*5800	235 pcs	2100*6000	535 pcs
Material Characteristics of plastic diamond plate sheets :
No.	Characteristics		Unit	Data
1	Impact Strength		J/m	850
2	Light Transmission		%	85
3	Specific Gravity		g/cm3	1.2
4	Coefficient of Thermal		mm/m °c	0.065
5	Service Temperature		°c	-40 to +120
6	Heat Conductivity		W/m2°c	2.3-3.9
7	Tensile Strength		N/mm2	>60
8	Flexural Strength		N/mm2	100
9	Modulus of Elasticity		MPa	2400
10	Tensile Stress at Break		MPa	>65
11	Elongation at Break		%	100
12	Specific Heat		kj/Kgk	1.17
13	Heat Deflection Temperature		°c	140
14	Effect of Soundproof		dB	-20
Applications of plastic diamond plate sheets:
1) Telephone booths
2) Road signs and advertisements
3) Billboards on lamp boxes
4) Lighting and partition walls for banks, hospitals and stations

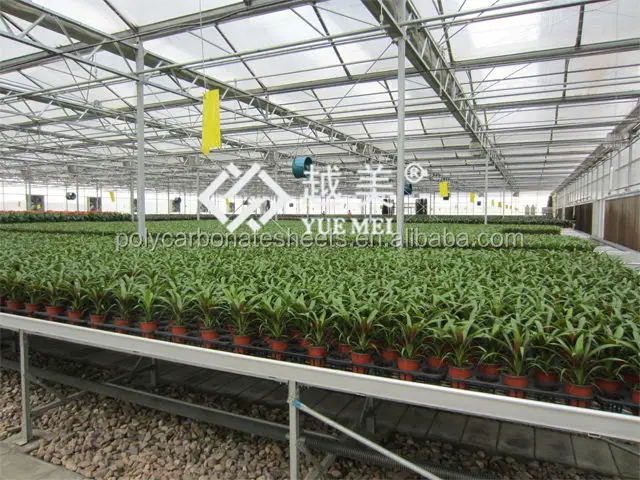

5) Greenhouses for vegetables, zoos, aquatic products
6) Sound and heat insulation for expressways

Plastic diamond plate sheets for your reference:





Our factory views:



















♥ Warmly welcome to inquiry the pc sheet from Emmy!



♥ Your satisfaction is our goal.



♥ Emmy Skype: yuemeitrade3  or Tel: 0086-15018492006
