Масляный нагреватель 12 кВт пластиковый терморегулятор для литья под

Описание и отзывы

Трекер стоимости

Характеристики

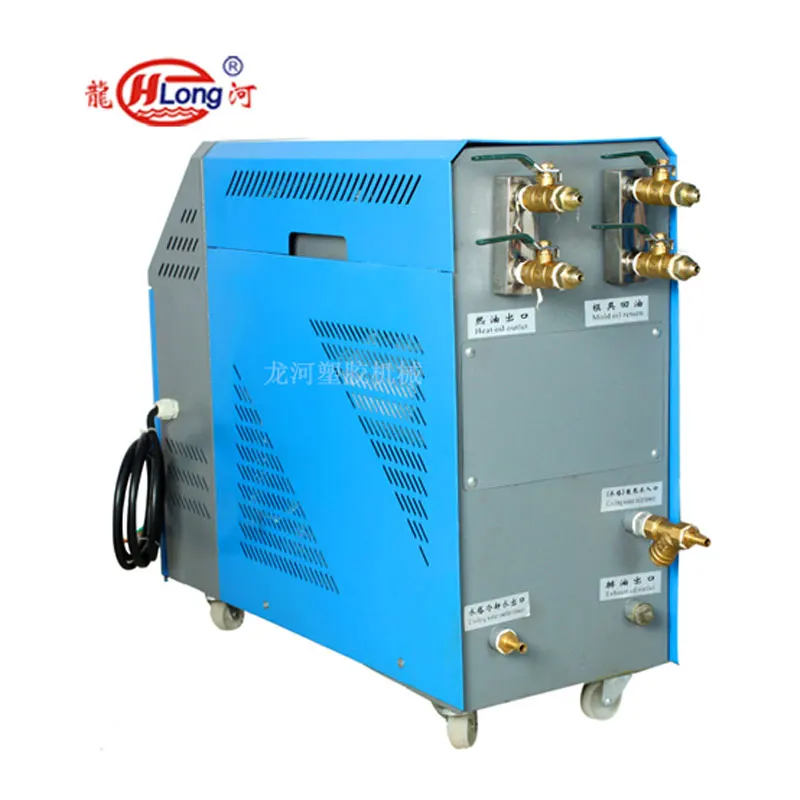

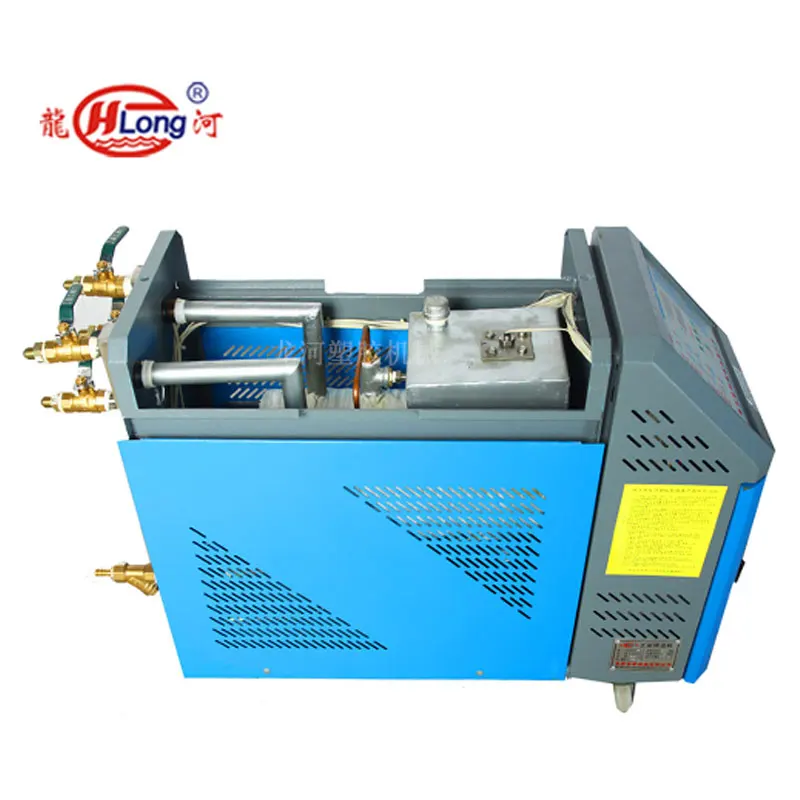

Mold Controller Temperature



APPLICATION AND PROPERTIES:



1.Plastic injection mold temperature controller is mainly applied for heating and maintaining the temperature of mould,and is also applicable for fields of same demands.

2.It adopts most advanced microcomputer control principle with precise electronic thermometer for dual temperature control with the precision reaching ±0.5°c.

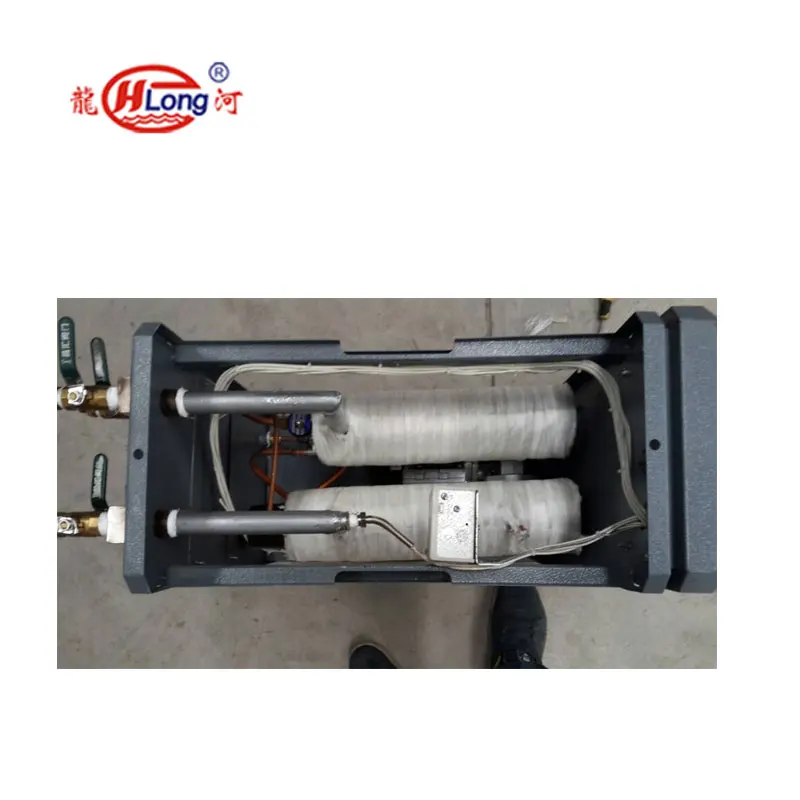

3.It is adopts oil or water as heat conducting medium,safe and reliable.Two sets of heating wires assure stable temperature in oil tank,save time and power.

4.The product is installed with tank oil,over temperature and water pump overload automatic alarm system,automatically cut off loop for assuring safety.

5.It applies stainless steel tank which features corrosion resistance and long service life.

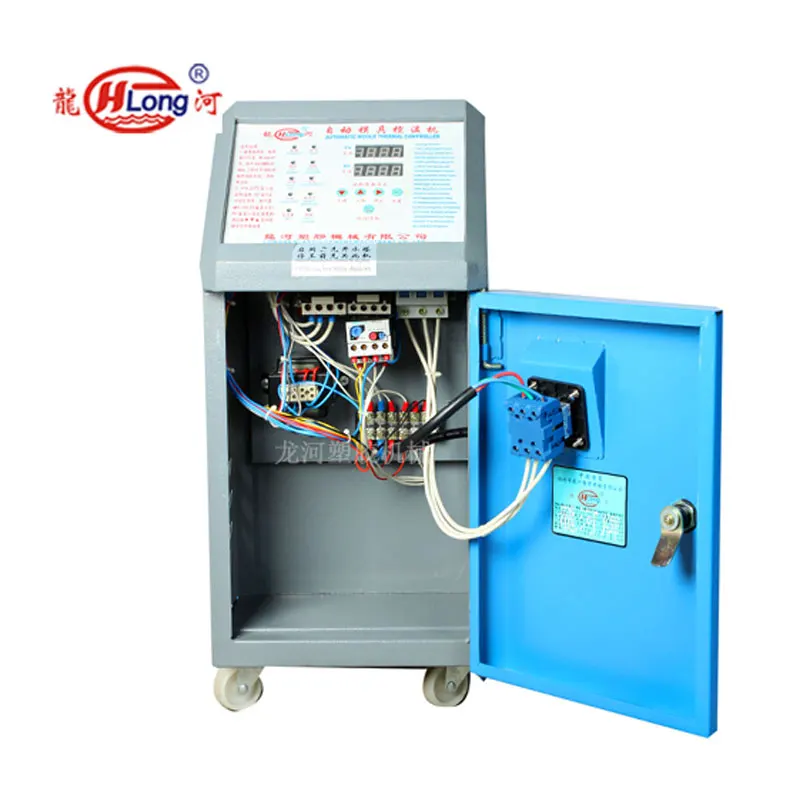

6.It adoprs microcomputer control and imported digital precise temperature control and independent cooler for assuring stable temperature.



Technical parameters:



Model	Water Pump(kw)	Output Capacity(L/min)	Heating Power(kw)	Heat Conducting Medium	Highest Temperature	Dimension(mm)	Weight(kg)
AT-6KW	0.37	60	6	water	98°C	860x300x660	45
AT-9KW	0.37-0.75	85	9	water	98°C	1100X300X660	55
AT-12KW	0.75	98	12	water	98°C	1100X300X660	75
AT-6KW	0.37	60	6	oil	180°C	860x300x660	55
AT-9KW	0.37-0.75	85	9	oil	180°C	1100X300X660	75
AT-12KW	0.75	95	12	oil	180°C	1100X300X660	85
