F8114 GSM GPRS модем RS232 zigbee шлюз беспроводной передатчик wifi
- Категория: Modems >>>
- Поставщик: Xiamen,Four-Faith,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.62 $* | 0.48 $* |
| Aug-16-2025 | 0.21 $* | 0.36 $* |
| Jul-16-2025 | 0.49 $* | 0.16 $* |
| Jun-16-2025 | 0.13 $* | 0.87 $* |
| May-16-2025 | 0.31 $* | 0.30 $* |
| Apr-16-2025 | 0.4 $* | 0.22 $* |
| Mar-16-2025 | 0.47 $* | 0.53 $* |
| Feb-16-2025 | 0.87 $* | 0.36 $* |
| Jan-16-2025 | 0.26 $* | 0.66 $* |
Характеристики
Product Description

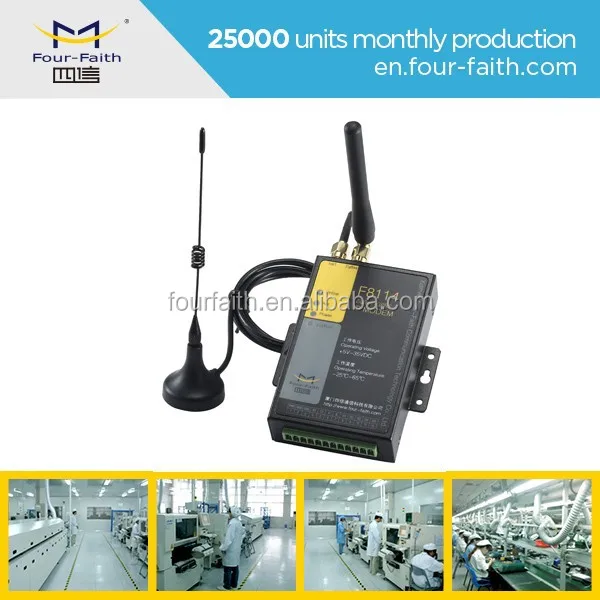

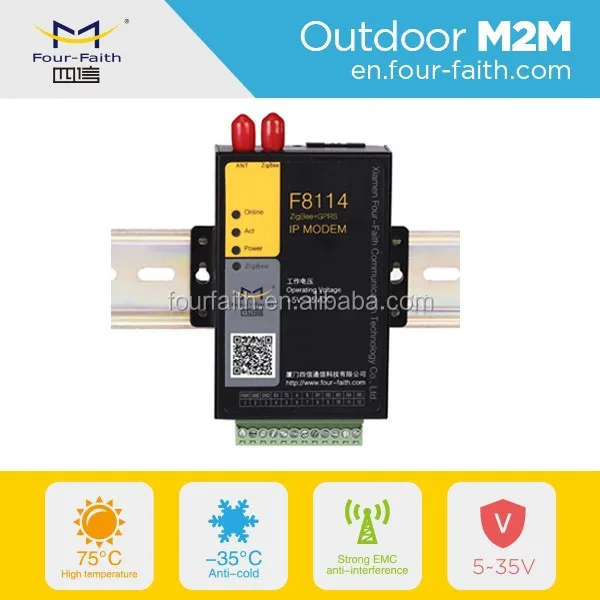

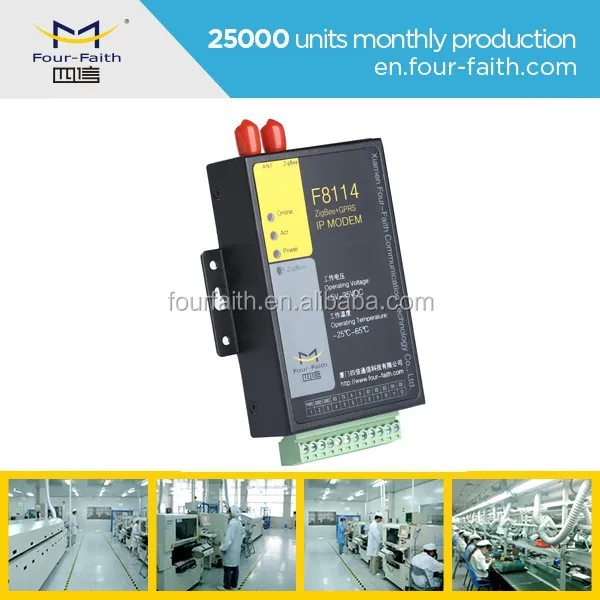

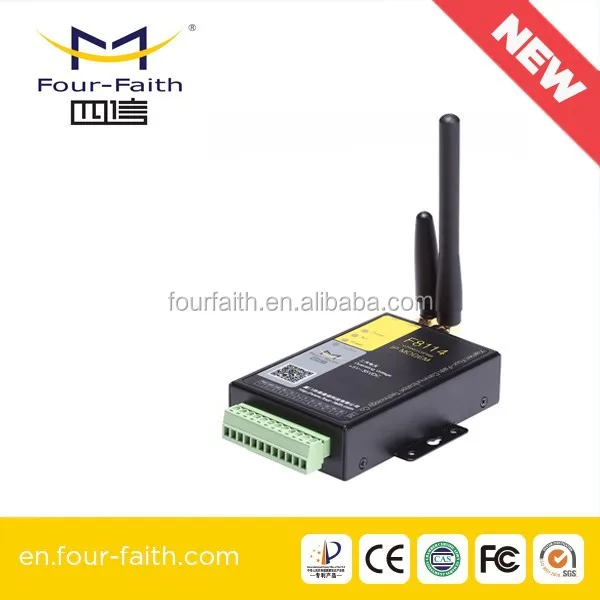

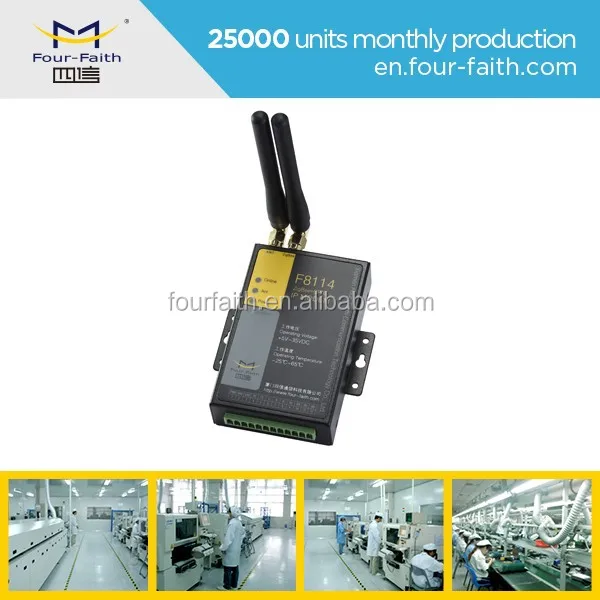

F8114 GSM GPRS Modem RS232 zigbee gateway wireless transmitter wifi bridge
F8114 ZigBee+GPRS IP MODEM is a kind of data terminal device that provides data transfer function by public GPRS and ZigBee network.
It adopts highpowered industrial 32 bits CPU and embedded real time operating system. It supports RS232, RS485 (or RS422) and ZigBee port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and ZigBee devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter andpulse wave output function.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on
product feature
Design for Industrial Application
1. High-powered industrial cellular module
2. High-powered industrial ZigBee module
3. High-powered industrial 32 bits CPU
4. Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
5. Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
6. Housing: iron, providing IP30 protection
7. Power range: DC 5~35V
8. Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
9. RS232/RS485/RS422 ports:15KV ESD protection
10. SIM/UIM port: 15KV ESD protection
11. Power port: reverse-voltage and overvoltage protection
12. Antenna port: lightning protection(optional)
Standard and Convenience

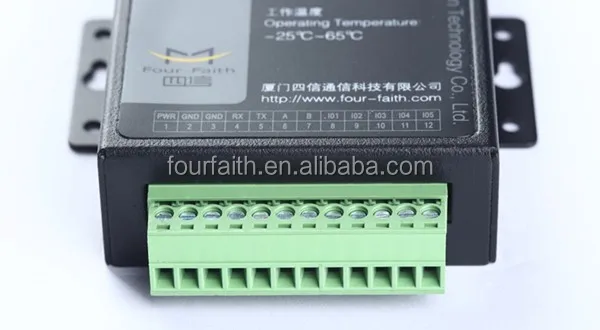

1. Adopt terminal block interface, convenient for industrial application
Stability and Reliability
1. Support hardware and software WDT
2. TTL logic level RS232 interface can be customized
3. Support intellectual mode, enter into communication state automatically when powered
4. Provide management software for remote management
5. Support several work modes
6. Convenient configuration and maintenance interface
High-performance
1. Support data transfer by cellular and ZigBee network
2. Support TCP server and support multi TCP client connection(optional)
3. Support standard RS232, RS485(or RS422) and ZigBee port that can connect to serial and ZigBee devices directly
4. Support double data centers, one main and another backup
5. Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
6. Support multi data centers and it can support 5 data centers at the same time
7. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
8. Support dynamic domain name(DDNS) and IP access to data center
9. Design with standard TCP/IP protocol stack
10. Support APN/VPDN
4. Support double data centers, one main and another backup
5. Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
6. Support multi data centers and it can support 5 data centers at the same time
7. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
8. Support dynamic domain name(DDNS) and IP access to data center
9. Design with standard TCP/IP protocol stack
10. Support APN/VPDN
Specfication
zigbee modem
Item | Content |
Cellular Module | Industrial cellular module |
Standard and Band | EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional) Compliant to GSM phase 2/2+ GPRS class 10, class 12(optional) |
Bandwidth | 85.6Kbps |
TX power | GSM850/900: <33dBm GSM1800/1900: <30dBm |
RX sensitivity | <-107dBm |
ZigBee Specification
Item | Content |
ZigBee Module | Industrial ZigBee module |
Standard and Band | IEEE 802.15.4 ISM 2.4 GHz |
Indoor/Urban Range | 60m 90m(for enhanced version) |
Outdoor/RF Line-of-Sight Range | 1200m 3200m(for enhanced version) |
Transmit Power | 3.1 mw (+5dBm) /Normal mode, 6.3 mw (+8dBm)/Boost mode 63 mw (+18dBm) (for enhanced version) |
Bandwidth | 250Kbps |
Receiver Sensitivity | -102dBm |
Network Topologies | Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
Number of channels | 16 Direct Sequence Channels 15 Direct Sequence Channels (for enhanced version) |
Channels | 11 to 26 11 to 25 (for enhanced version) |
Hardware System
Item | Content |
CPU | Industrial 32 bits CPU |
FLASH | 512KB (Extendable) |
SRAM | 256KB(Extendable) |
Interface Type
Item | Content |
Serial | 1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
Indicator | "Power", "ACT", "Online", "ZigBee" |
Antenna | Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
Power | Terminal block interface, reverse-voltage and overvoltage protection |
| |
Power Input
Item | Content |
Standard Power | DC 12V/0.5A |
Power Range | DC 5~35V |
Power Consumption
Working States | Power Consumption |
Communication | 50-85mA@12VDC 115-160mA@5VDC |
Standby | 25mA@12VDC 45mA@5VDC |
Sleep | 8mA@12VDC 18mA@5VDC |
Timing Power Off | 0.6mA@12VDC 1mA@5VDC |
Physical Characteristics
Item | Content |
Housing | Iron, providing IP30 protection |
Dimensions | 91x58.5x22 mm |
Weight | 210g |
Environmental Limits
Item | Content |
Operating Temperature | -25~+65C (-13~+149F) |
Extended Operating Temperature | -30~+75C (-22~+167F) |
Storage Temperature | -40~+85C (-40~+185F) |
Operating Humidity | 95% ( unfreezing)
|
Interface
Products application
Company profile
Xiamen Four-Faith Communication Technology Co. Ltd. is a backbone enterprise of China internet of things in wireless communication field, is a high-tech enterprise owns grumous value of “ Integrity, Trust, Confidence, Faith ” to cover products,services and management activities.
The company focuses on R&D, production, promotion and service of internet of things products and industrial high-end wireless communication transmission equipments. Products line including: mountain torrent disaster warning broadcast equipment, LED wireless distribution system, wireless Modem, wireless IP Modem( DTU), wireless industrial router, GPS terminal, ZigBee terminal ect.
The company has strong R&D capability, R&D staffs account for more than 60% proportion of whole company staffs, backbone R&D staffs have more than 10 years R&D experience in the industry. For a long time, Four-Faith communication clings to the pulse of network industry development, to do the promoter of the industry; independent innovation, to do the fully intellectual property practitioners; thorough application of the network industry, to provide customers with leading, professional products and services; gradually formed the specialized operating characteristics of the product-based system, providing systemic solutions for various industries, comprehensively help clients achieve application target of “ wisdom, standard, safety, reliablility ” .
After years of development, Four-Faith passed ISO 9001, CE and other quality certifications, the establishment of Xiamen headquarter as the core, Beijing,Shanghai, Wuhan, Xi'an Branch as the stronghold, where radiates Singapore,Thailand, India and others more than 50 countries and regions of sales service network, products are widely used in the fields of finance, electric power,water conservancy, environmental protection, meteorology, tax, and company sustains a healthy, stable and rapid growth.
Four-Faith Communication will continue to uphold the integrity, professionalism,innovative ideas to create greater value for customers, continue to promote the company move forward, spare no effort to make charming brand, to build the intelligent world of the Internet of Things!
