1500 кВт сервомотор Вт
- Категория: Двигатели >>>
- Поставщик: Hangzhou,Mige,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 152.93 $* | 160.31 $* |
| Aug-15-2025 | 151.27 $* | 159.55 $* |
| Jul-15-2025 | 127.45 $* | 133.82 $* |
| Jun-15-2025 | 148.56 $* | 155.9 $* |
| May-15-2025 | 129.14 $* | 135.19 $* |
| Apr-15-2025 | 146.23 $* | 153.81 $* |
| Mar-15-2025 | 145.95 $* | 152.36 $* |
| Feb-15-2025 | 143.41 $* | 150.39 $* |
| Jan-15-2025 | 142.32 $* | 149.18 $* |
Характеристики

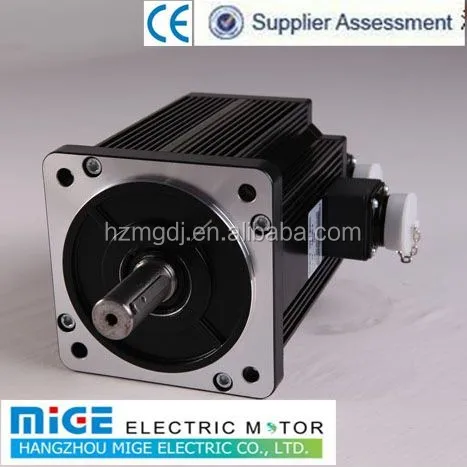

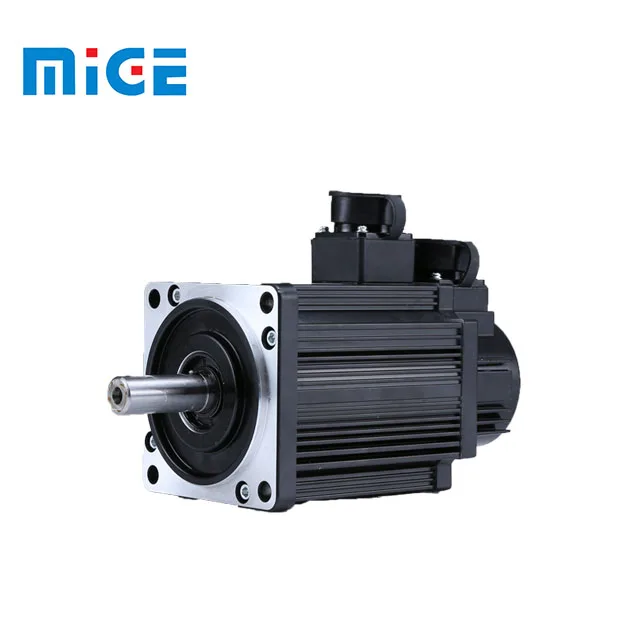

1.5kw SERVO MOTOR 1500w OF 130ST-M06025
| MOTOR MODEL | 130ST-M06025 |
| Rated power(w) | 1500 |
| Rated voltage(v) | 220 |
| Rated current(A) | 6.0 |
| Rated speed(rpm) | 2500 |
| Holding torque(N.m) | 6 |
| Peak torque(N.m) | 18 |
| Voltage constant(v/1000r/min) | 65 |
| Torque coefficient(N.m/A) | 1.0 |
| Rotor inertia(kg.m2) | 1.26×0.001 |
| Line-Line Resistance(Ω) | 1.21 |
| Line-Line Inductance(mH) | 3.87 |
| Machanical time constant(MS) | 3.26 |
| Weight(kg) | 7.4 |
| Encoder line number(PPR) | 2500 |
| Insulation class | Class F |
| Safety class | IP65 |
| The operating of environmental conditions | temperature: -20°c ~ +40°c Humidity: Below 90%RH No dewing |
Other special requirements please contact the MIGE Technology to negotiate.
