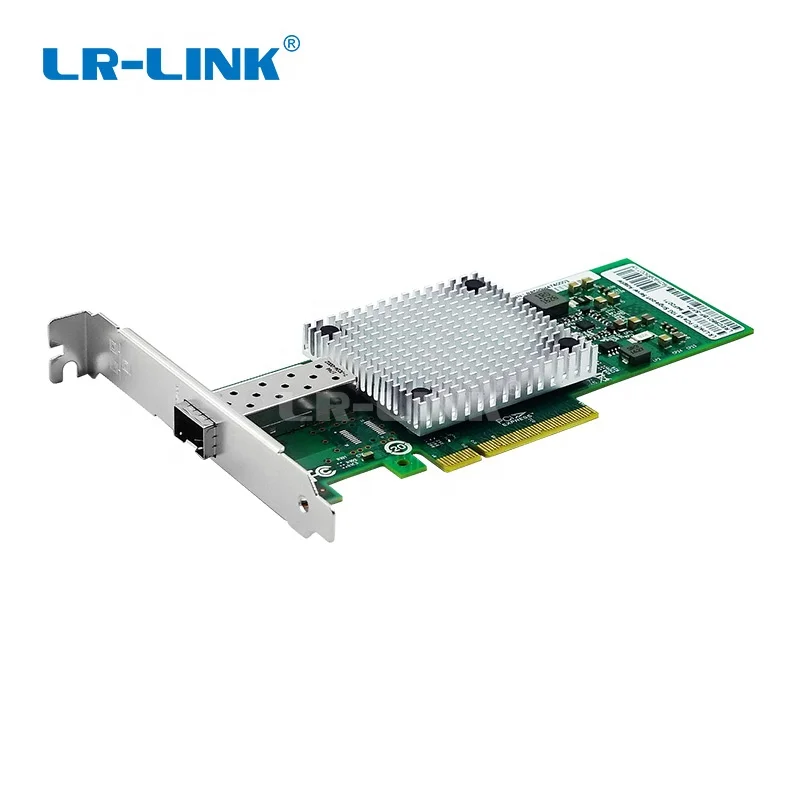

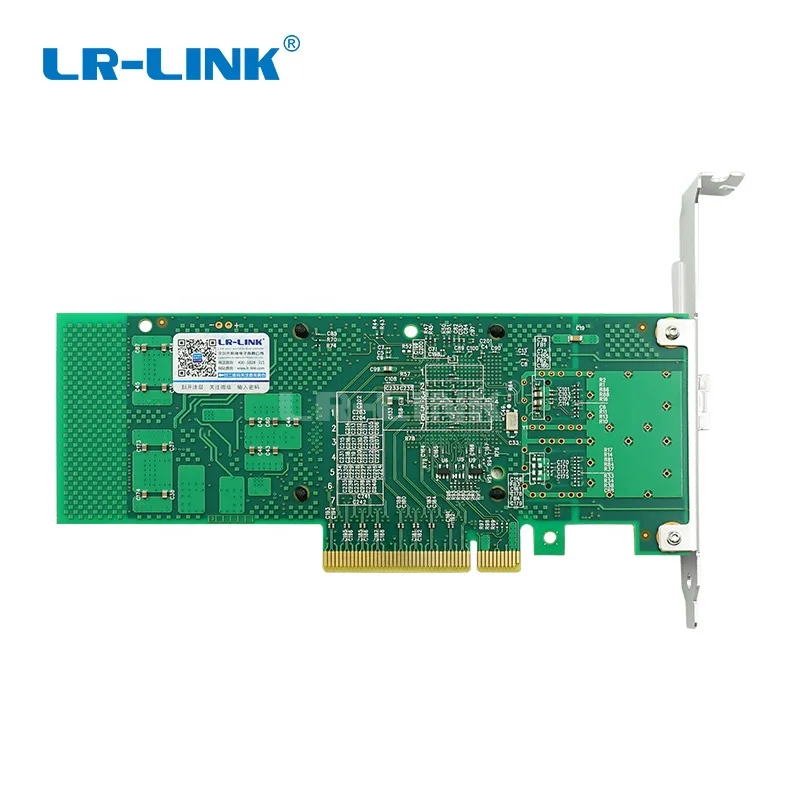

LR-LINK LREC9801BF-SFP+
PCIe x8 Intel 82599ES Chipset SFP+ Port For Server 10gb Ethernet Network Card
Product Description
LR-LINK LREC9801BF-SFP+ 10gb Ethernet network card with SFP+ connectivity are the most flexible and scalable Ethernet adapters for today’s demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
The LR-LINK LREC9801BF-SFP+ 10gb Ethernet network card delivers the same functionality and throughput as ten dual-port, one gigabit adapters, saving cost, power, and complexity.
Features
10G Performance at Low Cost and Low Power
Exciting New data Center usage Models
Flexible i/o Virtualization ,Support VDMq(64 queues per port)
Flexible Port Partitioning (FPP)
Unified Networking
iSCSi Simplifies SAN Connectivity
Open FCoE Consolidates LANs and Legacy SANs
Data Center Bridging (dCB) delivers Lossless Ethernet
Low-profile
Load balancing on multiple CPUs
Remote boot iSCSI and FCoE
Support for most Network Operating Systems (NOS)
RoHS compliant, lead-free technology
Flow control support: send/receive pause frames and receive FIFO thresholds
Statistics for management and RMON
TCP segmentation offload: up to 256 KB
Fragmented UDP checksum offload for packet reassembly
Message Signaled Interrupts (MSI)
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Technology
| Technical Specifications : | |
| LREC9801BF-SFP+ 10gb Ethernet network card Technical Specifications | |
| IEEE standard/ Network Topology | 10 Gigabit Ethernet |
| Data Transfer Rate: | 10Gb/s and 20Gb/s with full duplex mode |
| Full duplex / Simplex: | Support both Simplex & Full duplex operation in all operating speeds |
| Auto negotiation: | No auto-negotiation |
| Cables and Operating distance: | The transmission distance is related to the fiber transmission module you are using. |
| Performance Enhancements | Receive-side Scaling (RSS): Optimization for multiple CPUs under Windows OS control |
| Reduced host bus traffic | |
| IP,TCP and UDP Checksum Offloading | |
| Tansmit/Receive On-Chip Buffer Support | |
| Ipv4,Ipv6 | |
| LREC9801BF-SFP+ 10G Ethernet Card General Technical Specifications | |
| Interface Standard: | PCIe Base Specification 2.1(2.5GT/s or 5GT/s) |
| PCI Express Card Type: | X8 Lane |
| PCI Connector: | Gold Finger: X8 Lane |
| Controller: | Intel 82599 |
| Holder: | Metal Bracket |
| Environmental Specifications | Operating Humidity:0%–90%, non-condensing |
| Operating Temperature:32°to 131°F (0°to 55°C) | |
| Storage: -40°C–65°C (-40°F–149°F) | |
| Operating system support: | Microsoft Vista; Windows 7 Windows 8/8.1 Windows 10 Windows Server 2003 / R2 (x64 and IPF) Windows Server 2008 / R2 (x64 and IPF) Windows Server 2012 / R2 (x64 and IPF) Windows Server 2016 R2 (x64 and IPF) Windows Server 2019 / R2 (x64 and IPF) Linux SLES 11 SP1 or later; SUSE SLES 10 or later, Professional 9.2 or later Red Hat Enterprise 4 or later; FreeBSD 5.x or later; VMware ESX/ESXi 4.x, 5.x, 6.x or later; Fedora 8/9/10 or later; EFI 1.1 |
| Connectors: | SFP+ |
Ordering Information
M/N | Description |
LREC9801BF-SFP+ | PCI Express x8 Single Port SFP+ 10gb ethernet network card (Intel 82599ES Based) |
