Характеристики

Product Description

Mobile Hydraulic Dock Yard Ramp Specifications

1. Mobile Hydraulic Yard Ramp has been tested and debugged, and all the parameters has been reached on the designed requirements. The hydaulic system does not need adjusting.

2. Yard ramp’ s hydraulic system and tyres should be examined carefully before the working to make sure that without the leak of oil and the weak pressure of tyres.

3. The yard ramp should be landed onto the hard ground and to fasten the fixing chains to the truck.

4. The yard ramp should be operated without load for 1-3time, and then to do loaded work.

Hydraulic system:

1. With handle pump, screw the return valve clockwise.

2. Move the handle stick, to lift the ramp slowly.

3. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.

Operation:

1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.

2. Drive the car under the plate.

3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.

4. Operating starts.

5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.

6. Uplifting the afterbody of the ramp to move around hang on the truck.

Specification

Specification

Model	Lifting height(m)	Lifting weight(kg)	Platform size(mm)	Overall dimension(mm)	Power supply(kw)	Total weight(kg)
WLD-4	0.9-1.7	4000	10500*1900	10500*2000	Manual operation	2200
WLD-6		6000				2300
WLD-8		8000				2500
WLD-10		10000				2800
WLD-12	0.9-1.6	12000				3400

Detailed Images

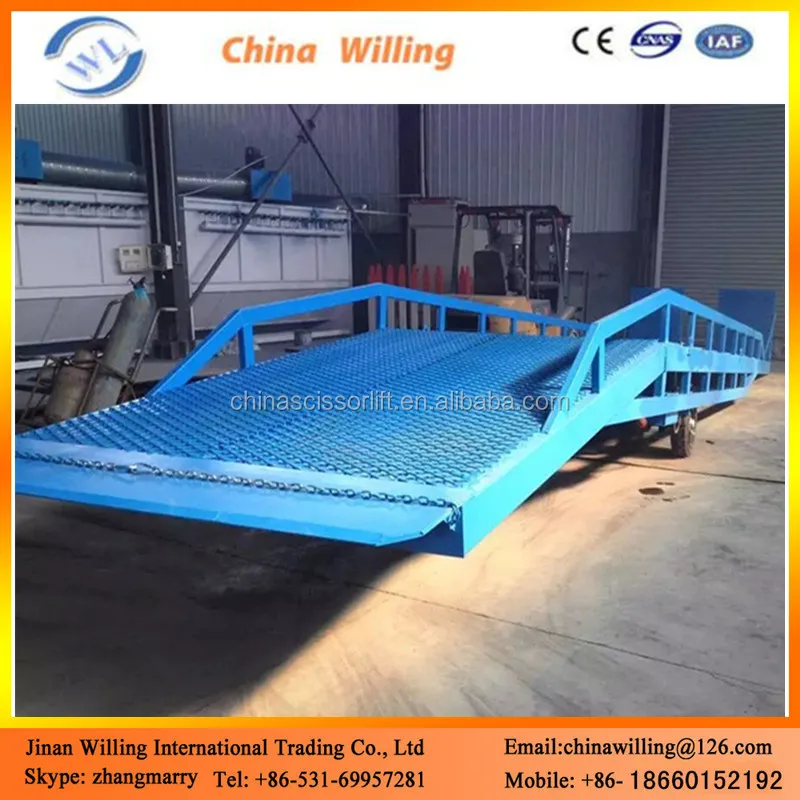

Hydraulic loading ramp mobile yard ramp dock leveler for container truck.jpg

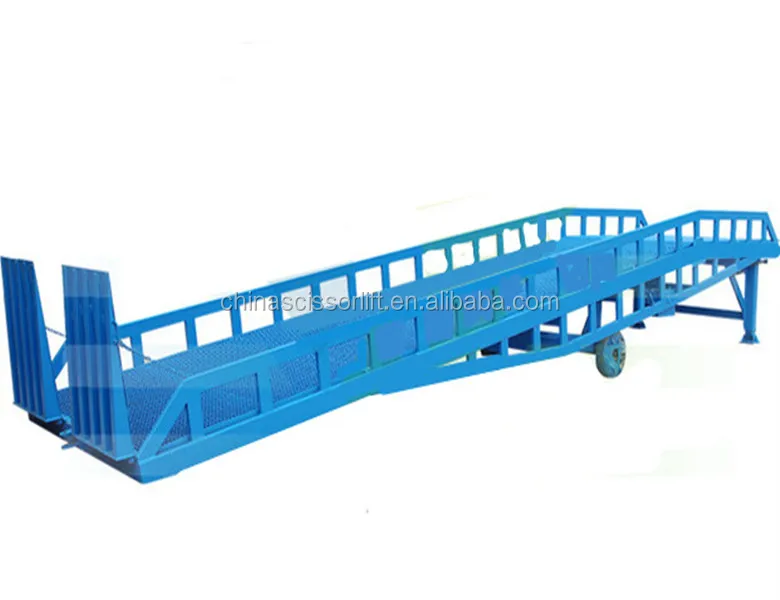

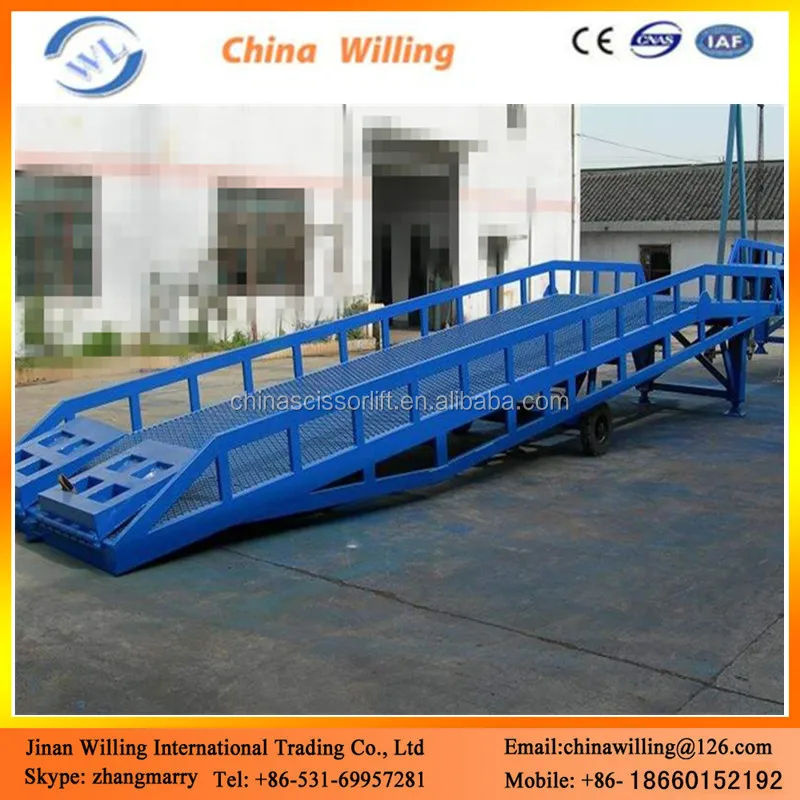

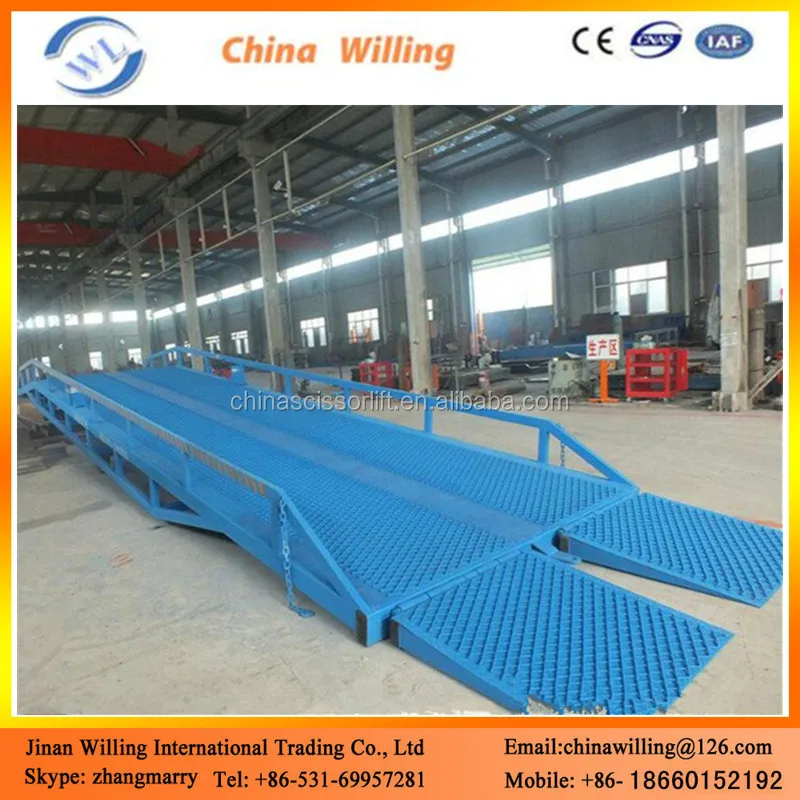

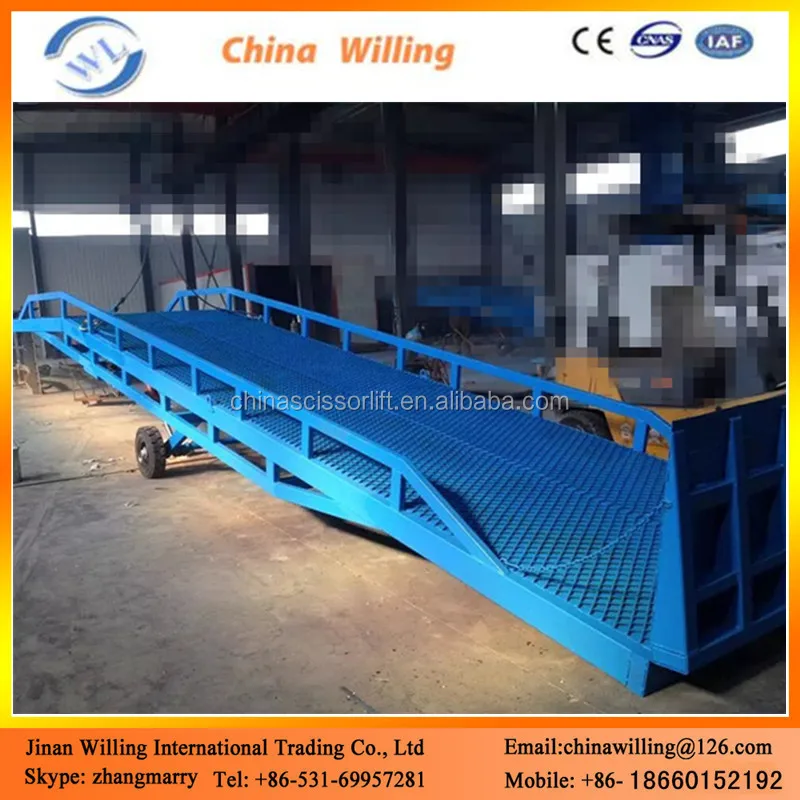

mobile yard ramp .jpg mobile yard ramp.jpg 8 Ton Container Loading Ramp, Mobile Yard Ramp, Forklift Ramps.jpg mobile dock ramp 1.jpg

Safety Features

Safe operation:

1. While the ramp is under using, the table should be kept in level and be stable. Move speed: 3km/h

2. While the ramp falls down, the person climbing is forbidden.

3. Overloading is forbidden.

4. Keeping the hydraulic oil clean, without the mixture of water or other impurity. The oil changing is normally half year. The model of oil is N32# in winter, and N46# in summer.

5. When the emergency occurs, the operation must be stopped immediately to repair troubles.

Note: the tyre of yard ramp is only used to move the machine, after you land the legs, let out the hydraulic oil of the cylinders, or the heavy loading will break the cylinders and the tyres. For the tyre and cylinders of ramp don’ t carry the load. The tyre is for move, and the cylinder is used for change the working height.

Advantages

The platform are fully hydraulic drive,easy operation, operational reliability.
Their height vary with the change of the height of the wagon box, and they keep close contact with
the wagon box all the time.
The platform is high strength U shaped beam design,which guarantees that it will not deform under
high load and long time operating.
The surface board of the platform is antislip ruffled plate,which can guarantee that forks will not slip when driving on the platform.
Both sides of the platform are fitted with safety guard board to prevent tiptoes from being accidently
injured when stretching into the platform.
The hydraulic yard ramp has a safety support rod that enables the platform to stay opened, allowing
personnel to get inside the leveler to do maintenance work conveniently.

Packaging & Shipping

Packing and delivery

Packing method: Packed in a 40ft container, Secured to the contaniner wall by thick steel wire.

Delivery time: within 10 days after recieving peyment

After-sale service

1. We provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.

2. All extra parts for the machine can be purchased with agent price from us.

3. Email/ Skype/ MSN/ Trade manager online to support.

4. Life-long Technical Support and After-sale Service free of charge.

5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

6. Free and Professional Training at our Factory under the relaxed condition.

FAQ

1. How about the delivery time?

Within 10 working days after we receive the payment.

2. What kind of payments do you support?

T/T in advance, L/C, Western Union, other kinds, pls contact with us.

3. What is the MOQ?

Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.

4. Can you produce accordng to customer's requirements?

Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, OEM is also available.

5. Can you tll us your main customers?

That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u. At the same time, pls rest assured that your information is also safe here
