Машина для прокатки листового металла
US $10000
Профессиональная цветная сталь алюминий оцинкованный лист IBR металлическая кровельная черепица. Роликовая формовочная
- Категория: Tile Making Machinery >>>
- Поставщик: Botou,Xinghe,Roll,Forming,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.53 $* | 0.58 $* |
| Aug-18-2025 | 0.86 $* | 0.88 $* |
| Jul-18-2025 | 0.65 $* | 0.2 $* |
| Jun-18-2025 | 0.29 $* | 0.4 $* |
| May-18-2025 | 0.31 $* | 0.98 $* |
| Apr-18-2025 | 0.55 $* | 0.33 $* |
| Mar-18-2025 | 0.90 $* | 0.53 $* |
| Feb-18-2025 | 0.0 $* | 0.49 $* |
| Jan-18-2025 | 0.47 $* | 0.53 $* |
Характеристики
Professional Color Steel Aluminum Galvanized Sheet IBR Metal Roof Panell Tiles Making Machine. Roll Forming Machine
♦Main Parameters:
♦Main Parameters:
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| 2 | Width of the feeding material | 1000mm |
| 3 | Roller station | 11 rows |
| 4 | The thickness of the feeding material | 0.3-0.8mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Diameter of shaft | 75mm |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Wall thickness of the main forming machine | 14mm steel plate |
| 10 | Main forming machine body | 300 mm H steel |
| 11 | Motor power | 4+3kw |
| 12 | Size | 6500*1500*1400mm |
13 | Weight | About 3.2 T |
| 14 | OEM | According to customer's requirements |
♦Components
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | The main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Automatic cutting | set | 1 |
6 | Output table | set | 1 |

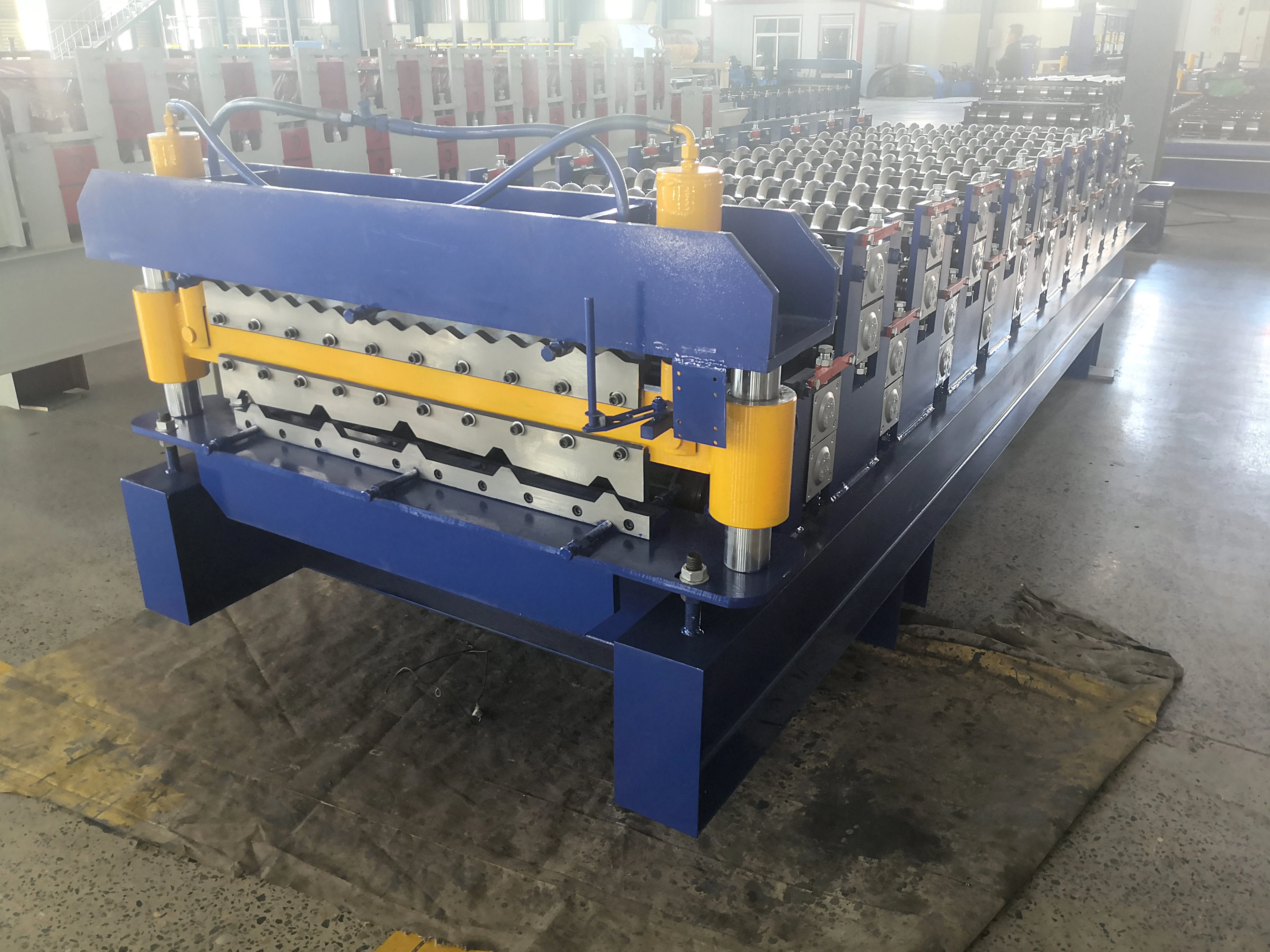

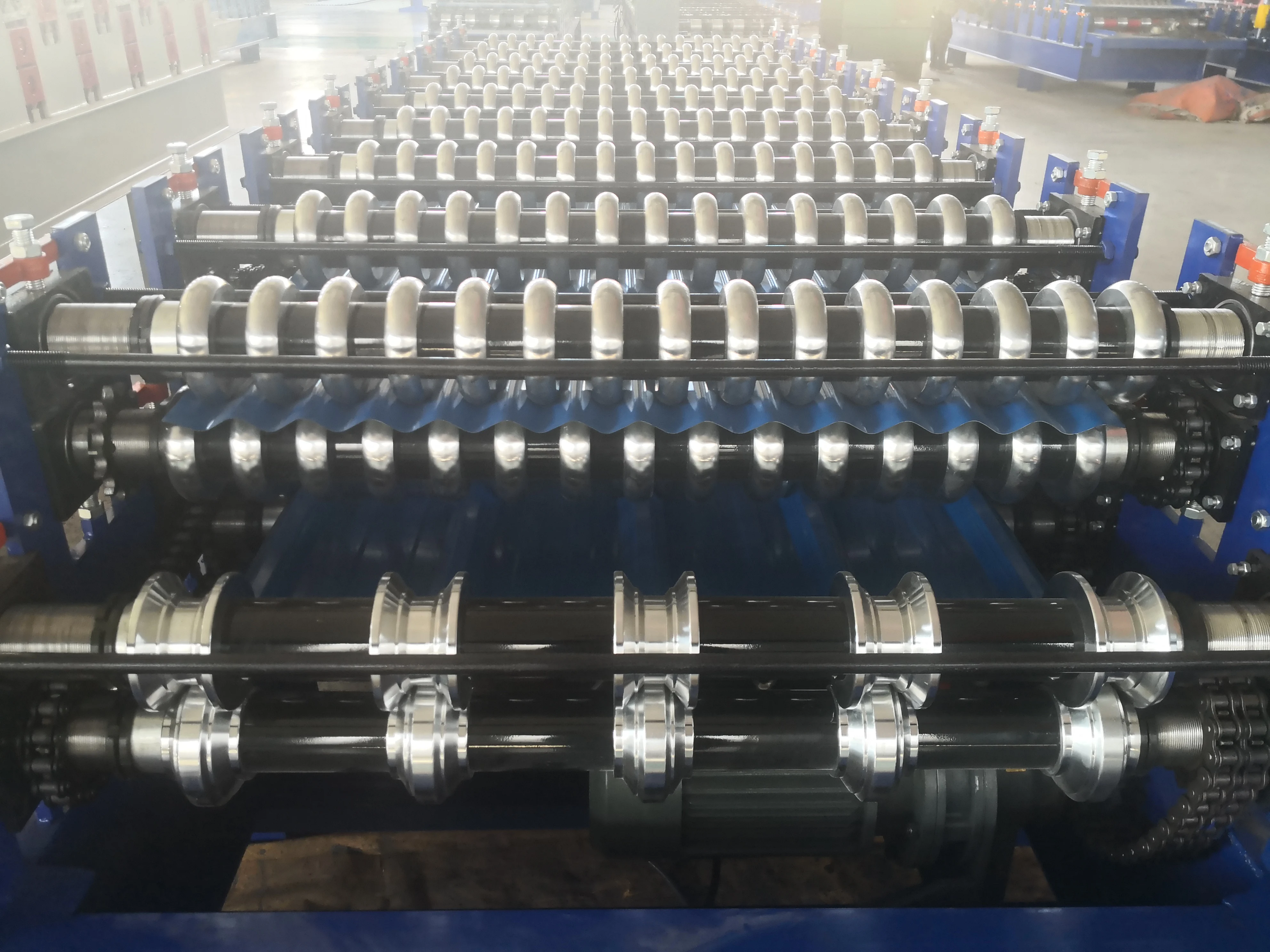

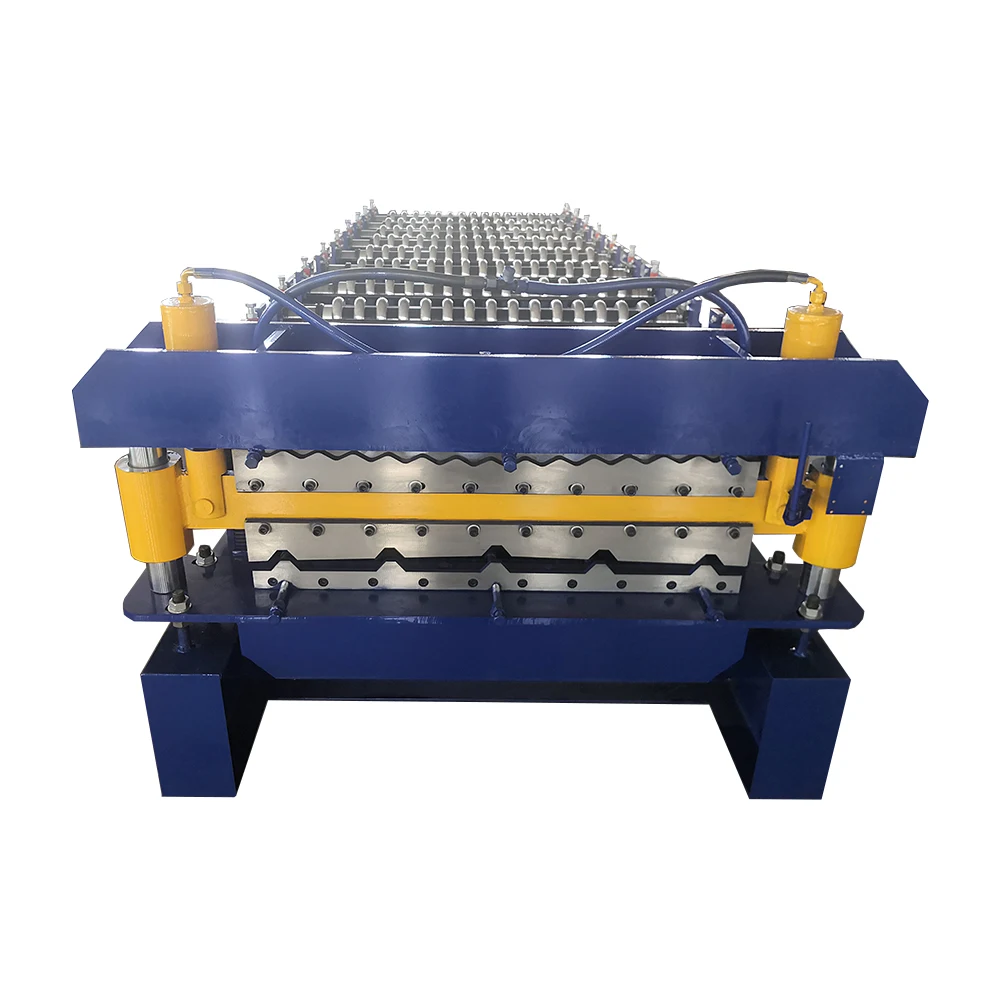

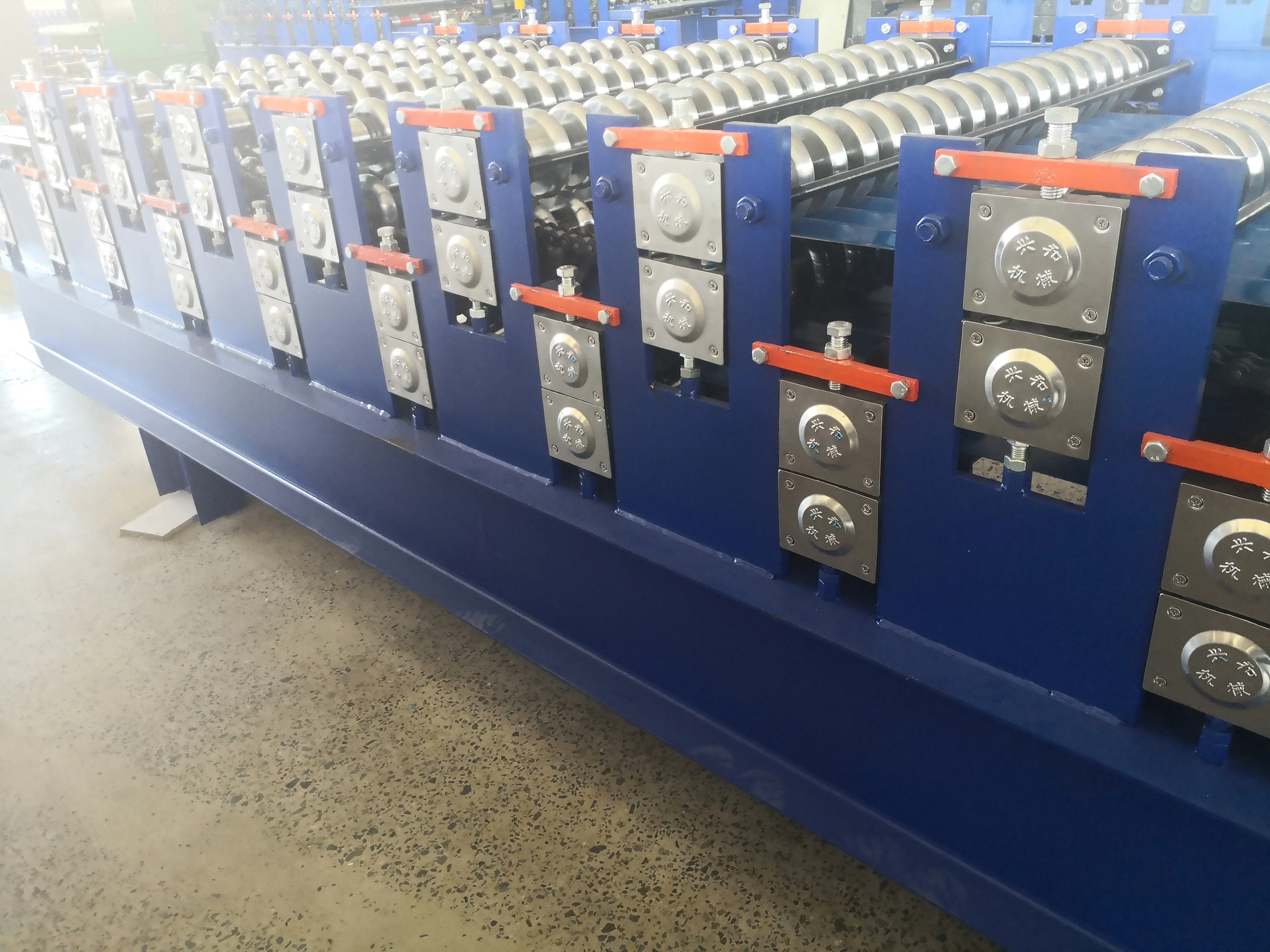

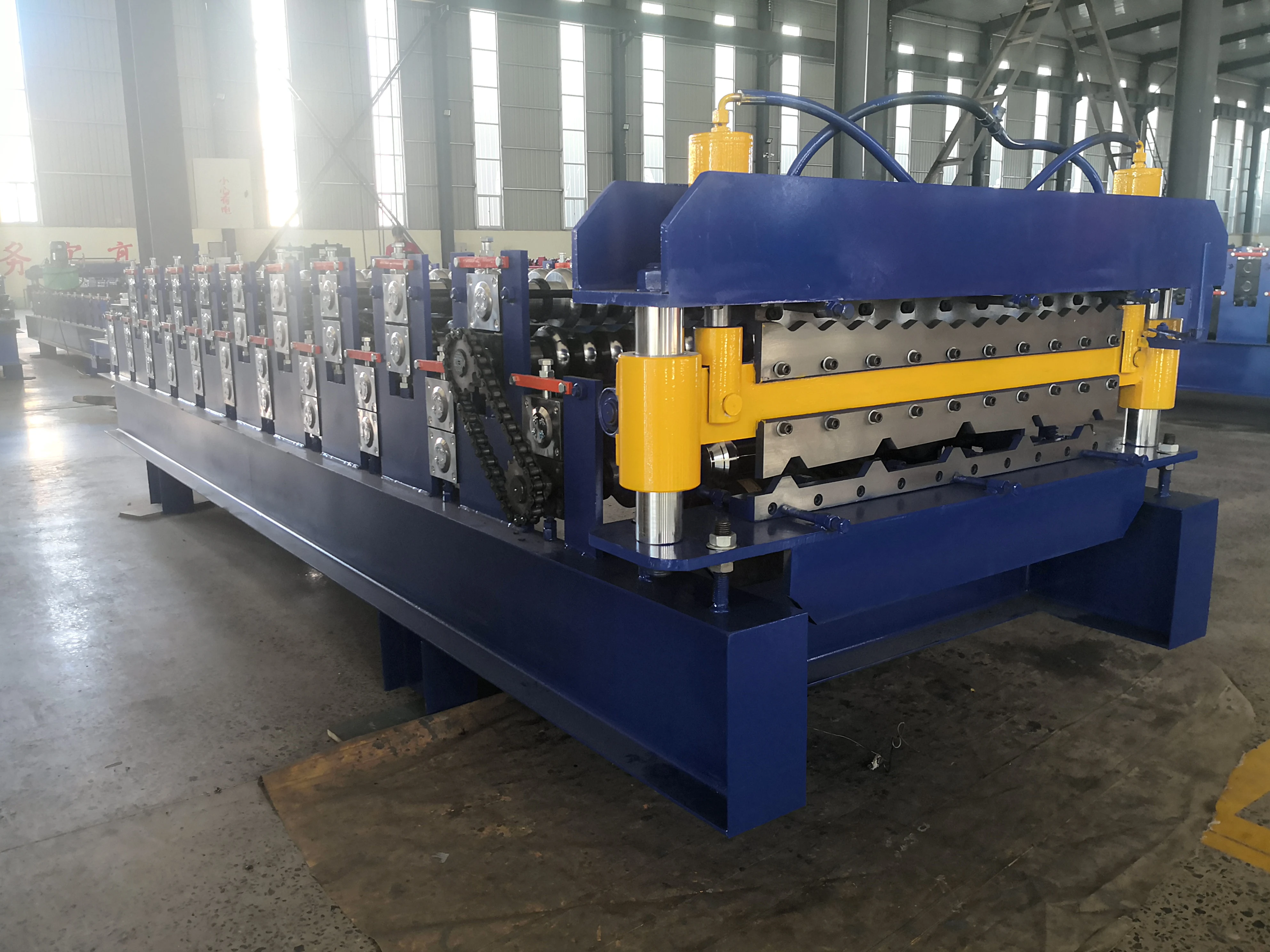

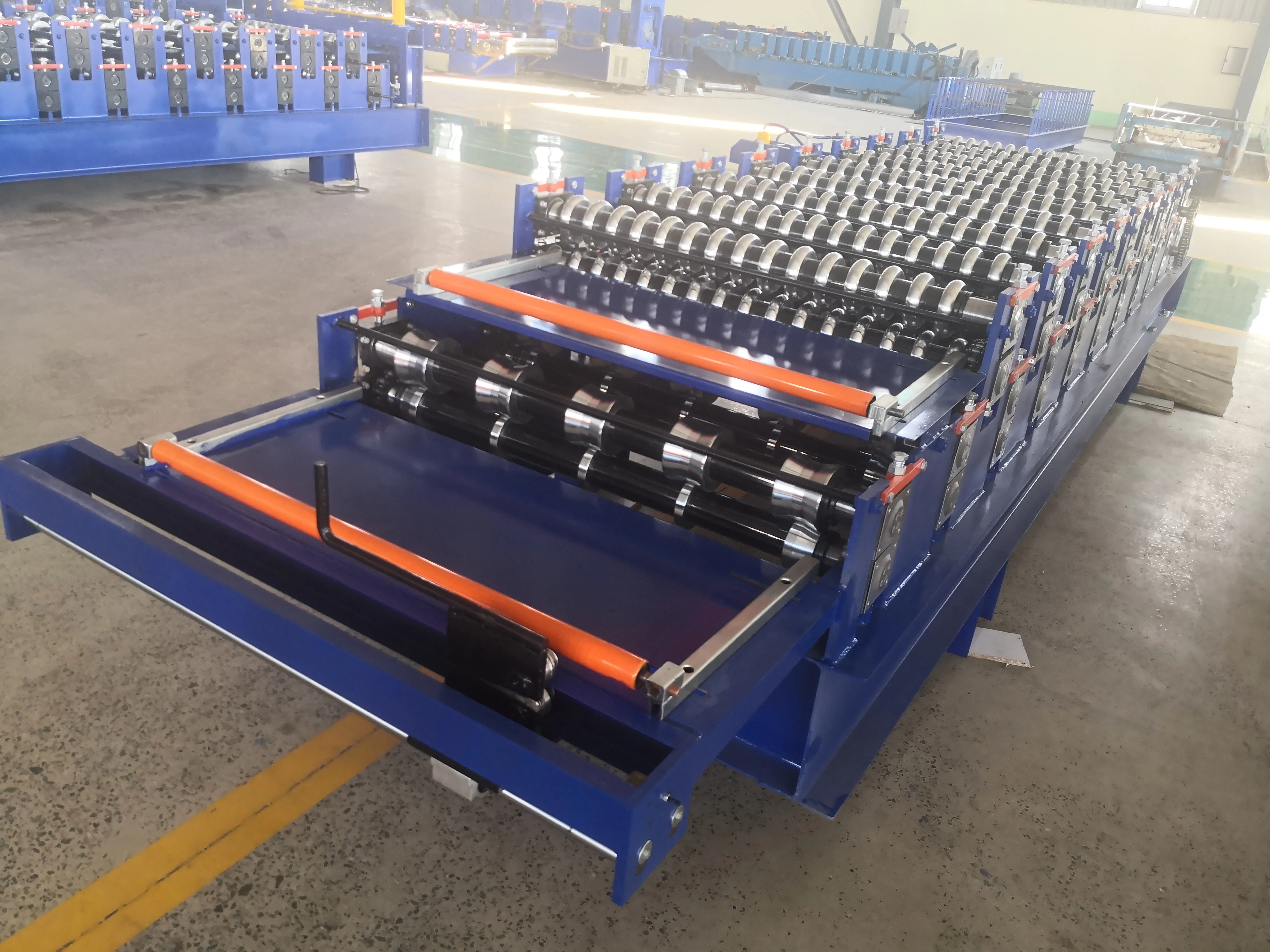

♦Machine details:
♦Spare parts
♦Factory shows
FAQ
1) Q: Are you a manufacturer or trading company?
A: We are manufacture factory.
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after-sales support?
A: We provide technical support online as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome you to visit us and test the machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
