Nylon Plastic Volumetric Rotary Piston water meter of DN20mm(R=160)

We (Gaoxiang Water Metert )are professional water meter manufacture for 10 years and we can supply  high quality DN20 PISTON WATER METER Volumetric Rotary  Piston Type Water Meter  with reasonable price ,any comments or needed ,pls feel free to comtact me:

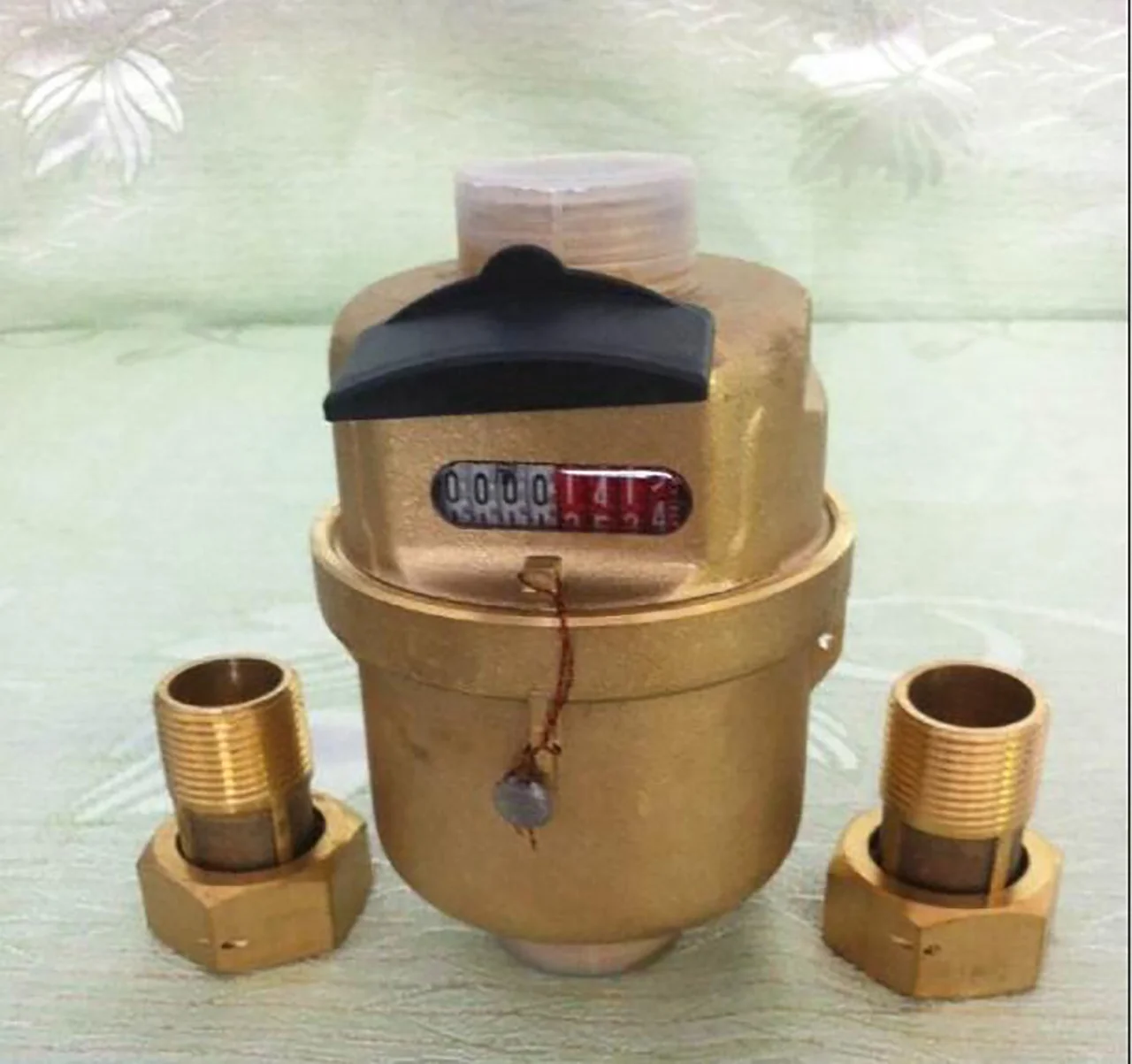

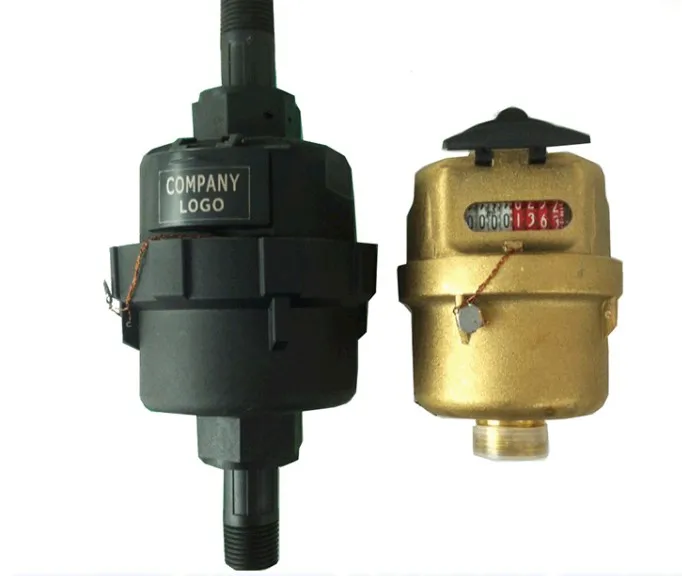

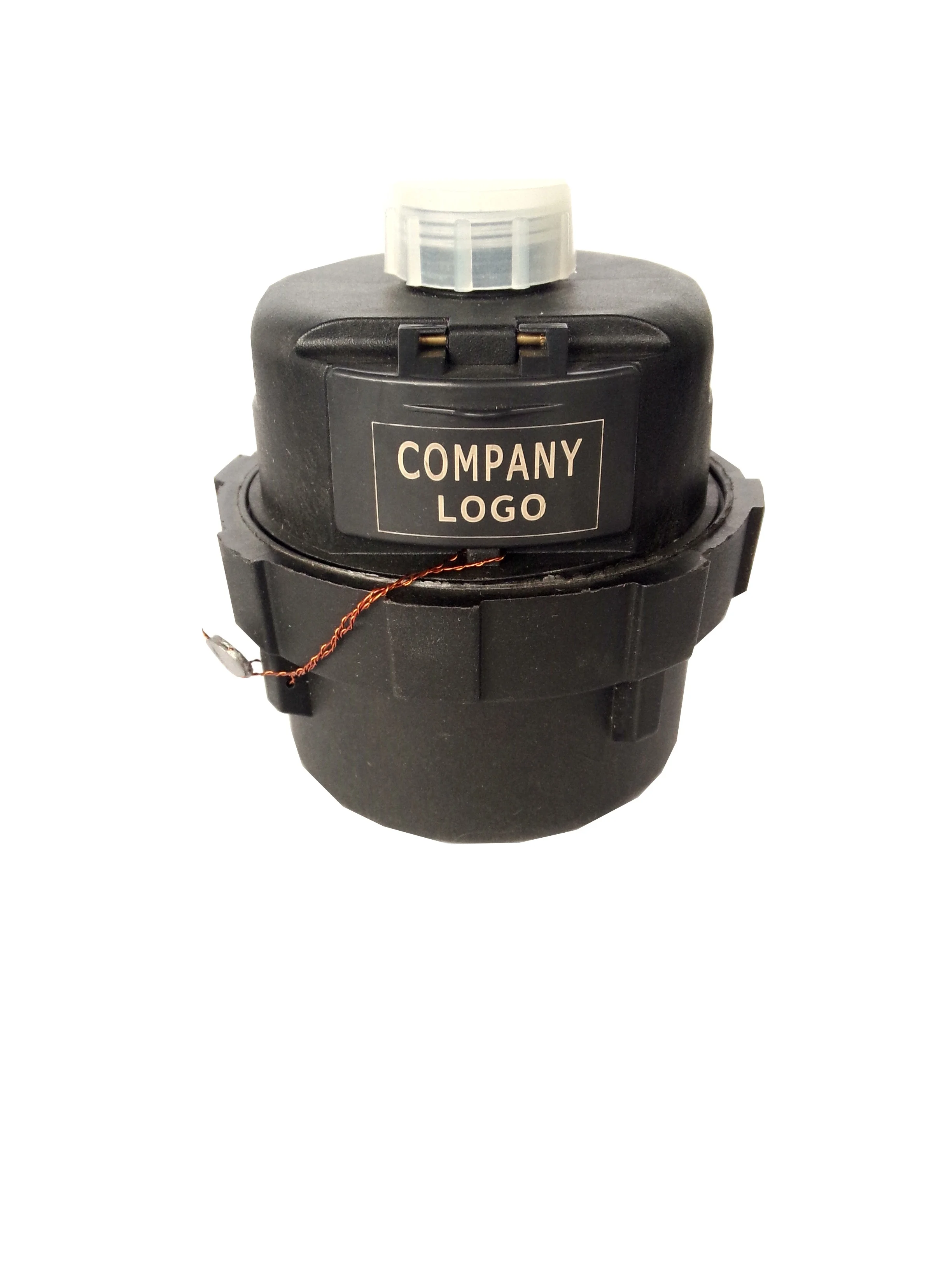

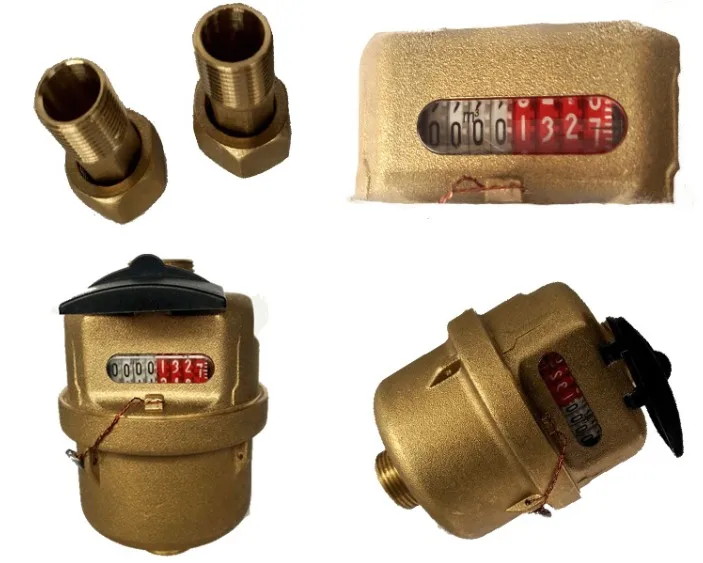

Products Images:





SPECIFICATION

Volumetric rotary piston water meter:



Complies with and certificated according to the National Regulations

High measurement accuracy;

Compact size ;

Heating/Cooling combined, measuring heating and refrigeration;

Additional integrated and external modules for remote reading (MBUS, Wireless MBUS and pulse output);

Historical data of the previous 18 months;

High precision platinum made measuring sensors;

No mechanical abrasion, not affected by bad water quality, low maintenance cost;

Automatism of error diagnostics insures safe operation;

Battery life is more than 6 years.



Features;



1.the material is Environment Friendly

2..warranty: 2 years

3.Supply ability:100000 pcs per month

4.Free sample one piece  is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us



Application
Measuring the volume of cold potable
water passing through the pipeline
Work conditions
Water temperature : ≤ 40°C
Water pressure : ≤1.6 Mpa, ≤1.0 Mpa



Features
1. Ensures high sensitivity and accurate registration throughout a wide flow range.
2. Low starting flow rate and excellent metrological performance.
3. Magnetic drive , lower transimission resistance.
4. Sealed dry dial register ensures clear reading.
5. Internal strainer, inlet strainer for selecting.

Compliance with standard
1 Technical data conforms to ISO 4064 Class C
Standard for horizontal installation



Options
1. Several lengths ,different materials of shell and connections available on request.
2. Can be equipped with reed switch option.
Installation requirements
1. The meter can be installed in any position.
2. Pipeline must be flushed before installation
3. The meter shoule be constantly full of water during operation.



Exploded view





Type	Size (mm)	Class	qs Max.Flow	qp Nominal Flow	qt Transitional Flow	qmin Min. Flow	Min.Reading	Max.Reading
			m3/h		L/h		m3
LXH-15A	15/18	C	3	1.5	22.5	15.0	0.0001	9999
		D			17.25	11.25
LXH-20A	20	C	5	2.5	37.5	25	0.0001	9999
		D			28.75	18.75
LXH-25A	25	C	7	3.5	52.5	35	0.0001	9999
		D			40.25	26.25
LXH-40A	40	C	20	10	150	100	0.0001	99999
		D			115	75











Type	Length	Width	Connection Thread	Weight (kg)
LXH-15A	115/165/170	86/88	G3/4B	0.85/1.1/1.2
LXH-20A	134/165/190	90	G1B	1.3/1.6/1.8
LXH-25A	200	106	G1 1/2B	2.5
LXH-40A	227	152	G2B	4.0
