Modular UPS 200KVA

Ondulur online UPS

three phase UPS

Efficiency>96%, PF=0.9,Hot swap

20KVA Power module1





Key Features:



1.   Superior energy saving and environment-friendly:
       Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%



2.   Superior capability of powering load:
       Output PF is 0.9, no need of power deration with load of leading or lagging PF



3.   Easy-to-install:
       Top or bottom cabling, no need of input cabling cabinet.



4.   Easy-to-maintain:
       Full front access, UPS, failed part can be replaced shortly



5.   Easy-to-modify:
       The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover,

       the battery cell can be replace in time when it fails without interrupting the normal operation of UPS.



6.  6-inch extra large LCD

       can display 12 language(Chinese,English,Russian,Spanish,French and so on )

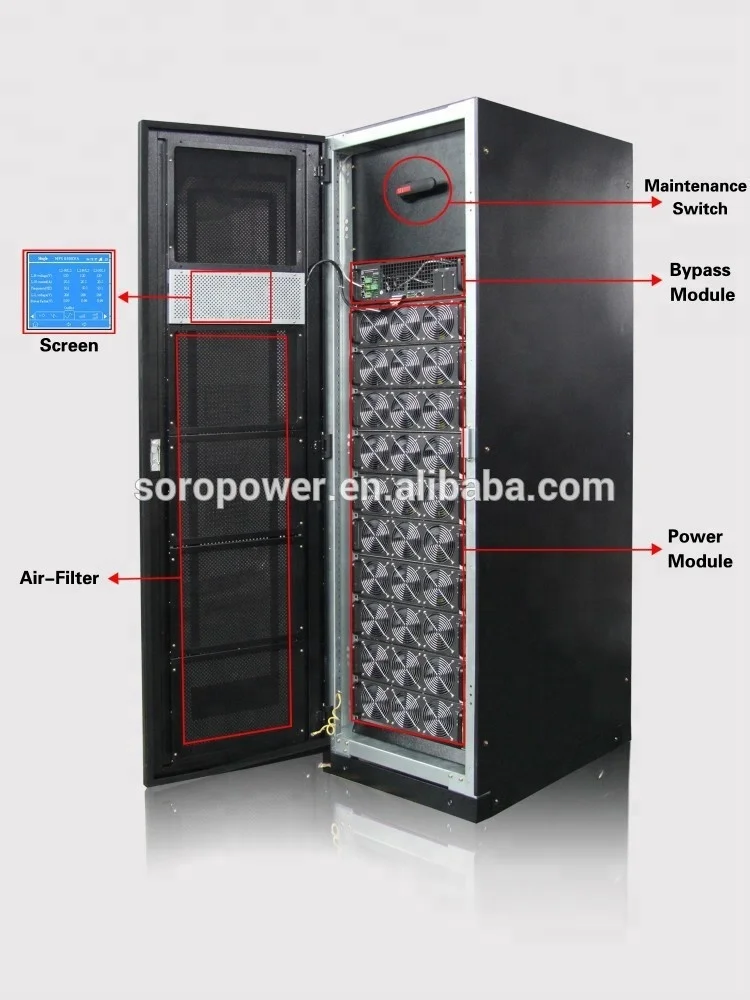

UPS Modules:

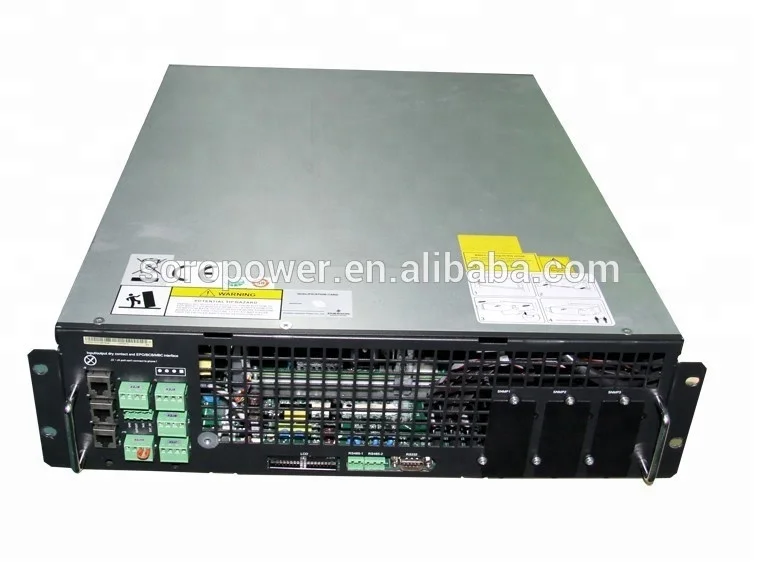

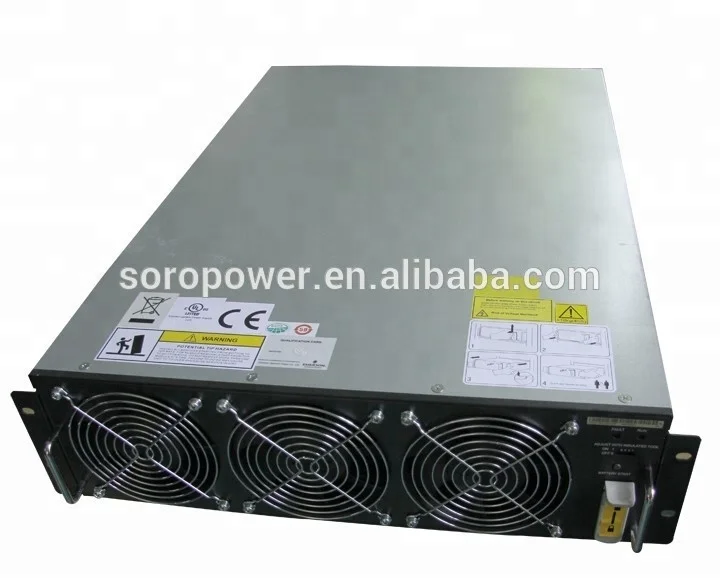

Power Module

STS Module









Application:



ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax,

hospital system, industrial automation, precision equipment, etc.

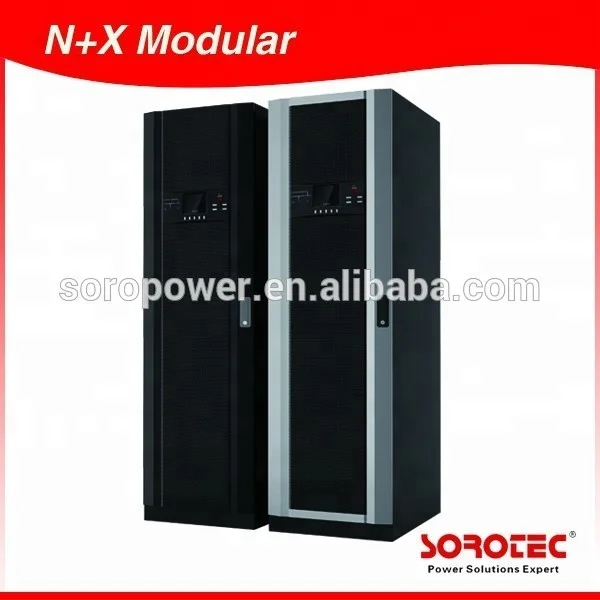

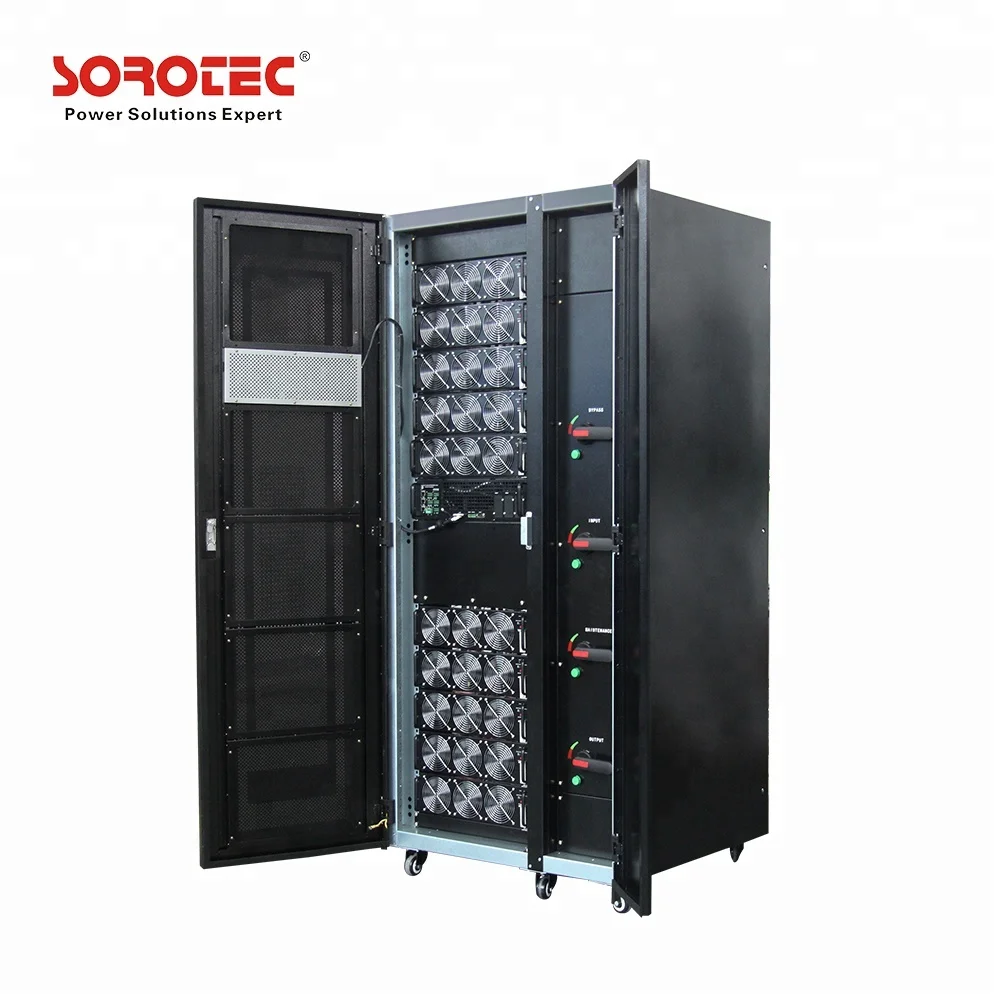

Modular UPS configuration system:



MPS9335C 150K-XL A series Configuration system (MAX 5pcs power module)       (Dimension(mm) :  600×800×1400)	MPS9335C 300K-XL B series Configuration system (MAX 10pcs power module         (Dimension(mm) :  600×800×2100)
MPS9335C 150K C series Configuration system The battery module and power module can be automatically configured (Dimension(mm) :  600×1100×2100)	hot swapping battery cabinet

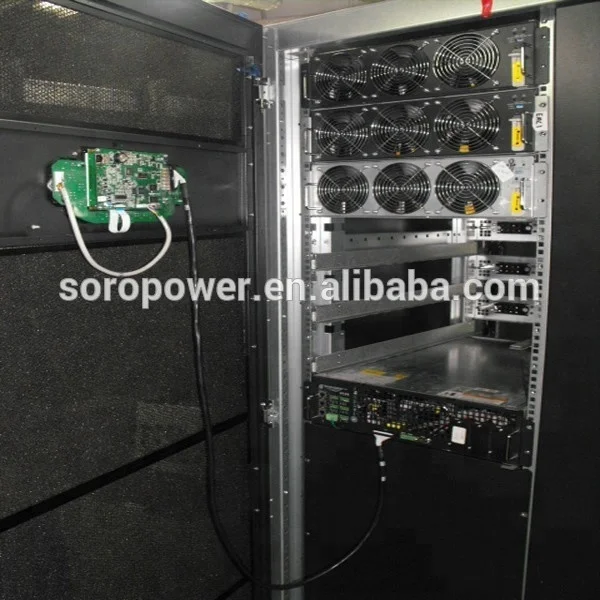

Production Pictures:











Technical Specifications of Modular UPS, MPS9335 10-300KVA



Model	MPS9335 10-300KVA
Capacity	10-300KVA
Main input
Input voltage	380V/400V/415AC(Optional South America 208v)
Input Frequency Range	50/60Hz
Power Factor	Full load>0.99 ,Half load >0. 98
THDi	THDi <3%
Input power soft-start fantion	5-30s settable
Input Voltage Ranges	228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range	40-70Hz
Battery
Battery Voltage	±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy	± 1%
Bypass
Bypass Input voltage	380/400/415VAC 3-phase 4-wire
Voltage Ranges	Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity	150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Output
Inverter Output Voltage	380/400/415VAC 3-phase 4-wire
Voltage Accuracy	± 0.5%(balanced load),   ± 1% (unbalanced load)
THDi	THD<1%(linear load),  THD<3%(nonlinear load)
Power Factor	0.9
Three Phase Angle accuracy	120°c ± 0.5°c
Current Crest Ratio	3:1
Overload Capacity	110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time	0ms,15ms(ECO Mode)
System
Frequency	50Hz/60Hz (Settable)
Mains synchronization range	±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level	IP41/IP42
Communication Ports	RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency	> 96% at load above 50%, >95% at load above 25%
Operation Temperature	0-40 °c
Storage Temperature	-25 °c -70 °c (without battery)
Humidity	0-95%(no-condensing)
Noise(dB)	55-62dB,Adjusted with load
	5 module cabinet	module :RMS050/10, RMS100/20, RMS150/30	150KG
	10 module cabinet	module :RMS100/10, RMS200/20, RMS300/30	150KG
	module :PM10	10KVA power module :20KG
Weight	module :PM20	20KVA power module :21KG
	module :PM30	30KVA power module :32KG
Dimendion(W XD XH)mm	5 module cabinet	600X1400X850
	10 module cabinet	600X2070X850
	power module	440X132X660(10KVA/20KVA/30KVA)

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943

Note: Product specifications are subject to change without further notice.
