                          Manufacturing 1 core ftth drop optic fiber flat cable









Description

WANBAO’s FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

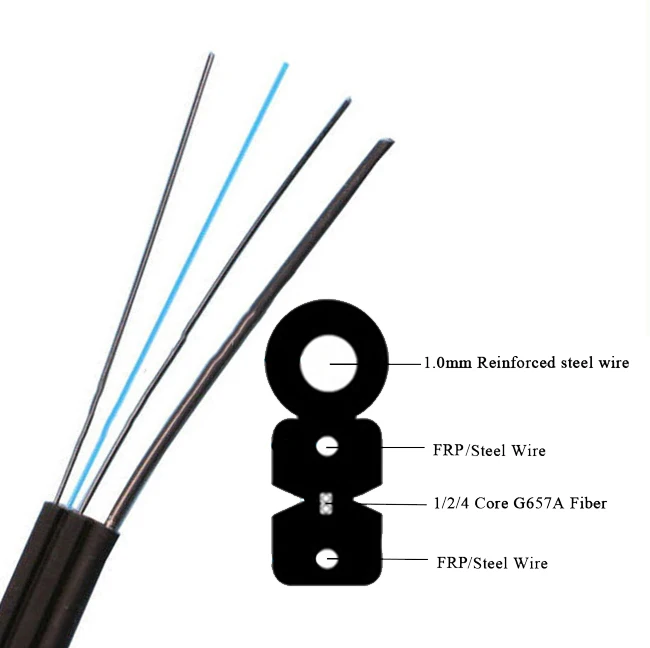

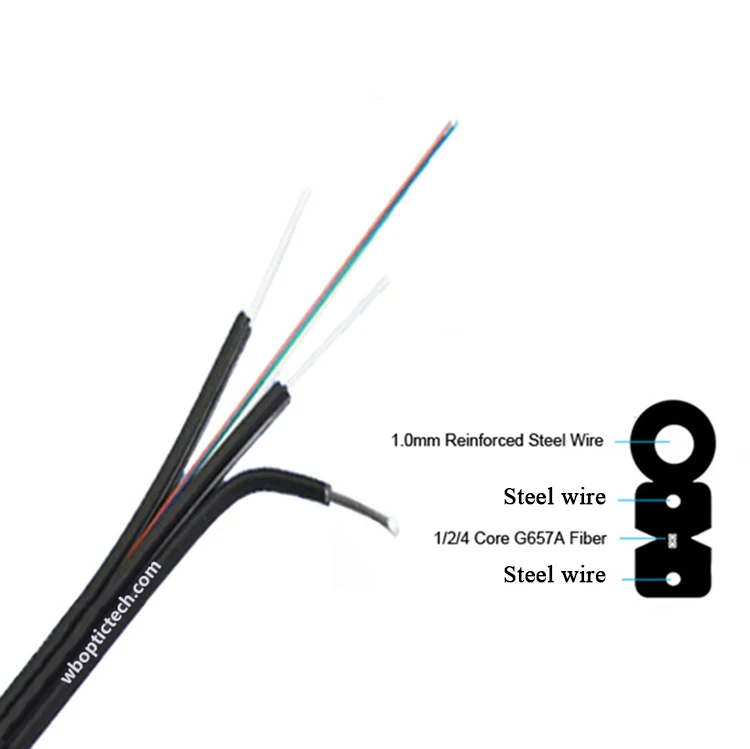

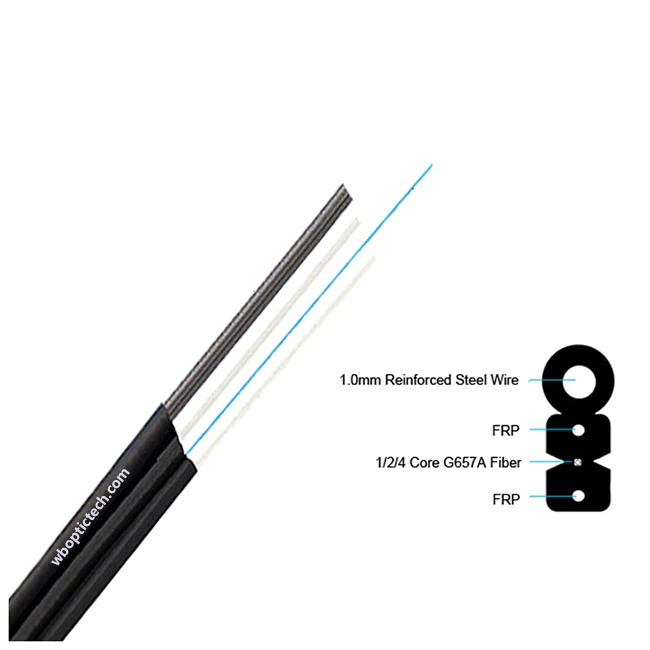

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.



Product characteristics

---FTTH cable, 1, 2, 4 cores

---Soft and flexible, good bending performance Excellent tensile and crush performance

---Steel wire used for self-supporting

---Optical fiber cores are positioned in the center, two strength member are placed at the two sides.

---Strength member: FRP or KFRP or steel wire

---Jacket: LSZH or PVC

---Access network, FTTH cable (Fiber to the home)

---Used in indoor cabling, and end users directly cabling;

---Used as access building cable. Temperature Range -40~+70



Cable Performance

Product Model	GJYXCH/GJYXFCH
Product Name	Self- supporting metallic strength member optical fiber drop cable
size	5.2×2.2MM
Attenuation index	wavelength		B1.1 B1.3 (G.652) (DB/KM)	B6a(G.657A) (DB/KM)		B6b(G.657b) (DB/KM)
	1310		≤0.45	≤0.45		≤0.60
	1550		≤0.30	≤0.30		≤0.50
Technical parameter	Model	Fiber count	Fiber model	Max.tensile (N) Long-time/ short-time	Max.squashed force (N) Long-term/ short time	Max.Bending radius Long-time/ Short-time
	GJYXCH/GJYXFCH	4	B1.1 B1.3	300/600	1000/2200	30/60
			B6a	300/600	1000/2200	15/30
			B6b	300/600	1000/2200	10/25
	GJYXCH/ GJYXFCH	1/2	B1.1 B1.3	300/600	1000/2200	30/60
			B6a	300/600	1000/2200	15/30
			B6b	300/600	1000/2200	10/25

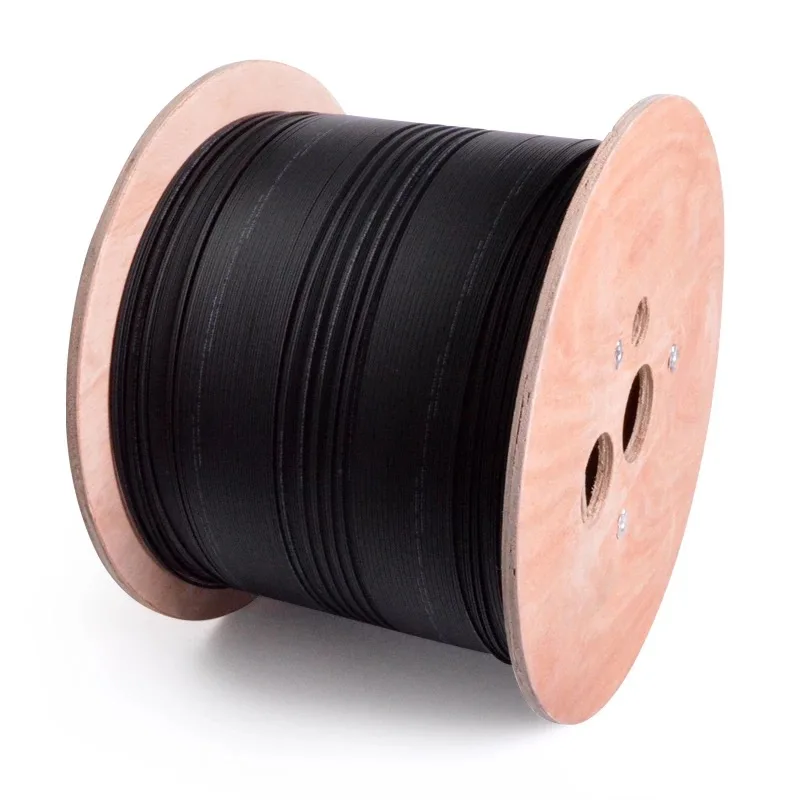

Length type	500M 1000M 2000M per reel or as your request





Payment

Payment terms

1)    Accepted small order,OEM,etc.

2)    Ordinary delivery time: 3-7 days, according to order quantity.

3)    Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment

4)    Accept T/T 100% advance. Western Union, PayPal.

5)    Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
