E0745-A Binocular zoom stereo  microscope for precision measuring







magnification range	standard fitting: 0.7X ~ 4.5X maching eyepiece and auxiliary lens ,continuous variable times  optional  (magnification can be extended to 14X ~ 180X)
objective	continuous change times objective  0.7X ~ 4.5X times zoom  ratio  6.3:1 to ensure the image plane pyrobitument
viewing head	tilt 45°, 360° rotation, PD 54~76mm, bilateral diopter adjustment (± 5),binary or terary,spectral ratio   20%/80%
eyepiece	Eyepiece standard configuration: 10X/20mm wide field of vision, wide angle,high eyepots,  provide convenience to wearing glasses observer
optional eyepiece	10X/20mm (with micrometer) 15X/15mm 20X/10mm
working distance	standard configuration: 100mm (effective distance) equipped with auxiliary lens can be extended to 26mm-287mm
light source	12V 15W, and  halogen lamp  110V voltage,American plug or European plug
focusing	foucing handwheel tightness is adjustable, lifting range 50mm
photographic camera interface	cooperate with special interface ,can meet ordinary camera ,digital camera,analog CCD,digital CCD

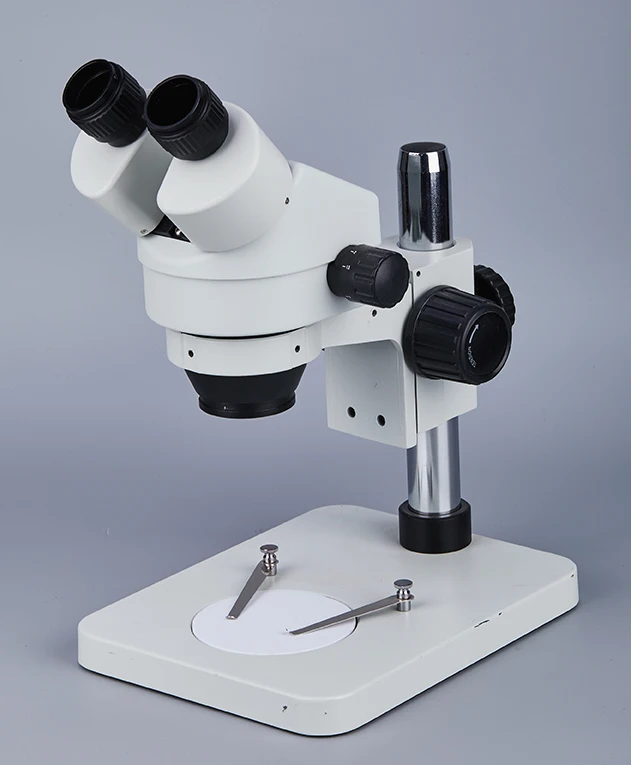

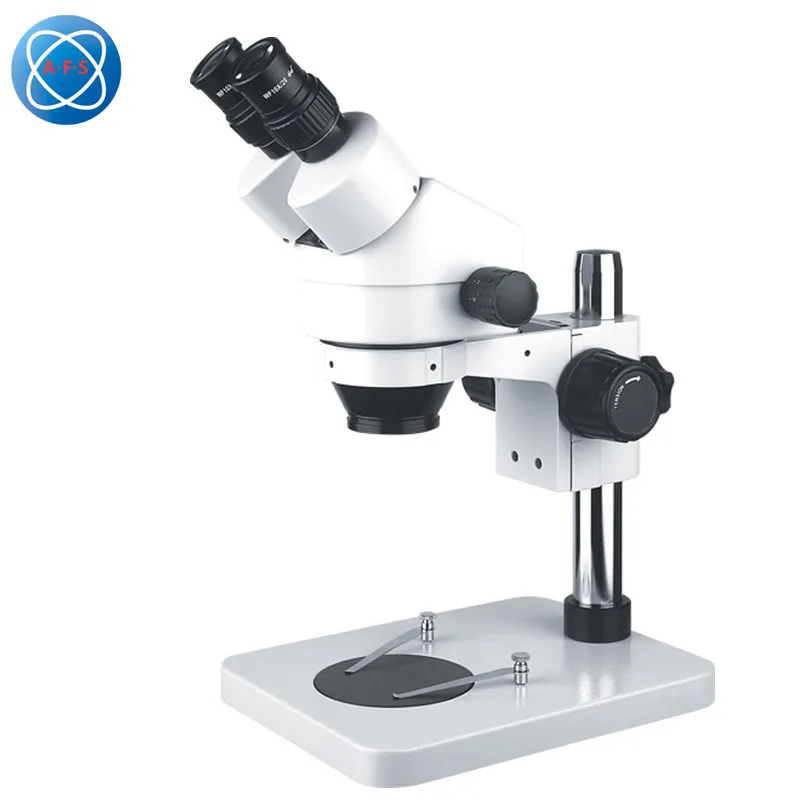

E0745-A Binocular zoom stereo  microscope for precision measuring  picture:

















E0745-A Binocular zoom stereo  microscope for precision measuring  packing:







1.foam with carton



2.wooden box



3.plastic carrying case















E0745-A Binocular Zoom Stereo  microscope for precision measuring shipping:







Why Choose us?



1.We are Alibaba Assessed  Gold Supplier.

2.We are a factory manufacturing microscope best production capability ,

    best quality control, Best Service .

3.100% QC inspection Before Shippment.

4. CE/FCC listed,competitve price.



Our microscope  product including:

biological microscopes, student microscopes,stereo microscopes as well as corresponding accessories and

components such as electronic eyepiece, digital eyepiece, electronic camera, optical lenses, etc.



Our factory located in NINGBO ,nearly the port , so we can provide convenient transportation for your company .





1.Production Workshop:











2.Assembly Workshop:









Our Certifications









FAQ



Q1:Can I choose the color of customized parts accessories and function?

A1:Yes, we are a professional factory of microscope, we provide batch product fittings custom color, such as the      handwheel, base decorative plate.We support the function to reduce or increase at the same time, the                concrete can ask us, we will give you professional answer.



Q2:Could I use my own logo or design?

A2:Yes,customized logo and design on mass production are available.



Q3:How to inspect the goods?

A3:Products will be checked by our QC staff first,then our project manager,client can come and check by                  themselves or third party check is available.





Q4:Is there cheap shipping cost to import to our country?

 A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.





Q5:Can we get support if we have our own market position?

A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
