Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Kaishan максимальная эффективность переносная рудничная буровой платформы для бурения буровых
- Категория: Mining Machinery >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.30 $* | 0.72 $* |
| Aug-17-2025 | 0.87 $* | 0.66 $* |
| Jul-17-2025 | 0.27 $* | 0.97 $* |
| Jun-17-2025 | 0.57 $* | 0.94 $* |
| May-17-2025 | 0.56 $* | 0.21 $* |
| Apr-17-2025 | 0.68 $* | 0.10 $* |
| Mar-17-2025 | 0.54 $* | 0.2 $* |
| Feb-17-2025 | 0.30 $* | 0.51 $* |
| Jan-17-2025 | 0.11 $* | 0.53 $* |
Характеристики
Product Description

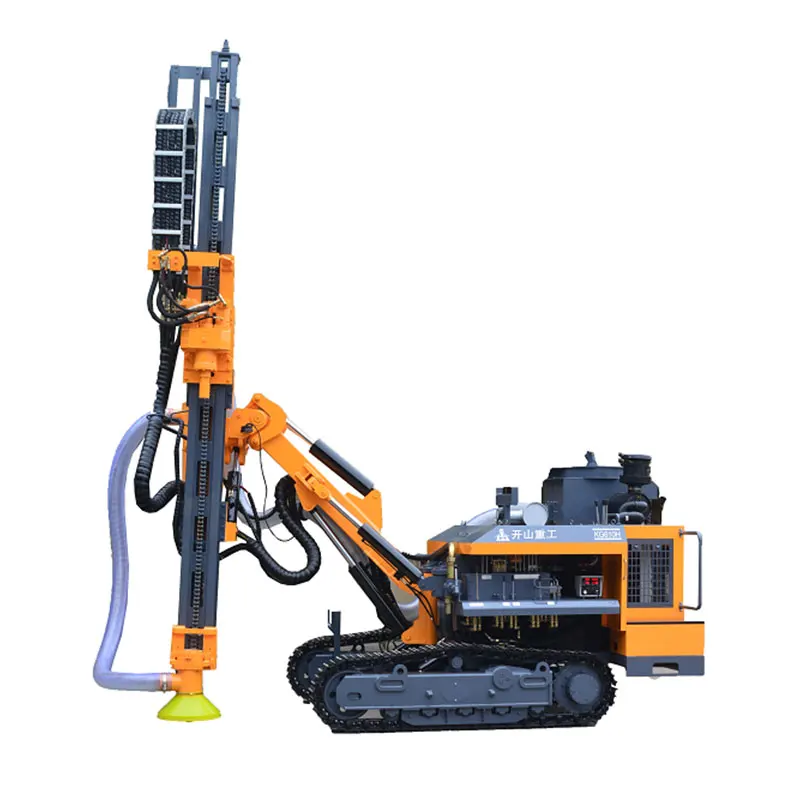

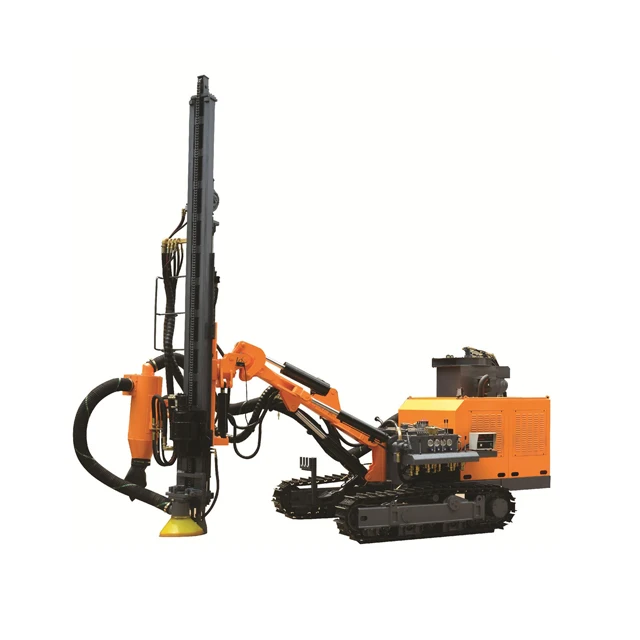

KAISHAN Mine Drilling Rig Machine is a hydraulic, diesel powered, self-propelled down-the-hole rig, designed for surface mining drilling.
Advantages of Mine Drilling Rig Machine：
(1). Powerful and reliable engine
(2). Powerful feeding and rotating system
(3). Reliable Hydraulic Pump System
(4). National inspection-free conduction, high quality
(2). Powerful feeding and rotating system
(3). Reliable Hydraulic Pump System
(4). National inspection-free conduction, high quality
Product Paramenters
Model of drill rig | KG310 | KG310H | |
Weight of complete machine | 4000KG | 4200KG | |
Outer dimensions | 4650×2000×2200mm | 4650×2500×2200mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ80-105mm | ||
Depth of economical drilling | 20m | ||
Rotary speed | 0-120rpm | ||
Rotary torque | 1250N·m | ||
Lifting force | 18KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 2670mm | ||
Travelling speed | 0-2.0km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 250mm | ||
Tilt angle of Beam | Down:145°, up: 55°, total: 190° | ||
Swing angle of boom | Left: 100°, right: 45°, total: 145° | ||
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | ||
Compensation length of beam | 900mm | ||
Supporting power | Yuchai power YCCA13T6-45 (33.1KW/2400r/min) | ||
Drilling rod | Φ60×2m | ||
DTH hammer | L3 | ||
Air consumption | 7-15m3/min | ||
Maximum height of horizontal hole | 2650mm | ||
Minimum height of horizontal hole | 660mm | ||
Model of drill rig | KG320 | KG320H | |
Weight of complete machine | 4500KG | 4700KG | |
Outer dimensions | 5750×2100×2650mm | 5750×2350×2650mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ80-105mm | ||
Depth of economical drilling | 25m | ||
Rotary speed | 0-140rpm | ||
Rotary torque | 1250N·m | ||
Lifting force | 20KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 3820mm | ||
Travelling speed | 0-2.2km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 465mm | ||
Tilt angle of beam | Down:135°, up: 50°, total: 185° | ||
Swing angle of beam | Left: 100°, right: 45°, total: 145° | ||
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | ||
Swing angle of boom | Left: 44°, right: 45°, total: 89° | ||
Compensation length of beam | 900mm | ||
Supporting power | Yuchai power YCD4R23T8-80 (59KW/2400r/min) | ||
Drilling rod | Φ64×3m | ||
DTH hammer | M3 | ||
Air consumption | 7-15m3/min | ||
Maximum height of horizontal hole | 2750mm | ||
Minimum height of horizontal hole | 750mm | ||
Model of mine drilling rig | KG420 | KG420H | |
Weight of complete machine | 5200KG | 5400KG | |
Outer dimensions | 6000×2150×2500mm | 6000×2250×2500mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ90-115mm | ||
Depth of economical drilling | 25m | ||
Rotary speed | 0-120rpm | ||
Rotary torque | 1800N·m | ||
Lifting force | 40KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 3980mm | ||
Travelling speed | 0-2.5km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 500mm | ||
Tilt angle of Beam | Down: 135°, up: 50°, total: 185° | ||
Swing angle of boom | Left: 100°, right: 45°, total: 145° | ||
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | ||
Swing angle of drill boom | Left: 44°, right: 45°, total: 89° | ||
Leveling angle of track | ±10° | ||
Compensation length of beam | 900mm | ||
Supporting power | YCD4R23T8-80 (59KW/2400r/min）/ Yuchai YCD4R23T8-80 (59KW/2400r/min） | ||
DTH hammer | M3 | ||
Drilling rod | Φ64×3m | ||
Air consumption | 10-17m3/min | ||
Maximum height of horizontal hole | 2750mm | ||
Minimum height of horizontal hole | 750mm | ||
Model of drill rig | KG520 | KG520H | |
Weight of complete machine | 6500KG | 7000KG | |
Outer dimensions | 6800×2200×2850mm | 6800×2450×2850mm | |
Drilling Hardness | f=6-20 | ||
Drilling diameter | Φ105-152mm | ||
Depth of economical drilling | 25m | ||
Rotary speed | 0-100rpm | ||
Rotary torque | 3500N·m | ||
Lifting force | 25KN | ||
Method of Feed | Motor-roller chain | ||
Feed strock | 4150mm | ||
Travelling speed | 0-4km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 440mm | ||
Tilt angle of boom | Down: 135°, up: 50°, total: 185° | ||
Swing angle of boom | Left: 50°, right: 50°, total: 100° | ||
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | ||
Swing angle of drill boom | Left: 45°, right: 45°, total: 90° | ||
Leveling angle of track | ±10° | ||
Compensation length of beam | 900mm | ||
Supporting power | 4DKC4G3-100(70KW/2200r/min）/Yuchai 4DKC4G3-100(70KW/2200r/min) | ||
DTH hammer | K4 | ||
Drilling rod | Φ76×3m or Φ89×3m | ||
Air consumption | 15-22m3/min | ||
Maximum height of horizontal hole | 2850mm | ||
Minimum height of horizontal hole | 900mm | ||
Model of drill rig | KG610 | KG610H | |
Weight of complete machine | 7100KG | 7600KG | |
Outer dimensions | 6700×2250×2850mm | 6700×2800×2850mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ105-202mm | ||
Depth of economical drilling | 40m | ||
Rotary speed | 0-110rpm | ||
Rotary torque | 4500N·m | ||
Lifting force | 25KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 4010mm | ||
Travelling speed | 0-4km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 440mm | ||
Tilt angle of beam | Down:135°, up: 50°, total: 185° /Down:135°, up: 50°, total: 185° | ||
Swing angle of beam | Left: 40°, right: 40°, total: 80° /Left: 40°, right: 40°, total: 80° | ||
Pitch angle of drill boom | Down: 55°, up: 25°, total: 80° /Down: 55°, up: 25°, total: 80° | ||
Swing angle of drill boom | Left: 45°, right: 45°, total: 90° /Left: 45°, right: 45°, total: 90° | ||
Leveling angle of track | ±8° | ||
Compensation length of beam | 900mm | ||
Supporting power | Cummins QSB3.9-C125(92KW/2200r/min) | ||
DTH hammer | K5 | ||
Drilling rod | Φ76×3m或Φ89×3m/Φ76×3m or Φ89×3m | ||
Air consumption | 15-26m3/min | ||
Maximum height of horizontal hole | 2850mm | ||
Minimum height of horizontal hole | 900mm | ||

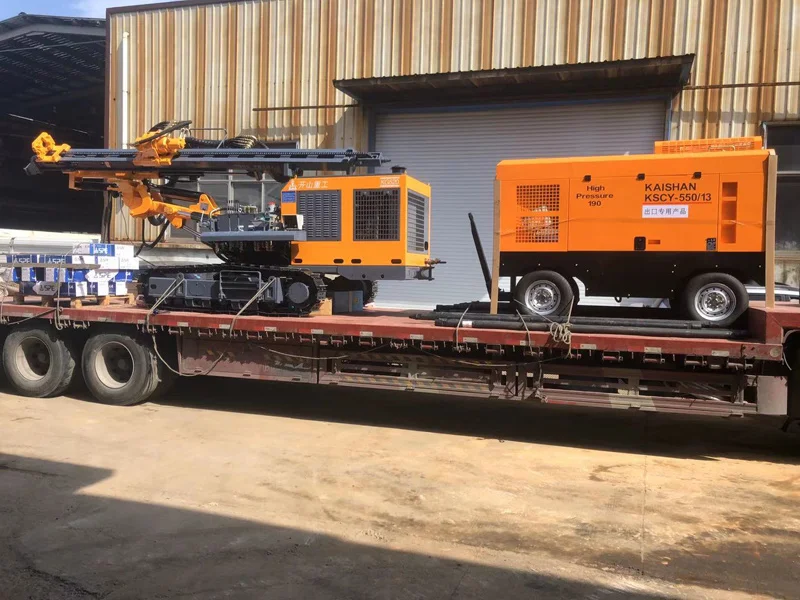

Packing&Shipping
Recommend Drilling Accessories & Screw Air Compressor
After Sales Service
About KAISHAN company
1. Established in 1956 ,Specialized in this line more than 50 years.2. National Free-inspection Product.
3. Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4. Exported to Asia/South America/Mongolia/ Japan/ South-Africa etc . Have global customers.
Company Profile

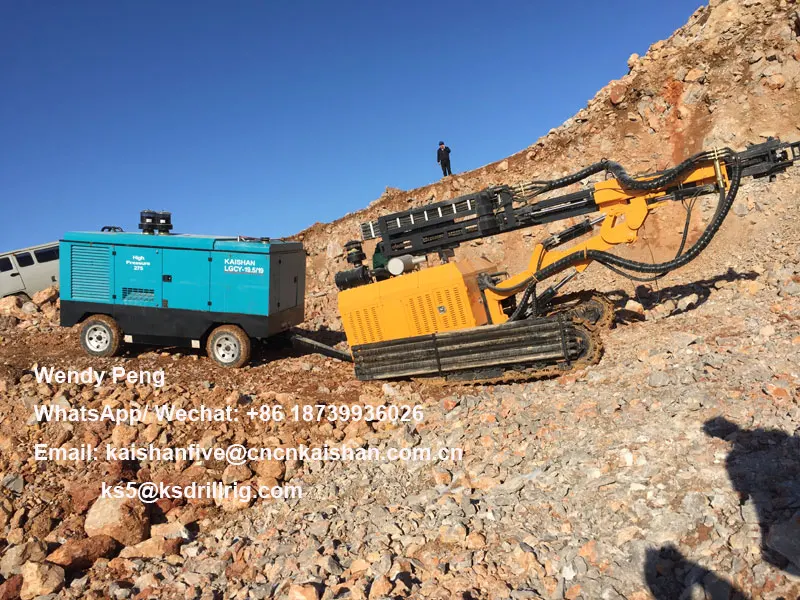

Customer Photos
Company Introduction
FAQ
F&A
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air
compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends
on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
If you need more information about our products, please send us inquiry at your freely and we will be at service for you at any time. Then will send your more details about the machine.
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air
compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends
on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
If you need more information about our products, please send us inquiry at your freely and we will be at service for you at any time. Then will send your more details about the machine.
