Гидравлический орбитальный двигатель серии HM для

Гидравлический орбитальный двигатель серии HM для

Категория: Other Motor >>>
Поставщик: Ningbo,Helm,Tower,Noda,Hydraulic,Co.,Ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.70 $*	0.47 $*
Aug-16-2025	0.78 $*	0.11 $*
Jul-16-2025	0.47 $*	0.38 $*
Jun-16-2025	0.86 $*	0.51 $*
May-16-2025	0.74 $*	0.41 $*
Apr-16-2025	0.18 $*	0.51 $*
Mar-16-2025	0.76 $*	0.2 $*
Feb-16-2025	0.11 $*	0.82 $*
Jan-16-2025	0.97 $*	0.39 $*

Характеристики

Company Information

With more than 10 years experience in hydraulic motor industry, we have passed ISO9001-2008 and CCS quality standards.

Product Description

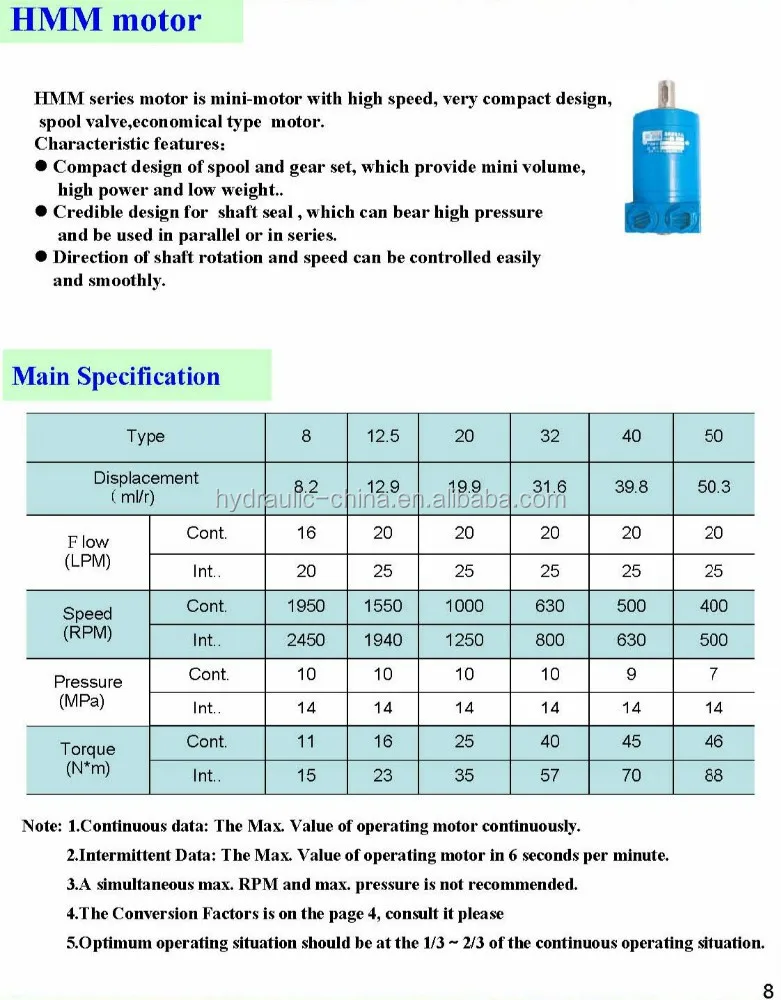

Gerotor motor HMM series features:

- HMM series is a mini -motor with high speed

- Small volume.

- High efficiency.

- Low noise.

- Compact design of spool and gear set , which provide mini volume, high power and low weight..

- Credible design for shaft seal , which can bear high pressure.

- Direction of shaft rotation and speed can be controlled easily and smoothly.

Main Specification:

Type		8	12.5	20	32	40	50
Displacement (ml/r)		8.2	12.9	19.9	31.6	39.8	50.3
Flow (l/m)	Rated	16	20	20	20	20	20
	Max.	20	25	25	25	25	25
Speed (r/m)	Rated	1950	1550	1000	630	500	400
	Max.	2450	1940	1250	800	630	500
Pressure (MPa)	Rated	10	10	10	10	9	7
	Max.	14	14	14	14	14	14
Torque (N.m)	Rated	11	16	25	40	45	46
	Max.	15	23	35	57	70	88

Note: 1. Continuous data: the max. value of operating motor continuously.

2. Intermittent dada: the max. value of operating motor in 6 secends per minute.

3. A simultaneous max. RPM and max. pressure is not recommended.

4. Optimum operating situation should be at the 1/3-2/3 of the continuous operating situation.
