Патч-панель
- Категория: Патч-панель >>>
- Поставщик: Cixi,Sembanx,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.1 $* | 0.95 $* |
| Aug-19-2025 | 0.82 $* | 0.34 $* |
| Jul-19-2025 | 0.48 $* | 0.88 $* |
| Jun-19-2025 | 0.52 $* | 0.57 $* |
| May-19-2025 | 0.43 $* | 0.83 $* |
| Apr-19-2025 | 0.62 $* | 0.62 $* |
| Mar-19-2025 | 0.30 $* | 0.94 $* |
| Feb-19-2025 | 0.21 $* | 0.54 $* |
| Jan-19-2025 | 0.47 $* | 0.4 $* |
Характеристики
| Item name | Patch Panel |
| Model Number | SMB-PP-CAT6AS-011 |
| IDC Type | 110, KRONE,DUAL IDC |
| Port | 24 Port |
| Height | 1u Patch Panel |
| Color | Black |
| Application | Networking |
| Category | Cat5e/6/6A |
| Packing | 1pc/box |
| MOQ | 100pcs |
| Lead Time | about 7-25 days |
| Payment Terms | T.T / L.C / PAYPAL / WESTERN UNION |
| OEM Service | Welcome |

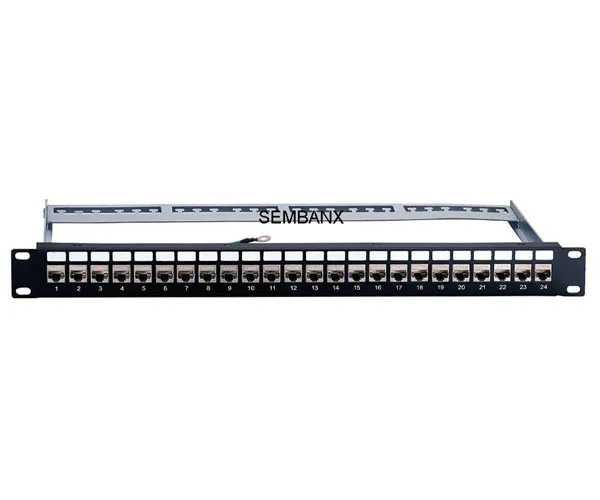

CAT6A FTP 24 ports module type
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC , Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC,
0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
Product Description
