Honda Gasoline Vibratory Plate Compactor ( FPB-S30G )

 Product Description:

 Vibratory plate compactor compact the material through its vibration and weight and are used for compaction of granular soils. Vibratory plate compactor series has been specially designed for easy, effective compaction of asphalt, soil and other non-cohesive materials. Vibratory plate compactor decreases the number of air voids through vibration and then compact the layer with its own light weight. Due to small size, it allows you to done compaction in confined areas where turning would otherwise impossible. During operation this machine generates a horizontal force to propel themselves in forward motion. This feature makes it easier to operate and handle.

 Application:

Vibratory Plate Compactors are designed for use on granular soils, hot or cold asphalt, and paving blocks. These units are ideal for trenches, road construction, backfill, and foundation work. It is suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.

Features:

1. Famous diesel engine.

2. The installation of hand shock-absorbing damper, which will reduce vibration and makes a comfortable operation.

3. Forward and backward hydraulic control, which is flexible and convenient.

4. Gravity point lower, steady working condition, disposing small shifting car and hook, which is comfortable for the operators to change working directions.

Technical Parameter:



Model	FPB-20	FPB-S30	FPB-S30G	FPB-S30C
Engine	GX160	GX160	GX160/GX270	CF170/ CF178
Power	5.5HP	5.5HP	5.5HP/9.0HP	5.0HP/6.0HP
Working area	430*550mm	420*690mm	500*690mm	500*690mm
Walking mode	One-way	Hydraulic double-way	Machinery double-way	Machinery double-way
Vibrating force	20KN	30KN	30KN	30KN
Frequency	70HZ	70HZ	70HZ	70HZ
Grade ability	25%	25%	25%	25%
Starting mode	Hand	Hand	Hand	Hand/electric
Packing size	760*520*700mm	780*560*1060mm	780*560*1060mm	780*560*1060mm
weight	85kg	140kg	160kg/175kg	160kg/175kg

































Advantages:

1. High-pressure speed, high efficiency.

2. Low center of gravity, stable and effortless operation.

3. Four-stroke Honda engine, with outstanding durability.

4. Internal combustion with low fuel consumption and noise.

5. Excellent anti-vibration system, greatly reducing the labor intensity.

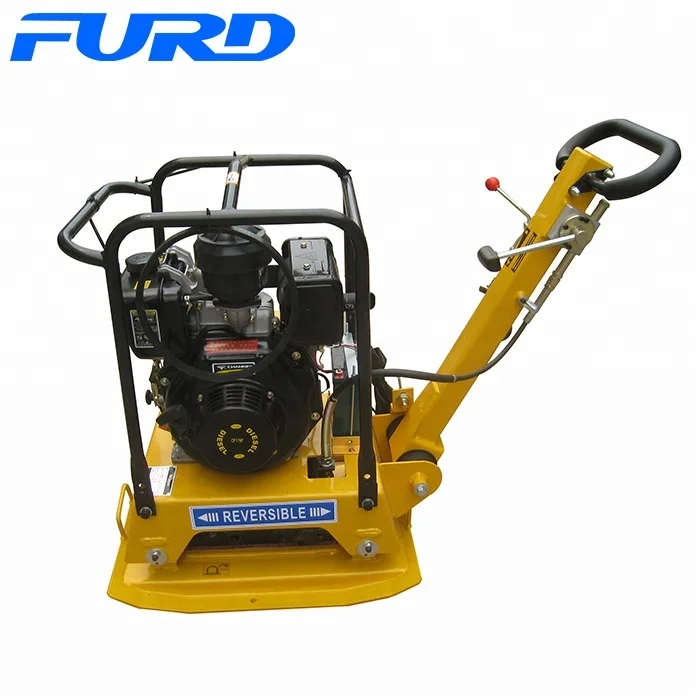

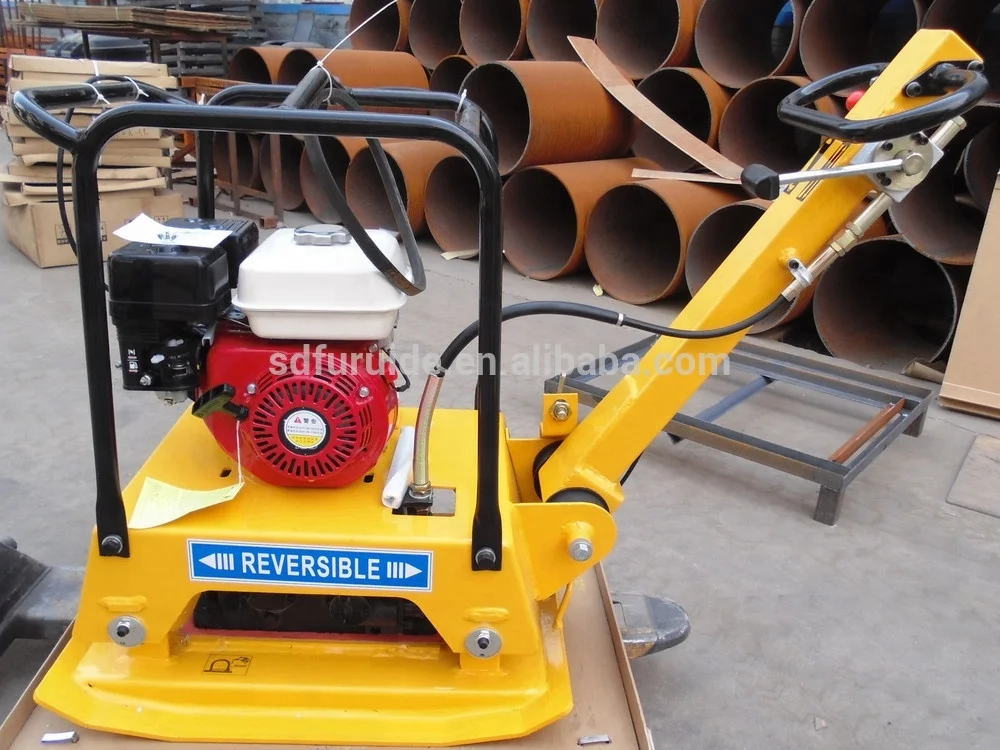

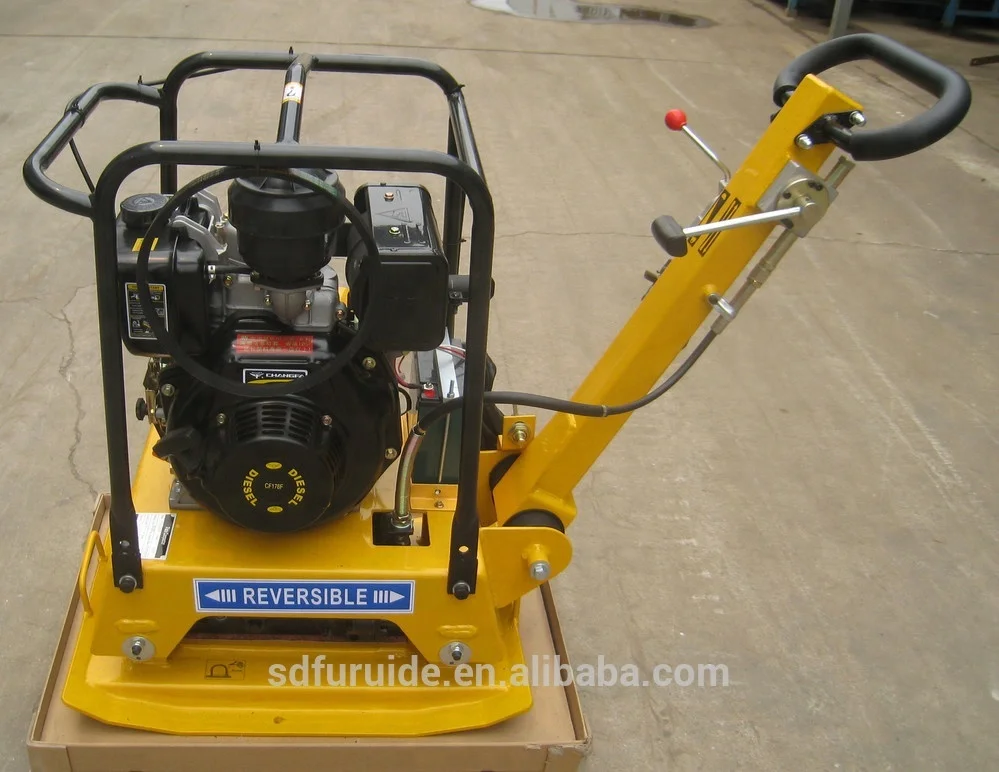

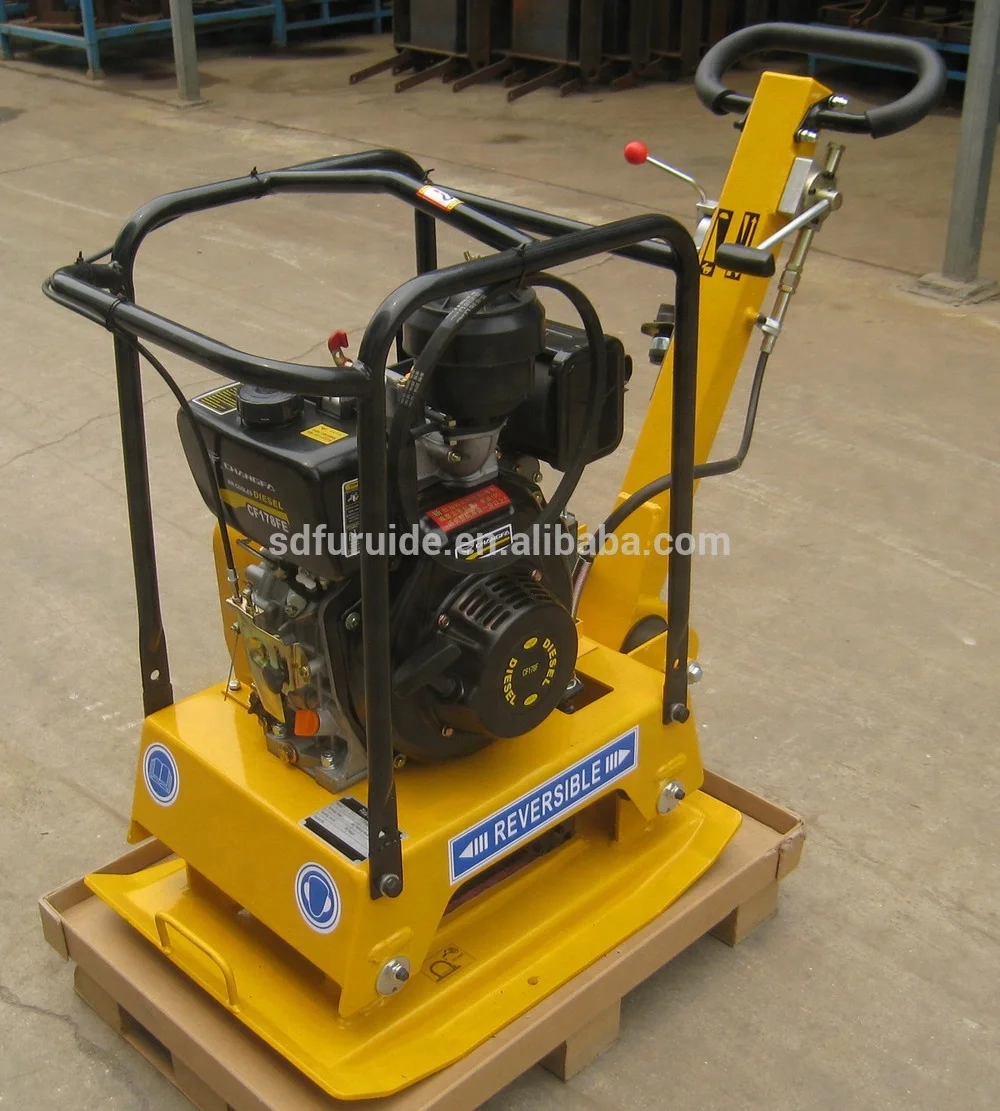

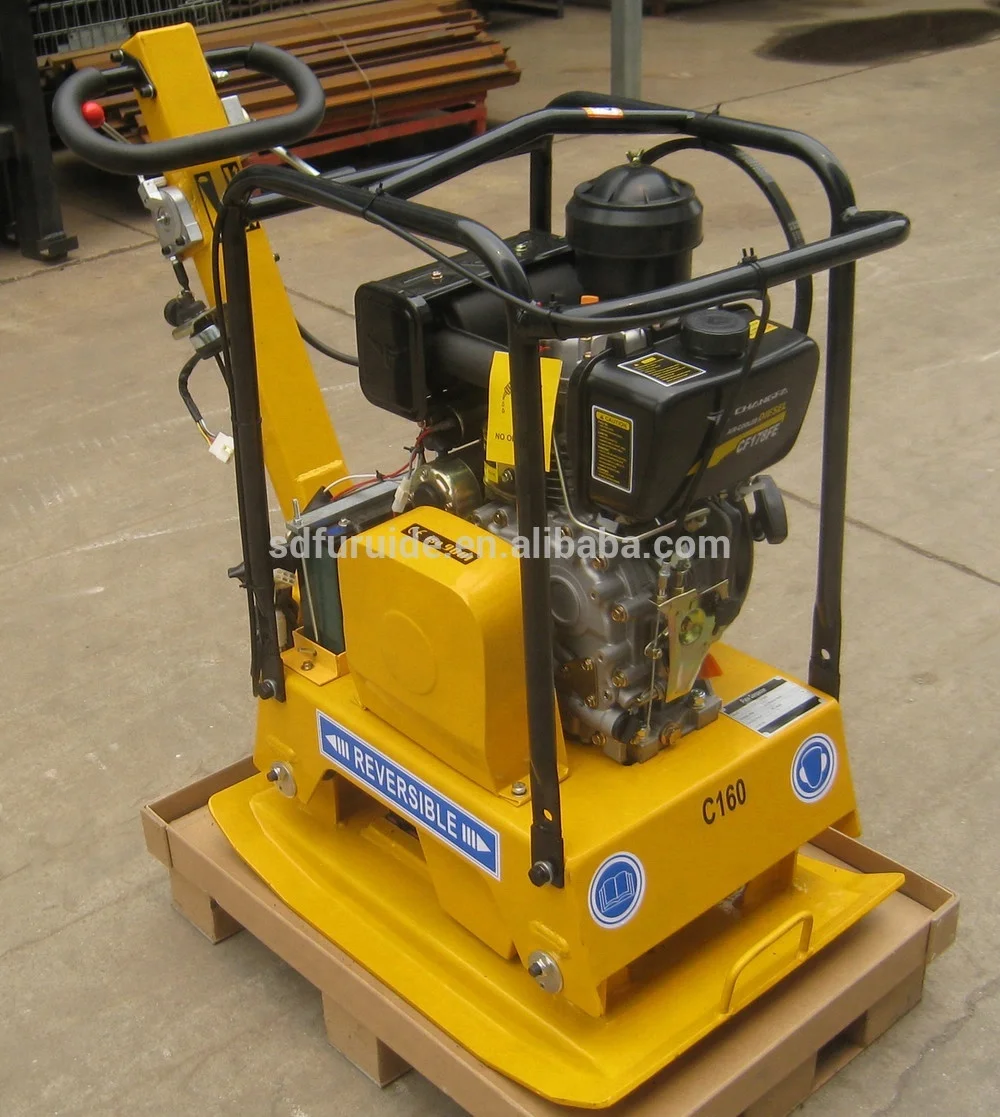

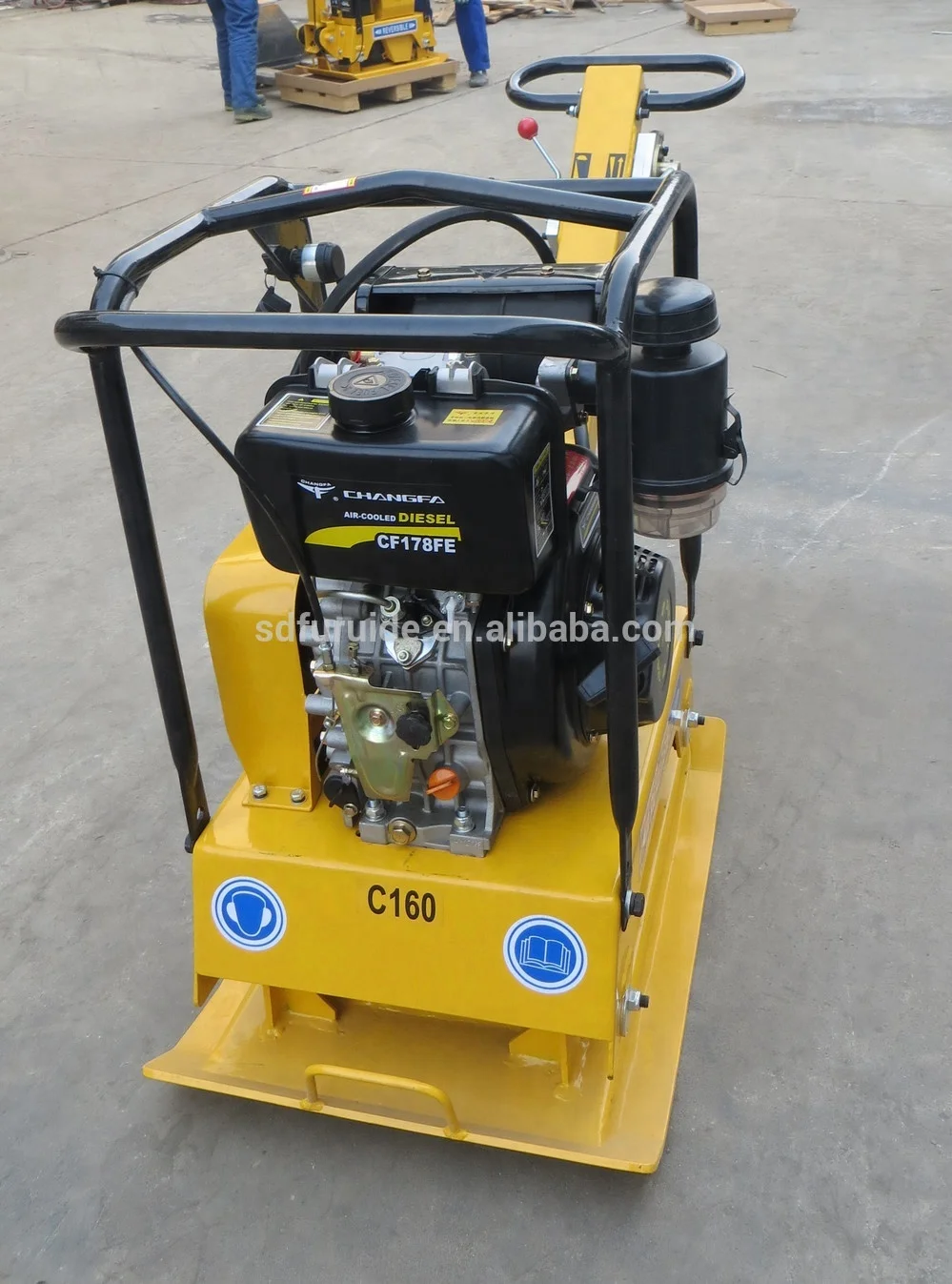

Detailed Pictures:



 After-sales service:

     --We guarantee that, under normal use,all defective machine can be repaired and changed for free(except easy wearing parts) .The  guarantee period of our product is 1years.

   --0ur company insist on"frist -class goods,reasonable price”.
