Микро-сварочный аппарат для электрических компонентов
- Категория: Seam Welders >>>
- Поставщик: Guangzhou,Jingyuan,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.22 $* | 0.22 $* |
| Aug-17-2025 | 0.88 $* | 0.30 $* |
| Jul-17-2025 | 0.29 $* | 0.2 $* |
| Jun-17-2025 | 0.79 $* | 0.25 $* |
| May-17-2025 | 0.48 $* | 0.80 $* |
| Apr-17-2025 | 0.89 $* | 0.82 $* |
| Mar-17-2025 | 0.15 $* | 0.56 $* |
| Feb-17-2025 | 0.52 $* | 0.28 $* |
| Jan-17-2025 | 0.64 $* | 0.88 $* |
Характеристики
seam sealing power

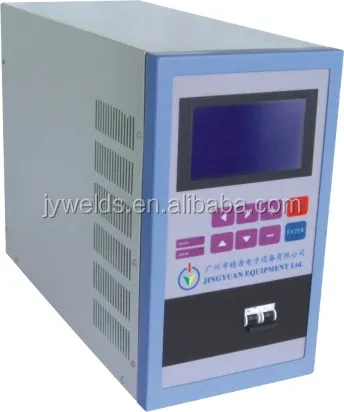

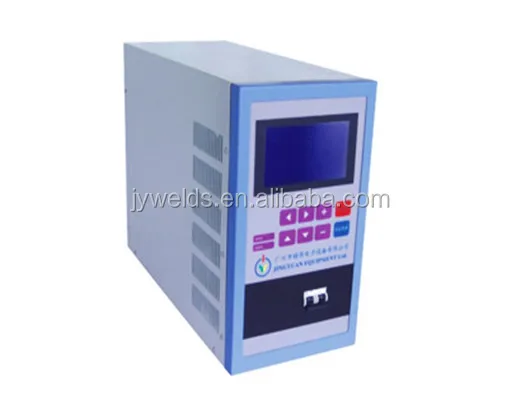

Inverter DC seam welding/sealing power supply

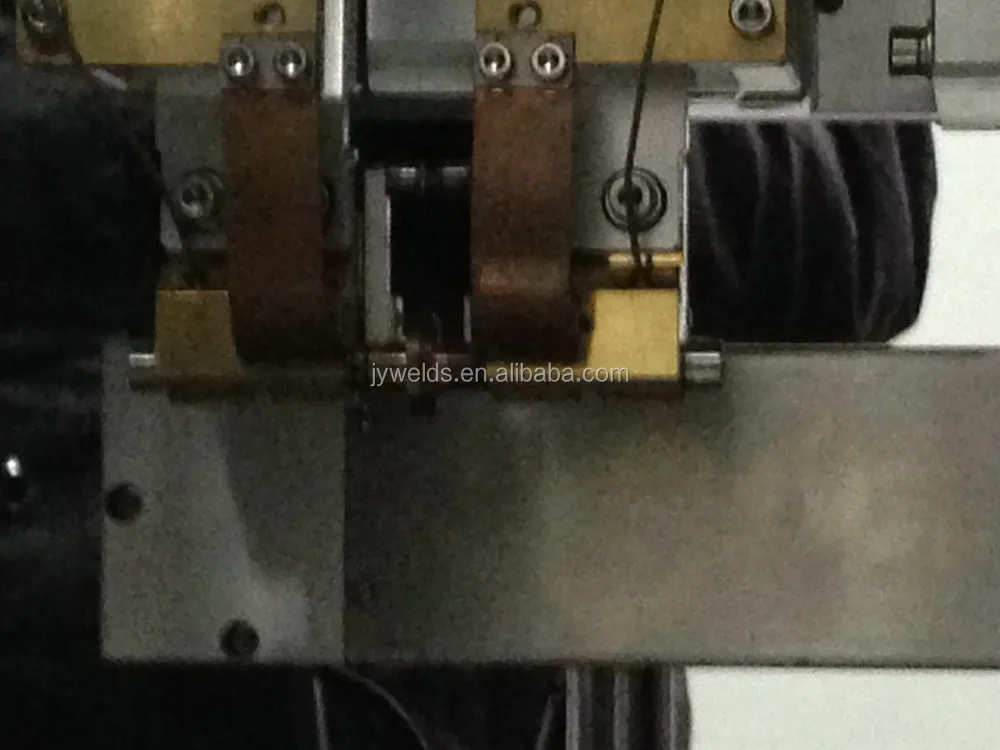

A seam welder is to form a welding seam,like stainless steel composite pipe,or making a can by putting a lid on a case in which an electronic component is placed for hermetic package,It is intended to shut off the outside air from the component inside the package for stable operation for a long period of time.
It is widely used for miroelectronics and semiconductor prodution,like crystal resonator,all called crystal oscillator.
1,Specifications:
a,IGBT inverter with 4kHz frequency.
b,Perfect current waveform control systerm.
c,Exactly adapt the beginning,central and ending of the seam welding.
d,Display actual welding current.
e,Fast response,0.25ms once.
2,Advantages of inverter seam welding power supply and the current waveform of capacitor type/AC type/inverter type/crystal type
a,Inverter type of seam sealing power supply can saving 50% power than others.
b,Inverter type of seam sealing power supply can improve 3% stability than others.means less defective products.
c,Inverter type of seam sealing power supply can be much fuster than others.
3,Technical parameters
Note:Our company have the total property rights of the products,we can provide the customized iput voltage as 110V or 220V*3 etc.
Model/No | JYF-01L | JYF-02L | JYF-03L | JYF-04L | JYF-10AL/AT |
Iput Voltage(V)) | 220V | 220V | 220V | 3~380V | 3~380V |
Rated duty cycle(%) | 20 | 20 | 20 | 20 | 20 |
Rated Power(kVA) | 4 | 6 | 10 | 12 | 25 |
Max current(DCA) | 1000 | 2000 | 3000 | 4000 | 10000 |
Frequency | 4 | 4 | 4 | 4 | 4 |
Welding step | 2 | 2 | 2 | 2 | 2 |
Schedule memory | 20 | 20 | 20 | 20 | 20 |
Dimension(L*W*H)(mm) | 435*185*320 | 435*185*320 | 435*185*320 | 460*400*300 | 460*222*345 |
Weight(Kg) | 16 | 23 | 24 | 33 | 56 |
4,Power supply screem introduction
5,Honor and certifications
6,Applicable area
All the whole automatic seam welding machine/ All the whole seam sealing machine/ microelectronics production/semicontuctor production/crystal resonator/ stainless steel composite pipe.
7, Main component configuration brand list
ABB; Microchip; Hitachi; Siemens; Fuji; Infineon; Schneider.
8,Service
1, We are the leading precise welding equipment company, and can help you detect a best precise welding plan with our more than 20 years welding experience.
2,We can design and develop precise welding machine according your requirements.
3,We can help you welding some samples for testing before you buy the machine, and it is free.
4,We are usually punctual and trustworthy.
5,We want to meet the best costmer’s satisfaction so that we can won more chance.
