DSG250C Hose crimping machine with PLC / CNC  Rubber hose crimping machine/ rubber pipe crimping machine with PLC

• Main technical characteristics:

1. Inside Diameter of fastening the rubber hose: φ6 - φ64mm

2. Precision of Scale: 0.02 mm

3. Power: 4KW (Motor of Oil Pump)

4. Maximum Fastening and Pressing Force: 640 T

5. Rated Pressure of Pump: 31.5MPa

6. Oil Pump Output: 14 L/min

7. Overall Dimension: 800 × 620 × 1300 (mm)

8. Weight: 300 Kg

• Brief introduction

DSG-250C Model pipe locking machine produced by our factory is applicable for the fastening and pressing processing of the high pressure rubber hose, fiber pipe and plastic pipe assemblies in the industry, agriculture and hydraulic transmission of engineering machine, and the machine has the following characteristics: having small volume, light weight, many functions, and rapid opening of die, being easy to operate and convenient for maintenance and repair and so on.

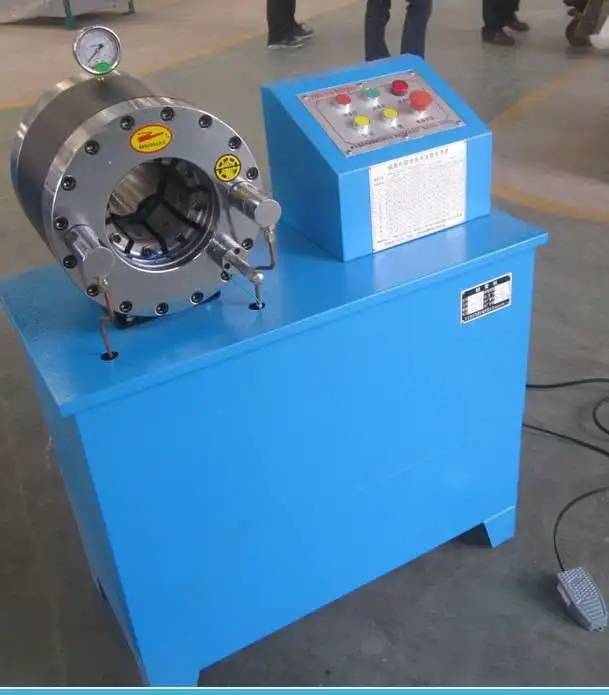

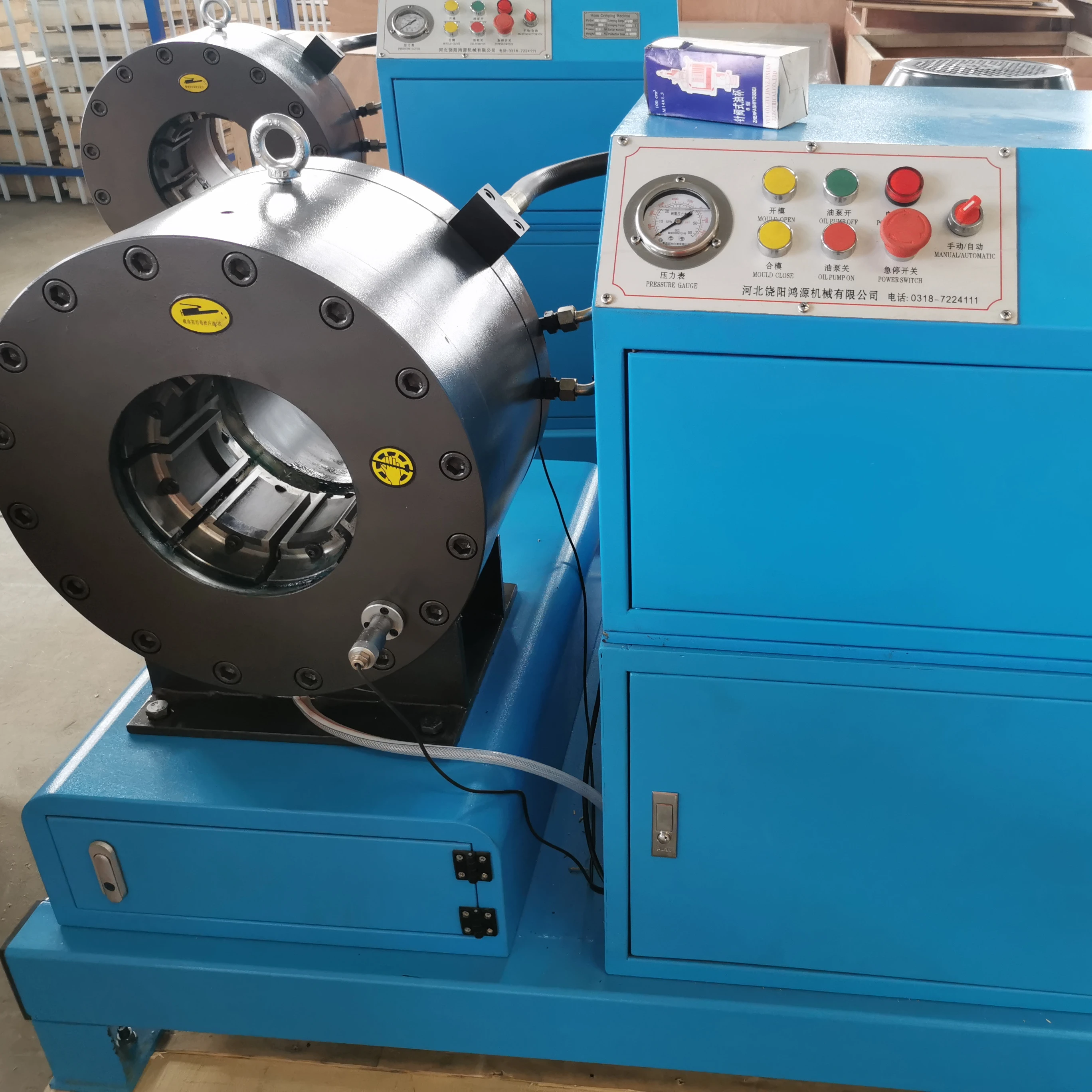

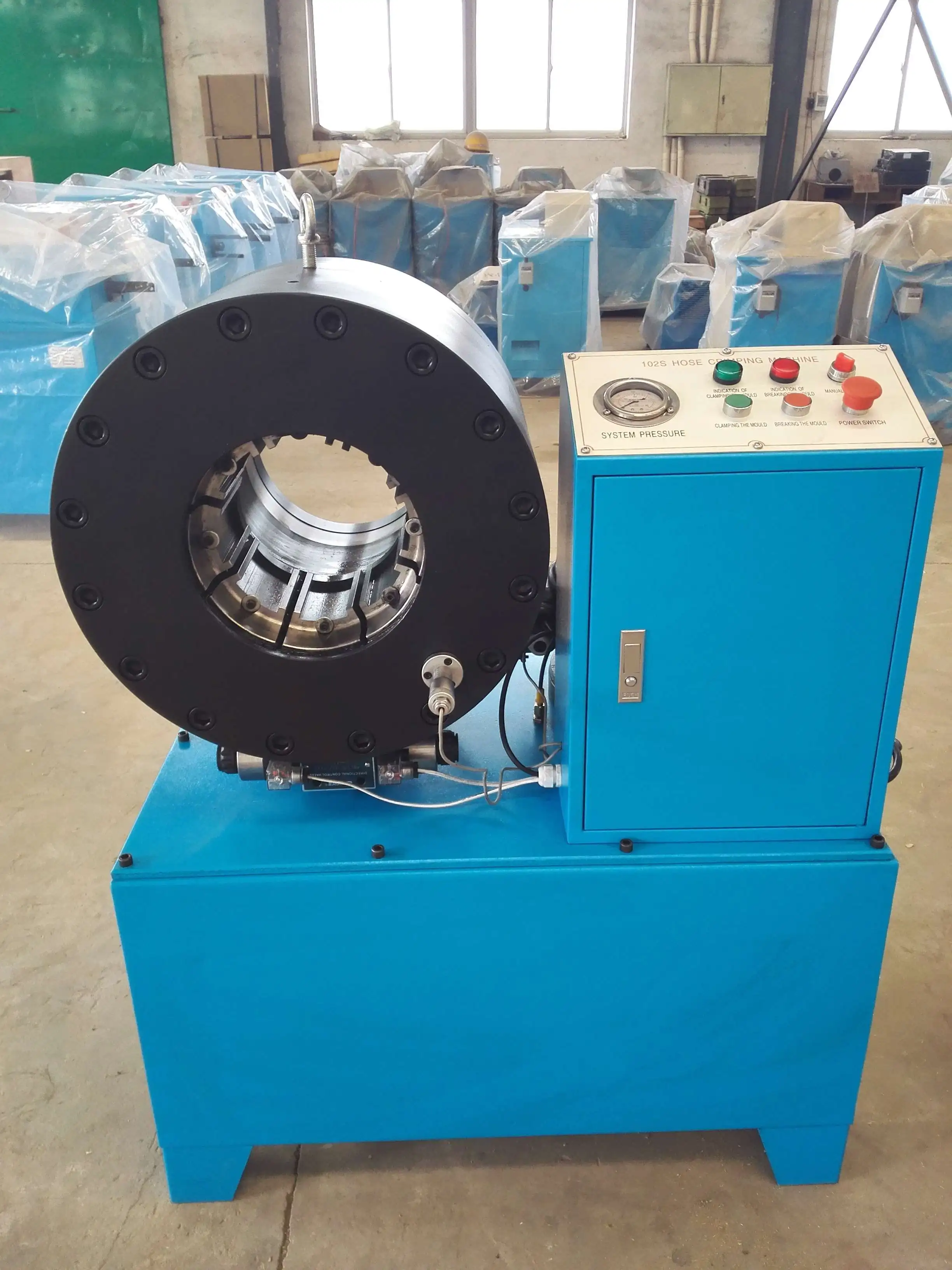

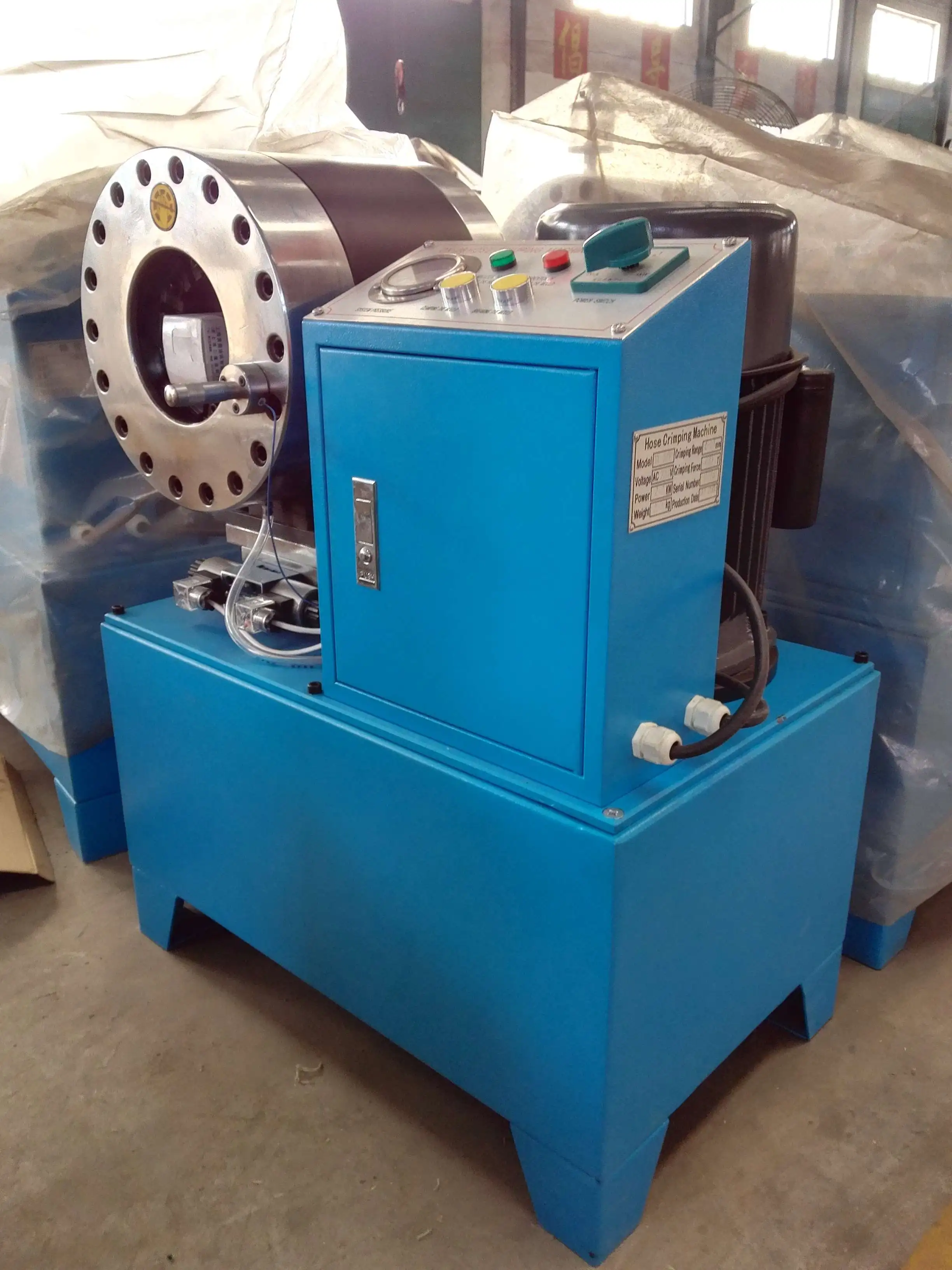

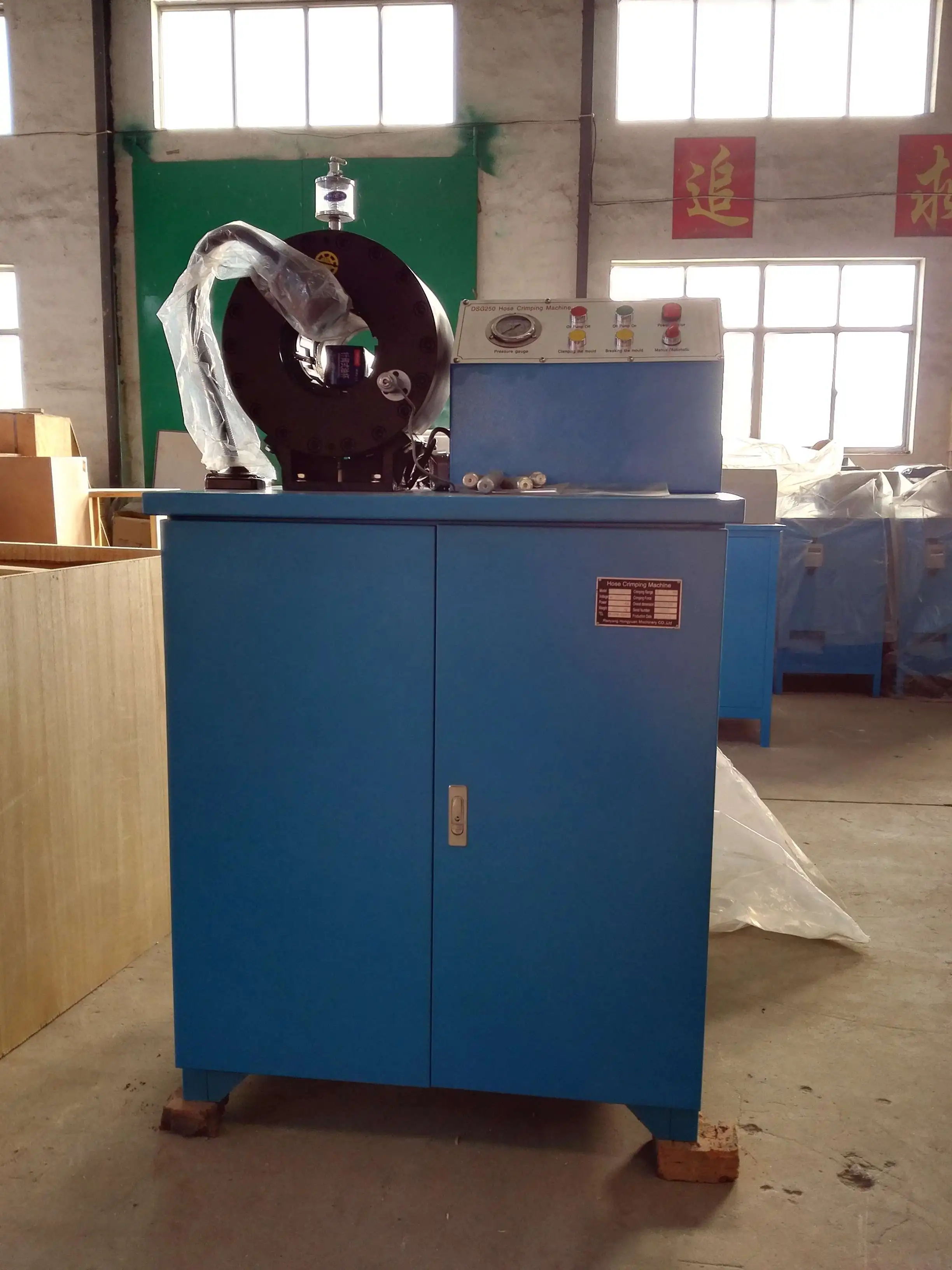

• Picture of the product

•  Packaging:  wooden box or as requirement
• shipping: by sea or by air

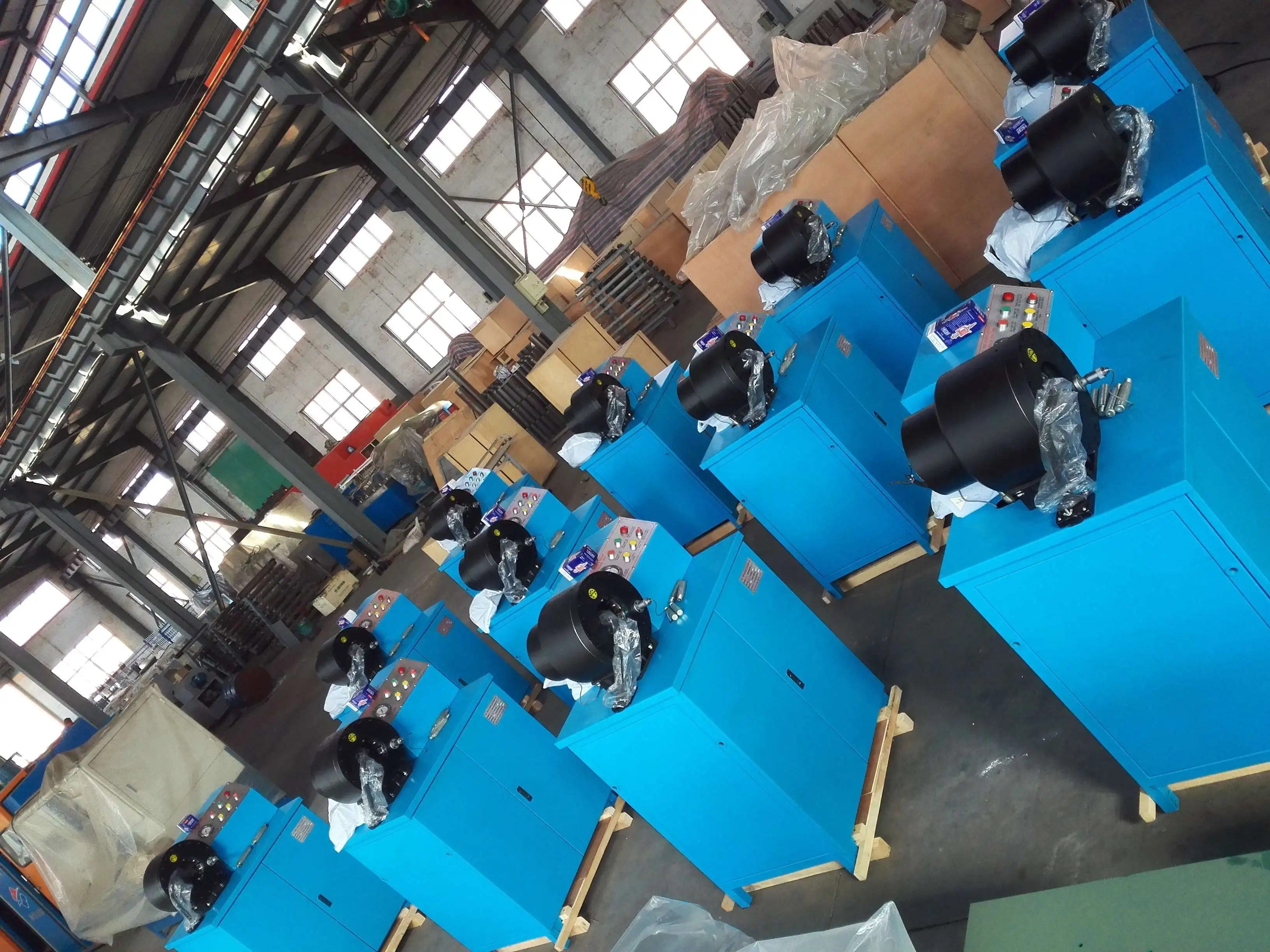

• Pictrue of the packaging

Hebei Raoyang Hongyuan Machinery Co.,Ltd is located in Raoyang,Hebei province,China. We have more than 20 years' export experience in our machines. Each month we export our machine not less than 50 sets . More than 81% of our products are widely exported to Europe,America, Southeast Asia,The middle east and other countries and regions,where our products have good reputation.

We have abtained the ISO9001:2008 Certificate and CE Certificate, and Original of Certificate can be supplied if needed.
