4 channels car camera video switcher for front/rear/right/left camera,control driving assit camera system (XY-3028)

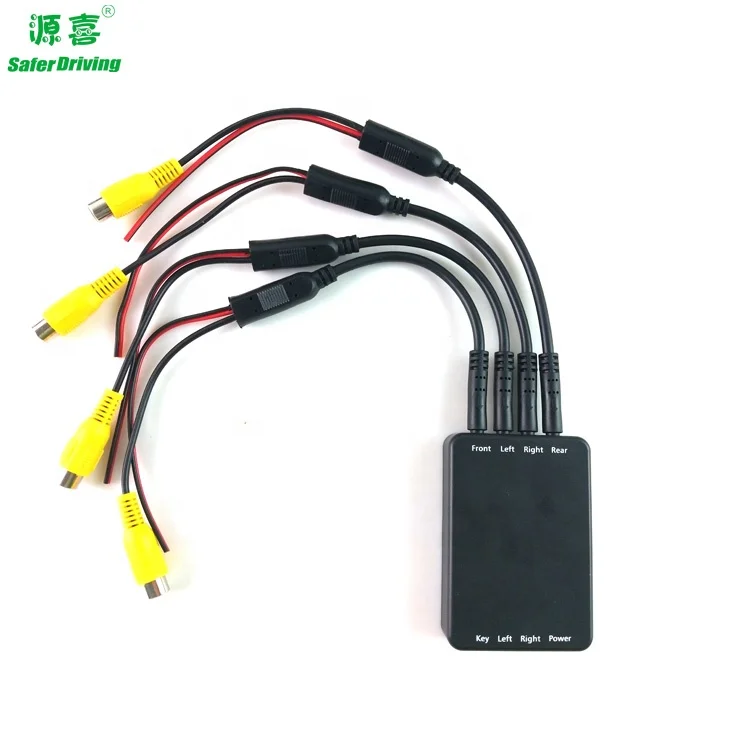

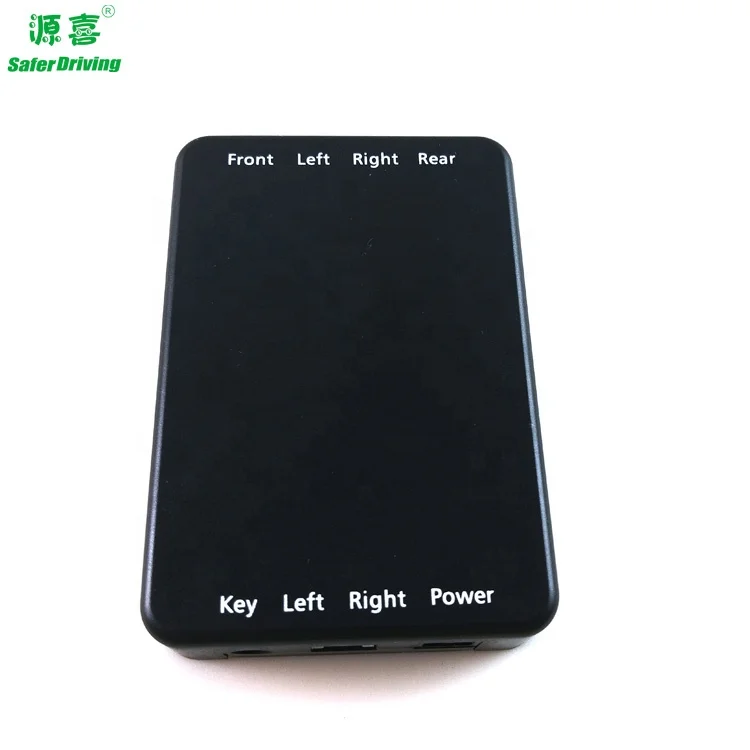

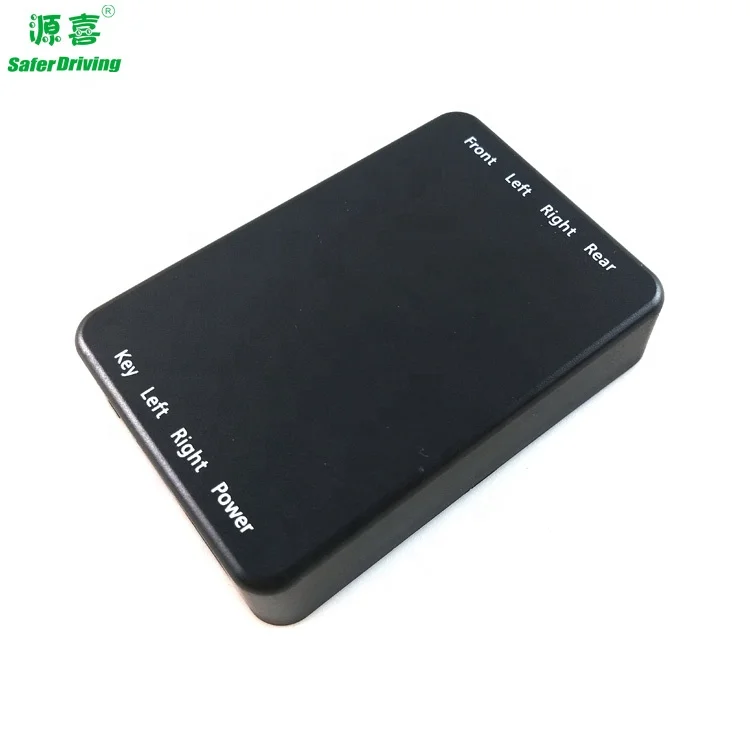

All round view car camera control box



 Description:



Video output: Two videos output, one for car monitor, the other for car DVR.



Front view camera power: supplied by control box system.



Rear view camera power: supplied by control box system, or could be supplied by reverse lamp power.



Left/Right side view camera power: supplied by control box system



Functions:



1. Automatically rear view and front view:



When you pull the reverse gear (Left/Right turning no triggered), the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera for 10 seconds then shut off.



2. Front view mode:



Front view controlled by switch(included) .Press the control switch for 2 seconds, car monitor and car front view camera will be working all the time, if no other trigger working. And then you could shut off the front view video by press the control switch again.



3. Side view mode:



Press the control switch less than 1 second to enter/quit Side View Mode.



When you turn on the turning switch, this system will activate Monitor and Side view camera (Left/Right side view camera is controlled by Left/Right steering lamp). The monitor and camera will turn off after 1.5 seconds when steer turning is finished.



Trigger priority:



Left View>Back View>Right View>Front View

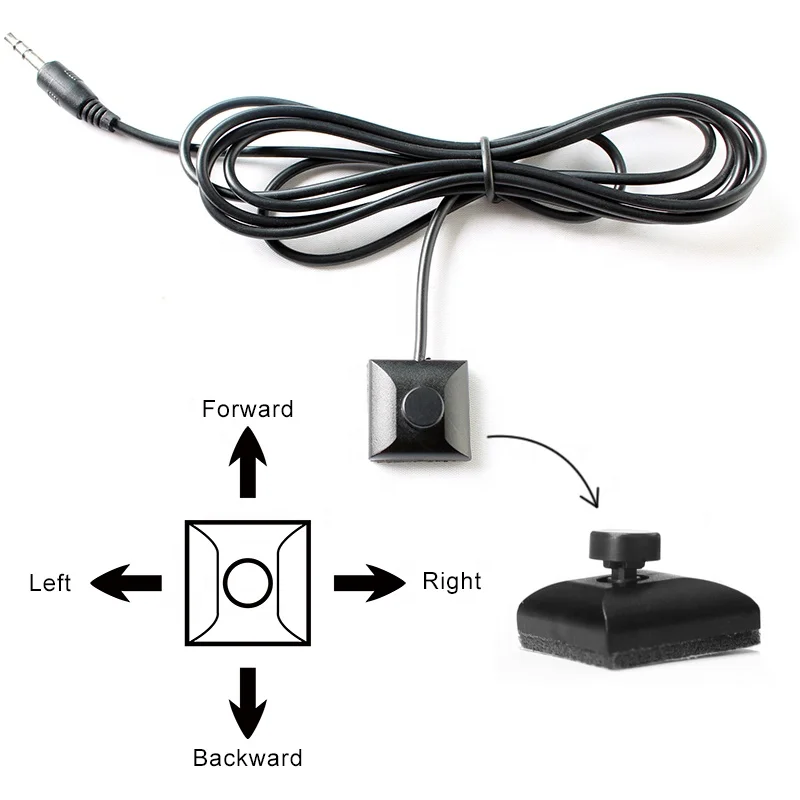

 Switch function:



Press for less than 1 second: Enter/Quit Side View mode



Press for 2seconds: Front View always working



Parameters:



The system working current: Max: 50MA. (Excludes working current of cameras)



The system working power: 9-30V. (Power supply to cameras is the same as the system input voltage, in 24V vehicle, please use 24V cameras)



System signal: PAL/NTSC/SECAM



Video output: 1.0VPP/75Ω



Working temperature: -20~80



Operation Temperature: -40~85

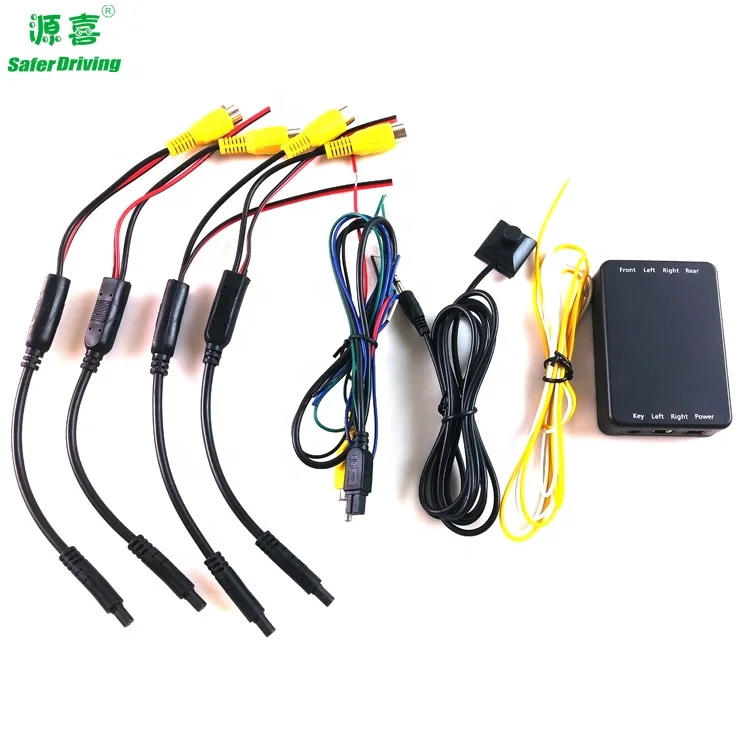

Packing list:

Control box   * 1pcs

Front view control switch *1pcs

Adapt cable *6pcs

User's manual *1pcs









----------------------------------------------------------------------------------------------------------------------------------------------------------
