ZH-800G полностью автоматическая
- Категория: Gluing Machines >>>
- Поставщик: Shanghai,Printyoung,International,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.79 $* | 0.40 $* |
| Aug-16-2025 | 0.98 $* | 0.41 $* |
| Jul-16-2025 | 0.82 $* | 0.64 $* |
| Jun-16-2025 | 0.83 $* | 0.81 $* |
| May-16-2025 | 0.24 $* | 0.74 $* |
| Apr-16-2025 | 0.22 $* | 0.75 $* |
| Mar-16-2025 | 0.9 $* | 0.14 $* |
| Feb-16-2025 | 0.75 $* | 0.61 $* |
| Jan-16-2025 | 0.34 $* | 0.17 $* |
Характеристики
Product Description

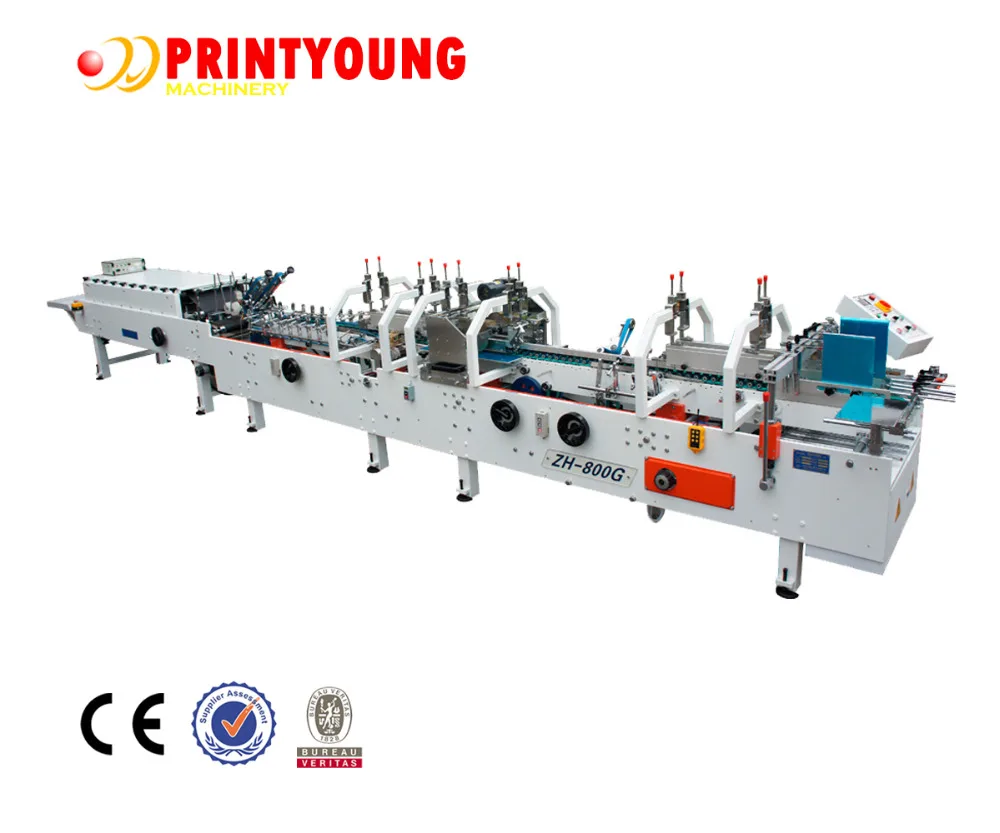

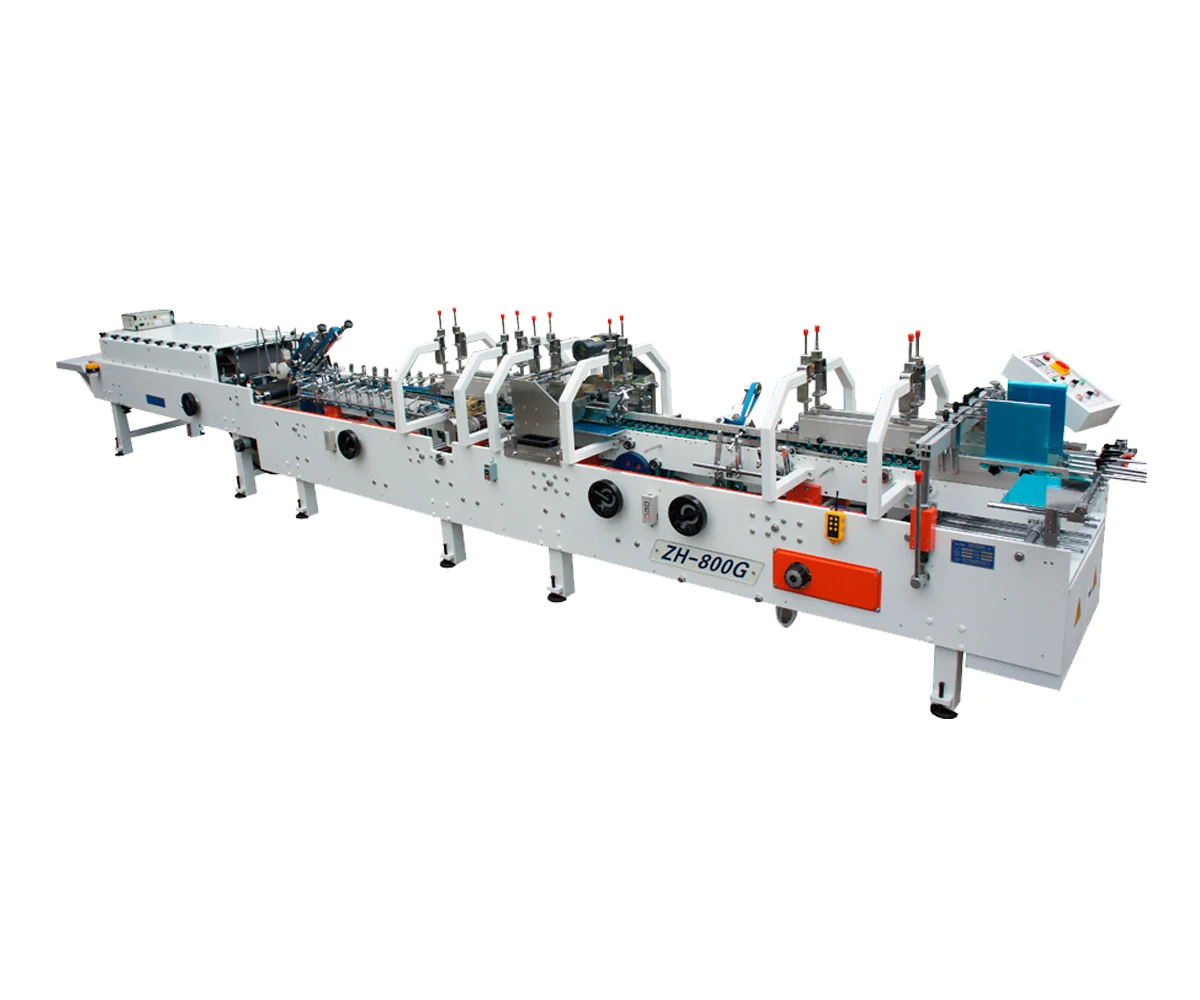

ZH-800G full-auto envelope pocket folder gluer
ZH-800G Carton Folding and Gluing Machine is the latest multi-functional crash lock bottom folder gluer; it made indelible contributions to the field of folder gluer. It combines a variety of folder gluer features, the general-paste, pre-folded lines with crash lock bottom. We got two patterns for this model. It’s powerful, widely usage, easy operating and adjusting as well as economic. Especially for the current packaging and printing industry, it can solve the problem of many different boxes, less quantity, the delivery of the tight schedule and so on. It will help you to recover the investment cost back quickly.
It is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box etc.
Features:
1.Line speed: 0~220m/min adjustable
2.Paperboard: 210~600g/m2 paperboard
3.Box forming:Either side folds, either sides pre-fold, and crash lock bottom
4.Paper board feeding:Continuous automatic
5.Way of folding: First, second and fourth lines fold 180°, third line fold 135°
6.Glue type: Cold glue
7.Power: 3.7Kw, AC220V, Single phase
8.Weight: 2000kg
9.Dimension: 8500×900×1300mm
10.The counting range: 0~999999(full-automatic)
Ten Functions:
Auto feeding, Lower gluing, Double-side grinding, Double-side gluing, Four-side folding, Crash lock bottom, Upper gluing, Folding, Wireless remote controller, Auto counting.
Model | Box type | (A Max) | (A Min) | (B Max) | (B Min) | (C Max) | (C Min) | (D Max) | (E Min) |
ZH-800G | Straight line box(I) | 560 | 106 | 500 | 65 | 270 | 50 | 7 | 6 |
Pre-fold box(I) | 560 | 180 | 500 | 65 | 270 | 90 | 10 | 6 | |
Crash lock bottom box(II) | 560 | 160 | 500 | 65 | 270 | 80 | 40 | 6 | |
ZH-880G | Straight line box(I) | 660 | 110 | 500 | 65 | 320 | 50 | 7 | 6 |
Pre-fold box(I) | 660 | 180 | 500 | 65 | 320 | 90 | 10 | 6 | |
Crash lock bottom box(II) | 660 | 160 | 500 | 65 | 320 | 80 | 50 | 6 | |
ZH-1000G | Straight line box(I) | 760 | 130 | 600 | 80 | 370 | 60 | 10 | 8 |
Pre-fold box(I) | 760 | 180 | 600 | 80 | 370 | 90 | 15 | 8 | |
Crash lock bottom box (II) | 760 | 180 | 600 | 80 | 370 | 90 | 60 | 8 |
