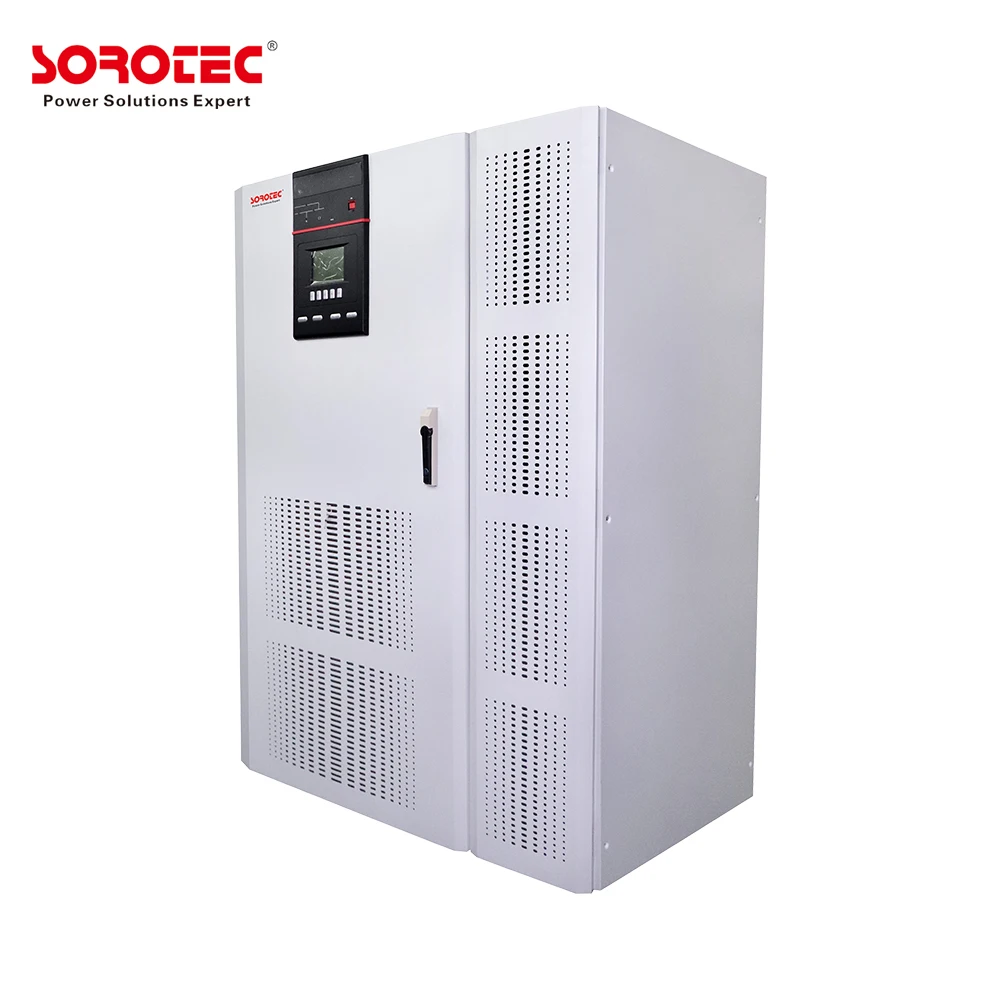

30 кВА промышленный ИБП IP42 градусов трехфазный
- Категория: >>>
- Поставщик: Shenzhen,Soro,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.32 $* | 0.95 $* |
| Aug-18-2025 | 0.68 $* | 0.22 $* |
| Jul-18-2025 | 0.10 $* | 0.68 $* |
| Jun-18-2025 | 0.31 $* | 0.7 $* |
| May-18-2025 | 0.1 $* | 0.55 $* |
| Apr-18-2025 | 0.69 $* | 0.21 $* |
| Mar-18-2025 | 0.61 $* | 0.88 $* |
| Feb-18-2025 | 0.52 $* | 0.40 $* |
| Jan-18-2025 | 0.5 $* | 0.71 $* |
Характеристики
Industrial Online UPS
IPS9315C Series 10-100KVA (3 ph in and 1 ph out)

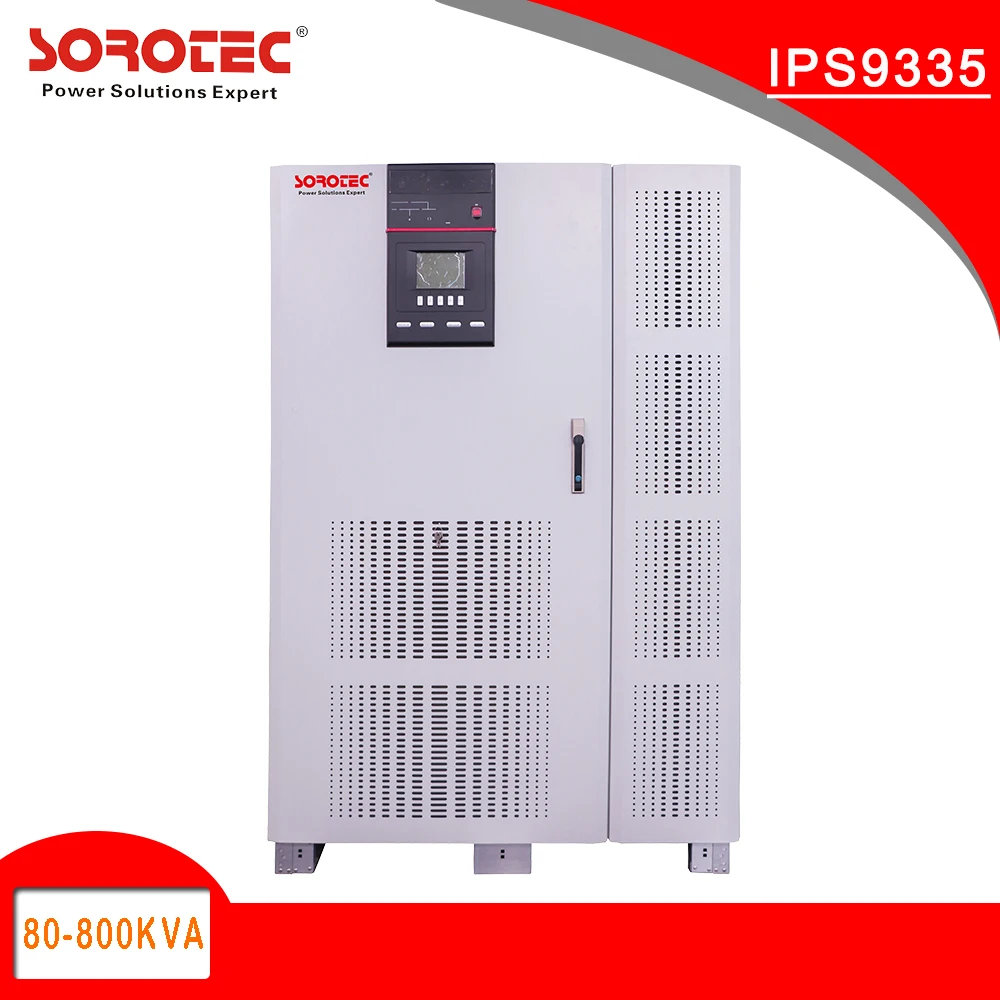

IPS9335C series 10-160KVA (3 ph in and 3 ph out)
Key Features
1.Adopt full digital control technology.
2.Intelligent detection and monitoring function.
3.Digital control and static switch zero switching.
4.Input/output full isolation
5.DC UPS isolated with utility power completely.
6.Cubicle design with power standard.
7.Multifunctional protection for overvoltage,low voltage,
8.Overcurrent, short circuit and so on.
9.Large-screen LCD monitor Chinese and English operation interface.
10.Ultralong 256 event records, user-friendly analysis and management to the situation of power supply.
11.Static bypass has a strong anti-overload capacity.
Applications
Chemical factories, Power generating plants, Power distribution stations, electrical substations,
electric power communication systems, and many other fields.
The Block of Working principle
Protection degree design
Large LCD Monitor (optional)
Touch screen |
Standard Display screen |
Technical Specifications of Industrial UPS IPS9312 Series
IPS9312C Series Technical Specifications:
| ModelPower(kVA) | IPS9315C 10-100KVA | |||||||
| 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | |
| Capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW |
| lnput | ||||||||
| Rated voltage | 400 Vac three-phase | |||||||
| Voltage range | ±20% | |||||||
| Frequency range | 50/60HZ±5% | |||||||
| Power factor | ≥0.8 | |||||||
| Current harmonic distortion | <5%with harmonic filter | |||||||
| Soft Start | 0-100% in10" | |||||||
| Bypass Input | ||||||||
| Rated voltage | 230Vac single-phase | |||||||
| Permitted voltage range | ± 15%(selectable from 10% to 25% from front panel) | |||||||
| Rated frequency | 50/60Hz | |||||||
| Permitted frequency range | ± 2%(selectable from 1% to 5% from front panel) | |||||||
| Standard features | BackFeed portection; split bypass line | |||||||
| Batteries | ||||||||
| Type | Maintenance-free lead-acid VRLA AGM / GEL;NICd | |||||||
| Maximum recharge current(A) | 0.2 X C10 | |||||||
| DC Voltage | 384VDC | |||||||
| AC ripple voltage | <1% | |||||||
| Inverter output | ||||||||
| Rated power(kVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA |
| Active power(kW) | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW |
| Number of phases | 1 | |||||||
| Rated voltage(V) | 230Vac single-phase | |||||||
| Regulation of the output voltage | 220 244Vac phase/neutral(from contril panel) | |||||||
| Crest factor(Ipeak/Irms) | 3:01 | |||||||
| Static stability | ±1% | |||||||
| Dynamic stability | ±5% | |||||||
| Frequency | 50/60Hz configurable | |||||||
| Overload | 110% 125% 150% of the rated current for 5h/10'/1' | |||||||
| Frequency stability | ±0.05% on mains failure | |||||||
| Rated power(kVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA |
| Remote signaling | Volt free contacts | |||||||
| Remote controls | EPO and Bypass | |||||||
| Communication | RS232 + romote contacts | |||||||
| Operation temperature | 0 / + 40 ℃ ℃ | |||||||
| Relative humidity | <95% non condensing | |||||||
| Colour | Light grey (RAL 7035) | |||||||
| Noise | 54dBA at 1m | 60dBA at 1m | 65dBA at 1m | |||||
| Protection degree | IP42 | |||||||
| Efficiency Smart Mode | up to 98% | |||||||
| Compliance | Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC) | |||||||
| Weight(KG)N.W | 200 | 220 | 230 | 290 | 340 | 440 | ||
| Dimensions:(WxDxH)mm | 600X800X1900 | 800X800X1900 | ||||||
| Internal batteries | Yes | Yes | Yes | No | No | No | ||
IPS9332C Series Technical Specifications:
| ModelPower(kVA) | IPS9335C 10-160KVA | |||||||||
| 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | |
| Capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW |
| lnput | ||||||||||
| Rated voltage | 380/400 Vac three-phase | |||||||||
| Voltage range | ±20% | |||||||||
| Frequency range | 50/60HZ±5% | |||||||||
| Power factor | ≥0.8 | |||||||||
| Current harmonic distortion | <5%with harmonic filter | |||||||||
| Soft Start | 0-100% in10" | |||||||||
| Bypass Input | ||||||||||
| Rated voltage | 400Vac three-phase | |||||||||
| Permitted voltage range | ± 15%(selectable from 10% to 25% from front panel) | |||||||||
| Rated frequency | 50/60Hz | |||||||||
| Permitted frequency range | ± 2%(selectable from 1% to 5% from front panel) | |||||||||
| Standard features | BackFeed portection; split bypass line | |||||||||
| Batteries | ||||||||||
| Type | Maintenance-free lead-acid VRLA AGM / GEL;NICd | |||||||||
| Maximum recharge current(A) | 0.2 X C10 | |||||||||
| AC ripple voltage | <1% | |||||||||
| DC Voltage | 384VDC | 432VDC | 480VDC | |||||||
| Inverter output | ||||||||||
| Rated power(kVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA |
| Active power(kW) | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW |
| Number of phases | 3+N | |||||||||
| Rated voltage(V) | 400Vac | |||||||||
| Regulation of the output voltage | 348 424Vac phase/neutral(from contril panel) | |||||||||
| Crest factor(Ipeak/Irms) | 3:01 | |||||||||
| Static stability | ±1% | |||||||||
| Dynamic stability | ±5% | |||||||||
| Frequency | 50/60Hz configurable | |||||||||
| Overload | 110% 125% 150% of the rated current for 5h/10'/1' | |||||||||
| Frequency stability | ±0.05% on mains failure | |||||||||
| signaling | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA |
| Remote signaling | Volt free contacts | |||||||||
| Remote controls | EPO and Bypass | |||||||||
| Communication | RS232 + romote contacts | |||||||||
| Operation temperature | 0 / + 40 ℃ ℃ | |||||||||
| Relative humidity | <95% non condensing | |||||||||
| Colour | Light grey (RAL 7035) | |||||||||
| Noise | 54dBA at 1m | 50~65dBA at 1m | ||||||||
| Protection degree | IP42 | |||||||||
| Efficiency Smart Mode | up to 98% | |||||||||
| Compliance | Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC) | |||||||||
| Weight(KG)N.W | 200 | 220 | 230 | 290 | 340 | 440 | 520 | 770 | 855 | 300 |
| Dimensions:(WxDxH)mm | 600X800X1900 | 800X800X1900 | 1400X800X1900 | |||||||
| Internal batteries | Yes | Yes | Yes | Yes | No | No | No | No | No | No |
| APPLICATION OF OUR PRODUCT |
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
| FACTORY SHOW |
About US
Who we are?
Shenzhen SORO Electronics Co., Ltd is a professional UPS and solar power inverter manufacturer,We have own our SMT department. SORO UPS and solar inverter has been a leading enterprise in the UPS industry in China.
| TRADE SHOW |
| WHY CHOOSE US ? |
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
| CERTIFICATIONS |
| PACKAGING |
FAQ
| FAQ |
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
......................................................................................................................................................................................................................................
2.How can I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How to connect between batteries and power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
.....................................................................................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................................................................................
