Gantry Type Metal Sheet Drilling Machine Plate Plasma Cutting and Beveling Machine









Brief introduction

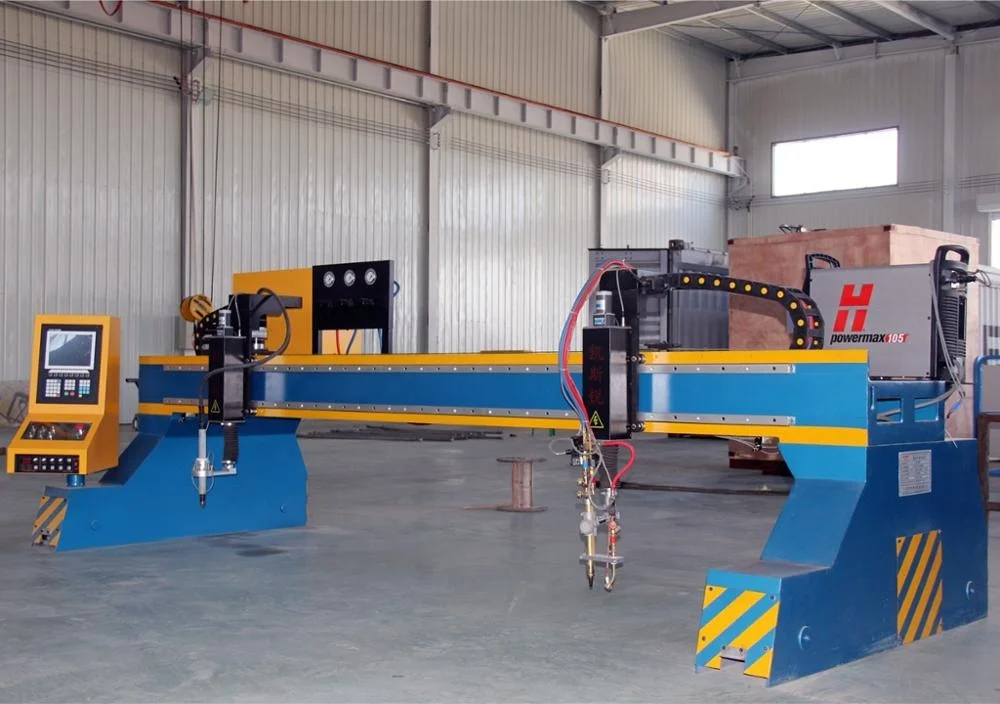

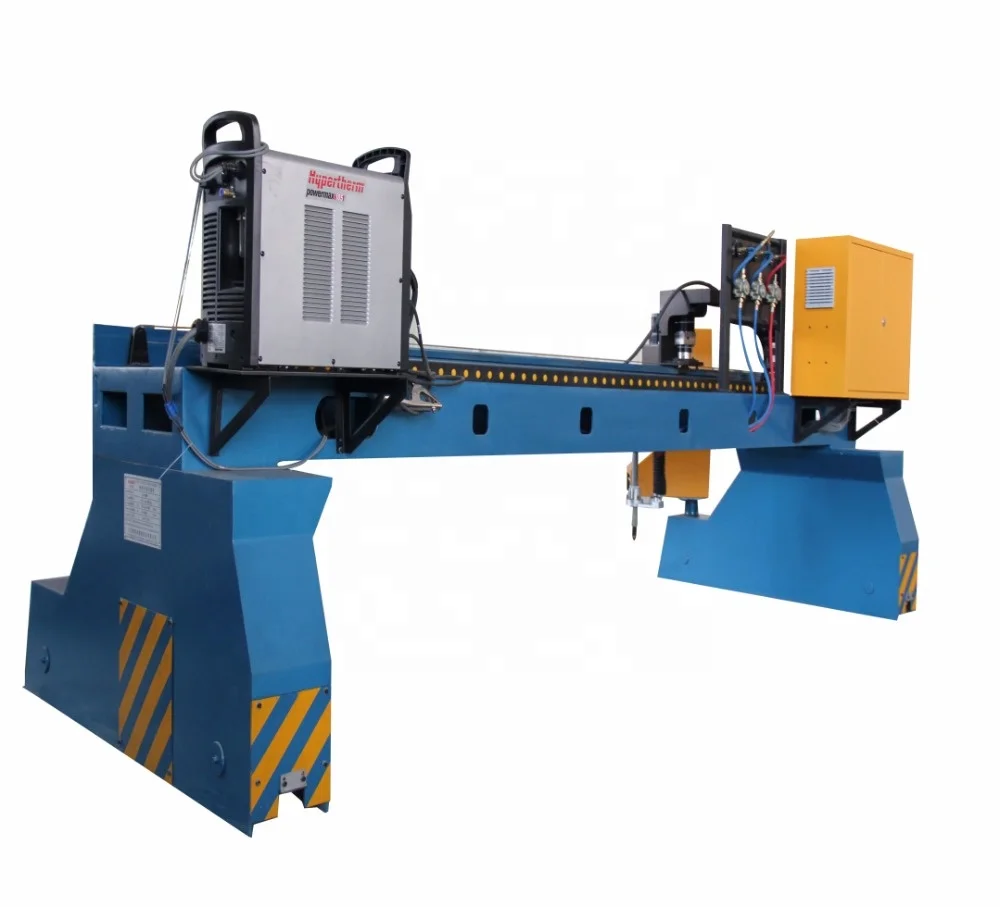

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics,thus is widely used in metal cutting fields.



Features

1. Steel hollow beam design ensures good heat dissipation without deformation.

2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.

3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.

4. World’s top branded components and circuits ensure long service life.

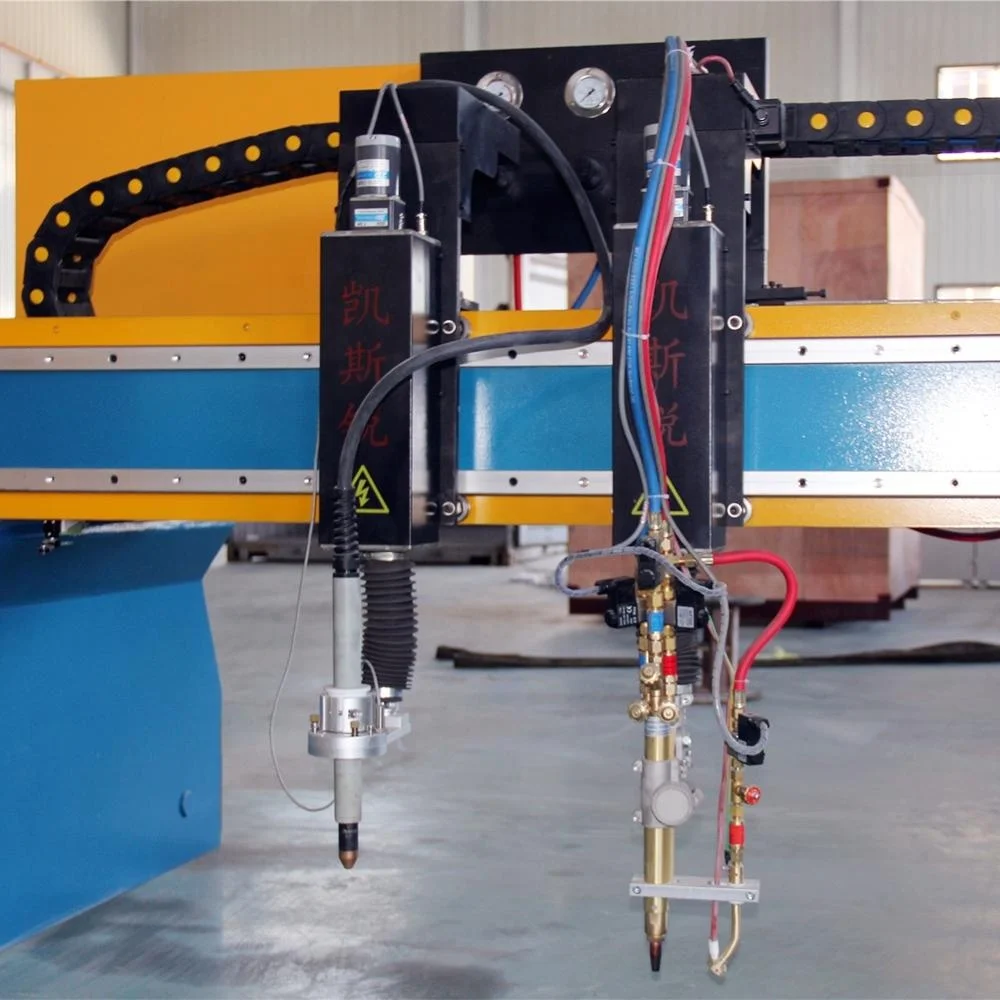

5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.



 Technical parameters

Cutting Area	(2500- 7500mm) by (4000mm-20000mm)or customized
Input Power	220 ± 10%V AC 50Hz /60 Hz For Servo Motors: 1400 W For Step Motors: 500 W
Cutting Modes	Plasma Cutting / Flame Cutting / Plasma Cutting+ Flame Cutting
Transmission Style	Rack & Gear
Drive Style	Servo Motors Double Sides Drive Step Motors Double Sides Drive
Torch Lift Distance	200 MM
Torch & Number	One Plasma Torch / One Flame Torch / One Plasma Torch + One Flame Torch	Two Flame Torches/One Plasma Torch+One Flame Torch
Plasma Cutting Thickness	Depend On Plasma source
FlameCutting Thickness	Piercing Cutting: 5-80 mm Edge Start: 5-150 mm
Torch height control	Plasma Automatic Torch Height Control / Flame Capacitance Torch Height Control
Cutting Speed	For Servo Motors: 0-10000 mm / min For Step Motors: 0-4000 mm / min
Cutting Table	Normal Cutting Table /work piece collect drawer cutting table / smoke and dust collector with work piece collect drawer cutting table.(We can supply drawing of the cutting table with the machine for free.)
Positioning Accuracy	≤±0.2mm /m
Repeatability	≤±0.3mm /m





 Machine Parts







Accessories Show



CNC control system(China)		Complete function, stable performance, can be slotted compensation of workpiece
Automatic programming nesting software(America		Kerf compensation, plasma bridge, even the cut edge of the flame, sharp handling, CAD sub-layer cutting, text annotation functions
Driving system(Japan)		Precise speed control, torque-speed characteristics hard, the principle is simple, easy to use, the price advantag
Reducer(Germany)		Compact, high reliability, high performance data structure, light weight
Solenoid vale(Taiwan)		High temperature stability, good closure
Imported Cable(Germany)		long life





Application

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

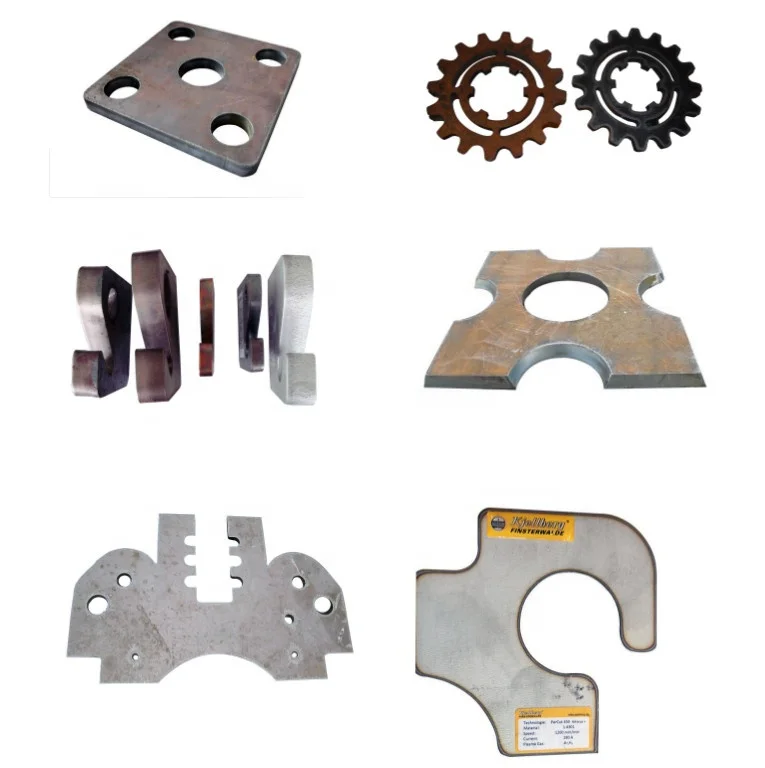

Sample Show













Products Packing And Delivery





Factory Visit

After-sales service

1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need. The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault.

2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.

3. We will offer our service through email and phones if the buyer needs any help on technical problems.

4. My company English software can do all kinds of pattern recognition, software upgrading and updating free.



Why choose us
