Provent 200 Little Brother 100 Oil Catch

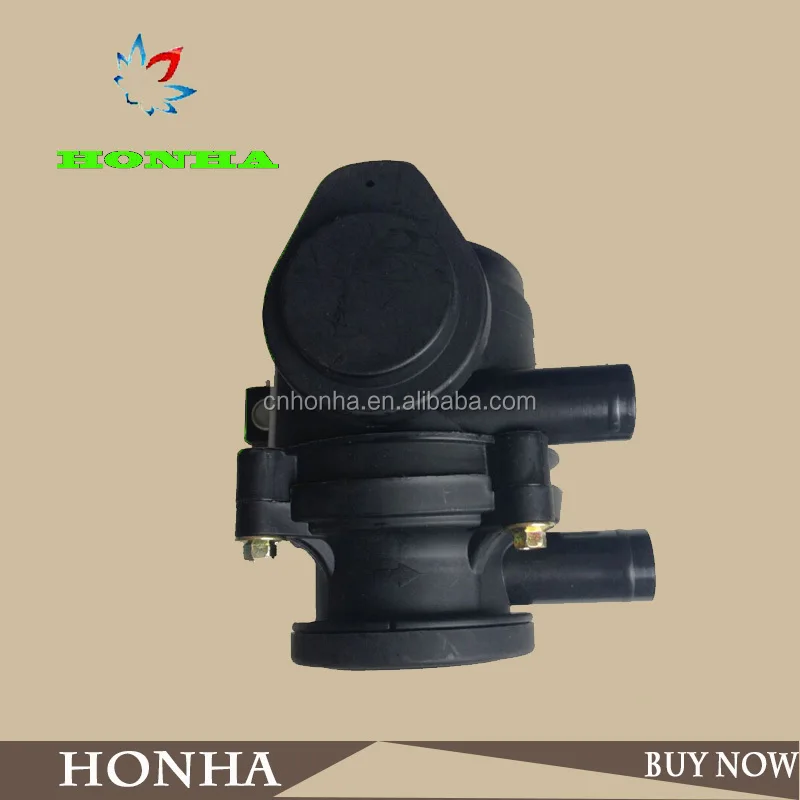

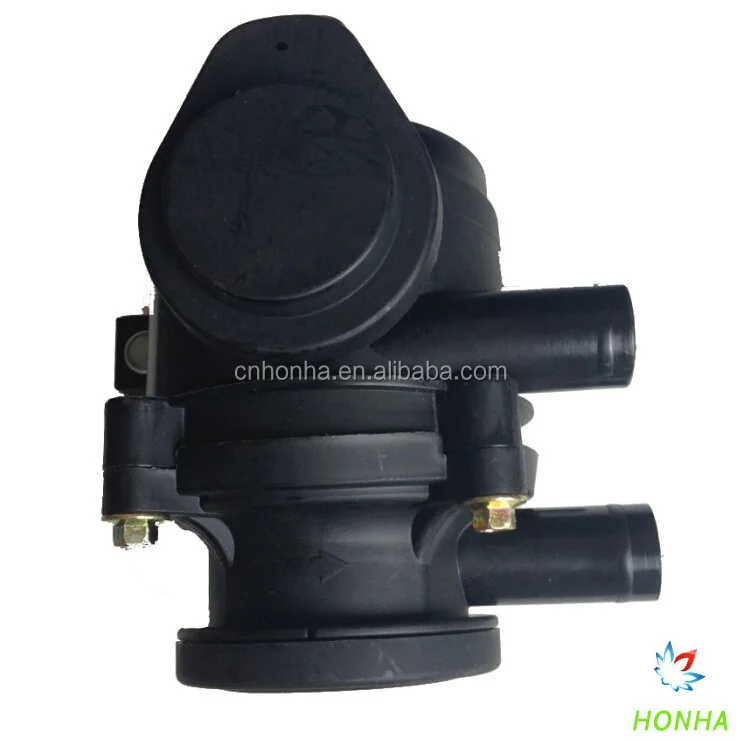

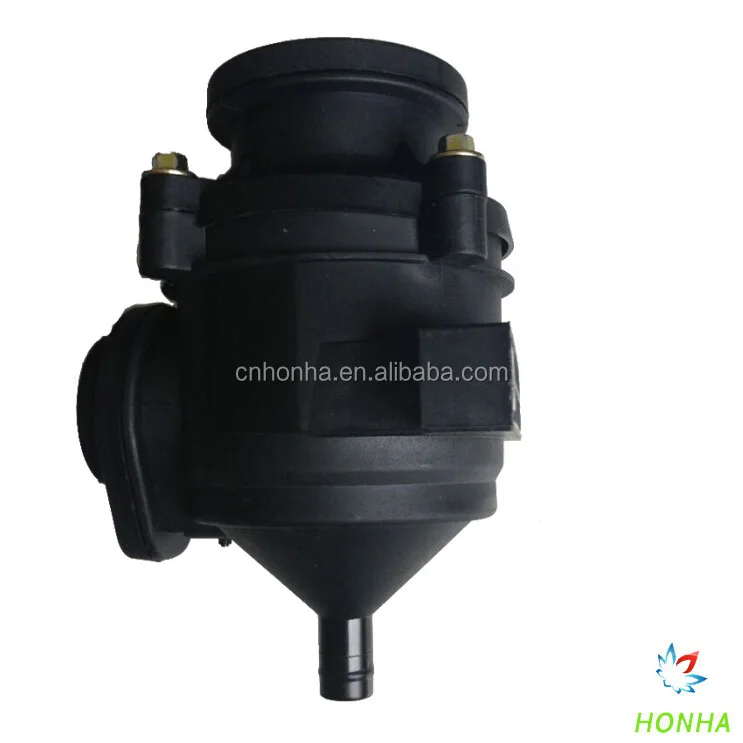

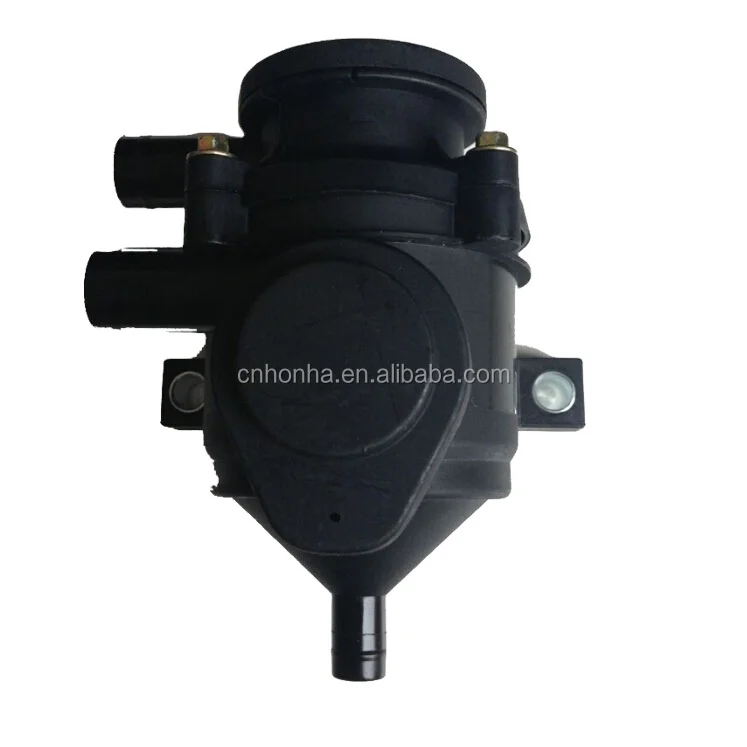

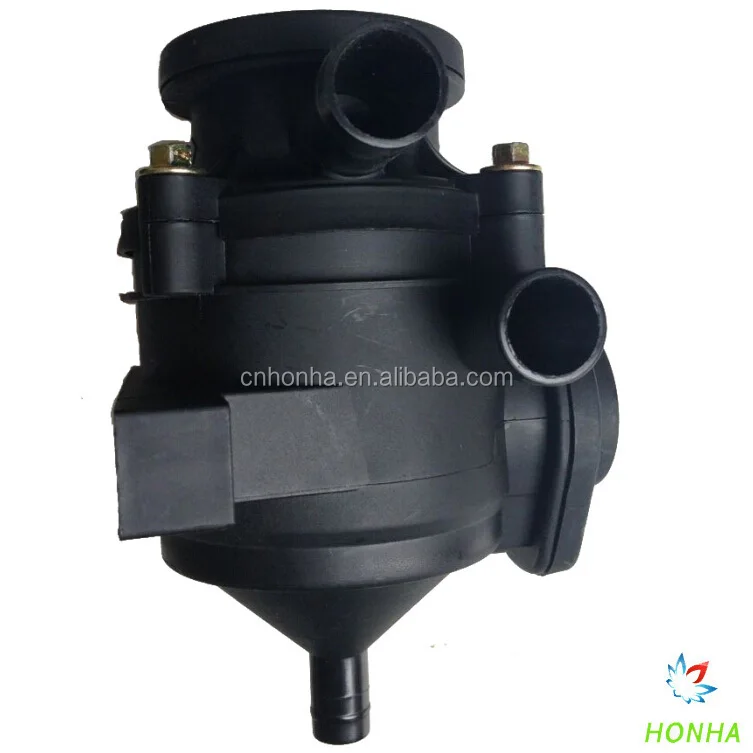

Provent 100 Catch Can. Provent 200 's Little Brother   series catch can is the newest innovation for crankcase ventilation. It is specifically designed to accommodate the latest generation of turbo-charged engines. Its compact and robust design allows flexible installation locations on the engine or in the engine compartment.

It has the following advantages over other solutions:

• Highly efficient oil separation as a closed as well as an open system providing ideal protection for the turbocharger and other components installed downstream
• Low pressure loss
• Less motor oil consumption in comparison to less efficient separators or conventional open systems1
• No electrical energy required
• Maintenance friendly - fittings are not removed during element maintenance, a cap at the top allows full access inside w/o disconnecting a single hose.

Features:

• Efficient filter media to separate air and oil vapor, as well as using a "vortex" strategy to fling heavier oil and water particles outward to the sides of the can
• Filter is easily cleanable and servicable w/o disconnecting any hoses.
• 1" nipples in and out, and a 1/2" drain nipple which allows clean oil to drain back to the sump.
• Pressure vent in cap to prevent over-pressure in the crank case
• Vacuum limiting valve in lower nipple to regulate vacuum in the can

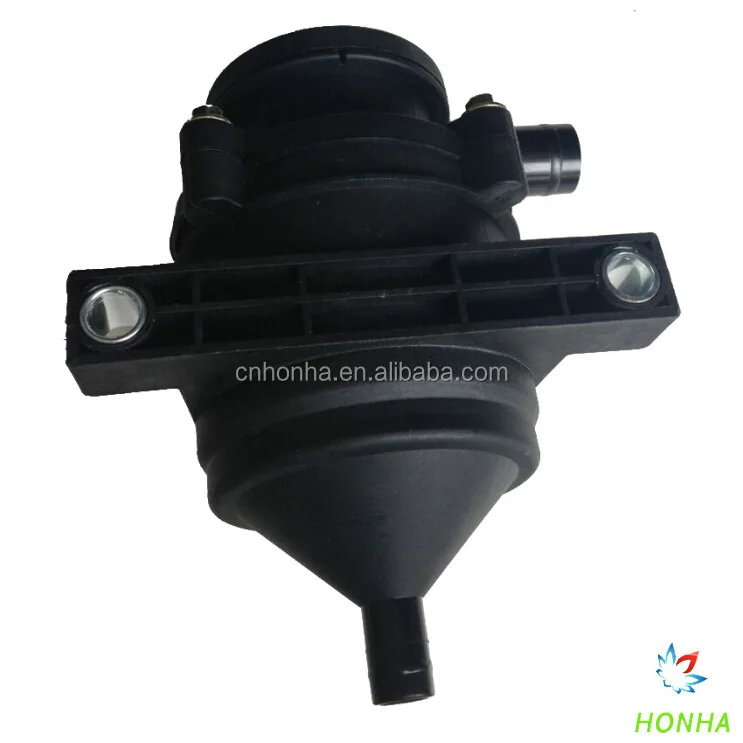

• Highly adjustable mounting bracket can be swivelled 180 degrees around can
• Strong and light plastic construction
• Top 1" Nipple should be connected to crankcase, lower port can be vented to atmosphere or the intake such as Turbo or Throttlebody inlet

Height: 221mm OD/Width Max: 109mm OD/Width Min: 13mm ID/Depth Max: 10mm ID/Depth Min: 0mm

Typically in stock, price each with all parts shown.
