PTAC (PTHP)    PTAC Heat Pump Air Conditioner



Worlds Most Efficient Hotel Room Air Conditioner

PTAC (PTHP) Packaged Terminal Air Conditioner Heat Pump

Save 25-40% or more in electricity usage

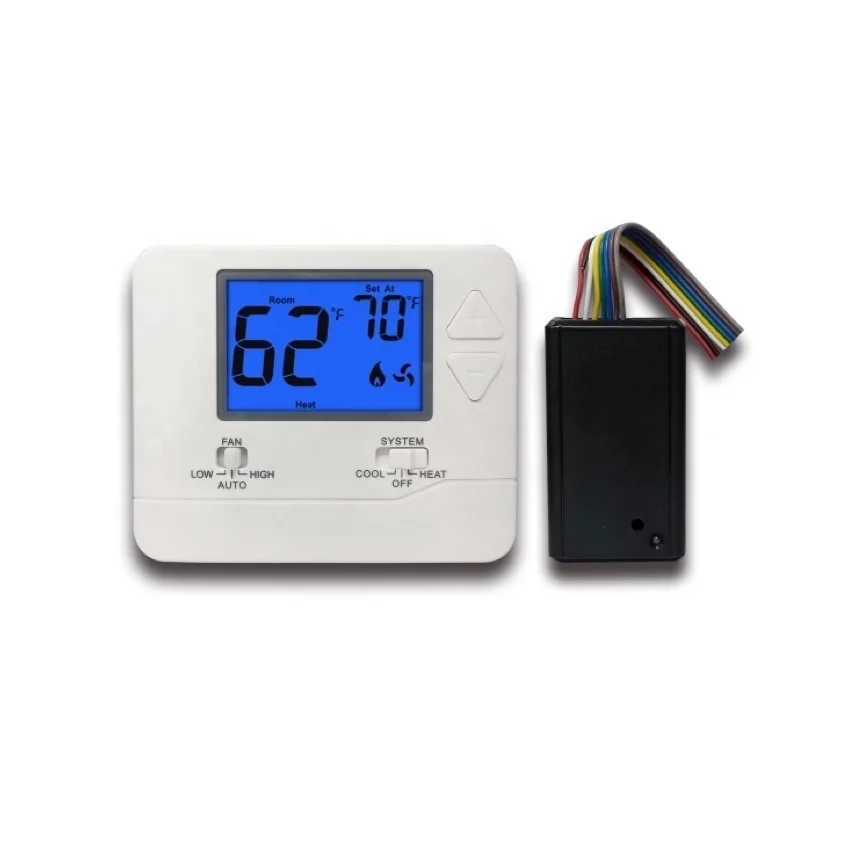

RF wireless thermostat:

Radio Frequency wireless thermostat, 24V wireless controller, easy to install, saves cost as no need the wiring line work, the United States labor expensive, wireless way saves a lot of installation costs.

When it comes to Packaged Terminal Air Conditioners Heat Pump (PTAC/PTHP), you need it all: Quiet, Comfortable, High-efficient and Reliable. Our PTAC units deliver on all counts. Whether you're installing PTAC in a new building, or retrofitting units in your existing hospitality, healthcare and other facilities such as hotel rooms, homes, office space. Available in sizes: 7000BTU, 9000BTU, 12000BTU, 15000BTU. Our PTAC units are your smart and economical choice.

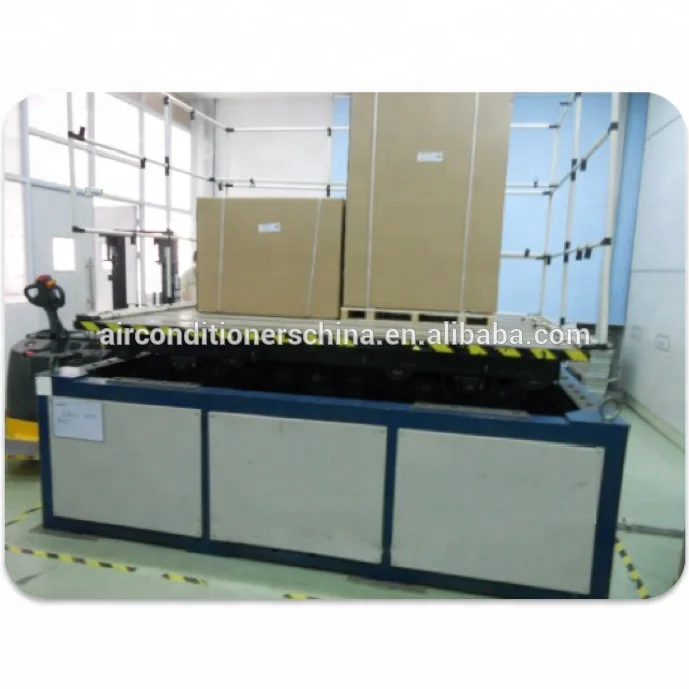

Container Loading Qty (sets)

20''GP/10''GP/40''HQ : 72/152/190 sets



More than 10 years PTAC/PTHP experience, our loading qty is the biggest than other PTAC industry;

Also our PTAC unit is the only one quoted with LCDI power cord and remoter control from factory;

But some other factory all quote and sell LCDI power and cord and remoter control seperately;

So we have price and shipping cost advantage.





Specification ( wall through PTAC cooling with electric heater ):



Model			NPZ-07ENR1	NPZ-09ENR1	NPZ-12ENR1	NPZ-15ENR1
Capacity
Cooling	capacity	Btu/h	7000	9000	12000	15000
	EER	Btu/w.h	11.92	11.35	10.77	9.73
Electrical data
Power supply		V,Ph,Hz	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60
Power input		kw	0.59	0.79	1.11	1.54
Rate current		A	2.82/2.55	3.81/3.45	5.35/4.84	7.41/6.70
Electric heater(Optional)		kw	2/3	2/3	2/3/5	2/3/5
Performance data
Air flow	High/Low	CFM	337/268	326/255	362/323	350/313
Noise level	Indoor	dB(A)(H/L)	49/48	49/48	50/49	50/49
	Outdoor	dB(A)(H/L)	59/58	59/58	60/59	60/59
Moisture removal		Pts./Hr.	0.09	0.71	1.08	1.6
Physical data
Net dimension (W×H×D)		In	42 x16 x22	42 x16 x22	42 x16 x22	42 x16 x22
Net weight/Gross weight		LBS	120/130	120/130	132/142	132/142
Loading Qty(20’/40’/40’HQ)		Set	72/152/190	72/152/190	72/152/190	72/152/190

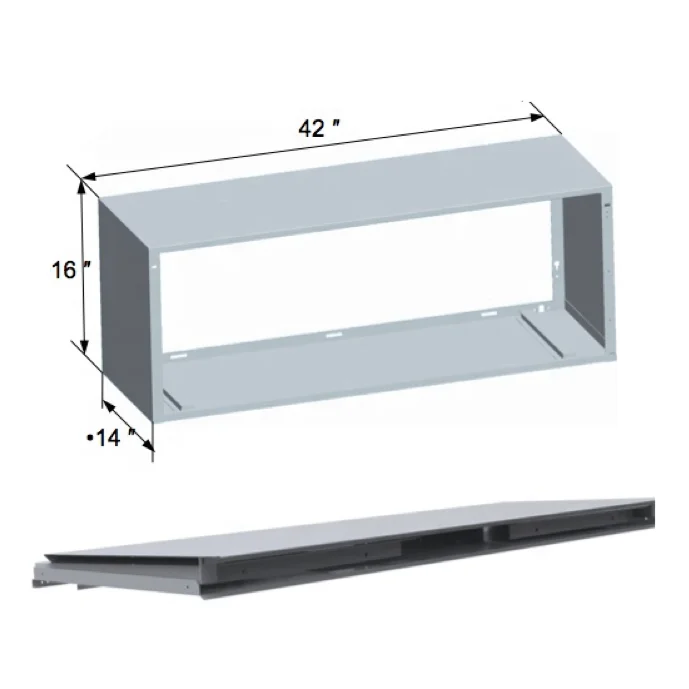

Accessories List ( wall through PTAC ):











Key Features ( wall through PTAC ):



1. Langdi blower wheel: Quiet, large volume of wind, good strength, light weight, good balance



Silent design optimized air discharge channel, specialized blower wheel, bigger diameter, lower rotational speed, all contributing better noise control.





2. A large cross flow fan  ø120*700mm





3. Plastic sealed motor ensures a quieter and more reliable operation







4. Optional uiversal electric heater     (3+2) type heater optional 2kw, 3kw, 5kw for customer.







5. The condenser axial fan has three blades which provide for greater air flow.



Additionally we have added a water slinger fan to enhance the condensate management system.









6.  Freeze protection and overheating sentinel units can sense and protect against damage caused by freezing ≤ 34°F and overheating danger according to temperature around coil ≥ 149°F.

     Self Diagnostics our units have function of self check error, meanwhile all units can tolerate error internally and automatically restore normally. Also error code will show on electric display.

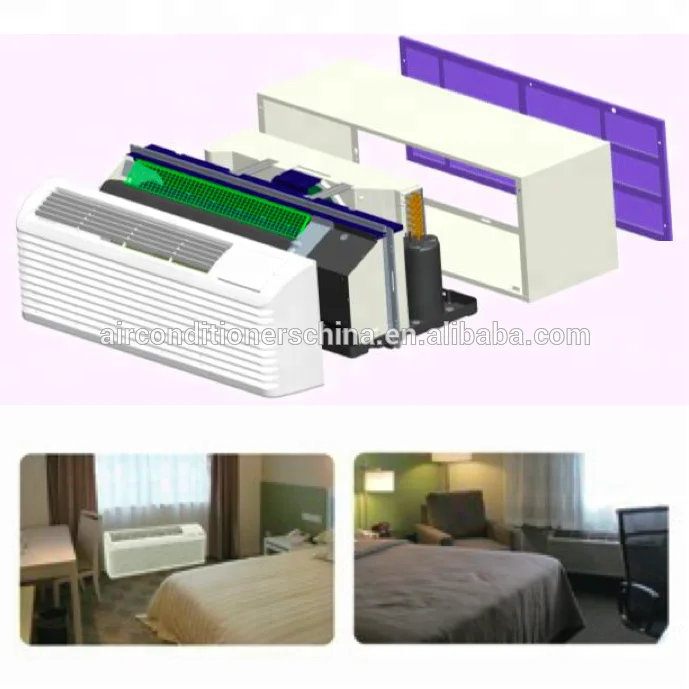

7. Easy installation and maintenances  nearly all chassis structure is designed by integral type, whole form air discharge channel, sealed electric PCB box, outdoor sub assembly structure, most parts are under new mould, thus people can install and maintain all the parts easily. Also nylon mesh filters is easy to lift for cleaning.





• Outdoor sub assembly structure can easily be removed independently for convenient disassembly and cleaning.


• Indoor air flow sub assembly can be removed as shown, which is ideal for maintenance and cleaning.


• Integrated structure also ensure blower wheel better position fixing and rotation balance to cut down noise





8. Fresh air intake with a manual control lever conveniently located on the side of the unit.

When closed only the air inside the room is circulated and filtered,                                                                  ♥ Control lever

When opened outdoor air will be filtered and drawn into the room.









9. Compact structure based on maintenance friendly sub assemblies design.











10. The elegance is matched with improved inlet and exhaust air performance



1. PTAC units Advantages



Our PTAC/PTHP heat pump air conditioner is the most efficient PTAC units, saving 25-40% or more in operating power costs while running quieter and lasting much longer than any other PTAC.





2. PTAC units are no duct losses, easy to control

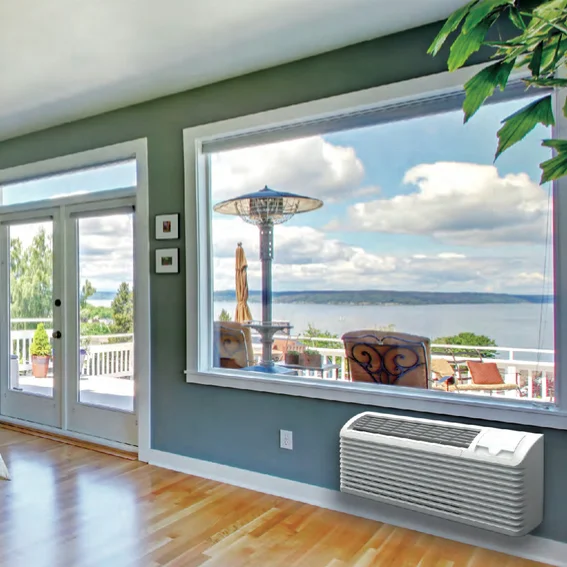

PTAC units are typically installed in rooms that have an exterior wall, they are also known as through-wall units. It is a self-contained unit that can be installed by a home owner or building maintenance person, since no HVAC license is needed. Because there are no duct losses, an ultra-high efficiency PTAC is less costly to operate than a typical ducted central system. This is not the case however, with all PTACs. Most PTAC units have low efficiency (and high noise levels) similar to that of a window unit.



Because a PTAC is used on a room-by-room basis, you only use the amount of energy that is needed for that room, at that time. Optional occupancy sensors can make sure the unit is only running when people are present, and all PTAC units can be controlled from a central location such as a front desk or building automation system.
