Характеристики




lifting top

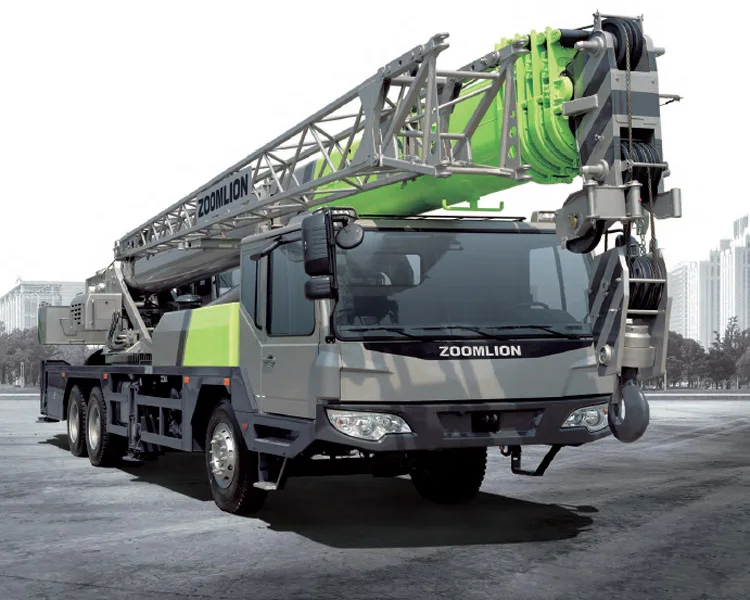

Zoomlion hydraulic 35ton truck crane QY35V532, 5 boom length 56.4m

Product Description



  • Integrates Zoomlion more than 40 years experience in mobile cranes with advanced technology.

  • Weight optimized and distortion-resistant design of low-alloy and high-strength steel with U-type boom profile providing the max lifting height up to 48.5m.

  •  Optimized ergonomic design improves operation safety and work efficiency.

  •  Robust and powerful 3-axle special purpose chassis for truck crane, offering excellent road& off-road capabilities and driving reliability.

zoomlion crane changjing.jpg

Main Parameter



ItemValue
Working performance specificationMax. rated total lifting capacity   kg35000
Max. load moment of basic boom   kN. m1430
Max. load moment with max. main boom length kN. m720
Max. lifting height of basic boom m12
Max. lifting height of main boom m41.7
Max. lifting height of fly jib m56.4
Working speedMax. speed of single rope on main winch m/min120
Max. speed of single rope onauxiliary winch   m/min100
Derricking time of boom   s45
Telescopic time of boom   s110
Slewing speed   r/min0~2
Traveling specificationMax. traveling speed   km/h75
Max. gradeability   %34
Min. turning circle diameter   m24
Min. ground clearance   mm272
Oil consumption per hundred kilometers L42
Mass specificationDeadweight of crane in traveling condition kg35700
Complete vehicle kerb mass kg35570
Front axle load   kg7688
Rear axle load kg28012
Dimension specificationOverall dimensions(L— W— H)mm13200— 2650— 3625
  mm
Base on outriggers m5.695
Distance between outriggers m6.6
Main boom length m10.9~41.0
Main boom angle°-2~80
Fly jib length m9, 15
Offset angle of fly jib  °0, 30
