LPC-60W светодиодный драйвер постоянного тока 1050ма/1400 мА/1750mA Европейский сертификат соответствия ограничениям на использование опасных материалов в производстве электрического и электронного KC PSE TUV сертификация CCC 3 года

LPC-60W светодиодный драйвер постоянного тока 1050ма/1400 мА/1750mA Европейский сертификат соответствия ограничениям на использование опасных материалов в производстве электрического и электронного KC PSE TUV сертификация CCC 3 года

Категория: Трансформаторы освещения >>>
Поставщик: Zhejiang,Hengwei,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.26 $*	0.98 $*
Aug-18-2025	0.92 $*	0.39 $*
Jul-18-2025	0.49 $*	0.80 $*
Jun-18-2025	0.85 $*	0.58 $*
May-18-2025	0.86 $*	0.79 $*
Apr-18-2025	0.69 $*	0.80 $*
Mar-18-2025	0.78 $*	0.3 $*
Feb-18-2025	0.48 $*	0.15 $*
Jan-18-2025	0.17 $*	0.59 $*

Характеристики

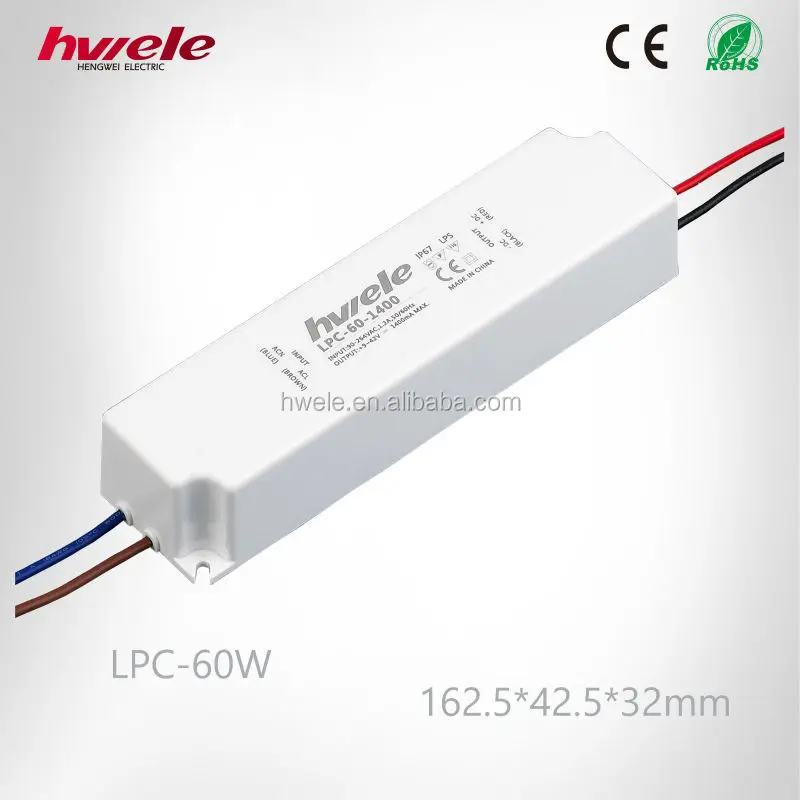

LPC-60W constant current LED driver 1050mA/1400mA/1750mA with CE ROHS KC PSE TUV CCC certification 3 years warranty

Product Description

LPC-60WSeries LED waterproof power supply

Features:

·Constant current design (C&C mode)

·Universal AC input range/Free voltage

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·Cooling by free air convection

·Fully encapsulated with IP67 level,Plastic housing

·Class 2 unit,no FG. Passed LPS(Limited Power Source) test

·Suitable for LED lighting and moving sign applications

·100% full load burn-in test(4 hours)

·2 Years warranty

Model		LPC-60-1050	LPC-60-1400	LPC-60-1750
Output	Rated current	1050mA	1400mA	1750mA
	DC voltage range	24~48V	21~42V	17~34V
	Rated power	50.4W	58.8W	59.5W
	Ripple&noise	200mvp-p	200mvp-p	200mvp-p
	Voltage tolerance	±5%	±5%	±5%
	Current accuracy	±5%	±5%	±5%
	Setup,rise,hold t	500ms,120ms,16ms/115VAC, 500ms,120ms,50ms/230VAC(at full load)
Input	Voltage range	90~264VAC,47~63HZ ,127~370VDC
	Ac current	1.2A/115VAC,0.7A/230VAC
	Efficiency	87%	85%	87%
	Inrush current	Cold start current30A/115VAC,60A/230VAC
	Leakage current	<0.25mA/240VAC
Protection	Over load	95%~102% load
	Short circuit	Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over voltage	Rated output voltage 115%~135%
		Protection type:Cutoff output voltage,diode clamp
Environment	Working temp,humidity	-20℃~+60℃,20%~90%RH(Please refer to “Derating curve”)
	Storage temp,humidity	-40℃~+80℃,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60min, Z each axes
Safety	Withstand voltage	I/P-O/P:3KVAC
	Isolation resistance	I/P-O/P:100M ohms/500VDC/25℃/70%RH
Fit standard	Safety standard	Compliance to UL879,UL1310 Class2,IP67,Reference design TUV EN60950-1,EN61347-2-13
	EMC standard	Compliance to EN55022 Class B,EN61000-3-2 Class A, EN61000-3-3
Others	Dimension	*162.542.532mm (LWH)*
	Weight/packing	0.4kg/32pcs/13.8kg/0.03m³/1.07CUFT
Note	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 ℃of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes.
