Product Overview

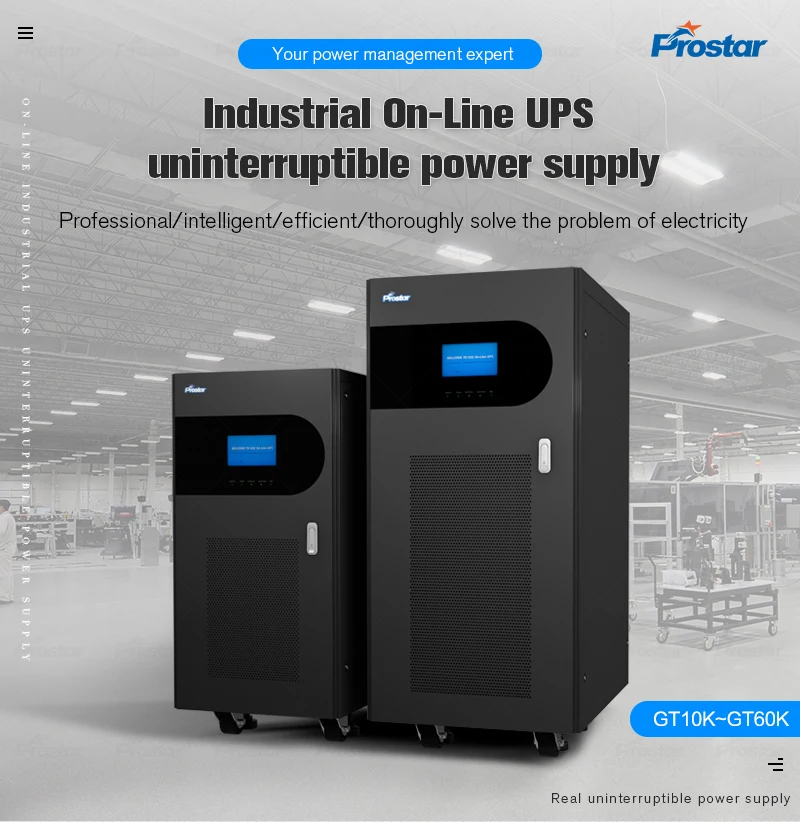

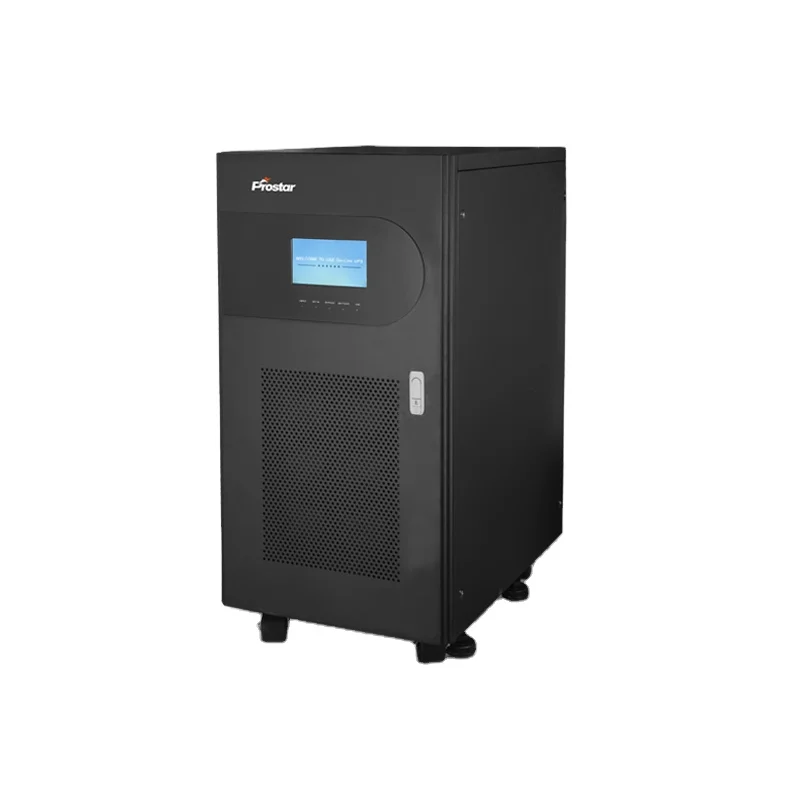

Prostar Low Frequency Online UPS
Prostar 20KVA/16KW Low Frequency Online UPS is adopting the technology , which combined with the world’s most advanced DSP digital control technology currently, and IGBT high frequency Pulse Width Modulation technique (PWM).Double-conversion online topology design makes the output frequency of UPS, which used for tracking, phase-locking, voltage regulator and filter out noise, interference from the power grid fluctuations in pure sine wave power supply, and make the UPS more comprehensive and perfectly protection for the users.
FEATURES AT A GLANCE
Performance Characteristics
1. Function features DSP digital control
2. Advanced IGBT inverter technology
3. Pure- online double conversion technology
4. Perfect protection
5.Powerful redundant parallel connection function
6.Prediction warning system
7.Powerful communication system
8.Low-Power dissipation but high-efficiency.
9.Large screen full-color touch screen
10.Super-strong environment adaptability
11.Advanced communication features
Application:
Data center
Industrial equipment
Financial and securities
Large internet computer room
PRODUCT SPECIFICATIONS
Online UPS Model | GT10K | GT20K | GT30K | GT40K | ||||
Capacity | VA/W | 10KVA/8KW | 20KVA/12KW | 30KVA/24KW | 40KVA/32KW | |||
Input | Nominal Voltage | 380VAC 3 phases 4 wires and ground, | 2.8 M3 | |||||
3 | Frequency range | 46-64Hz: 50Hz, 60Hz Auto sense | 125Ton | |||||
4 | Power factor | >=0.95 | 96kN | |||||
Output | Voltage | 380V/400V/415V 3 phase 4 wires | 96kN | |||||
6 | Frequency | 50Hz/60Hz (Adjustable) 50Hz AC Mode Follow AC mode(46-54Hz) Battery mode: 50Hz +- 0.05% 60Hz AC Mode Follow AC mode(56-65Hz) Battery mode: 60Hz +- 0.05% | 60kN | |||||
7 | Wave Form | Pure Sine Wave | 6750ml | |||||
8 | Power factor | 0.8 | 500N.m | |||||
Harmonic Distortion | Linear Load < 3%, Non-linear Load<5% | |||||||
Overload capacity | Normal when load < 105%, 105%-110% for 300 Min, 110%-125% for 10 Min, 125%-150% for 1 Min | |||||||
Current Crest Ratio | 3:1 | |||||||
Efficiency | To Ac Mode | 85% | ||||||
To Battery Mode | UP to 95% | |||||||
Battery | Type | Sealed free maintenance lead acid battery | ||||||
Normal DC voltage | 384VDC | |||||||
Quantity | Depends on requested back-up time | |||||||
Backup time (Full load) | Depends on the capacity of external battery bank | |||||||
Charge time | Depends on the capacity of external battery bank | |||||||
Bypass | Automatic Transfer | On overload and UPS failure | ||||||
Manual Maintenance Bypass | Manual Maintenance Bypass Switch. | |||||||
PRODUCT CONFIGURATION
