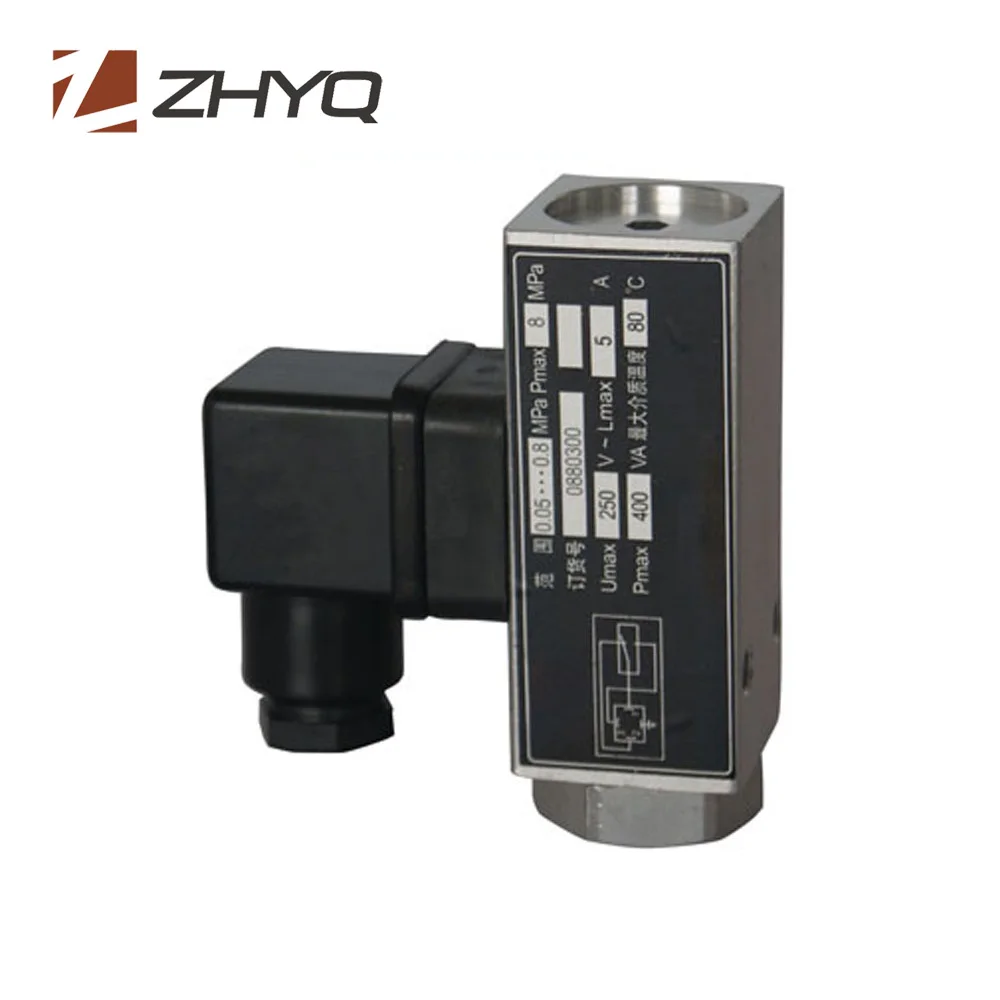

industrial Compact pressure switch,pressure transmitter ,pressure switch ( BP2010 )



Description

The pressure switch has 2 types: one is diaphragm type(Y18A, Y18C) and the other is piston type without leakage. It is usually used to measure the pressure of air, gas, water, fluid oil, fuel oil, lubricating oil and other anti-corrosion fluid mediums. The settings is adjustable, range is -0.1-1.6MPa(Y18A) ,0.5-40MPa(Y18B) and 0.02-3MPa(Y18C).



Specification

1, Instrument parameter

Working viscosity:	<1*10-3m2/s
Switch element:	microswitch
Protection class of housing:	IP54(Y18A, Y18B)
	IP65(Y18C)
Atmospheric temperature:	-25~55°C
Medium temperature:	-25~80°C
Maximum pressure(Mpa):	8(Y18A)/40(Y18B)/5(Y18C)
Anti-seismicity:	Max 100m/s2
Repeatability error:	≤2.5%(Y18A, Y18B)
	≤1.5%(Y18C)
Contact capacity:	AC 220V 6A(resistive)





2, Set value reference



Serial number	Setting range
	A	B	C
01	-0.1-0	0.5-7	0.02-1.2
02	0.02-0.2	1-16	0.05-3
03	0.05-0.8	2.5-25	0.02-1.2
04	0.1-1.6	4-40	0.05-3
Remarks: use soket head cap screw with plastic protection housing to reset values(Y18C-01,02); use rotary knob with scales to set(03, 04)





 Instrument slection

model				description
Y18	-	-	-
Instrument types	A			Diaphragm transducers
	B			piston type without leakage transducers
	C			Diaphragm transducers
Adjustable ranges		01		Reference to value table
		02		Reference to value table
		03		Reference to value table
		04		Reference to value table
Process connector			G	G1/4Female thread



Electrical connection
