Стандартный Воздушный плиссированный панельный фильтр Merv 8 моющийся

Описание и отзывы

Трекер стоимости

Характеристики



 Merv 8 Standard Air Volume Pleated Panel Air Filter Washable Air Filter

1. Frame Aluminum alloy/stainless steel/galvanized steel sheet

2. Thickness of frame 46mm, 96mm

3. Filter material Premium polyester synthetic fiber

4. Rib reinforcement Galvanized/spraying paint wire

5. Connection angle Aluminum alloy angle

6. Max. temperature : 80°C

7. Max. humidity : 80%RH



Advantages

The filter core consists of a reinforced polyester fiber media bonded to an expanded metal support grid which is then Pleated, increasing the Filtration surface area to 3 times that of the face area. These series have such features as available in efficiency of 90% on 5 micron particles, large airflow, low resistance, high dust holding capacity, reasonable price and low cost.

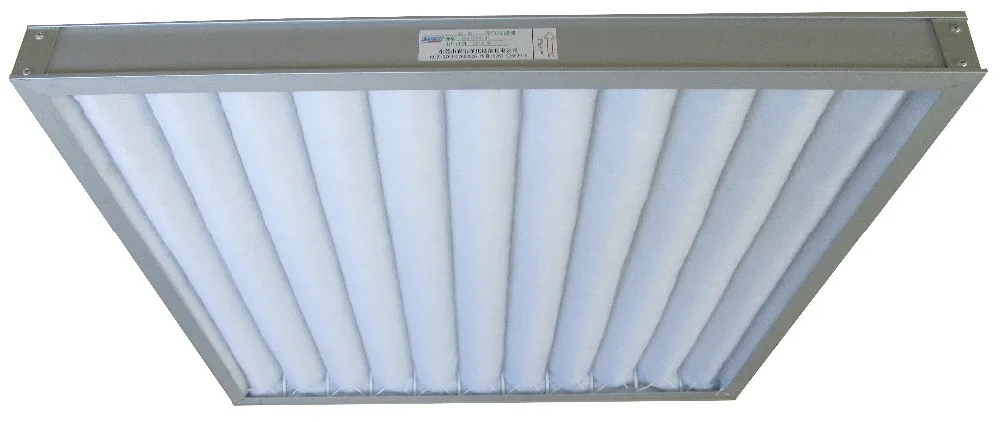

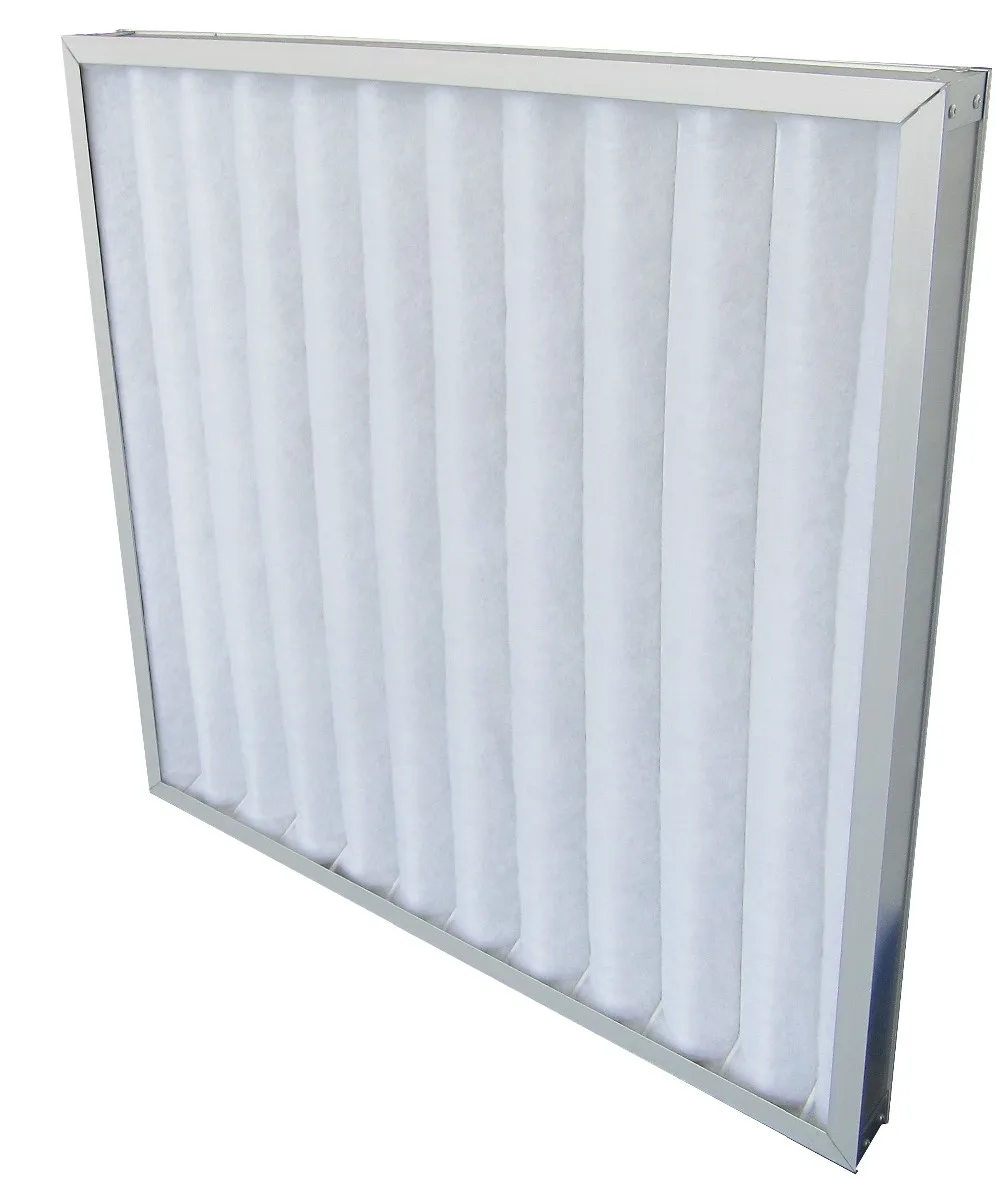

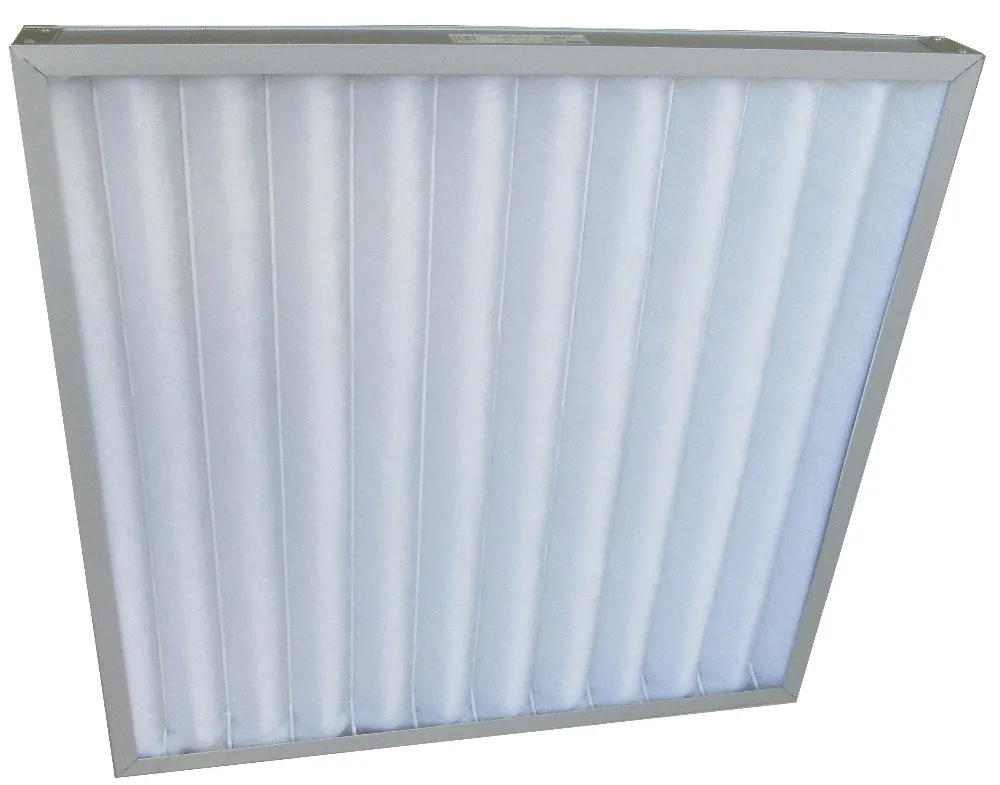

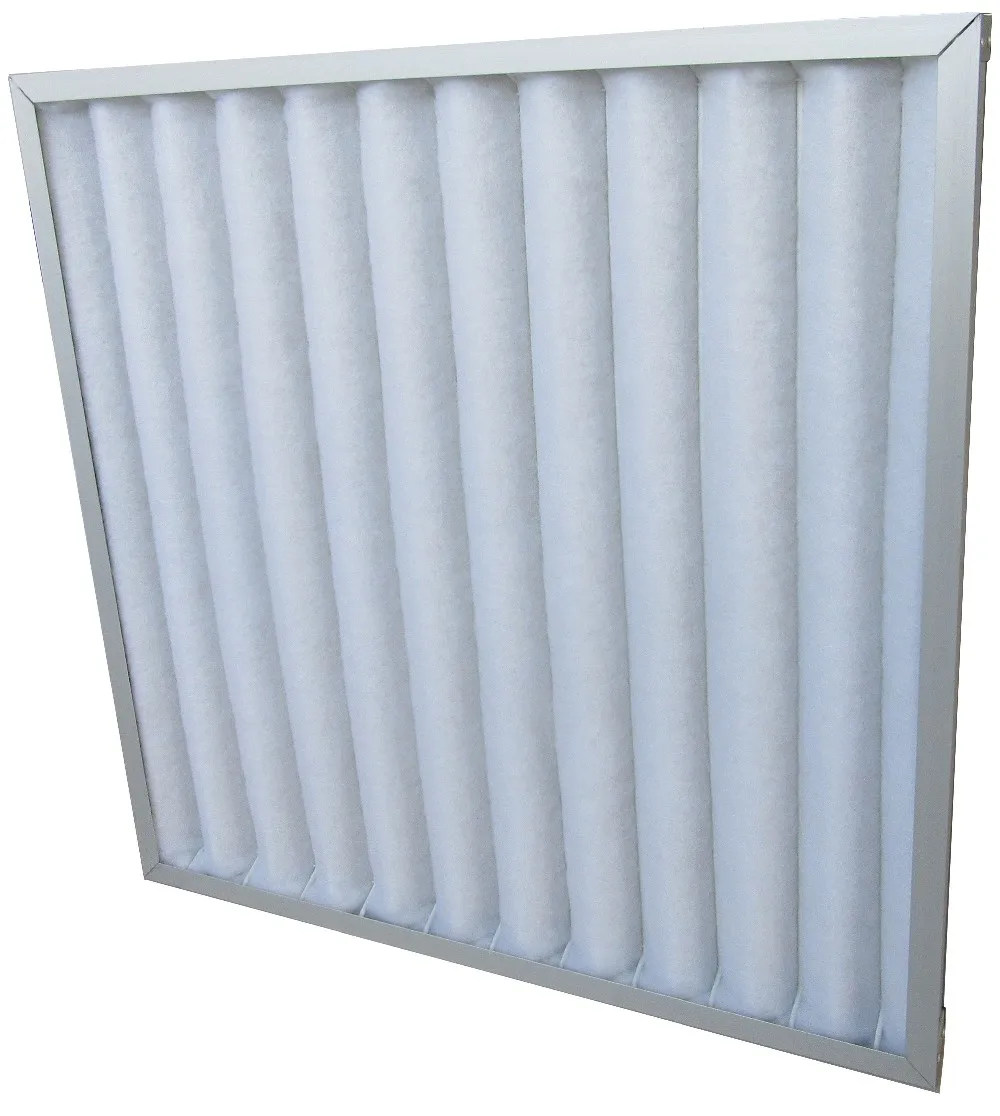

Product show



Applications

1. Used as prefiltration filter in air condition and ventilation system to avoid accumulated dust contamination in the system and as prefiltration filter of large-scale air compressor;

2. Filtering of ventilation system of air condition and upcast air,which can prolong the life of HEPA Air Filters;

3. Used in the industry workshops, which require general air cleanliness and in coarse dust system of air condition in general buildings.

Specification and Technical parameters

Model	Size L*W*H (mm)	Rated airflow (m³/h)	Initial resistance (pa)	Efficiency
C-G	595*595*46	3000	60	Merv 8
C-G	595*495*46	2500
C-G	595*295*46	1500
C-G	495*495*46	2000
Special size can be according to customer special requirement
