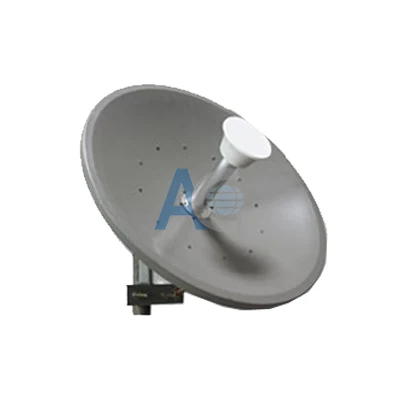

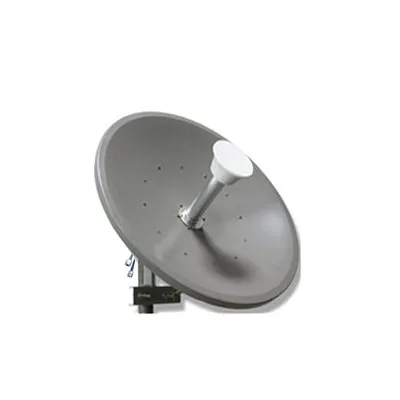

Антенна wimax mimo с высоким коэффициентом усиления 30 дБи 10 км блюдо 2300-2700
- Категория: Коммуникационная антенна >>>
- Поставщик: Foshan,Sanshui,Asian,Creation,Communications,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 250.98 $* | 263.47 $* |
| Aug-17-2025 | 248.55 $* | 260.23 $* |
| Jul-17-2025 | 208.68 $* | 218.17 $* |
| Jun-17-2025 | 244.16 $* | 256.49 $* |
| May-17-2025 | 212.58 $* | 223.74 $* |
| Apr-17-2025 | 239.95 $* | 251.15 $* |
| Mar-17-2025 | 237.4 $* | 249.82 $* |
| Feb-17-2025 | 235.77 $* | 247.43 $* |
| Jan-17-2025 | 233.30 $* | 245.48 $* |
Характеристики
high gain 30dbi 10km dish 2.3ghz wimax antenna mimo
| Electrical | |
| Frequency Range | 2300-2700MHz |
| Band width | 400MHz |
| F/B Ratio | ≥30dB |
| Gain | 2x30dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Direction |
| Horizontal Beam width | 4.5° |
| Vertical Beam width | 4.5° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50ohm |
| Connector | 2xN Female |
| Cable Type | LMR195 |
| Cable Length | 100mm |
| Antenna Radome Material | Aluminum alloy |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ1200mm |
| Weight | 25KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
