Applications:

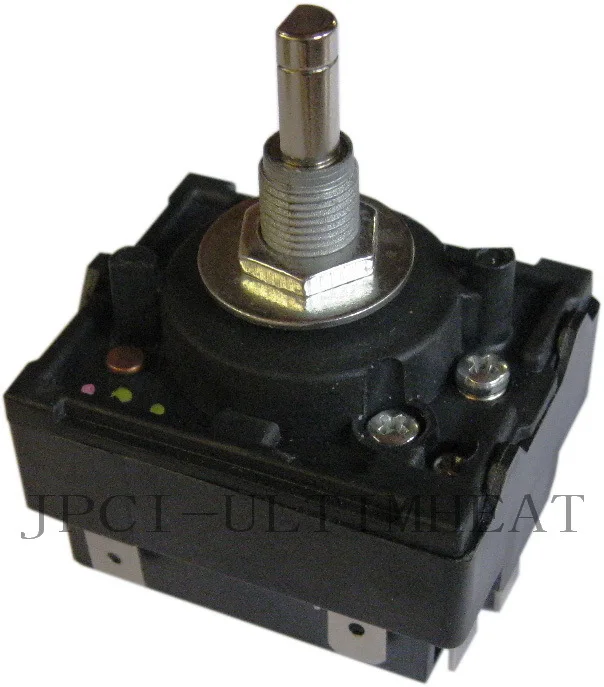

Energy regulators are used to adjust power on electrical heaters. Connected in line with electrical heaters, they provide adjustable cycling sequence, thus adjusting average electrical power



 Main features :

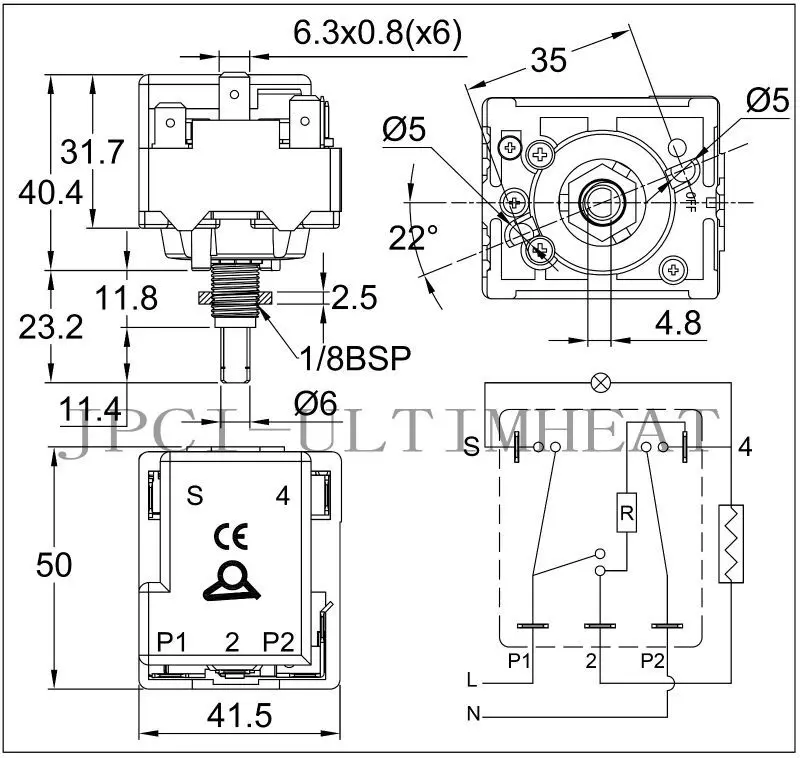

Housing dimensions: 50 x 42 x 39 mm (shaft not included)

Housing material: high temperature resistant PPS

Terminals: 6.3 x 0.8 quick connect

Adjustment: dia. 6 mm with 4.8 flat shaft, length 11.4 mm (UK style models with 4.75 mm dia. shaft available on request, MOQ apply)

Angulation:

-Mechanical: 360°, with two pole off position at 0°

-Electrical: Min position at 75°angular, Max position at 285° angular. (Other angulation with max at 208.5° available on request, MOQ apply)

Mounting: Center ¼ BSPP bush with centering studs. 2 M4 , 28 mm distance screws mounting bracket available on request (MOQ apply)

Rating: 12A 230V resistive, SPDT+ on off pilot contact. Other contact configuration (SPST, SPDT without pilot, double circuit etc… are available on request, MOQ apply)

Max ambient temperature: 125°C/257°F

Approval: CE

                                                         Main Reference

References	Voltage	References	Voltage
35ER102TF024V	24	35ER101TF230V	230
35ER102TF048V	48	35ER104TF400V	400
35ER105TF110V	110



                                          Knobs and dials
