Небольшие лифты для

Категория: Elevators & Elevator Parts >>>
Поставщик: Jinan,Moral,International,Co.,ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.15 $*	0.49 $*
Aug-17-2025	0.52 $*	0.2 $*
Jul-17-2025	0.7 $*	0.54 $*
Jun-17-2025	0.97 $*	0.50 $*
May-17-2025	0.85 $*	0.75 $*
Apr-17-2025	0.9 $*	0.48 $*
Mar-17-2025	0.57 $*	0.75 $*
Feb-17-2025	0.32 $*	0.8 $*
Jan-17-2025	0.66 $*	0.42 $*

Характеристики

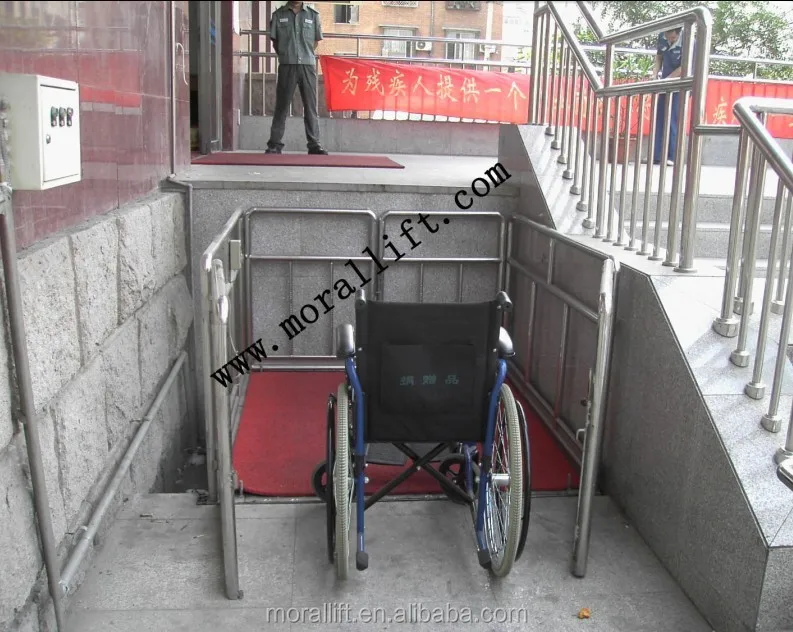

small elevators for homes

Product Description

1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.

2.It can be directly installed into the ground without architectural supporting pits and easy to operate.

3.Its hydraulic or screw system offers passengers smooth and comfortable transportation and

different safety devices remove every hiding risk.

4.Emergency Descending:When there is no power or malfunctions, manually descend the device

5.It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.

Parameters

Platform size	1300mm(L)* 900mm(W) or customized
Max Platform Height	6000mm
Min Platform height	80mm
Speed	60mm/s
Load capacity	250KG~350KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic or screw
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Working Condition	Both indoors and outdoors
Working temperature	From -50°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
