Автоматическая маленькая ПЭТ бутылка пружина минеральная чистая питьевая вода розлив и закупорки оборудование заводская
- Категория: Упаковочный станок >>>
- Поставщик: Zhangjiagang,U,Tech,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 15470.29 $* | 16244.98 $* |
| Aug-19-2025 | 15340.27 $* | 16107.85 $* |
| Jul-19-2025 | 12870.6 $* | 13514.77 $* |
| Jun-19-2025 | 15080.58 $* | 15834.26 $* |
| May-19-2025 | 13130.94 $* | 13787.65 $* |
| Apr-19-2025 | 14820.10 $* | 15561.73 $* |
| Mar-19-2025 | 14690.89 $* | 15425.76 $* |
| Feb-19-2025 | 14560.19 $* | 15288.39 $* |
| Jan-19-2025 | 14430.96 $* | 15152.51 $* |
Характеристики
Description

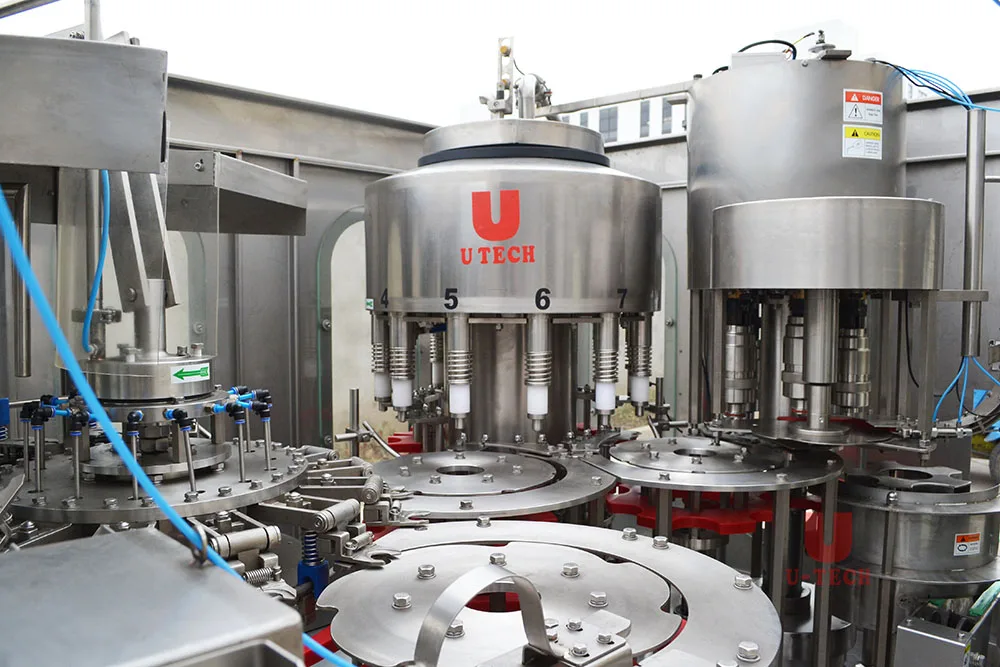

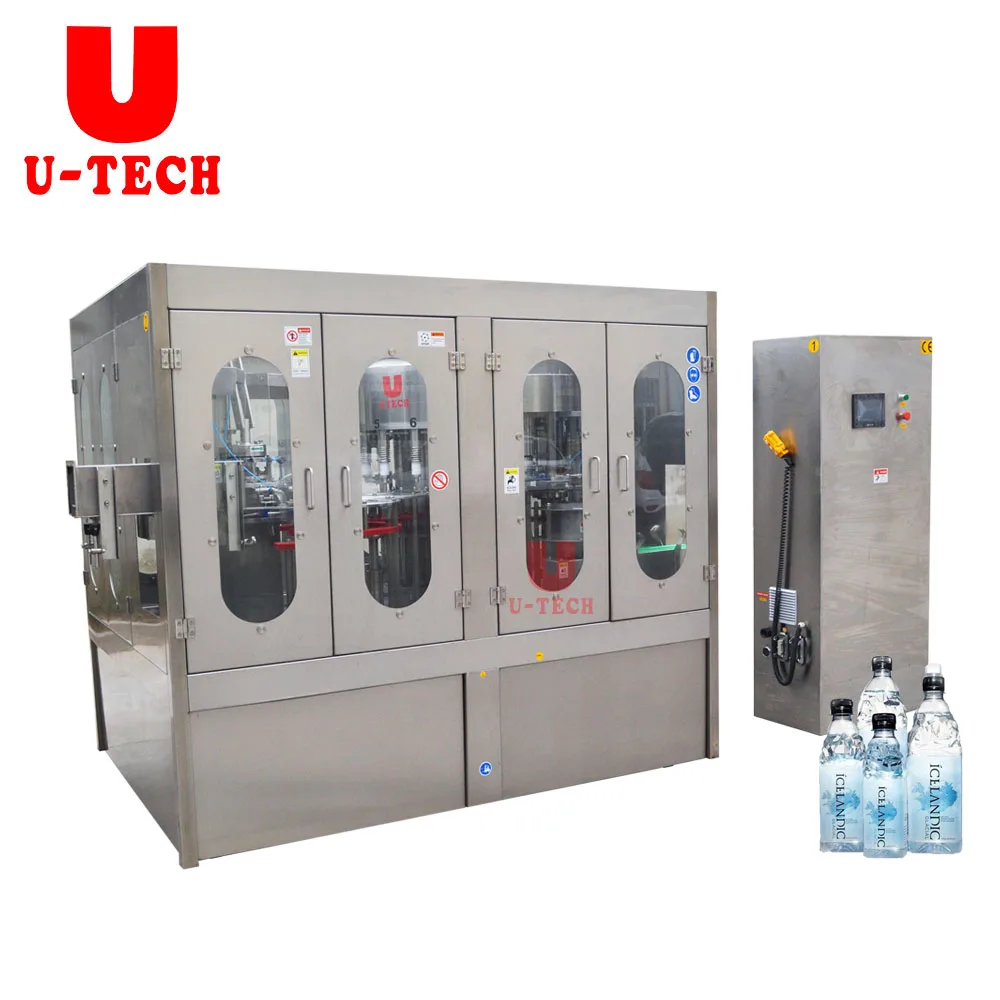

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

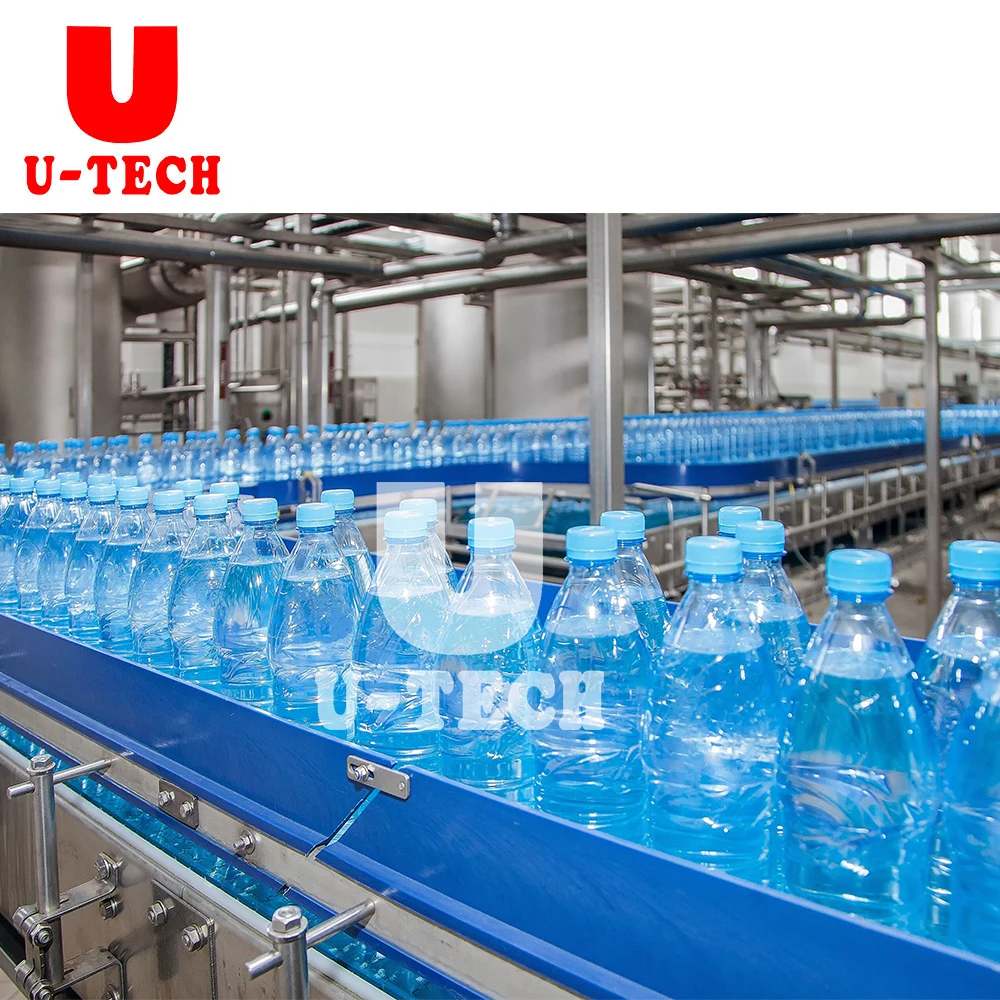

The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Flow
Bottle sample
Technical Parameters
Model | CGF14-12-5 |
Capacity | 5000PBH |
Washing heads | 14 |
Filling heads | 12 |
Capping heads | 5 |
suitable bottle | PET bottle,plastic bottle |
Diameter of bottle | 55-110mm |
Height of bottle | 150-310mm |
Suitable cap | Plastic screw cap |
Weight | 2000kg |
Main motor power | 1.5kw |
Machine Details

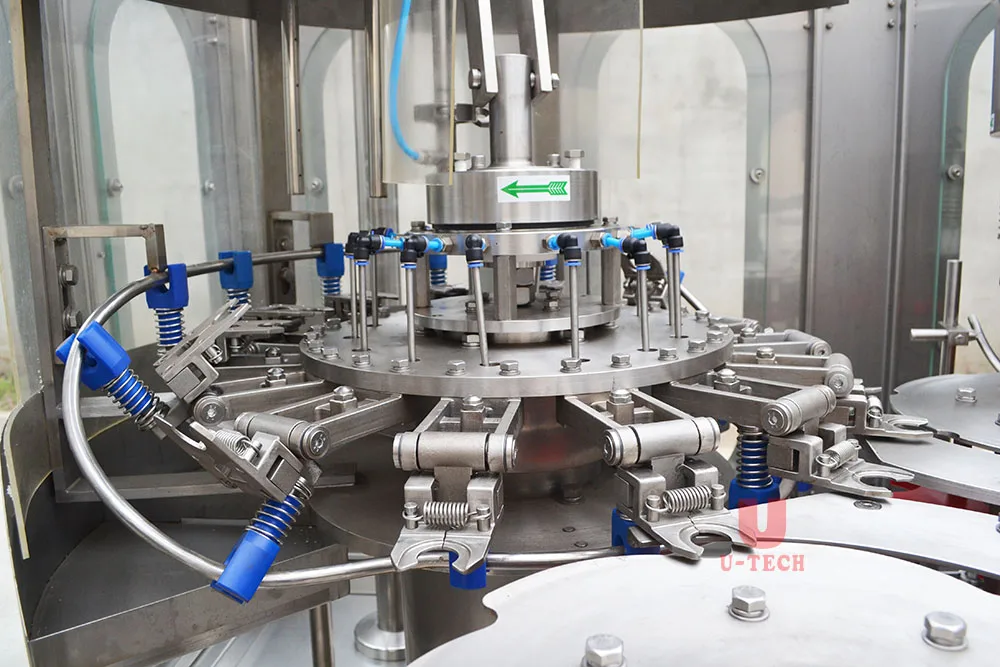

Washing heads
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

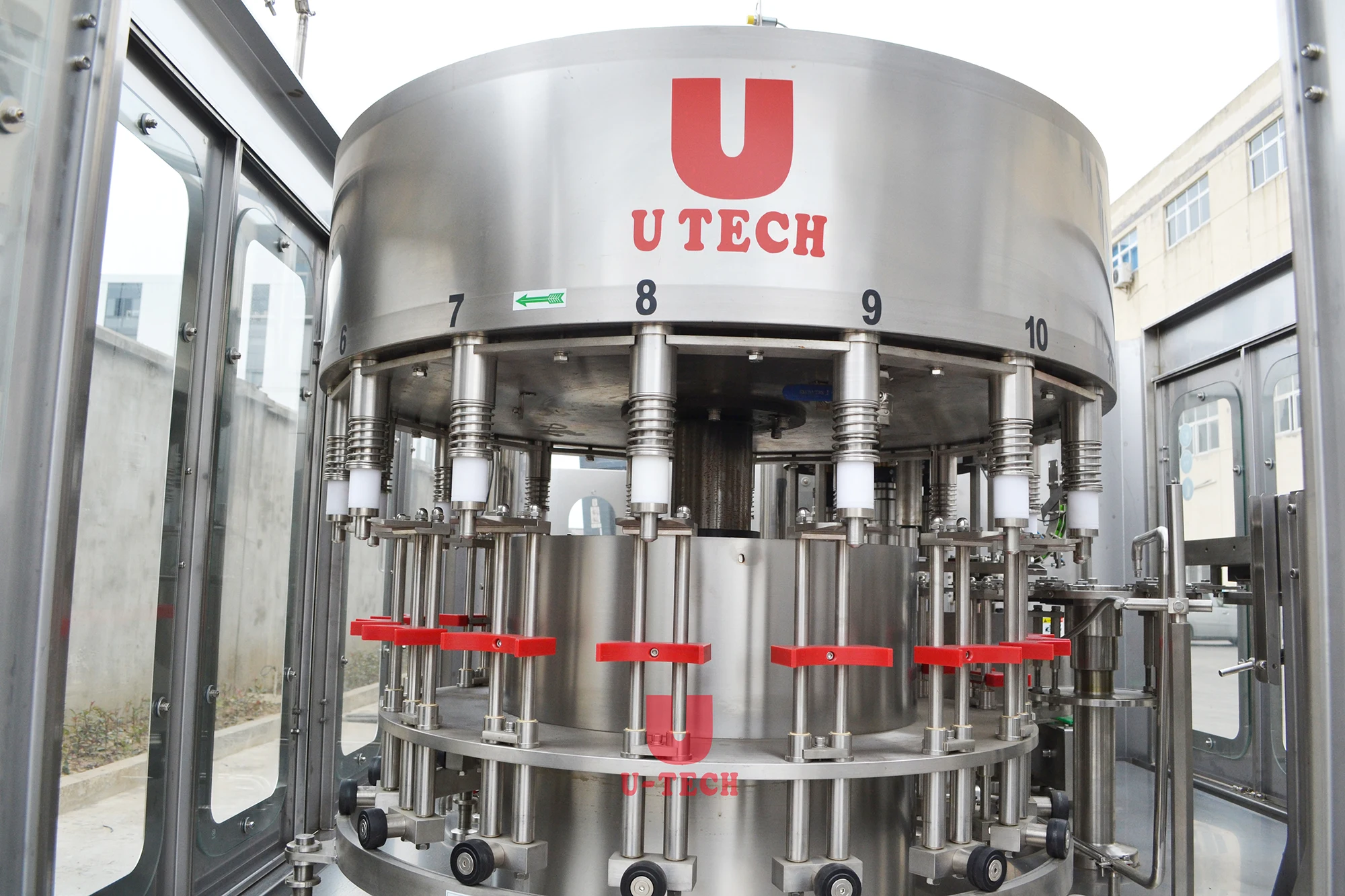

Filling heads
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

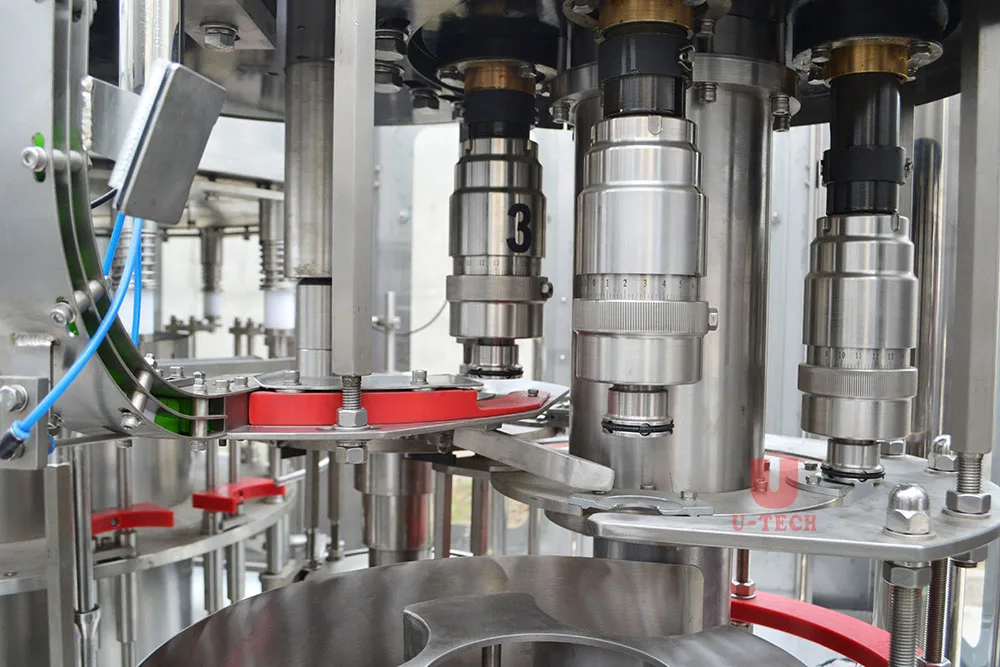

Capping heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Main Features
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Control System
S/N | Name | Brand | Country |
1 | Main motor | ABB | Switzerland |
2 | Inverter | MITSUBISHI | Japan |
3 | PLC | OMRON | Japan |
4 | Touch screen | MITSUBISHI | Japan |
5 | Contactor | SCHNEIDER | France |
6 | Thermo- relay | SCHNEIDER | France |
7 | Air-break switch | SCHNEIDER | France |
8 | Proximity switch | TURCK | USA |
9 | Photoelectric switch | BANNER | USA |
10 | Air circuit system | SMC | Japan |
11 | Water pump | Southern | China |
Related Products
Water Treatment System
Water treatment system,also called water filtration sterlizer system, is the process of purifying the raw water by a series equipments and devices to be drinkable.The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc.
Automatic Bottle Blowing Machine
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Shrink Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
Machine Running Video
Water filling machine
Soda water filling machine
Juice filling machine
Litchi juice filling machine
Bird nest filling machine
Oil filling machine
