ES900 одобренные CE pdr инструменты гаражное оборудование б/у гидравлический домкрат для автомобиля/машина рамы кузова

Описание и отзывы

Трекер стоимости

Характеристики

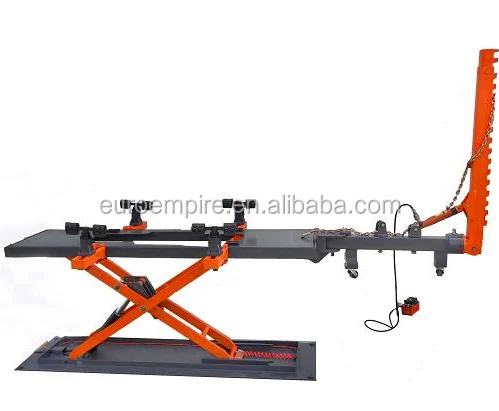

ES900 Frame Machine

ES900	A	B	C
Deck Length (Feet/Meter)	11'/3.3m	12'/3.6m	13'/3.9m
Deck Width (Feet/Meter)	3'/0.9m	3'/0.9m	3'/0.9m
Net Weight (LB/KG)	2200LB/1000KG	2200LB/1000KG	2200LB/1000KG







Technical Data:



 Working Platform Height: 120 - 1200 mm  Max. Lifting Weight: 3000 KG

 Hydraulic System MWP: 70 Mpa Inlet Air Pressure: 0.8 MPa

 Max. Tower Pulling Force: 95 KN



Features:



1. The platform is made by Manganese plate.

2. The hydraulic towers can be moved freely alongside the side of the platform. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.

3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories enable to do any misshape correction work.

4. Hydraulic system with good design has powerful driving force, long life and low failure rate.

5. The mechanical measuring system more suitable for workers.

6. Major clamps fix the auto quickly, firmly and accurately.

7. Applying parallel-connect synchronous hydraulic cylinders with high synchronous precision; the integral mechanical lock is processed one-time.

8. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.

9. Special design for lifting forces; in order to longer life of the oil cylinder, special big bore

cylinder is used. Under 15Mpa-17Mpa pressures, it can support vehicle as much as 3000KG/6000lbs.









































As an expert in manufacturing and exporting auto body frame machine, we can offer you a wide selection of choice. Boosting a professional R&D staff and strong &complete equipments, we can produce the body pulling bench according to your specific requirements for design and produce. The parameters are the standard setup for each straightening machine on this website or on http://euroempire.en.alibaba.com/
We have two categories of frame machines. One is Car Frame Machines, for cars, SUVs, Vans, mini-buses etc. The machine is designed reasonable and strong. Towers powerful. Another type is Truck & Shuttle Frame Machines, for trucks, shuttles and big buses. The machine is to repair driver's cabinet, frame, chassies and outer rails.
Any questions about our machine, quality enquiries, pls feel free to contact with us.
