Высокое качество CE FCC KC PSE 48 В 54 6 в 58 4 4a электрическое зарядное устройство lifepo4 для электровелосипеда скутера гироскутера

Model

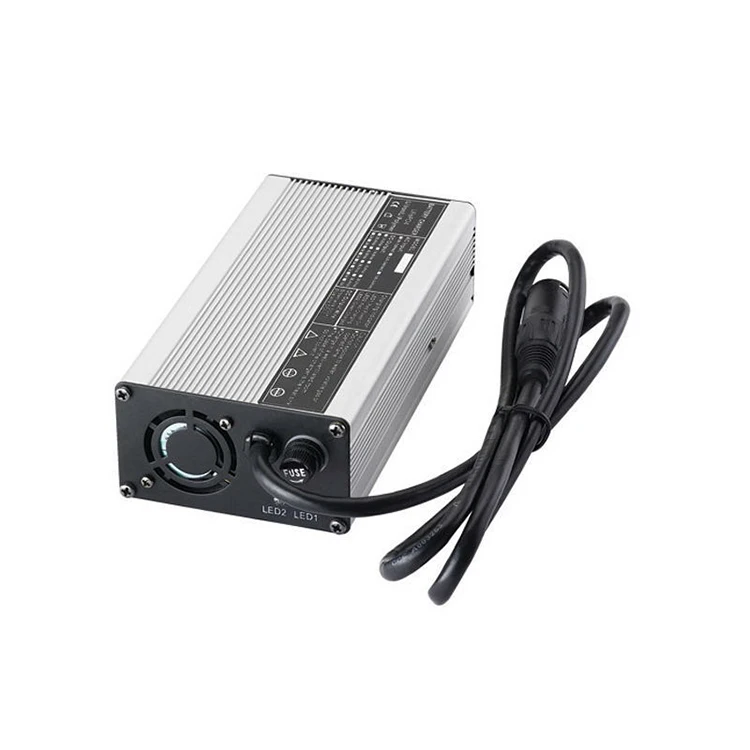

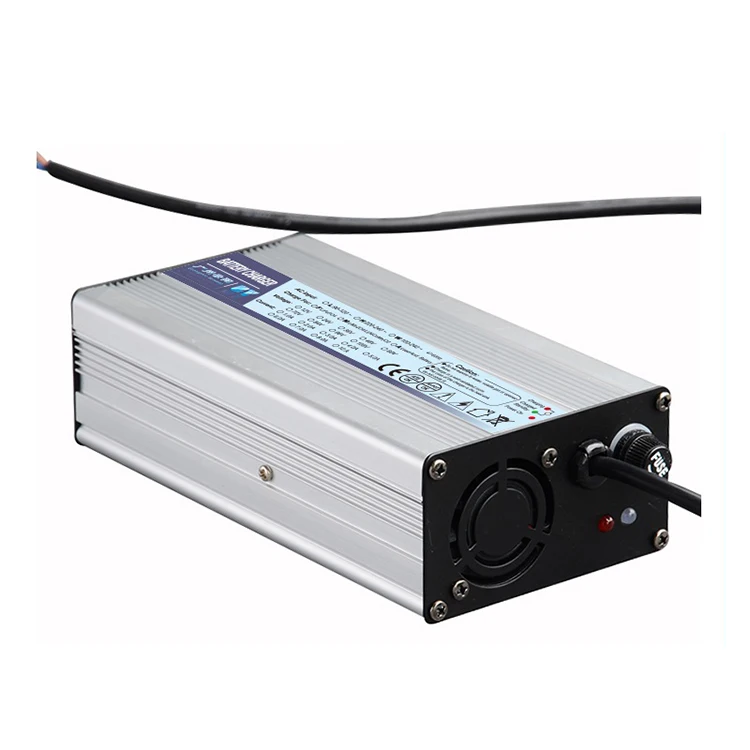

LifePo4 battery charger

Input

100-240Vac 50/60Hz

Input plug(power cords)

EU  US  UK  AUS  South Korea  Brazil  Italy Plugs (Customized)

Top Charge Voltage

3.65V/cell

Output Range

4S  12V10A  lifepo4 battery charger

8S  24v5a lifepo4 battery charger

12S  36V3A lifepo4 battery charger

16S  48V2.5A  lifepo4 battery charger

Charger item

14.6v10a  29.2v5a  43.8v3a  58.4v2.5a

Charge mode

2-stage Mode: CC---CV  for lifepo4 battery charger

3-stage Mode: CC--CV--Float mode for lead acid battery

Led Indicator(Dual Color)

Red---in Charging; Green--Finish charge/ no load

Led Switch current

10-15% of charge current

Safe Protection

Over-load protection Over-current protection

Short circuit protection Polarity Reverse Protection

Safe Certificate

CE  ROHS CB  GS  FCC  UL  SAA  PSE  KC

Efficiency

>80%

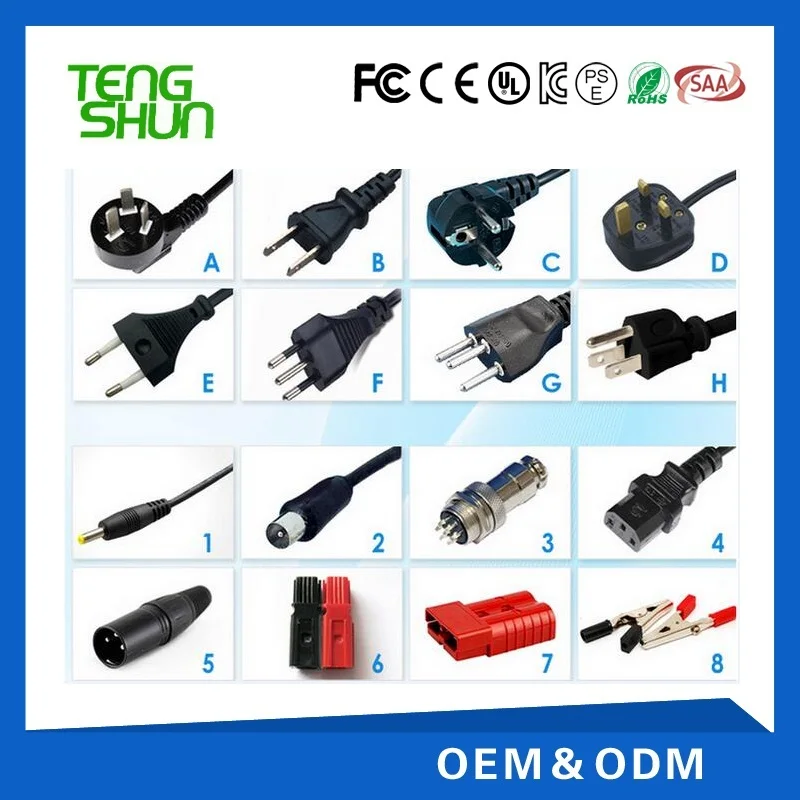

Output Connector

DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug.etc

Power Consumption

≤0.5W at Rated Voltage(adapter at no load)

Ripple And Noise

Output voltage 1%, Ripple&Noise≤120mv

High-Voltage test

Primary to secondary: 3 kV / 5mA 60S

Leakage Current

0.5mA(max) at input 240V AC

Drop Test

0.75m drop test, 6 times

Burn-In Test

100% load, 5hours

MTBF

50,000 hours@ 25°C

Application

UPS, E-bike, Motor, Scooter, Solar systems, flash Torch, etc.

Warranty

2 years

Lead time

12 Working days
