Предварительно Изолированный шланг для солнечного

Описание и отзывы

Трекер стоимости

Характеристики

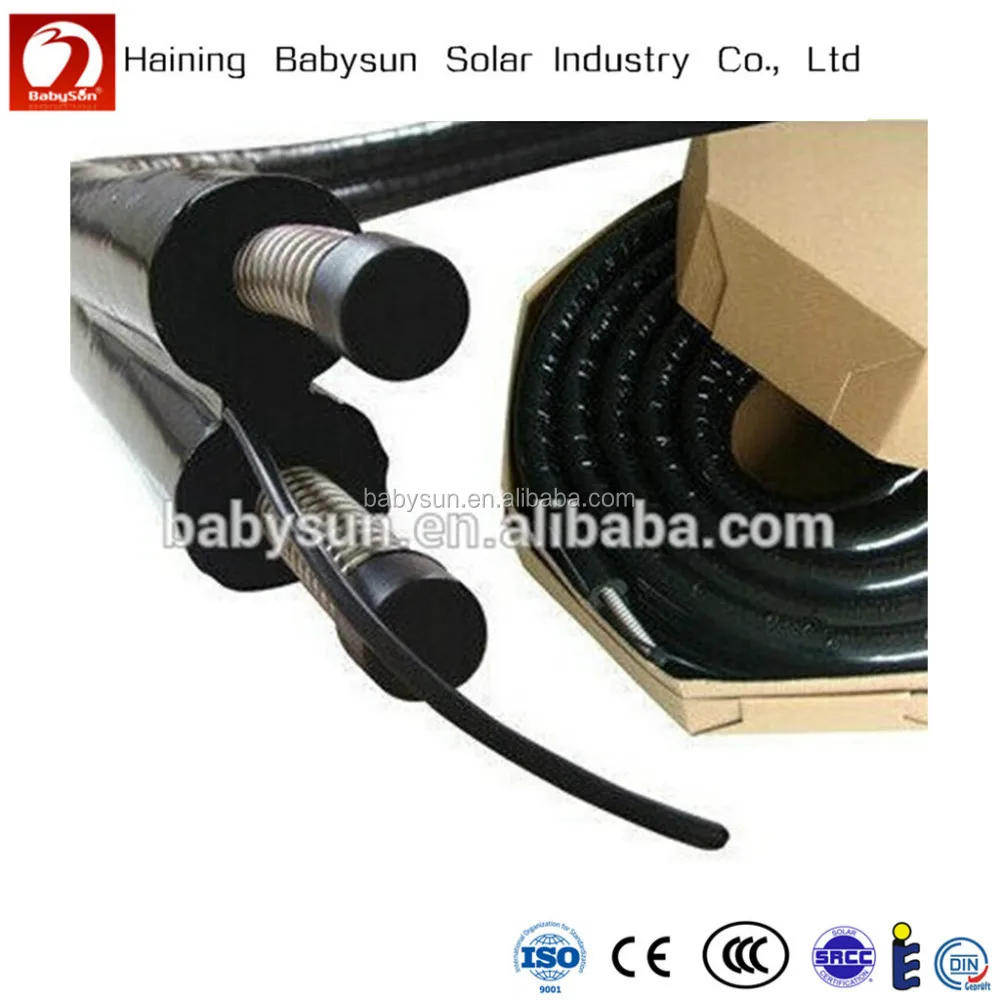

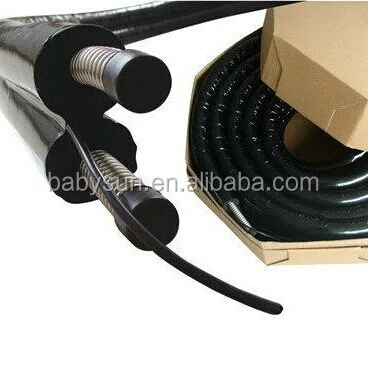

Specification of Pre-insulated Solar Water Heater Hose



EPDM Insulation Pipe
Cell Structure	Closed cell
Temperature Range	-57 °C to   +150°C; short term up to +175°C
Thermal   Conductivity	λ40°C   = 0,040 W/mK λ0°C= 0,033 W/mK	ASTM C 177 JIS A   1412 DIN 52613
Corrosion of Copper , Stainless Steel	Noncorrosive	DIN1988
Environment Friendly	CFC ,HCFC free
UV, Weather Resistance	Excellent



Flexible Stainless Steel  Corrugated Pipe
Material	SUS304/316L
Outer Diameter(mm)	DN	Thickness(mm)	Max Operation Pressure(bar)
16.0	12	0.25	12
20.0	16	0.25	12
25.0	20	0.3	12



Temperature Sensor Cable
Temperature   Resistance	-60-   +200°C
Insulation   Material	Silicon
Nominal   Voltage	300/500V
Size	2*0.5mm2





1).Solar Pipe Sizes: DN12(1/2”), DN16(3/4”), DN20(1”)



2).Solar Pipe Roll Lengths: 5m,10m,15m, 20m, 25m, 30m, 50m



3).Thermal Insulation Tube: Aeroflex EPDM insulation tubes



4).Insulation Tube Wall Thickness: 13mm/20mm



5).Flexible SS Corrugated Pipe: SUS304/316L



6).SS Pipe Wall Thickness: 0.25mm-0.3mm



7) Temperature Sensor Cable: Silicon insulated high temperature two cores cable



8). Protection Film: UV resistant and water proof adhesive protection film



9) Insulation Working Temperature: -57°C to +150°C( shortly for +175°C)



10).Max Working Pressure: 12 bar



11). Solar Pipe Brass Fittings: Brass Ms58 , flat surface



12).Sealing Material: Klingerit fiber washer from Germany



13).Split Clip Material:SUS430



14). Applications: Solar Thermal Plumbing Systems



15).Color: Black
