Мгновенного действия основной микро-переключатель RV-166-1C25 продлить микро

Описание и отзывы

Трекер стоимости

Характеристики

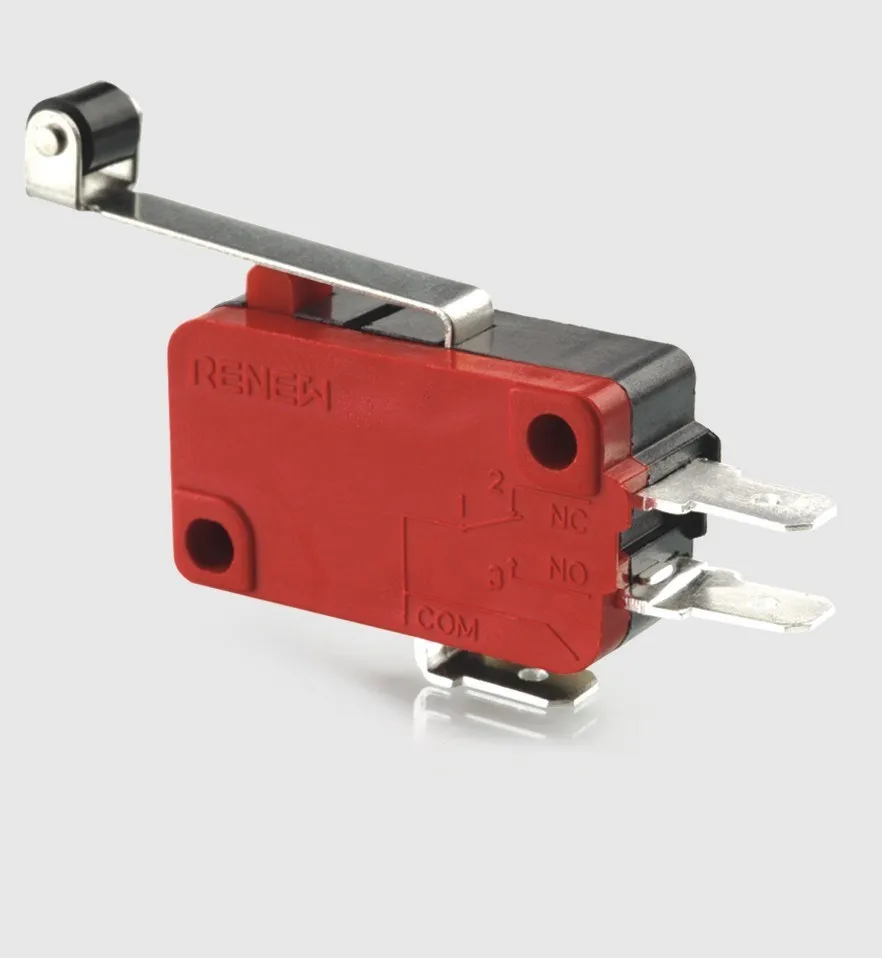

P/N: RV series micro switch with long roller lever micro switch.  omron micro switch

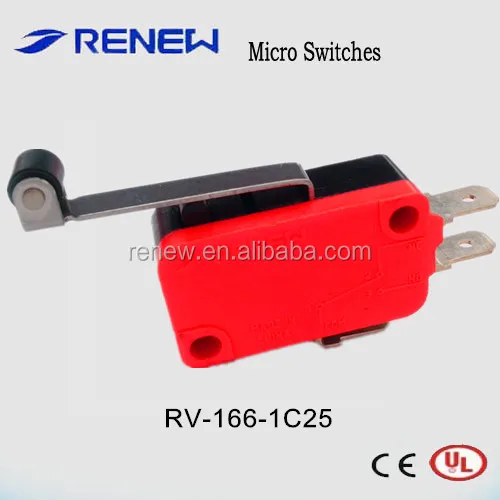

Model No.: RV-166-1C25



Rated data and performance of micro switch RV type



Item                     Type		RV-21 RV-16 RV-15  RV-11 RV-10
Allowable operating speed		0.1mm~1m/s (pin plunge type)
Allowable operating frequency		Mechanical 600 operations/min Electrical  30 operations/min
Insulation resistance		100 mΩ min. (at 500V DC)
Contact resistance (initial value )		Max 15mΩ
Dielectric strength	Between the non-continious terminals	AC 1000V 50/60HZ for 1min
	Between non voltage metal parts and each terminal	AC 2000V 50/60HZ for 1min
	Between the grounding and the each terminal
Vibration resistance	Malfunction	10 to 55HZ, 1.5mm double amplitude (contact gap is less than 1ms )
Shock resistance		OF 0.49N type: less 98m/s2  OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2
Expected Life	Mechanical life (order OT)	50,000,000 operations min. (frequency is 60 operations/min)
	Electrical life(resistive load )	100,000  operations min. (frequency is 20 operations/min)
Ambient operation temperature & Ambient humidity		-25~+80(with no icing ),   85%RH max.(+5~35)
Contact material		AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight		Approx.  6.2g(pin plunger type )

Remark : micro switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life of micro switch and the capability of micro switch may be decreased because of the load capacity , so please consultation us freely .





Other information of micro switch RV type

Rating:	21A/16A/11A/6A, AC250V
Contact form	SPDT/SPST-NC/SPST-NO
Terminals:	#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force	50gf-400gf

 Ratings

Model	Rated voltage	No-inductive load				Inductive load
		Resistive load		Lamp load		Inductive load		Motor load
		NC	NO	NC	NO	NC	NO	NC	NO
RV-21	250VAC	21A		3A		12A		4A
	8VDC 30VDC 125VDC 250VDC	21A 14A 0.6A 0.3A		5A 5A 0.1A 0.05A		12A 12A 0.6A 0.3A		7A 5A 0.1A 0.05A
RV-16	250VAC	16A		2A		10A		3A
	8VDC 30VDC 125VDC 250VDC	16A 10A 0.6A 0.3A		4A 4A 0.1A 0.05A		10A 10A 0.6A 0.3A		6A 4A 0.1A 0.05A
RV-11	250VAC	11A		1.5A		6A		2A
	8VDC 30VDC 125VDC 250VDC	11A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A		6A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A
RV-6	250VAC	6A		3A		4A		--
	8VDC 30VDC 125VDC 250VDC	6A 6A 0.4A 0.3A		3A 3A 0.1A 0.05A		4A 4A 0.4A 0.2A		--



outside dimension of micro switch RV-166-1C25:











 Internal structure of RV type micro switch:
