Круглый ремень из ПУ/шероховатый ПУ может использоваться для трансмиссионной
- Категория: Приводные ремни >>>
- Поставщик: TAIWAN,POLY-URETHANE,INDUSTRIAL,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.92 $* | 0.79 $* |
| Aug-18-2025 | 0.45 $* | 0.20 $* |
| Jul-18-2025 | 0.15 $* | 0.90 $* |
| Jun-18-2025 | 0.76 $* | 0.19 $* |
| May-18-2025 | 0.88 $* | 0.42 $* |
| Apr-18-2025 | 0.63 $* | 0.11 $* |
| Mar-18-2025 | 0.91 $* | 0.63 $* |
| Feb-18-2025 | 0.18 $* | 0.25 $* |
| Jan-18-2025 | 0.73 $* | 0.78 $* |
Характеристики
Product Description
Our Advantages
PU round belt,PU rough belt can use for Transmission machine
- High flexibility and impact resistance
- Round belt is easily welded by heater
- Outstanding tensile and tear strength
- Resistance to oils, fuels and oxygen
- Good weather ability
- Round belt is easily welded by heater
- Outstanding tensile and tear strength
- Resistance to oils, fuels and oxygen
- Good weather ability
Application
PU Belt can use for transmission purposes of newspaper, textile machines, packaging machines, printing presses, food machinery, ceramic processing plants, cannery conveying equipment, wood-working machines, floor and roof tiles and industrial and paper industry machines. Round belt is ideal for material transfer and light-duty power transmission applications. Widely used in the facilities line, the glaze, polishing lines and transmission line. Cut round belts can be joined as the endless belts as required according to the drive wheel distance and pulley size
PU ROUND BELT
Description
ITEM No. | Specification | ||
BTR01 | OD:1mm | L:2,000M | |
BTR02 | OD:2mm | L:400M | |
BTR03 | OD:3mm | L:400M | |
BTR04 | OD:4mm | L:200M | |
BTR05 | OD:5mm | L:200M | |
BTR06 | OD:6mm | L:200M | |
BTR07 | OD:7mm | L:100M | |
BTR08 | OD:8mm | L:100M | |
BTR09 | OD:9mm | L:100M | |
BTR10 | OD:10mm | L:50M | |
BTR12 | OD:12mm | L:50M | |
BTR14 | OD:14mm | L:50M | |
BTR15 | OD:15mm | L:50M | |
BTR16 | OD:16mm | L:50M | |
BTR18 | OD:18mm | L:30M | |
BTR19 | OD:19mm | L:30M | |
Physical Properties
SHORE HARDNESS ("A" SCALE) ASTM D 2240 | 90±2 |
ULTIMATE TENSILE STRENGTH (kgf/cm2) PSI ASTM D 412 | 6400 |
ELONGATION (%) ASTM D 412 | 500 |
TEAR STRENGTH (kgf/cm2) PLI ASTM D 412 | 600 |
COMPRESSION SET AT 25% DEFORMATION (%) TABER e | 6 |
ABRASION RESISTANCE CYCLES (mg) ASTM D 746 | 39 |
SOLENOID BRITTLE (POINT ℃) | -35 |

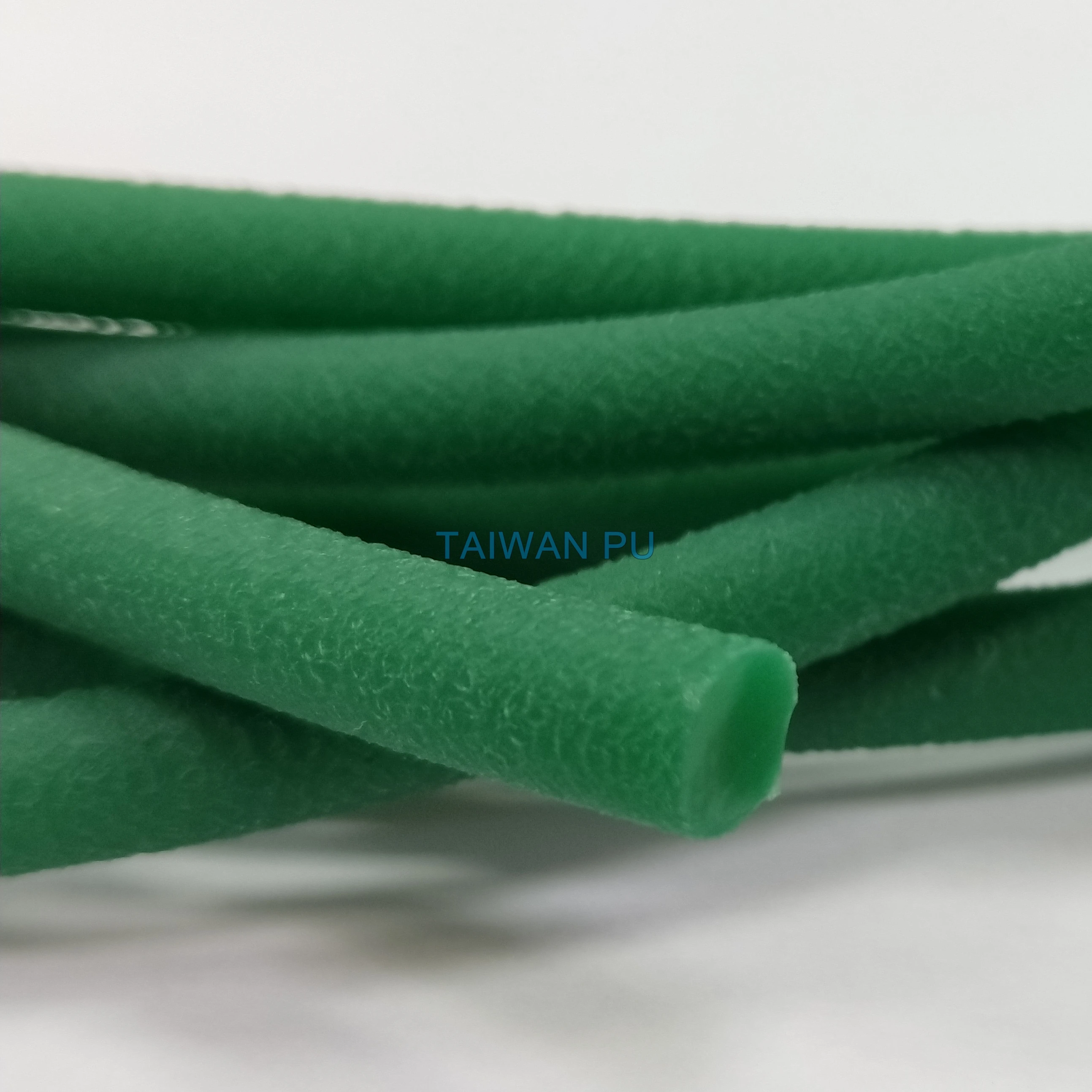

PU ROUGH ROUND BELT
ITEM No. | Specification | ||
BTH02 | OD:2mm | L:400M | |
BTH03 | OD:3mm | L:400M | |
BTH04 | OD:4mm | L:200M | |
BTH05 | OD:5mm | L:200M | |
BTH06 | OD:6mm | L:200M | |
BTH07 | OD:7mm | L:100M | |
BTH08 | OD:8mm | L:100M | |
BTH09 | OD:9mm | L:100M | |
BTH10 | OD:10mm | L:50M | |
BTH12 | OD:12mm | L:50M | |
BTH14 | OD:14mm | L:50M | |
BTH15 | OD:15mm | L:50M | |
BTH18 | OD:18mm | L:30M | |
SHORE HARDNESS ("A" SCALE) ASTM D 2240 | 85±2 |
ULTIMATE TENSILE STRENGTH (kgf/cm2) PSI ASTM D 412 | 5800 |
ELONGATION (%) ASTM D 412 | 520 |
TEAR STRENGTH (kgf/cm2) PLI ASTM D 412 | 425 |
COMPRESSION SET AT 25% DEFORMATION (%) TABER e | 12 |
ABRASION RESISTANCE CYCLES (mg) ASTM D 746 | 49 |
SOLENOID BRITTLE (POINT ℃) | -35 |
Details Images
Packing & Delivery
