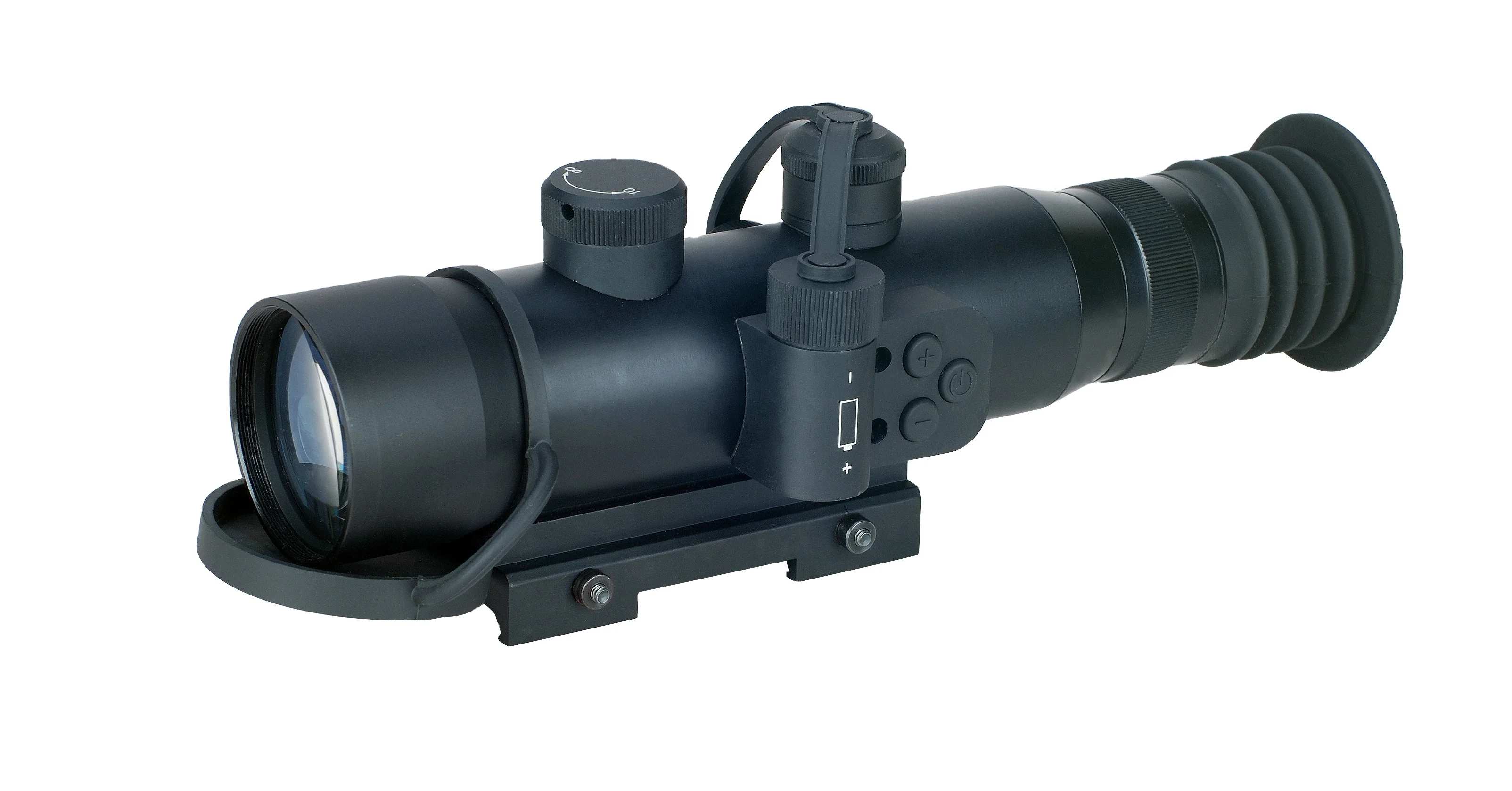

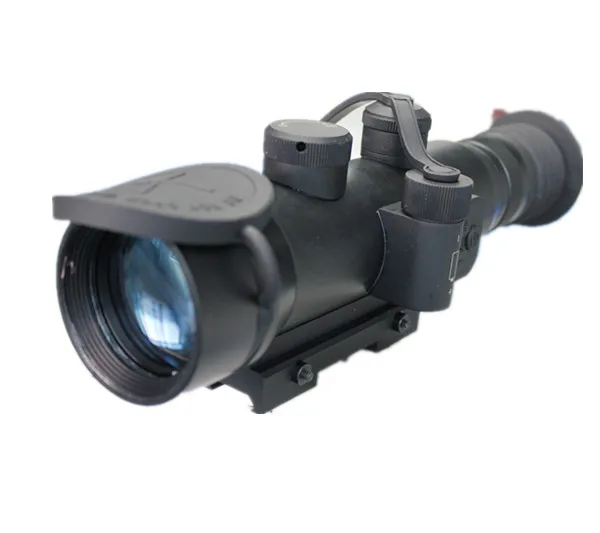

Военный оптический прицел ночного видения RM583 тактический охотничий телескоп серии 2 с 3-кратным

Описание и отзывы

Трекер стоимости

Характеристики

PRODUCT OVERVIEW

The RM series GEN3 is superior for long range shooting, with outstanding accuracy in the most unfavorably-able condition, it is the best in the industry power consumption, 60 hours of battery life time.



FEATURES

- Superior for long range shooting.

- Lightweight

- Internal-lit mil-dot iluminated red-on-green or yellow on-green reticle with adjustable brightness.

- Top mounted internal front lens focus adjustment.

- Precision internal wind age/elevation.

  Adjustment( 1cl=10mm/m)

- Shockproof, can be used with heavy

  recoil(375 H&H,416 RIGBY, 50 CAL) weapons.

- Standard Weaver MIL-STD-1913 rail mount system.

- 80% of value based on US made components and technology.

- Automatic brightness control.

- Protected against excess light exposure.

- Easy to operate.

- Photo/video equipment adaptable.

- Rifle's zero adjustment is not required when change the type weapon.

- Built-in high power(75MW) IR iluminator with adjustable power level.



Specification
Model	RM583
Magnification	3X
Field of view	12°
Lens system	80mm F/1.6
Focus range, m/in	10m to infinity
Eye relief distance	45 mm
Diopter setting, D	+3°, -4°
Overall dimensions, mm/in	269*99*87
Weight w/out headgear, g/oz	1120g
Power supply	1 CR123 batteries, 3V
Estimated battery life w/out IR, 73°F, hour	up to 60
Image Intensifier Tube
Photocathode type	18mm S-25
Photocathode sensitivity, typical, μA/lm	≥550
Resolution, typical, lp/mm	57-64
Luminous gain, typical, fl/fcd	19000 - 25000
Signal-to-noise ratio, typical	20:1 or better
FOM, typical	≥1150
Tube relibility standard, hour	10000
Keep time, typical, year	10
Warranty, year	1
Effective Distance
Detection range, approx, m/yard
-quarter moon	up to 310
-cloud cover	up to 200
Recognition range, approx., m/yard
-quarter moon	up to 180
-cloud cover	up to 150
5mW IR iluminator, approx., m/yard	up to 100/24
Environmental Data
Operating temperature, °C/°F	-40° to +50°/-40° to +122°
Storage temperature, °C/°F	-30° to +50°/-86 to+122°
Immersion, hour	IP65
Humidity, %	up to 98%
