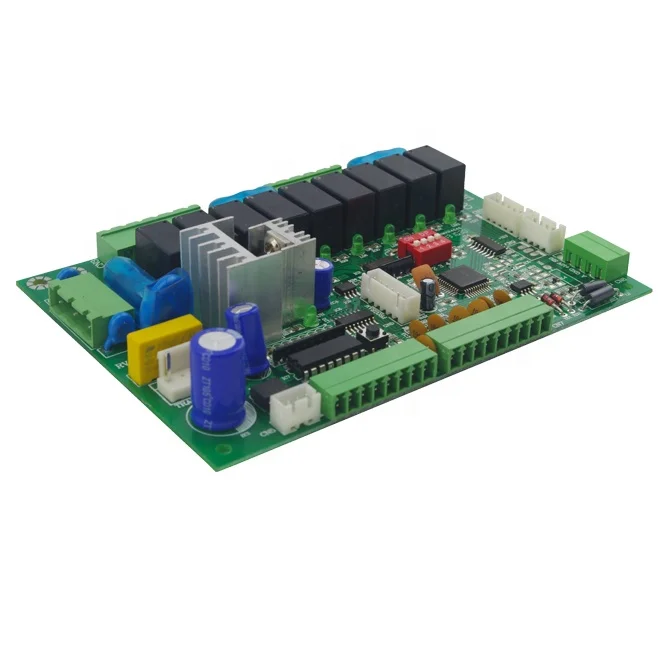

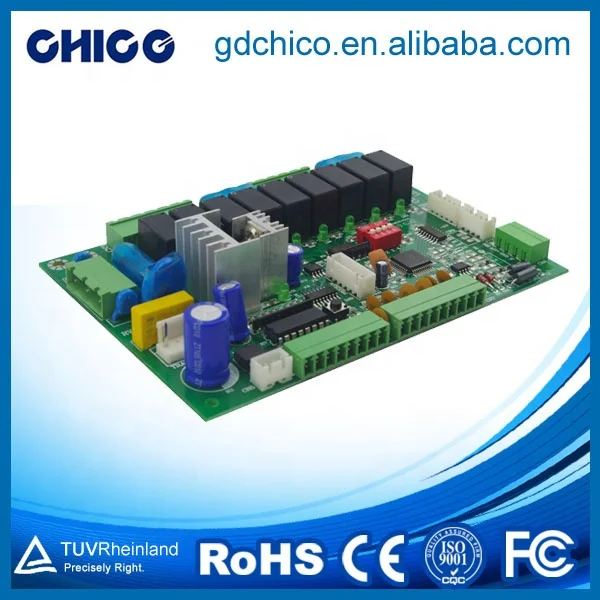

RBXH0000-03950002 air source pcb controller air conditioner temperature controller



Designed for: domestic heat pump water heater,
Suitable for: air source cycle heating water heat pump.



Single compressor control , strongly system protection , EMC certificate.

² Features:



1	LED display , quick parameter setting, easy operation
2	Intelligent defrost control mode
3	Auto restart function
4	EEV control function
5	Working mode: heating mode
6	Two fans control ,night mode
7	Nine way  control output:	Compressor	Cycle water pump	High fan
		Low fan	Crank electrical heater	4-way-valve
		Water tank electrical  heater	Inlet water electrical  heater	Evaporator electrical  heater
8	Six way  sensor input:	Inlet water temp. sensor	Outlet water temp.  sensor	Ambient  temp. sensor
		Evaporator temp. sensor	Suction temp. sensor	Exhaust temp. sensor
9	Six way  switch input:	Compressor high  pressure switch	Compressor low  pressure switch	Water flow switch
		Phase protection	Emergency switch	Over current  protection switch



² Technical parameters:



Measuring range		-30°C~99°C
Controlling range		-30°C~99°C;
Accuracy		-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig
Mounting size		110×90×25mm
Power supply		220±10%(VAC), 50/60Hz
Power consumption		<12W
Storage temperature-		-25°C~50°C
Senor type		NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
Relay  output capacity	Compressor	5A/250VAC
	Cycle water pump	5A/250VAC
	Others	5A/250VAC

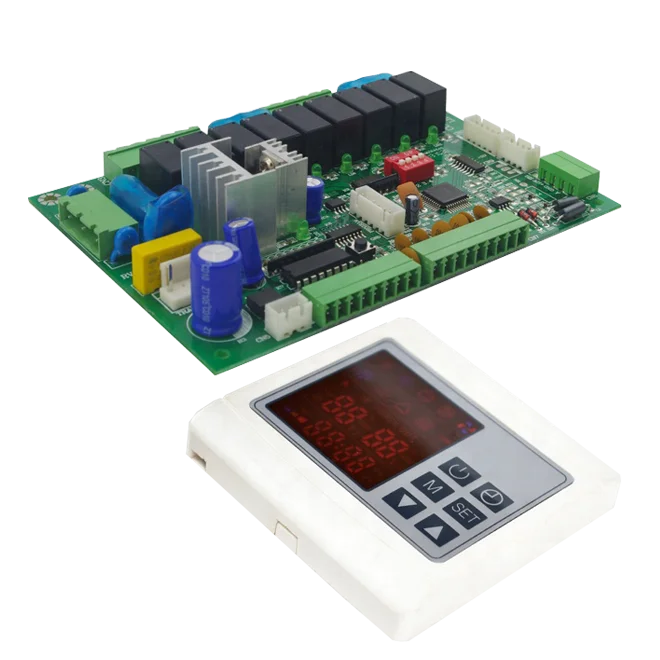

Product list		RBXH0000-3950002 (1pcs)

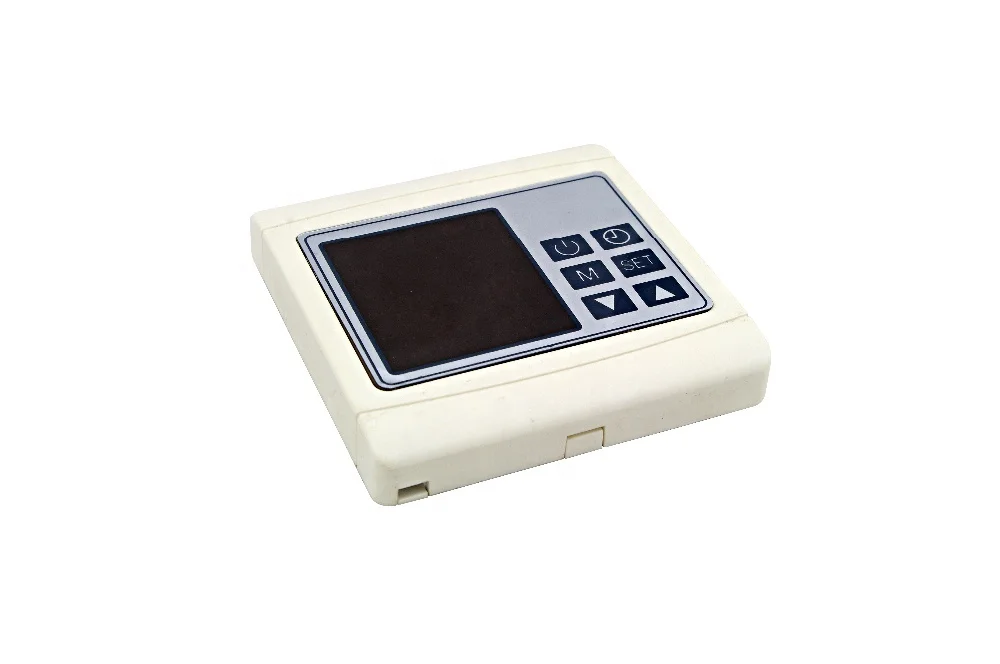

		LED display(1pcs)
		Connect wire(1pcs)
		Transformer(1pcs)
		Temp. sensor(6pcs)

Please tell us:

1,Your applications



  ² Swimming pool heat pump

  ² Domestic hot water heat pump

  ² House heating

  ² House heating and cooling

  ² Domestic hot water + House heating and cooling

  ² Others …



2,Quantity of compressor in heat pump system



  ²   One

  ² Two

  ² Three

  ² Four

  ² More …



3,Energy exchange medium



  ² Air source

  ² Ground source

  ² Air source + solar

  ² Air source +Ground source

  ² Others …



4,General heat pump or EVI heat pump



  ² General heat pump

  ² EVI heat pump for cold area

  ² Others …



5,Constant speed heat pump or inverter speed heat pump



  ²   Constant speed heat pump

  ²    Inverter speed heat pump

Supply ability	50000 units/month
MOQ	1 units
OEM/ODM	Supply
Port	Guangzhou
Available trade terms	FOB, CIF ,CFR, EXW.
Delivery time	about 15 days after receiving you deposit
Payment	L/C,T/T, Paypal, etc.





























Business Type: Manufacturer, Trading Company



Location: Foshan, China (Mainland)



Year Established: 2003



Registration No.: 440682000157946



Company Certifications: CE, FCC, UL, RoHS, ISO9001



Main products: We are specialized in researching and developing, manufacturing and distributing intelligent controller, frequency conversion and energy-saving and environmental protection products as LED switching power supply.





1. Prompt reply within 12 hours.



2. Understand inquiry in any language.



3. Products with top quality.



4. Very competitive prices.



5. 13 years experience in intelligent controller R&D and manufacturing.



6. Strong R&D term supports perfect customized projects.



7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.



8. Fabulous after-sale service.



1.   Q: Can I place sample order first?

      A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.



2.  Q: How could I pay them?

     A: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.



3.  Q: How to place the order?

     A: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.



4.  Q: How long can I get my order?

     A: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.



5.  Q: How to send us the products?

     A: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.



6.  Q: Can you customize according to our designs and put our logo on the products?

     A: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
