Titanium Pipes
Китайский первый производитель композитных труб

Китайский первый производитель композитных труб

Категория: Titanium Pipes >>>
Поставщик: Foshan,City,Nan,Tai,Metal,Co.,Ltd.

Цена:2 315,23 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	2940.52 $*	2999.45 $*
Jul-19-2025	2384.12 $*	2432.63 $*
Jun-19-2025	2894.56 $*	2952.99 $*
May-19-2025	2871.35 $*	2928.23 $*
Apr-19-2025	2292.3 $*	2338.51 $*
Mar-19-2025	2824.26 $*	2880.49 $*
Feb-19-2025	2801.88 $*	2857.1 $*
Jan-19-2025	2778.7 $*	2834.53 $*

Характеристики

China First Convoluted Tube Manufacturer Heat Exchanger Tubing

Why Titanium?

1.Superior physical property:

Low density,light weight, low coefficient of thermal expansion,impermeability,high electrical resistance,low

thermal conductivity

2.Good mechanical property:

High thermal resistance,low metallie fatigue,high strength,cold,good weldability,high temperature

3.Excellent chemical property:

Corrosion resistance,creep resistance,anti-oxidation,non-toxicity,anti-bacteria

If you require other metal ,like stainless steel,we still can make it for you.

Specification:

Material:Titanium /Stainless Steel (304,316,316L)

Standard: Standard: ASTM B338/ASME SB338 ASTM B861/ASME SB861

Diameter:9.52mm-60mm
Length: 15m or less

Thickness : 0.5mm---3.0mm

Temperature range:-50°C ~200°C

Work pressure:3.5 Mpa

Heating capacity 3kw~500kw or more

Can be the 1.3-2.6 times of general smooth tube

Applicaction:

Heat exchangers,condensers ,boiler cooler,pressure vessel,power

All kinds of corrosive fluid transmission pipeline system

Titanium bicycle tube, automobile exhaust pipe

Off shore aquaculture

Foodstuff,medical equipment ,water heater ,juice heater etc.

Selling point of our tubing

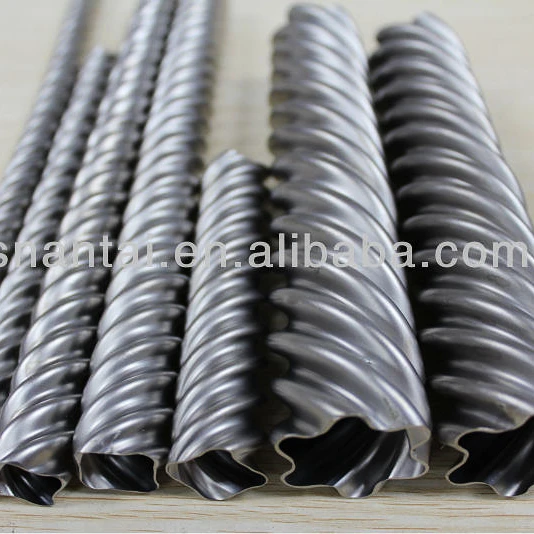

The titanium corrugated tubing with double-sided ring spiral-shaped grooves of the corrugated heat transfer tube shown in Figure. The coefficient for overall heat transfer has been remarkably improved because of the turbulent flow effect on the inner surface and outer surface of the tube caused by the corrugation, in comparison with that for smooth tubes.

The tube construction provides for excellent mechanical stability. The water-flow path is turbulent. This provides a scrubbing action that maintains cleaner surfaces. The construction method shown also has very high system pressure resistance.
