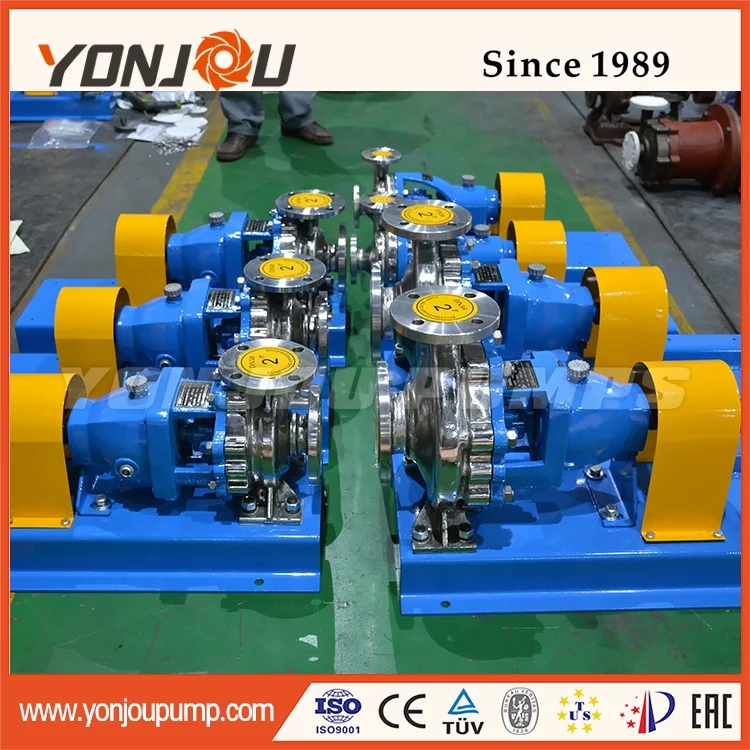

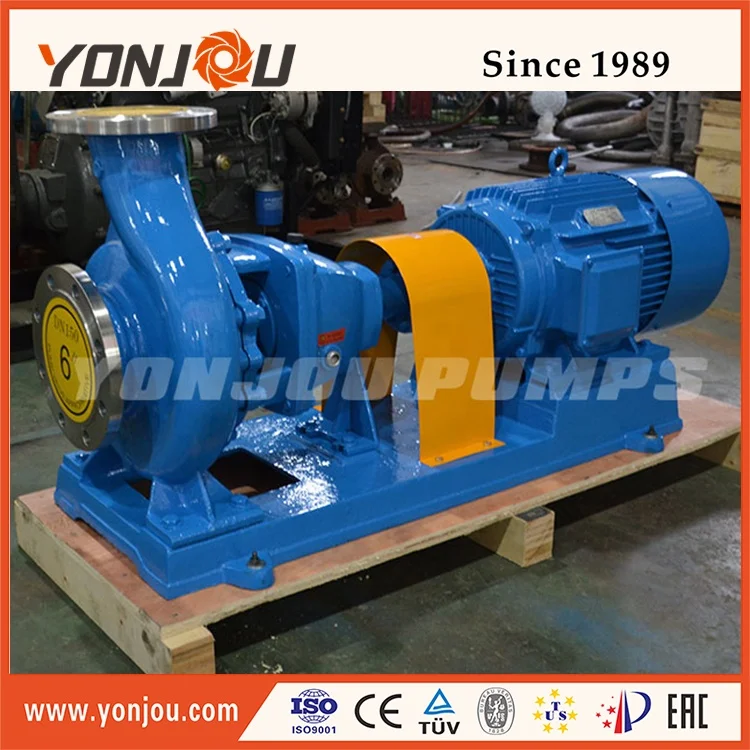

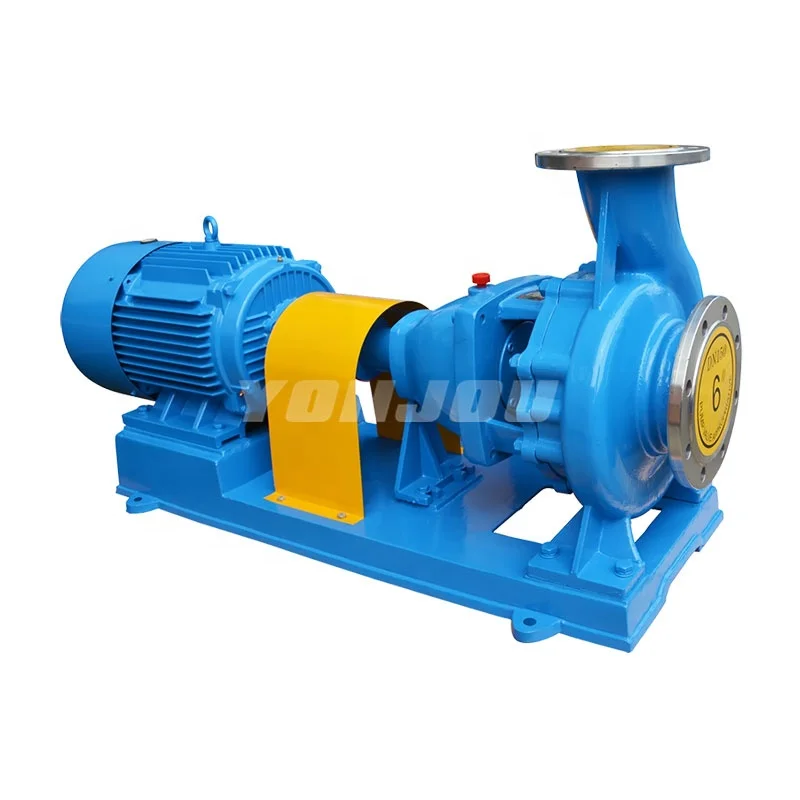

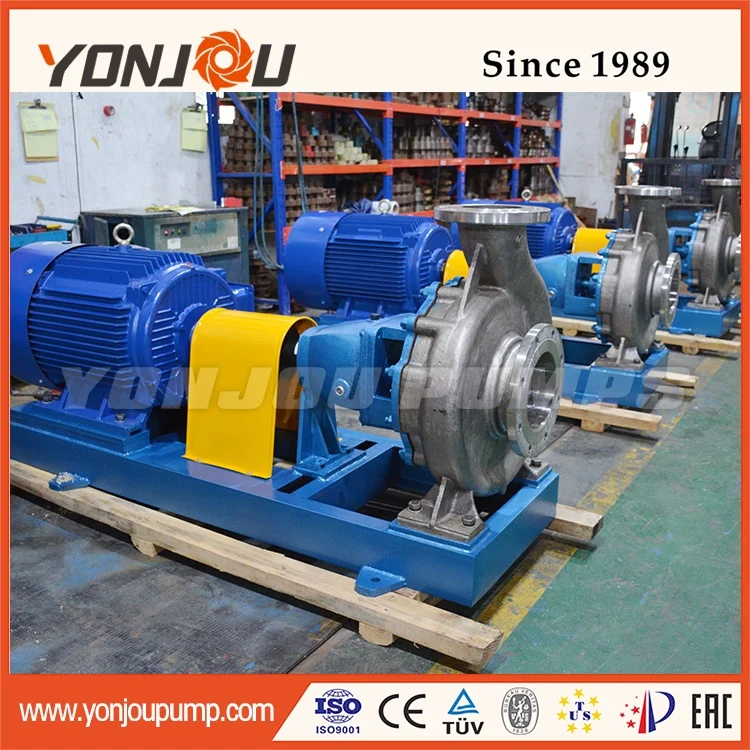

IH single stage single suction centrifugal stainless steel chemical Pump

• Be used for industrial and urban water supplying, drainaging, also for agricultural irrigation.


• IS Pump can delivery water or liquid that physical and chemical similar to water.


• IH Pump can delivery chemical, -20~105 ℃ corrosive liquid, or Sanitary request liquid Transfer


• Liquid temperature shall not higher than 80 ℃~120℃, suction pressure not more than 0.3 Bar.


• Normally shaft seal is packing seal, mechanical seals is available for choice.

IR Single stage end suction HOT WATER centrifugal pump

• Be used in metallurgy, textile, chemical, printing & dyeing and other industrial field


• Can delivery liquid with solid impurities that volume contain no more than 0.1% and particle size not bigger than 0.2mm.


• Liquid temperature shall not higher than 150℃, suction pressure not more than 0.4Mpa.


• Shaft seal is water cooling mechanical seal.





Product details:

Working Principle:	Standard Centrifugal, End suction,Single stage singe suction
Main applications:	Water , Chemical liquid transfer
Driver:	Electric motor, diesel engine
Power Specs:	220V,240V,380V,400V,415V,440V  50hz/60hz
Max.permissible fluid temperature:	80°C  /  120℃(IR hot water type)
Type of connection:	Flange  ANSI,GB,DIN,JB
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron/Cast iron /Stainless steel/ Duplex SS
Shaft seal type:	Packing seal, Mechanical seal (single or double face,flushing API682 PLAN11,etc )
Maximum drive rating:	110KW(150HP)
Maximum caliber:	200mm(8inch)
Maximum discharge-side pressure:	1.25MPa(12.5bar)
Maximum head:	125m(410ft)
Flow rate range:	6.3-400m3/h(27.7-1760US.GPM)







Performance data:

Model	Capacity m3/h	Head m	Power kW	Effeciency %
50-32-125	12.5	20	2.2	60
50-32-125	6.3	5	0.55	54
50-32-160	12.5	32	3	54
50-32-160	6.3	8	0.55	48
50-32-200	12.5	50	5.5	48
50-32-200	6.3	12.5	0.75	42
50-32-250	12.5	80	11	38
50-32-250	6.3	20	1.5	32
65-50-125	25	20	3	69
65-50-125	12.5	50	0.55	64
65-50-160	25	32	0.5	65
65-50-160	12.5	5	0.75	60
65-40-200	25	50	7.5	60
65-40-200	12.5	12.5	1.1	55
65-40-250	25	80	15	50
65-40-250	12.5	20	2.2	46
80-65-125	50	20	5.5	75
80-65-125	25	5	0.75	71
80-65-160	50	32	7.5	73
80-65-160	25	8	1.5	69
8050-200	50	50	15	69
80-50-200	25	12.5	2.2	65
80-50-250	50	80	22	63
80-50-250	25	20	3	60
80-50-315	50	125	37	54
80-50-315	25	32	5.5	52
100-80-125	100	20	11	78
100-80-125	50	5	1.5	75
100-80-160	100	32	15	78
100-80-160	50	8	2.2	75
100-65-200	100	50	22	76
100-65-200	50	12.5	4	73
100-65-250	100	80	37	72
100-65-250	50	20	5.5	69
100-65-315	100	125	75	66
100-65-315	50	32	11	63
125-100-200	200	50	45	81
125-100-200	100	12.5	7.5	76
125-100-250	200	80	75	78
125-100-250	100	20	11	76
125-100-315	100	32	15	73
125-100-400	100	50	30	65
150-125-250	200	20	18.5	81
150-125-315	200	32	30	79
