crimping range: 1/4" to 2" 4SP HYT51F press for crimping high pressure hoses







Product Show









Dies of our portable hydraulic hose crimping machine



put the dies on the side easy to get







the unique design make the dies more easily to remove







The motor head of our portable hydraulic hose crimping machine

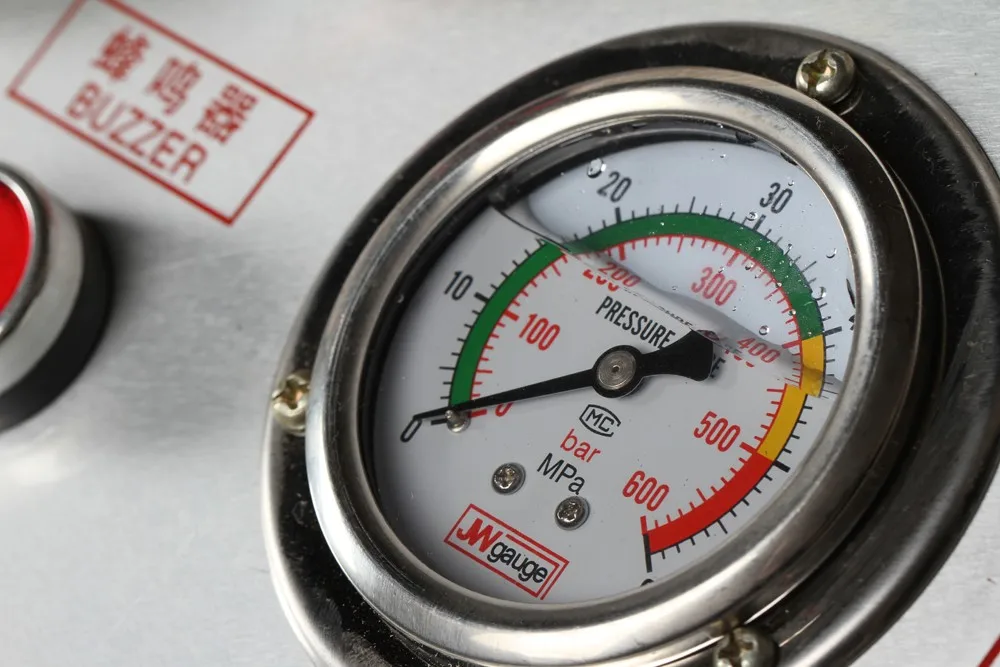

When expanded the size that you have formulated, the buzzer press will send a reminder sound

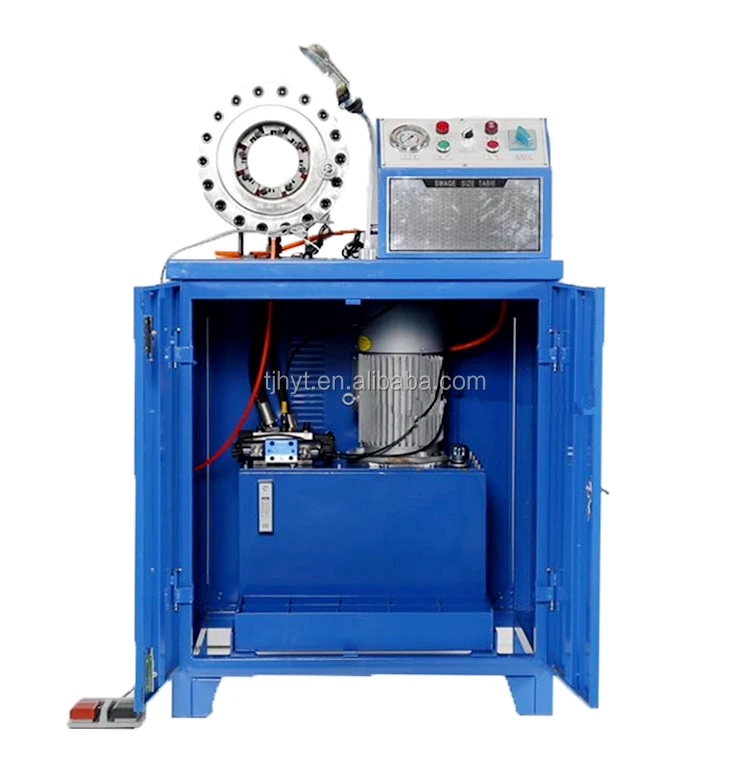

Motor of our portable hydraulic hose crimping machine













Foot pedals control forward and backward







Packing of our portable hydraulic hose crimping machine









                               CE Certificate





Brief Introduction of our portable hydraulic hose crimping machine



This portable hydraulic hose crimping machine is suitable for withhold the types of machinery and high and low pressure tubing pipe, water pipe, cable connectors, automotive air conditioning pipes, automotive power steering pipe, oil pipe, gasoline for the pipeline and construction accessories, household water heater tube. The portable hydraulic hose crimping machine widely used in vehicles, engineering machinery, hydraulic machinery and welding and cutting equipment and other industries.





Parameters of this portable hydraulic hose crimping machine



Product Name	HYT-51F portable hydraulic hose crimping machine
Crimping Range	6-51mm or 1/4''-2''
Dimension	L850*W450*H1300mm
Max Opening	114mm
Rated Pressure	31.5Mpa
Largest Crimping Pressure	506T
Crimping Precision	0.02mm
Weight	300kg
Motor Power	3kw
Dies	10 sets





Features of our portable hydraulic hose crimping machine

1. The unique head design make the installation and remove more easier;

2.The unique taper-structure (small front-large back) extend the life of the machine;

3.The stopper can shorten the withholding time and improve the withhold efficiency;

4.Solenoid valve used China's top 3 products.





How to Crimp the Ends on a Hydraulic Hose?

1 Insert one end of a length of hydraulic hose into the hydraulic hose fitting. Make sure it is securely in place.

2 Set the micrometer on the hose-crimping machine according to manufacturer specifications for the kind of hose and fitting you are using. Find these specifications in the hose-crimping machine's manual.

3 Place the fitting end of the hose into the crimping machine and line up the fittings mark on the machine with the top of the hose.

4 Insert the compression ring into the crimping machine.

5 Activate the hose-crimping machine. The crimping machine's press will exert pressure on the compression ring, causing the compression mechanism to press against the hydraulic hose fitting and crimp it in place.

6 Repeat this process with the remaining end of the hydraulic hose.





Precautions of our portable hydraulic hose crimping machine

1.The operator must accordance with technical rules.

2.Cut off the power when the machine is not in use.

3.The mold exchange must conduct after shutdown.

4. Die holder and die bonding surface should be kept clean, no metal shavings and other hard objects.

5.Inject the lubricating oil before start the machine.

6.Must tighten the screws before installed module.

7.The regulator must be adjusted under the predetermined pressure.

8.Don't put your hand into the internal when working.

9.When maintain electrical parts must comply with electrical safety regulations.





Matters Needing Attention of our portable hydraulic hose crimping machine

1.Motor start: pay attention to the direction of rotation of the motor and pump rotation direction or arrow direction;

2.Before the operation: check the hydraulic oil tank and oil level matching;

3.Normal operation: the first 30 minutes of running after normal use;

4.Hydraulic oil: no any regulation of oil spill valve, the hightest must not exceed the rated pressure, pressure hazard! Danger of injury;

5.System failure: system failure,don not blindly processing,in accordance with the "first easy hind difficult,after the first" sequence analysis or find professional repair personnel to solve problems.





Safety Tips of our portable hydraulic hose crimping machine

1.Read operation specifications over and over again knowing to control machinery principle last the day after tomorrow going to post;

2.Observe the operation norm strictly being on the alert paying attention to safety;

3.The periodic inspection maintenance adds enough wetting oil.





Product Payment Terms and Warranty

1. T/T , L/C , WEST UNION , ESCROW,ETC. Especially ESCROW, which has been guaranteed by ALIBABA Company. So it's safe and fast and effective to delivery the goods in time.

2. One year's guarantee from date on B/L normally. If it's quality problem, we promise to return goods or funds





After-sale Service & Promise

1. Good after-sales service ,OEM service, ODM service

2. 100% warranty and environmental

3. Compelete and detailed instruction in English

4. PVOC certificate and GOST certificate are avaliable

5. Quality has been through EUROPEAN CUSTOMS  ( CE approved)

6. Our company remember the promise to each new and old customer: we hope you buy the best product in best price,with quality and quantity guaranteed.







About our company





Tianjin HongYiTe Rubber Products Trading Co., Ltd., is a company devoted to all kinds of rubber hoses and hose crimping machine as well as fitting etc.



Main Products: Hydraulic hose, high pressure hose, suction hose, hose fittings, hose crimping machine, tube locking machine, hose cutting machine, etc.





Our company always adhere to the purpose of the"quality first, customer first, technology first and service excellence",and insist on the" first-class quality, first-class service, first-class management and first-class skill" to our customers. We listen to the valuable suggestions at anytime in anywhere and draw the nourishment of development. We are willing to send satisfaction and constantly improve products and service for the majority of users by the superior quality, preferential price and fast delivery.



We also have other types of crimping machine, and they are into a series of products. So, if you are interested into our products, pls contact me without hesitation.





PS:



We sincerely hope that we can become your cooperation partner with our rich products, swift response, and professional service. No matter the past, present, or the future, we are willing to build a friendship bridge for our beautiful tomorrow. Please be free to contact us if you are interested in our enterprise and products.





Kindly contact us freely for the latest price:





( If u have other requirements, pls keep us informed, Customized service can be offered)
