Высокое качество KW12-8 5A рычаг сварочного Терминала Мини Микро
- Категория: Micro Switches >>>
- Поставщик: Zhejiang,Lema,Electrics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.98 $* | 0.92 $* |
| Aug-19-2025 | 0.52 $* | 0.54 $* |
| Jul-19-2025 | 0.46 $* | 0.80 $* |
| Jun-19-2025 | 0.94 $* | 0.23 $* |
| May-19-2025 | 0.31 $* | 0.95 $* |
| Apr-19-2025 | 0.64 $* | 0.49 $* |
| Mar-19-2025 | 0.27 $* | 0.17 $* |
| Feb-19-2025 | 0.55 $* | 0.13 $* |
| Jan-19-2025 | 0.21 $* | 0.17 $* |
Характеристики

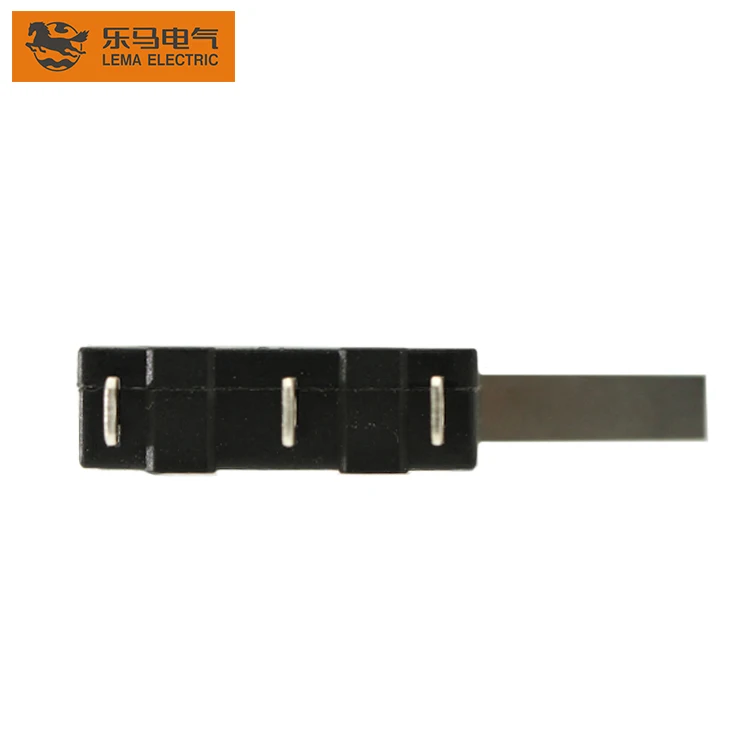

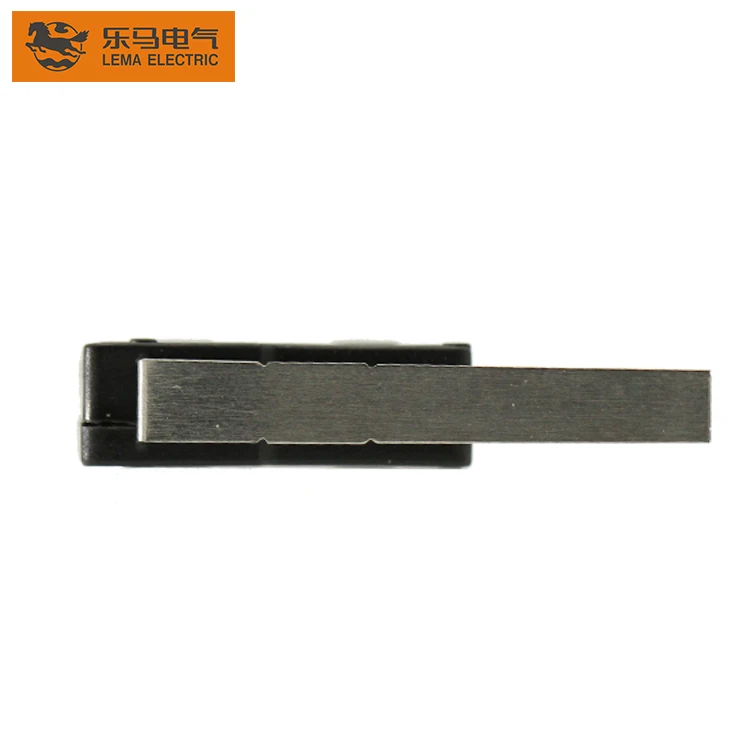

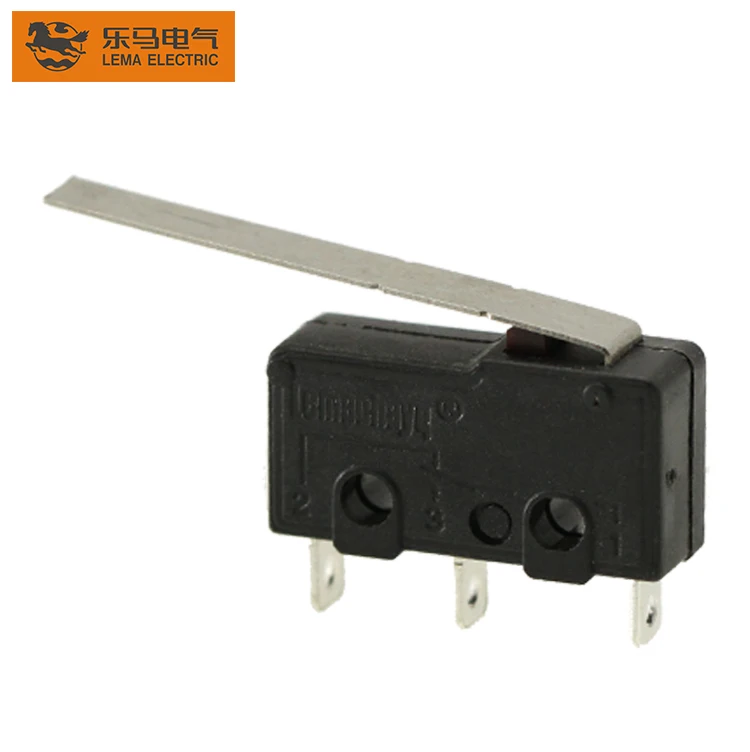

High Quality KW12-8 5A Lever Welding Terminal Mini Micro Switch
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical:60 times/min | |
| Electrical:25 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction | O.F.>0.5N:1000m/s2(Approx.100G)max. O.F.≤0.5N:400m/s2(Approx.40G)max. |
| Malfunction | O.F.>0.5N:200m/s2(Approx.20G)max. O.F.≤0.5N:100m/s2(Approx.10G)max. | |
| Operating life | Mechanical life | 1,000,000 operations min. |
| Electrical life | 50,000 operations min. | |
| Weight | Approx.1.6g (no lever) | |
