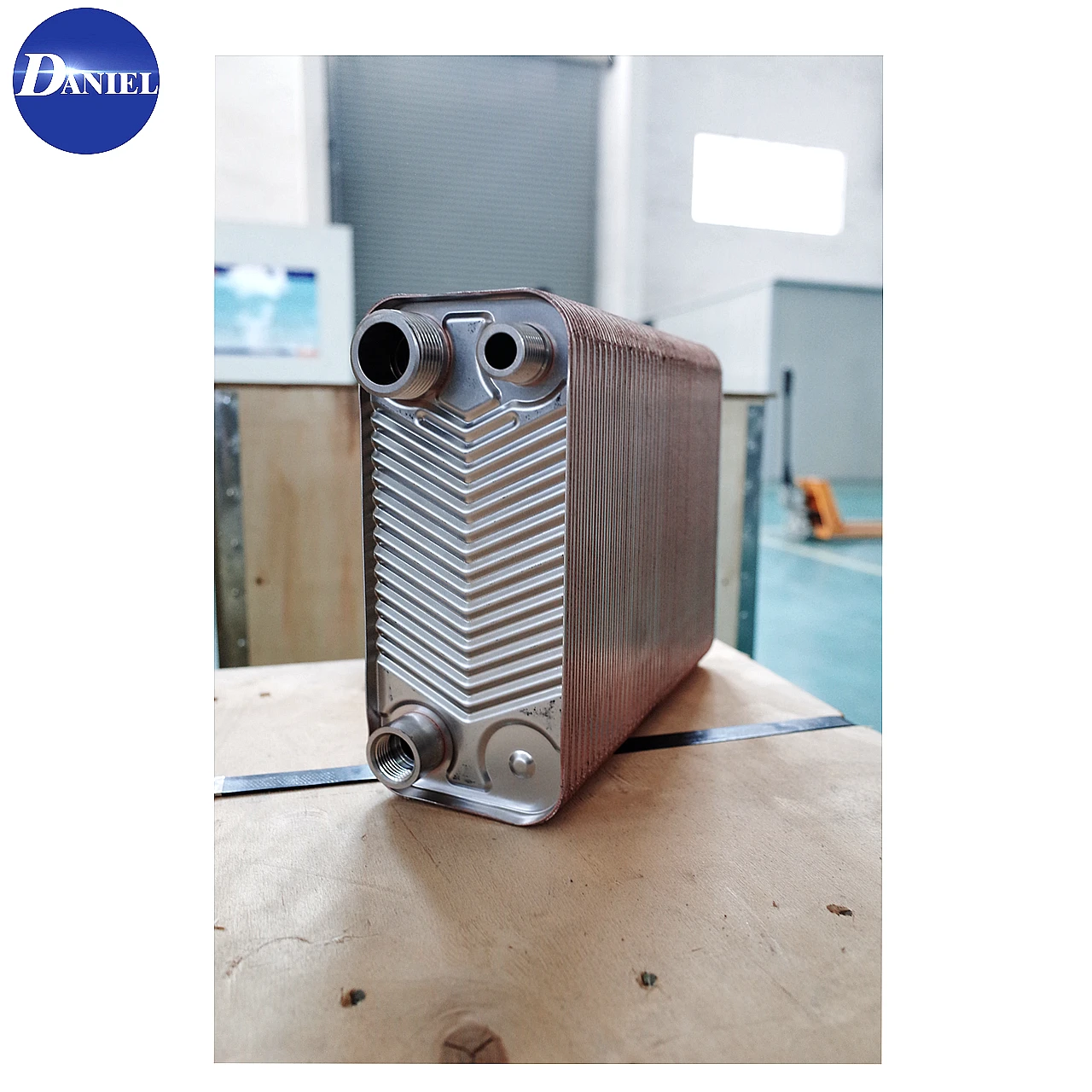

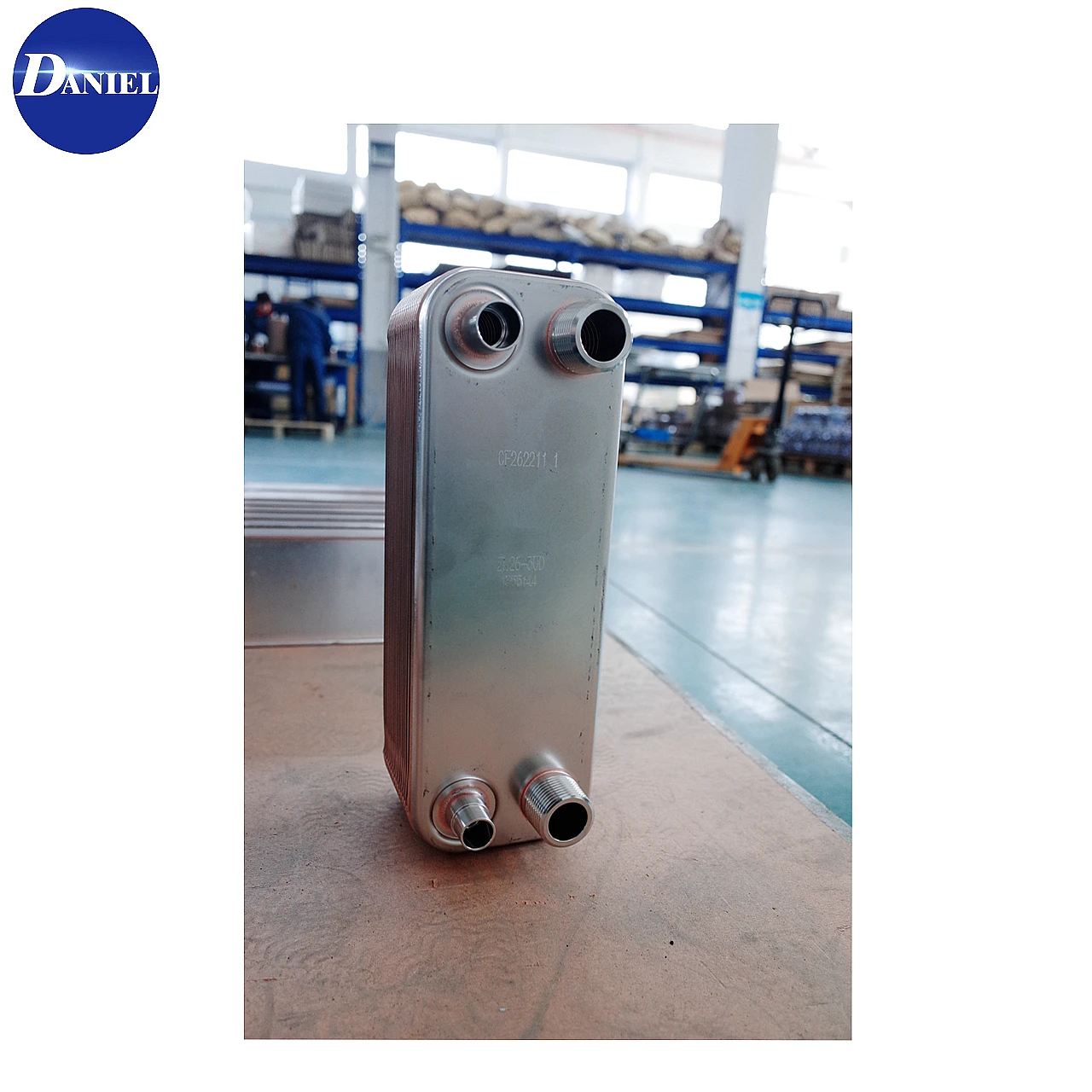

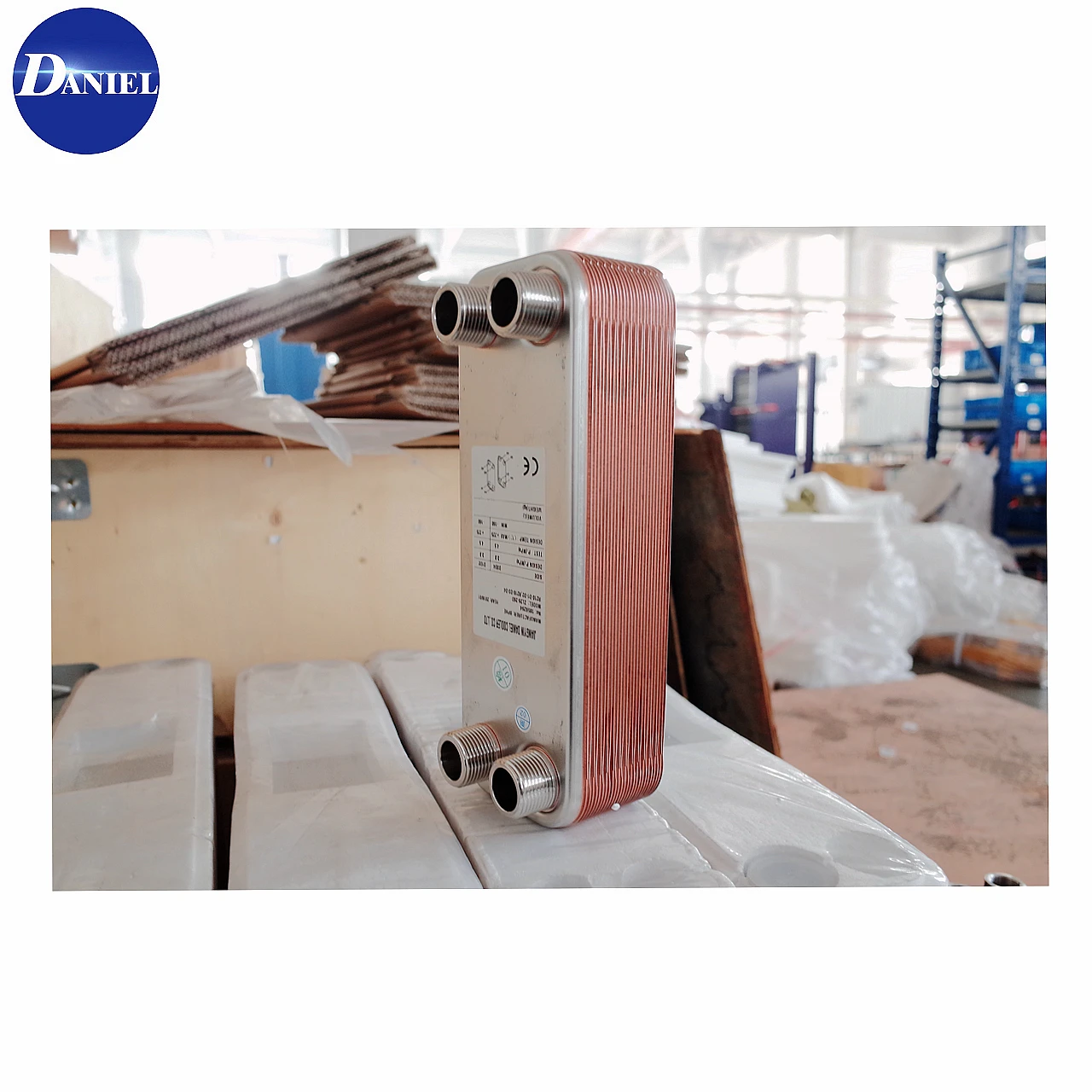

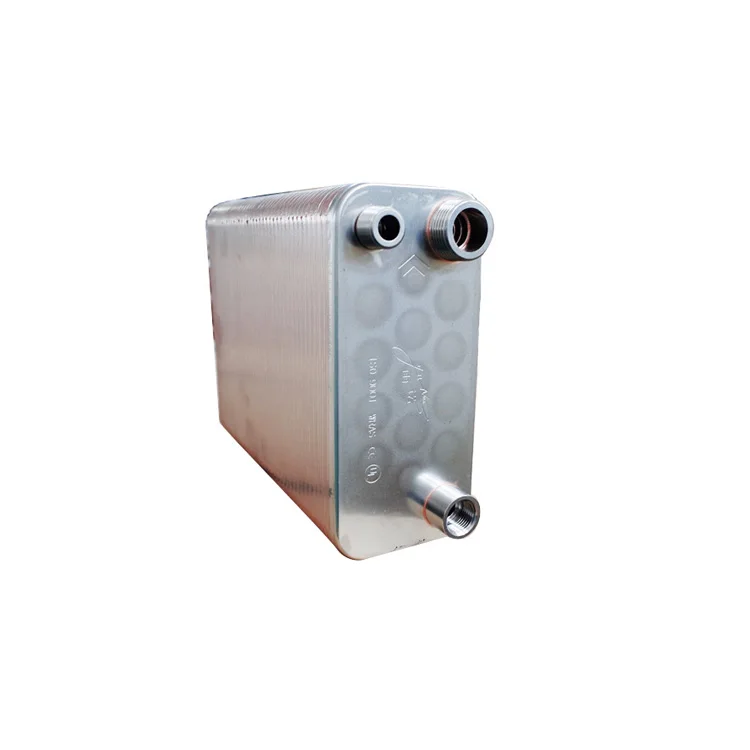

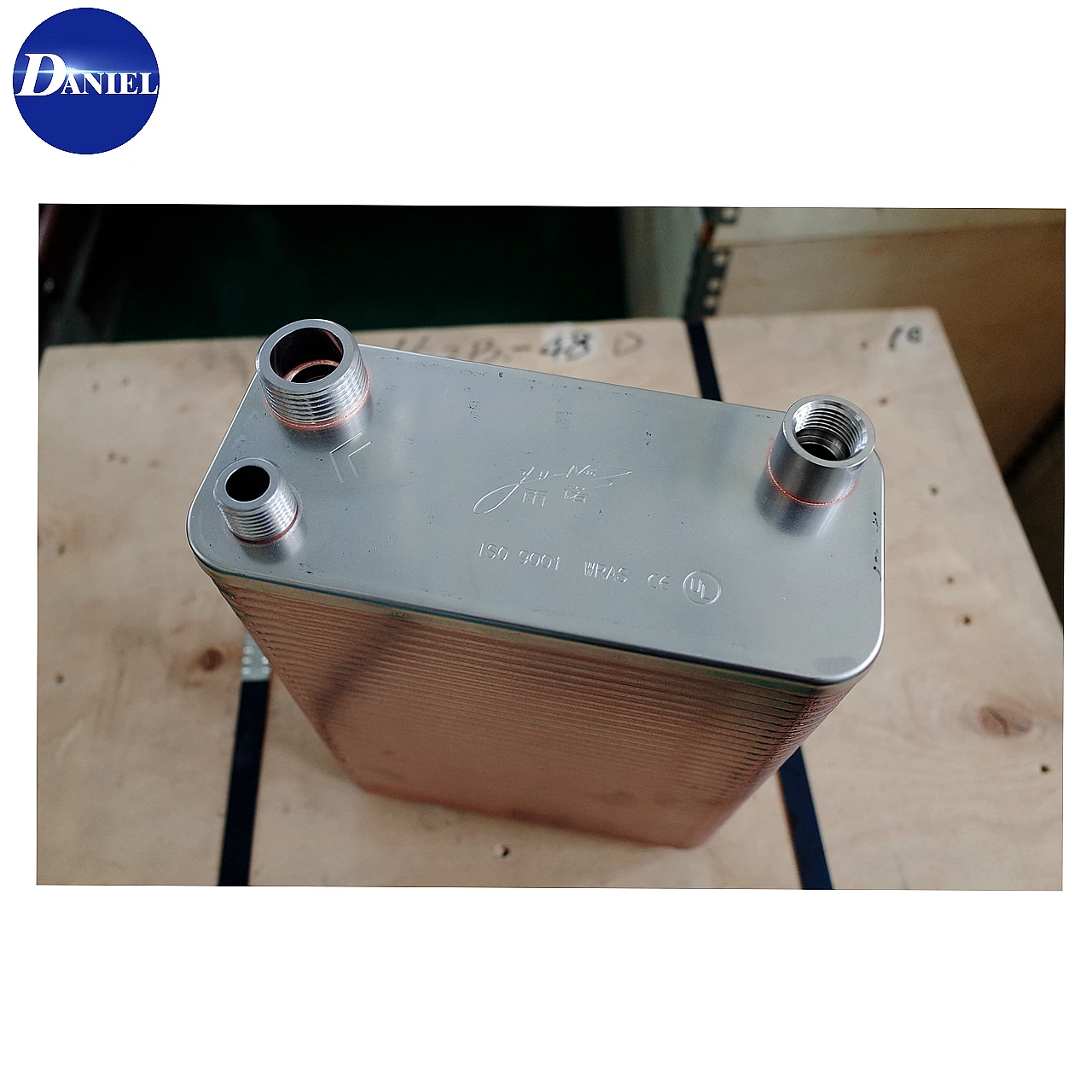

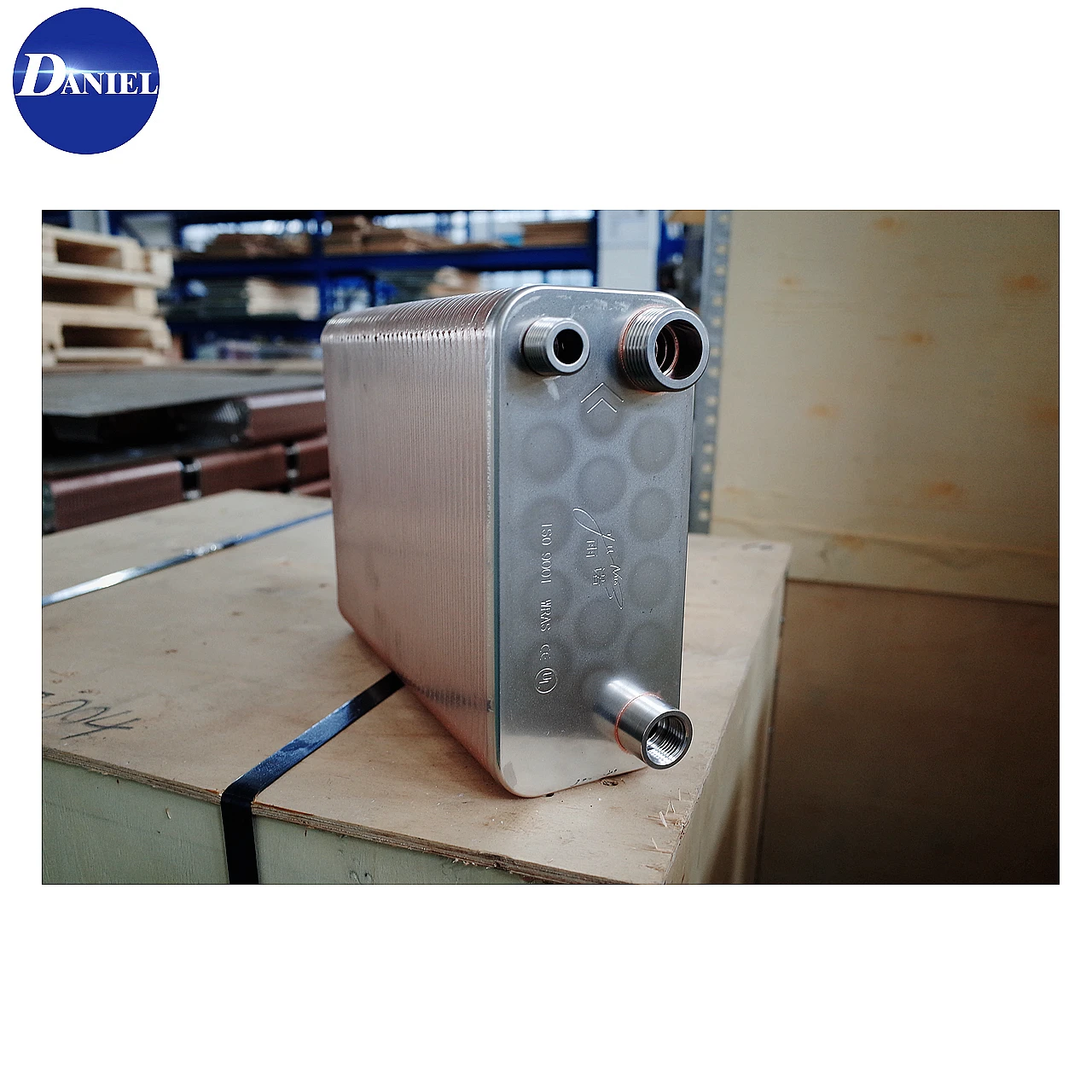

Паяный пластинчатый теплообменник ZL

Категория: Теплообменник >>>
Поставщик: Jiangyin,Daniel,Cooler,Co.,Ltd.

Цена:3 000,00 $ - 5 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	3570.2 $*	3749.48 $*
Aug-19-2025	3540.75 $*	3717.60 $*
Jul-19-2025	2970.47 $*	3119.9 $*
Jun-19-2025	3480.83 $*	3654.45 $*
May-19-2025	3030.32 $*	3182.10 $*
Apr-19-2025	3420.40 $*	3591.35 $*
Mar-19-2025	3390.21 $*	3560.87 $*
Feb-19-2025	3360.52 $*	3528.31 $*
Jan-19-2025	3330.28 $*	3497.96 $*

Характеристики

Product Description

Plate heat exchanger is composed of a set of corrugated metal plate, plate with four Angle hole, two liquids through for heat transfer. Metal plate is installed on one side which has a fixed plate and activities within the framework of pressure plate, and clamping bolt clamping. Mounted on the plate of sealing gasket, seal fluid channel, alternately and guide the fluid flow to their channels, form the heat exchange. The flow of fluid, physical properties, pressure drop and temperature difference determines the number of sheets and size.

For plates:

*Our production capacity covers more than 300 specification and size plates, the plates function equals to the famous alfa laval, sondex etc brand PHE manufactures.

*Plate Port diameter 29mm to Port diameter 328mm, plate width from 125mm to 995mm, height from 429mm to 2245mm,thickness from 0.5-1.0mm.

Plate material	Applicable fluids
Stainless steel(SU304.316 ect)	Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd	Sea water, salty water, salt compounds
20Cr, 18Ni,SMO	Dilute sulfuric acid, water solution of salt matter, Inorganic solution
Nickel	High temperature and high concentration of caustic soda
Hastelloy	Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid

Gasket :

We produce and supply many kinds of gasket for plate heat exchanger, certified by ISO9001.

Gasket Material	Applicable Temperature	Applicable Fluids
NBR	-15~+135	Water seawater, Mineral oil, Saline
EPDM	-25~+180	Hot water, vapor, acid, alkali
F26	-55~+230	Acid, alkali, fluids
FTP	0~+160	concentrated acid, alkali, High temperature oil, vapor

Rubber Type	Fluorubber	EPDM	NBR
Tensile Strength MPa	≥13	≥16	≥17
Elongation %	≥120	≥170	≥200
Shore A Hardness	80±5	80±5	75±3
Tear Strength KN/M	≤30	≤30	≤30
Compressive Deformation	24h×23≤2.5	24h×23≤5	24h×23≤2.5
	24h×180≤15	24h×150≤15	24h×125≤15
Ozone Resistance	Excellent	Excellent	good
