Автоматический стол для резки


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.99 $* 0.54 $*
Aug-15-2025 0.51 $* 0.14 $*
Jul-15-2025 0.84 $* 0.6 $*
Jun-15-2025 0.95 $* 0.58 $*
May-15-2025 0.10 $* 0.42 $*
Apr-15-2025 0.0 $* 0.33 $*
Mar-15-2025 0.3 $* 0.19 $*
Feb-15-2025 0.4 $* 0.92 $*
Jan-15-2025 0.60 $* 0.58 $*

Характеристики

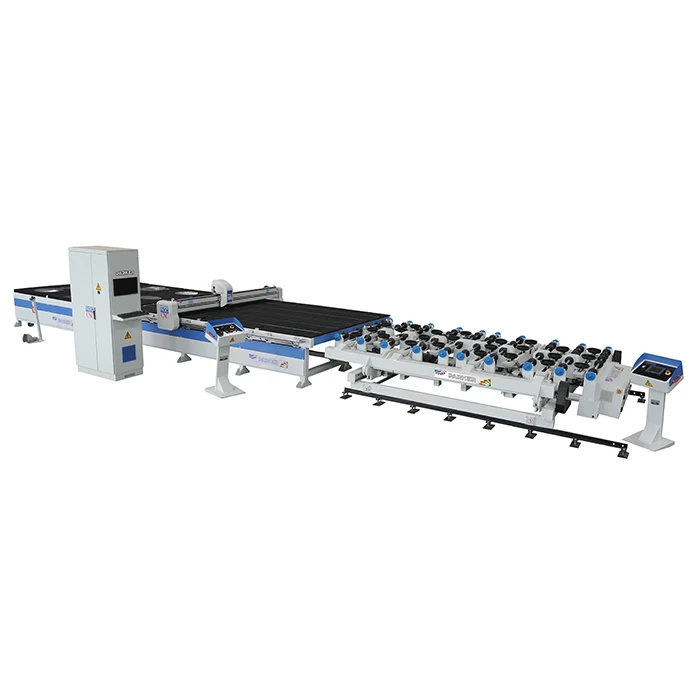

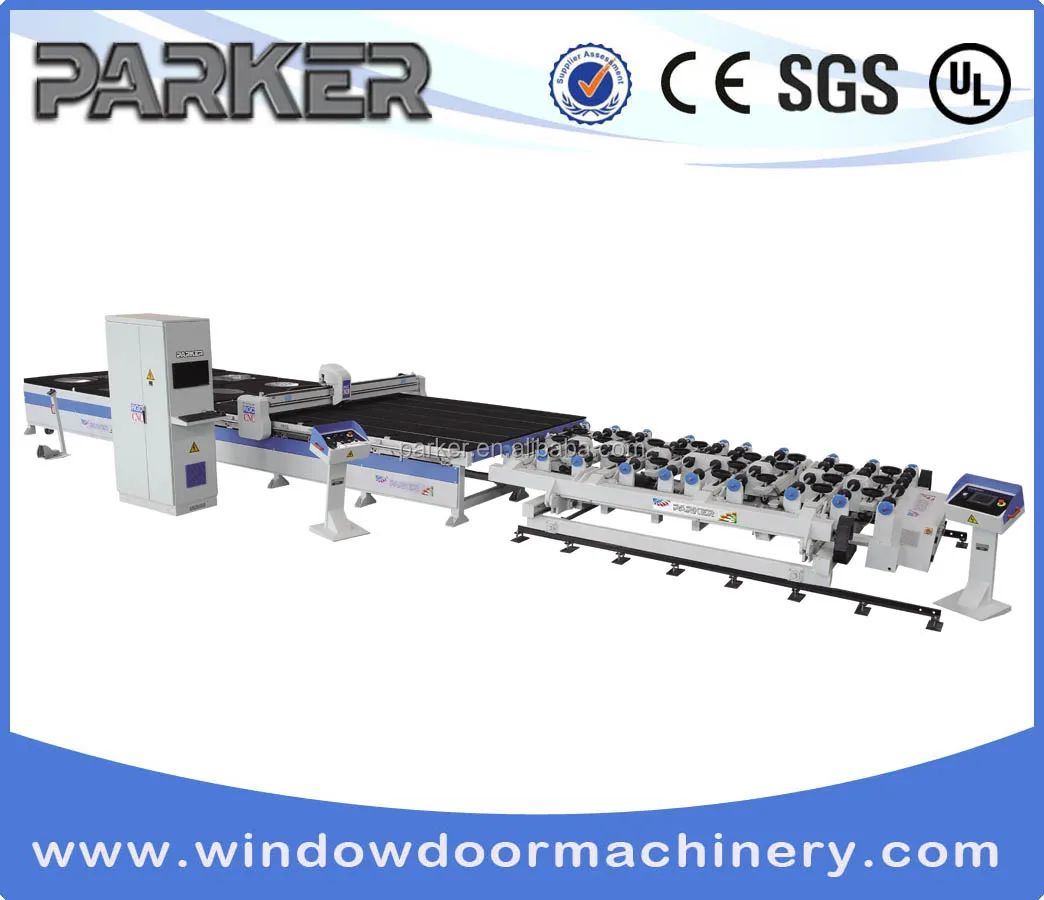

automatic Glass cutting table










FAQ







Model: RGC-CNC



Features:



1.The machine is designed and developed with Italian engineer. Fully automatic with CNCControl.



2.The software adopted the most advanced Italian cutting and optimizing software.



3.Widely used for architectural glass, furniture glass, electric glass, kitchen glass, autoglass,hollow glass, solar glass and so on.



4.It can cut 300 different shapes. And make your own design by CAD



5.Electronic spare parts use Schneider imported from France.



6.Self-diagnose system can find the bugs easily.



7.Can calculate the production capacity all by itself.









Product Description







Glass Loading Machine Parameter:



          Voltage:

380V/220V 50HZ

          Power:

9KW

          Air pressure:

0.5-0.8Mpa

          Vacuum pressure:

-70~90Kpa

          Loading Sheet size

Min. size:1500*1500mm,Max. size:2440*3660mm

          Loading thickness:

2~19mm

          The fastest loading cycle:

30-60s

          Transfer speed:

0~40m/min

          Max. suction depth:

750mm

          Max. loading weight:

900Kg

          Unilateral upper arm volume:

Four arms

          The number of single arm suckers:

Three

          Turning arm:

Double

          Loading position:

Multi-position

          X axis normal moving speed:

25m/min

          Y axis normal moving speed:

5m/min

          Table Height:

900±50mm



CNC Glass Cutting Machine Parameter:



Voltage:

380V 50HZ

Power:

15-20KW

Air pressure:

0.5-0.8Mpa

Cutting size Max.:

3660x2500cm

Cutting speed:

0-150m/min

Glass thickness:

2-25mm

Cutting accuracy

±0.20mm

Blade fram moving speed:

160m/min

Blade fram location error:

±0.15mm

Carrying glass size:

Min. 1500mm x 1500mm Max. 2440mm x 3660mm

Carrying glass thickness:

2-19mm

Carrying Max. weight:

900kg

Carrying arms:

2 x 3 single arms Each arm has 3 sucking disc.

Overall dimension:

14800 mm x 3900mm x900mm



YR-3725 Flotation breaking table:
















Technique parameter:



 Insulating glass workshop.JPG



Packaging & Shipping

 CE1CE27642



Our Services



1.When we send machine to you ,we would send quick-wear part together to ensure you can use the machine for long time.

2.We provide "7/24" style after service, one week 7 days, one day 24 hours, we will reply your emails within 24 hours, commonly we will reply customer's email within 1 hour,small problem we will sovle on email, large problem we send engineer to your factory.

3.We provide online service all over the world, if customer has IPAD (apple brand), he just takes video to us , and in China side ,we can check all problems for him and solve any problems quickly and easily.



One year guarantee for whole machine

24 hours technical support by e-mail

Calling or door-to-door service

Uses-friendly English software,user manual and detailed Videos/CD



Company Information



We PARKER is certificated by CE,SGS,ISO9001:2008,ISO14000,ISO18000.

Parker Machinery Co., LTD has developed an assembly line for Win-door, Curtain wall and Insulating glass press equipments. The operation of high precision, advancement and specialty make the enterprise well-known. She has become the leader and are working hard at setting a respectable brand in this field.

Constant innovating, improve industry’s level, lts high lever window& door equipments are toward the world, and developing with the world. It is the direction and responsibility of Parker. Parker progress rapidly, become well-known and outstanding at the national fairs of door-window equipment, owing to  follow “cater to customer’s heart coexist with profit, integrity coexist with pure quality” principle always.

“Trust friend, trust brand” Parker Machinery Co., Ltd. Sets a good example in realizing globalization strategy.

Using European standards, and taking in the view and pithy of the design;

Purchasing main parts international;

Sold to North America, East Europe, Middle East, Southeast Asia and so on and taking the lead in setting branch company abroad;

Carrying out the service system “Handover key project” uniquely in this field;

Combining the manufacture with the development of designing & management software;

Owing to perfect network sales and service systems in China.

Let’s share science and technology of the world.
