Плазменный датчик высоты горелки THC для машины козловой
- Категория: Other Cutting & Forming Tools >>>
- Поставщик: Wuxi,Longteng,Welding,And,Cutting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.78 $* | 0.74 $* |
| Aug-19-2025 | 0.0 $* | 0.48 $* |
| Jul-19-2025 | 0.70 $* | 0.71 $* |
| Jun-19-2025 | 0.25 $* | 0.59 $* |
| May-19-2025 | 0.71 $* | 0.66 $* |
| Apr-19-2025 | 0.57 $* | 0.83 $* |
| Mar-19-2025 | 0.99 $* | 0.29 $* |
| Feb-19-2025 | 0.61 $* | 0.34 $* |
| Jan-19-2025 | 0.67 $* | 0.7 $* |
Характеристики

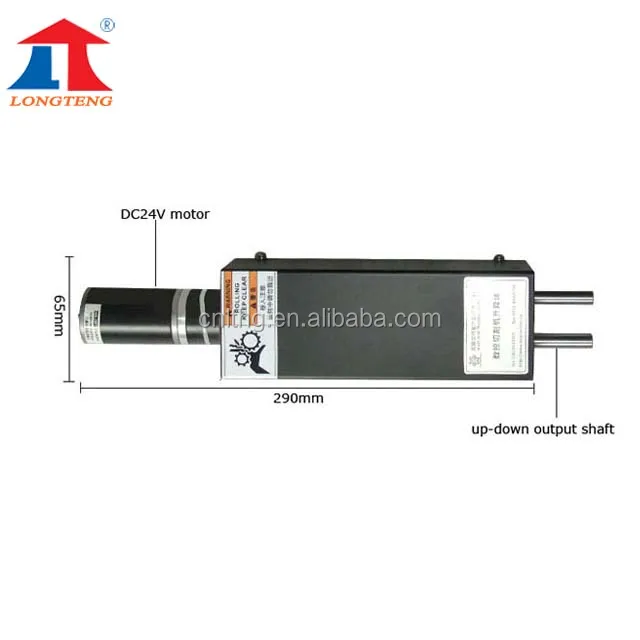

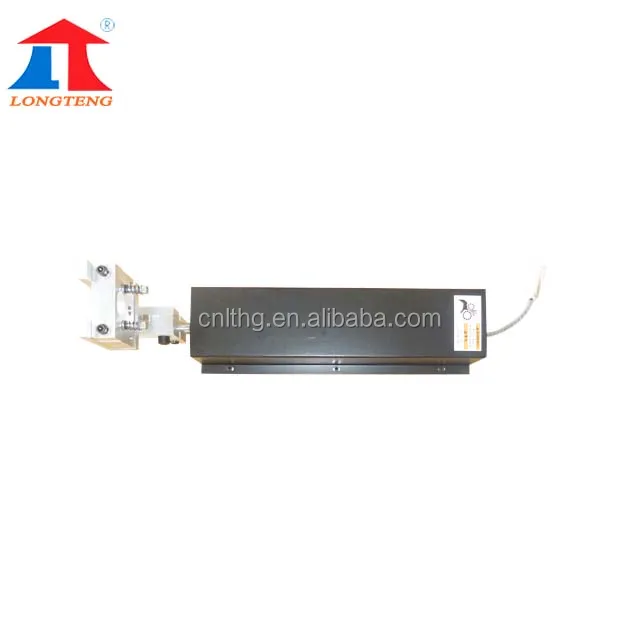

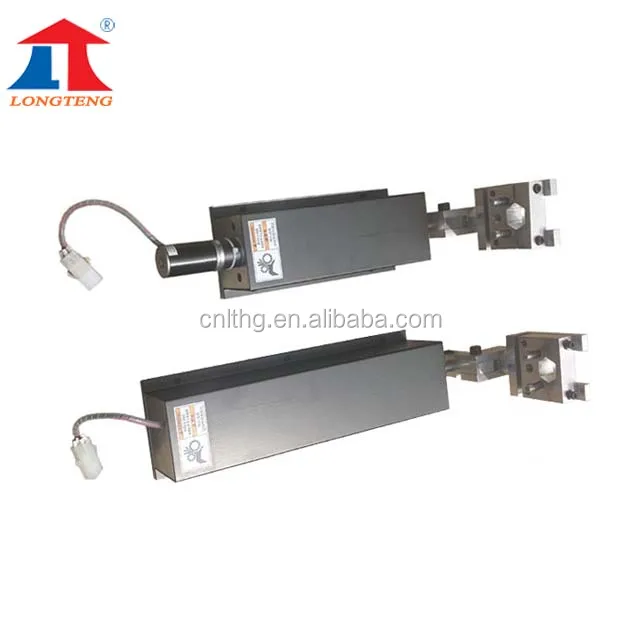

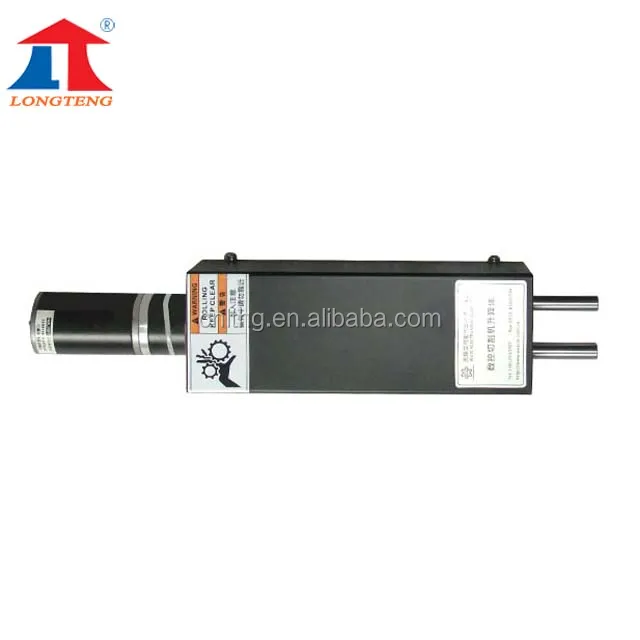

Plasma THC Torch Height Sensor For Gantry Cutting Machine
1)Quick Detail:
1. Lifter for torch height controller
2. Used for cutting torch
3. Flame and plasma cutting machine use
2) Description:
1>Structural Features
Different ways of motion can be customized as one needs.
It possessed an aluminum integrated structure with compact- size,low mass but high intensity.
It adopts high precision liner bearing system which makes the operation more accurately.
It is easy to install with reliable performance.
3) Applications:

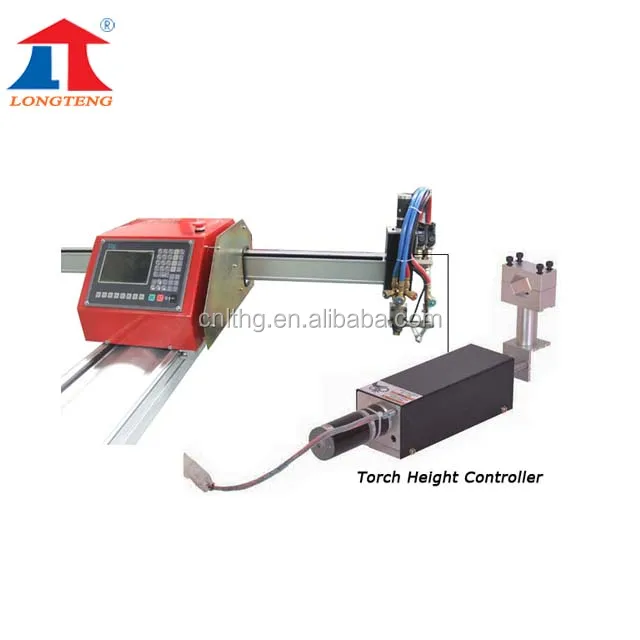

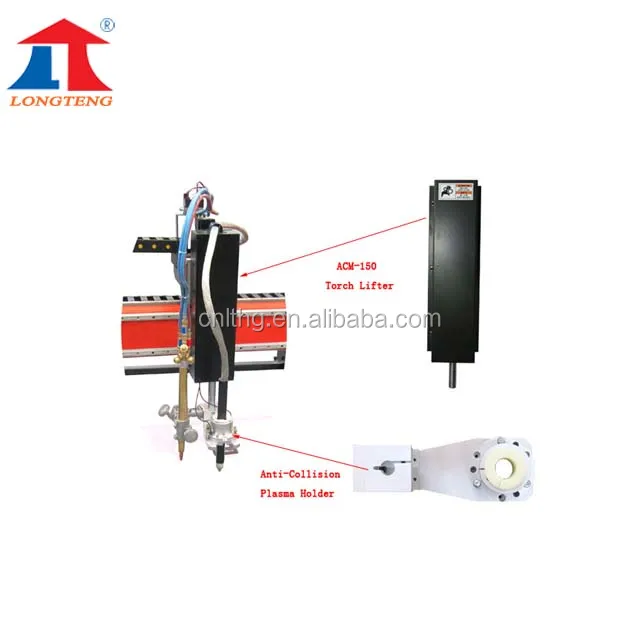

Applicable to CNC flame cutting machine and plasma cutting machine.
Electric lifter makes it possible for a rotating motor to run linearly back and forth by means of screw ans screw pair.A electric lifter equipped with corresponding electrical device can achieve the positioning control of the linear as well as the limit control.
4) Specifications:
Model No. | Working Voltage | Motor | Working Temperature | Lifting Speed | Lift Range | Self Weight | Maximum lifting Weight |
100 | DC24V 0.9A | 11W | -25°C~60°C | 1200mm/min | Max100mm | 1.9kg | 8.5kg |
150 | DC24V 1.5A | 15W | -25°C~60°C | 1200mm/min | Max150mm | 3.5kg | 14..8kg |
200 | DC24V 2.2A | 30W | -25°C~60°C | 1800mm/min | Max200mm | 11kg | 20kg |
