PRODUCT DESCRIPTION



As copper-bonded ground rods supplier, Bailijia offer the most economical & popular copper-bonded ground rods with low price .which is made of low carbon steel core bonded 99.9% pure electrolytic copper.

The copper-bonded ground rods have characters of anti-corrosion and ductility, which is superior than common copper clad steel rod and easy to install deeply.









PRODUCT PARAMETERS



Material	Copper Clad Steel
Copper Thickness	≥0.254mm
Copper Purity	99.9%
Tensile strength	≥580N/mm²
Straightness error	≤1mm/m
Service life	≥30years
Diameter	according to customer's requirement
Function	Used in grounding and lightning system

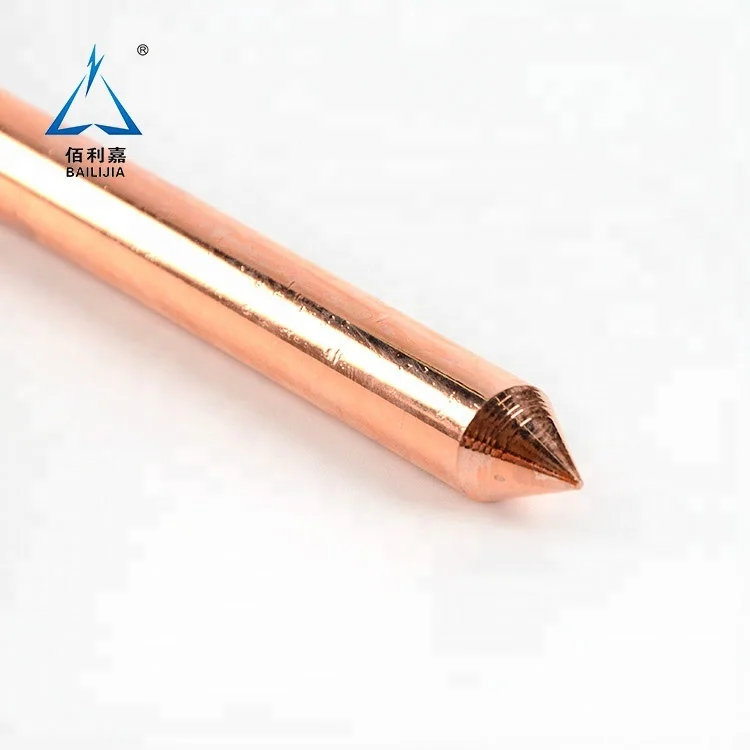

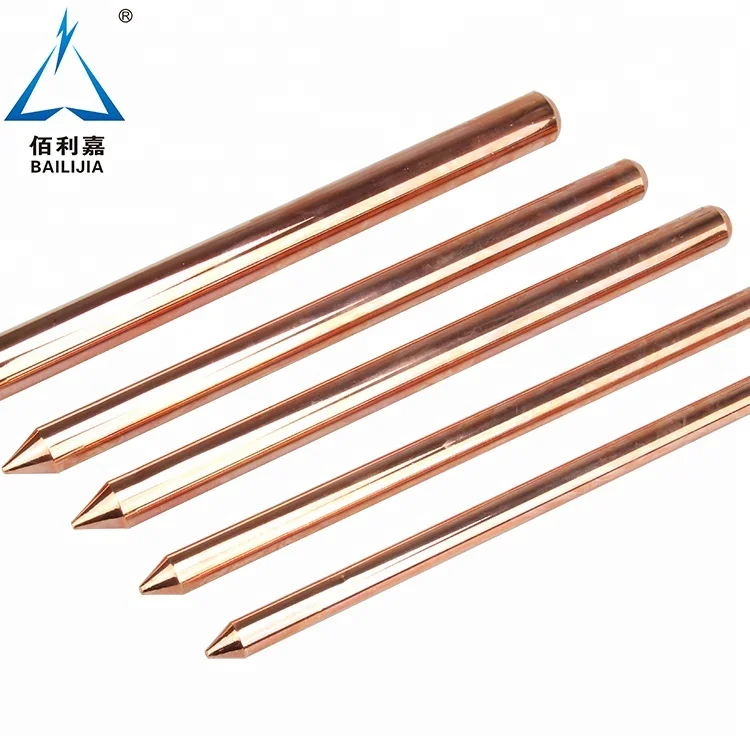

Type	Threaded or flat or pointed
Accessories	Coupling,Driving head ,Drill
Available service mode	OEM,ODM
Certificate	ISO9001:2015,CE,SGS



PRODUCT SIZE

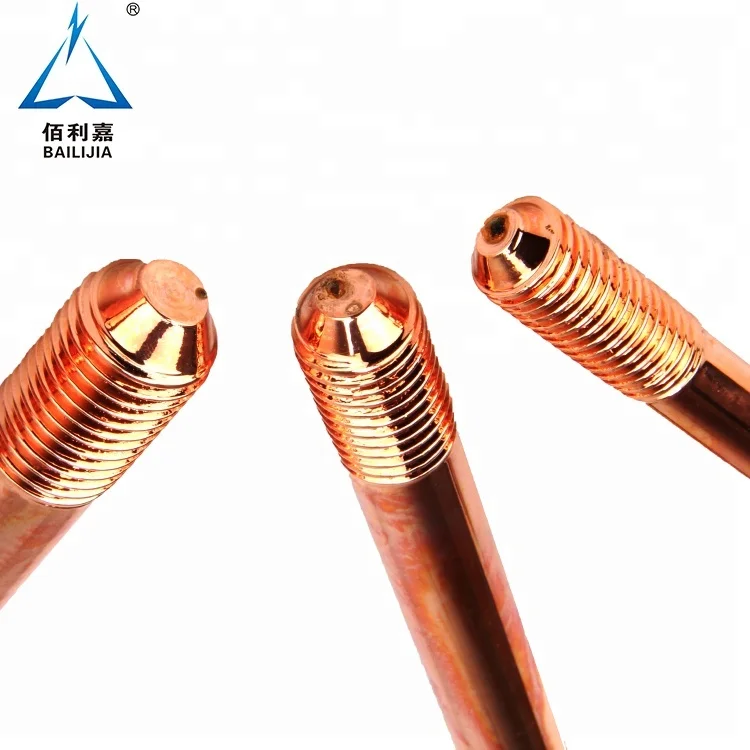

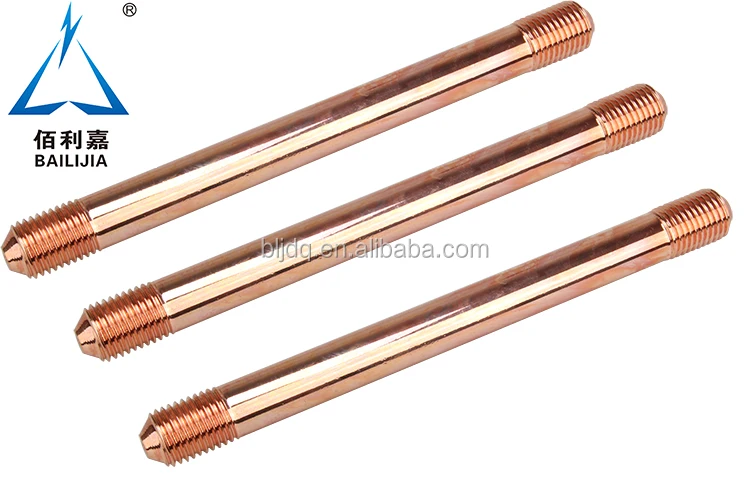

Copper-Bonded Ground Rods, Sectional

Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.





Coupling

Product specifications	Rod diameter (mm)	Screw type (inch)	Material	Weight (kg)
8067101	12.7	9/16	brass
8067103	14.2	5/8	brass	0.1
8067105	16	M18	brass	0.111
8067107	17.2	3/4	brass	0.145
8067109	18	M20	brass	0.147
8067111	20	M22	brass	0.15

Coupling used the high strength copper alloy, can protect the ground rod thread into the underground without damage and slow down the corrosion. Used for connecting rod and rod, rod and driving head, can according to need any increase the length of the rod. There are two kinds connection of threaded and unthreaded.



Driving Head:

Product specfications	Rod diameter (mm)	Screw type (inch)	Material	Weight
8067201	12.7	9/16	steel	0.071
8067203	14.2	5/8	steel	0.08
8067205	16	M18	steel	0.13
8067207	17.2	3/4	steel	0.121
8067209	18	M20	steel	0.127
8067211	20	M22	steel	0.219



Driving head used for ground rod play deep blow. Bailijia driving head used high strength alloy steel, a driving head can be recycled many times.



Drill

Product specfications	Rod diameter (mm)	Screw type (inch)	Material	Weight
8067301	12.7	9/16	steel	0.05
8067303	14.2	5/8	steel	0.059
8067305	16	M18	steel	0.065
8067307	17.2	3/4	steel	0.068
8067309	18	M20	steel	0.075
8067311	20	M22	steel	0.099



Drill used for ground rod bottom drill deep. Bailijia drill used the high strength alloy, inside thread and thread of ground rod stick together, can effectively protect the rod in a deep hurt.

PRODUCT APPLICATION



Copper-bonded ground rods is used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station , high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.



APPLICATION METHOD



The installation of copper coated carbon electrode is very flexible ,both hammer and electric pick are ok .In the bad soil condition ,please drill and then install .

1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;

2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:

1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance;

2).Fill bentonite and water after installing the rods to reduce electric resistance.



PACKAGE



All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
