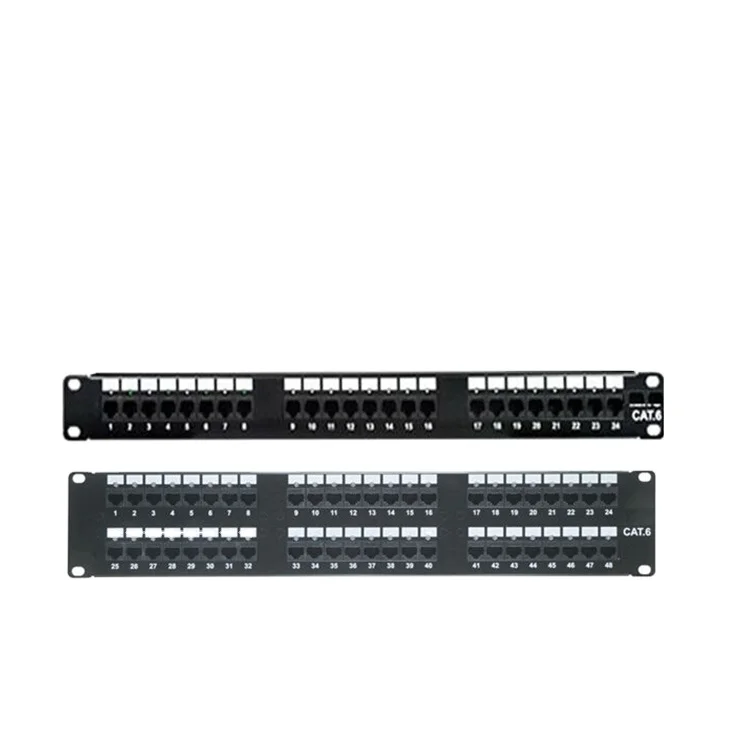

Lucktech Cat 6 светодиодный монитор 24 порта и 48 портов коммутационная

Описание и отзывы

Трекер стоимости

Характеристики

The Lucktech patch panel contains embedded dual color LED lights above each port to identify paths and troubleshoot your network. Guesswork caused by hard to hear tones is a thing of the past. Tracing ports, finding faults, especially with two people, makes port identification simple.

Features:

• 24 ports & 48 Ports


• Cat.5e rated


• Meets the TIA/EIA-568-B.2 / 568B.2-1 Cat.5e, ISO/IEC 11801 and EN 50173-1 specification.


• Supports T568A & B wiring scheme


• Rack mount


• Attached labels


• 110 terminations


• Two LED statuses (Steady/ Flashing) selectable for allowing two teams to work at the same time.


• Two LED statuses (Green/Red) for identifying on-line or off-line. (Connected to switch or not)


•  How simple is that? With two people, identifying ports is fast and easy.

  GREEN: Placing the transmitter in the wallplate port creates a green light on the panel which indicates the cabling path from plate to panel is OK. If the lit panel port is successfully connected to a network device, the light will become red. If the panel port is connected to a known good network device and the light is green, an open connection exists upstream from the panel.

  RED: Placing the transmitter in the wallplate port creates a red light on the panel if the path is from wallplate - panel - network device. If the light is green, and a known good network device is upstream from the panel port, an open connection exists upstream from the panel.
