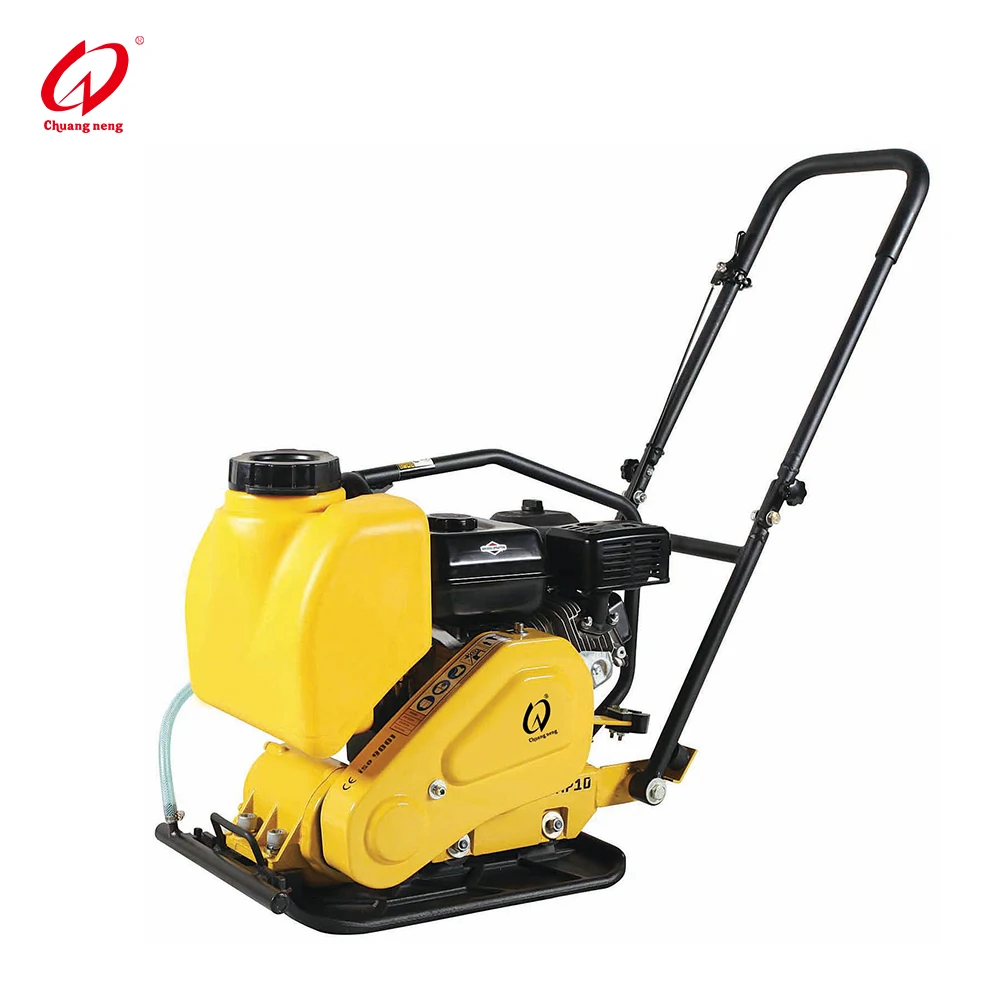

 FORWARD PLATE COMPACTOR

Plate compactor is ideal for sand, gravel and mixed soils in narrow trenches and along foundations,walls and abutments



Technical Specification:

Model	CNP10B
Engine Type	Honda GX160	Chinese Petrol Engine
Power kw(hp)	3.6(5.5)	4.1(6.5)
Weight kg(lbs)	64(141)	64(131)
Frequency vpm	5600
Centrifugal Force kN	10.5
Compaction Depth cm(in)	20(8)
Travel Speed cm/s(in/s)	40(16)
Efficiency m2/hr(ft2/hr)	518(5577)
Plate Size cm(in)	50*36(20*14)
Water Tank(L)	10
Package cm(in)	75*38*61(29.5*14.9*24)


Features:
Foldable handle for easy transportation and storage.
Open plate provides self cleaning.
Built-in wheel for easy transportation.
Heavy-duty shock mounts reduce vibration to the upper engine and handle.
Sealed belt cover to prevent sand and oil in.
Round edge protect the exciter housing and even objects around working site.
Lifting hook as standard part.
Throttle control is available as optional.



Certification





Introduction Of Company

       Wuxi Chuangneng Machinery Manufacturing Co., Ltd. is a high-tech enterprise specialized in research, development and manufacture of light construction machines with a history of over 10 years.  Our products range are covering compaction, concrete, cutting, generator, rebar and other construction fields. Most products have passed the tests by the TüV Rheinland, achieved the CE and GS certificates.
