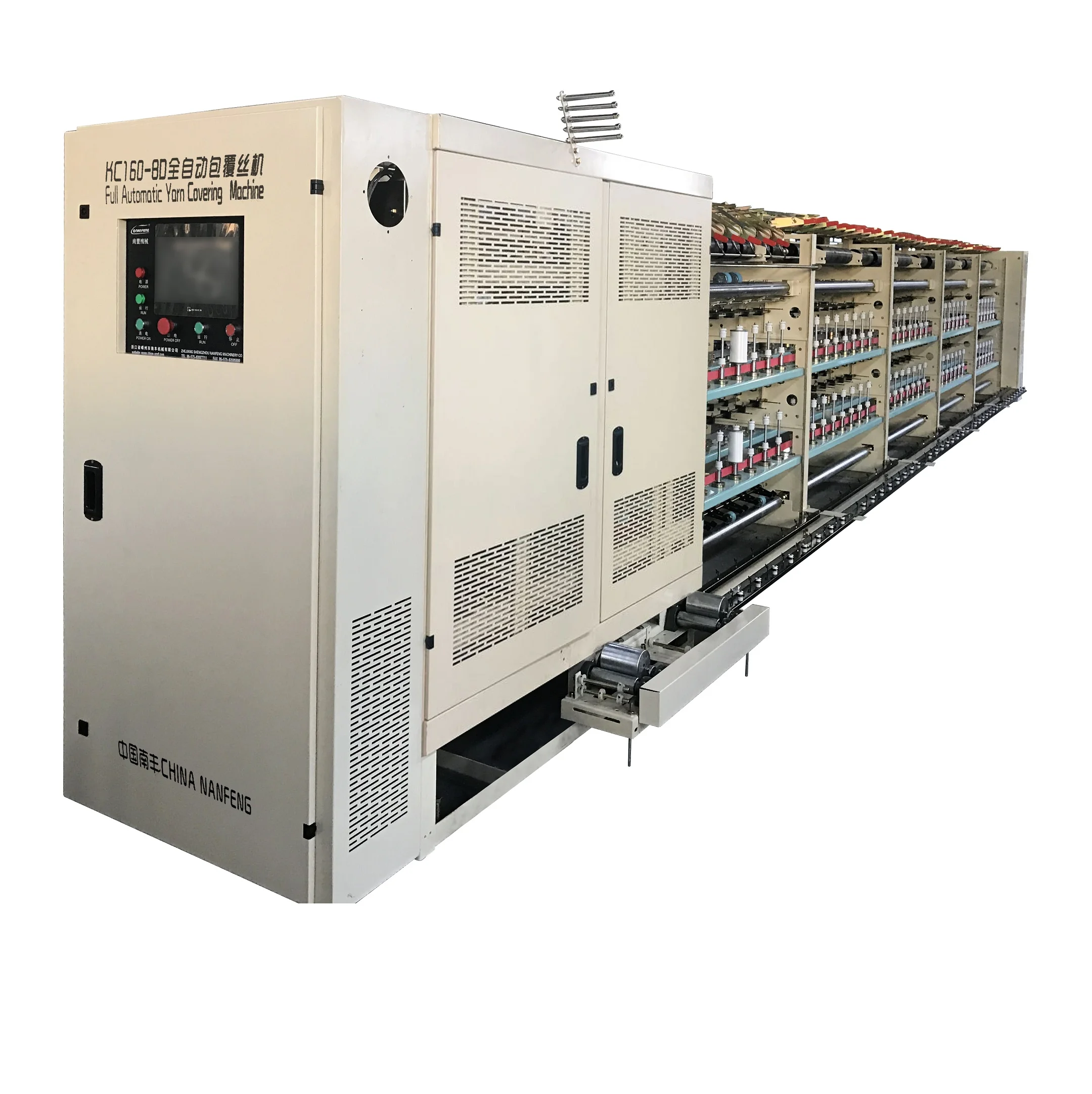

Машина для покрытия пряжи
- Категория: Home Textile Product Machinery >>>
- Поставщик: Shengzhou,Nanfeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 27965.64 $* | 29363.87 $* |
| Aug-19-2025 | 27730.8 $* | 29117.96 $* |
| Jul-19-2025 | 23265.35 $* | 24428.60 $* |
| Jun-19-2025 | 27260.12 $* | 28623.36 $* |
| May-19-2025 | 23735.73 $* | 24922.72 $* |
| Apr-19-2025 | 26790.79 $* | 28130.86 $* |
| Mar-19-2025 | 26555.41 $* | 27883.85 $* |
| Feb-19-2025 | 26320.44 $* | 27636.95 $* |
| Jan-19-2025 | 26085.20 $* | 27389.71 $* |
Характеристики
Product Description
Specification
TYPE | Two sides and two layers | |||
Overall dimension (L*W*H ) | 11000 x 1000 x 16000 | mm | ||
each section length | 1830 | mm | ||
Section no. | 5 | Section | ||
Spinlde | ||||
Spindle no . | 160 | Spindle | ||
Each section spindle no. | 32 | Spindle/section | ||
Spindle gauge | 205 | mm | ||
Spindle speed (max) | 15000 | rpm | ||
direction | S/Z | |||
Twist no. | 200-2500 | Tpm | ||
Aluminum Bobbin Size | 30X36X84X140 | mm | ||
take up .Draft | ||||
Take up forming mode | Mechanical traverse | |||
Take up Bobbin size | 158 | mm | ||
Position of single covering | 80 | Position | ||
Position of double covering | 80 | Position | ||
take up bobbin weight | 1200 | g | ||
Draft | 1.5-6.0 | Multiple | ||
Power | ||||
Main motor (2 motor) | 4 +5.5 | (kw ) | ||
Voltage | 380 V 3 PHASE 50HZ | |||
